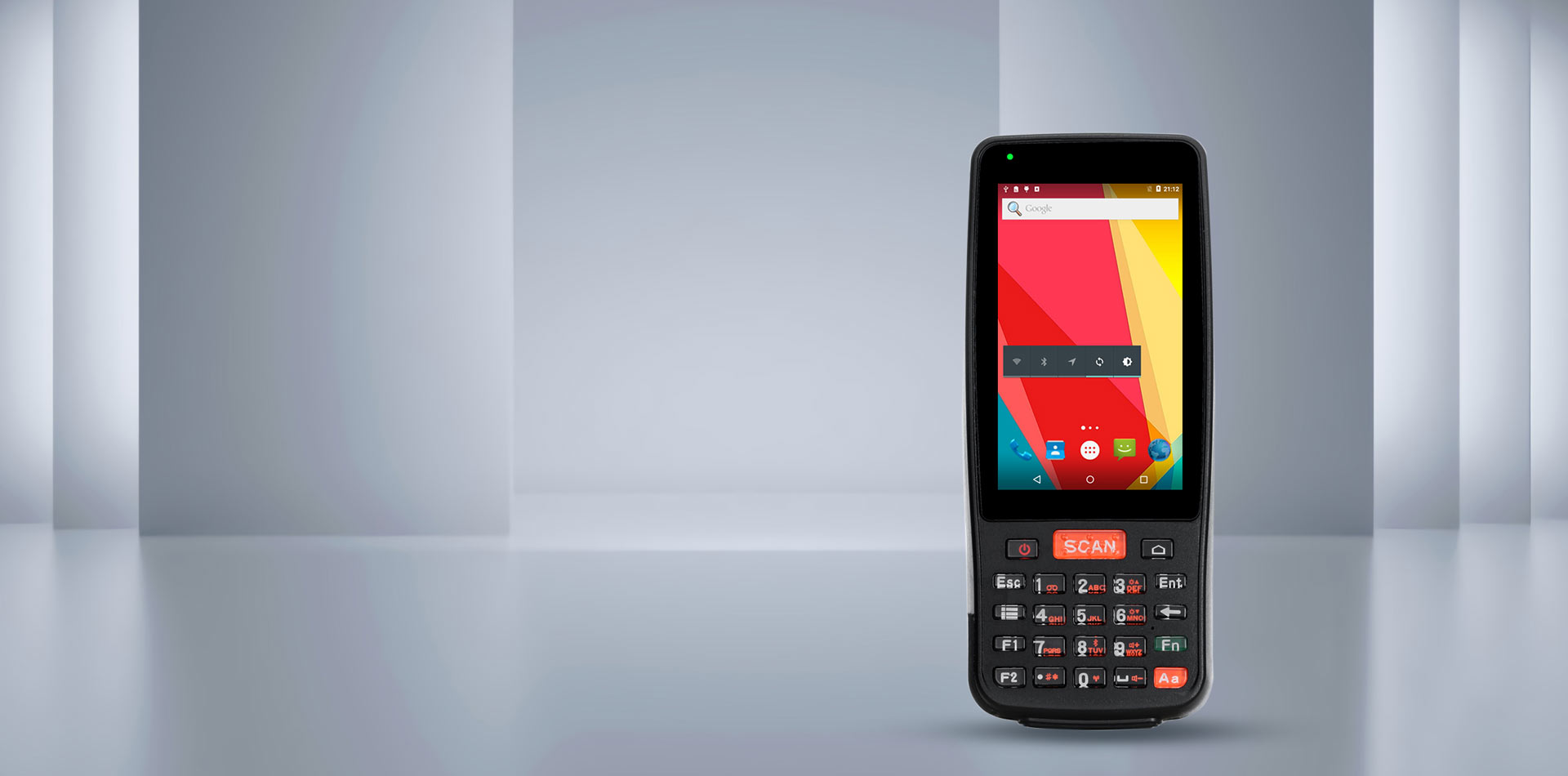

PDA - 401

Full Netcom Handheld Smart Terminal

High-performance configuration is
more outstanding

ARM Cortex A53 Quad-core 64bits 1.3GHz

Android6.0 /7.0 Operating System

2GB ROM + 16GB RAM (optional 32GB ROM + 3GB RAM)

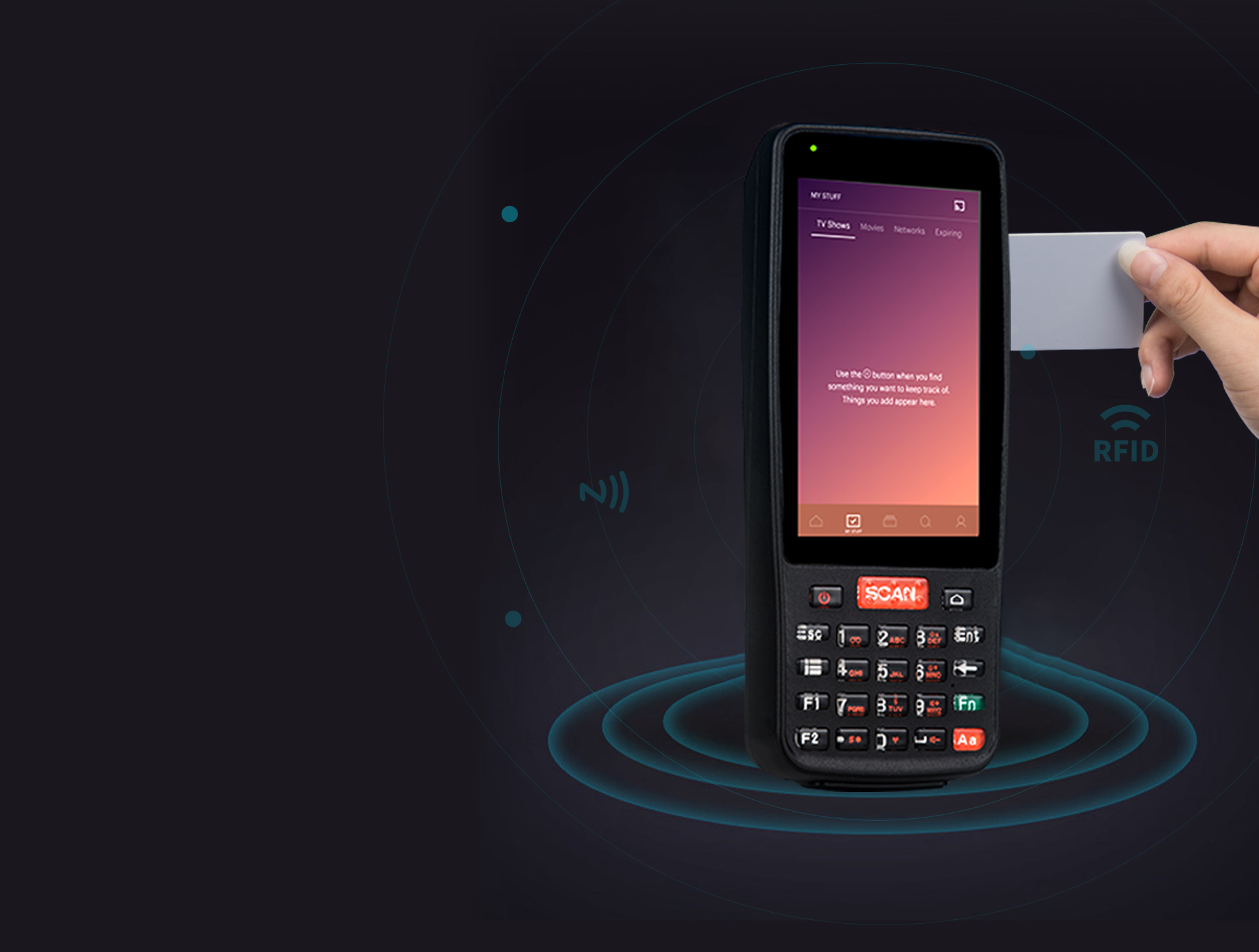

Support NFC to expand more possibilities

Support NFC short-distance communication technology, high security,
fast link, stable and low power consumption,

can meet the characteristics of applications such as user authentication,
electronic payment and other applications

optional UHF to meet the higher requirements of customers.

Reading speed 1/60s

Reading distance 3m

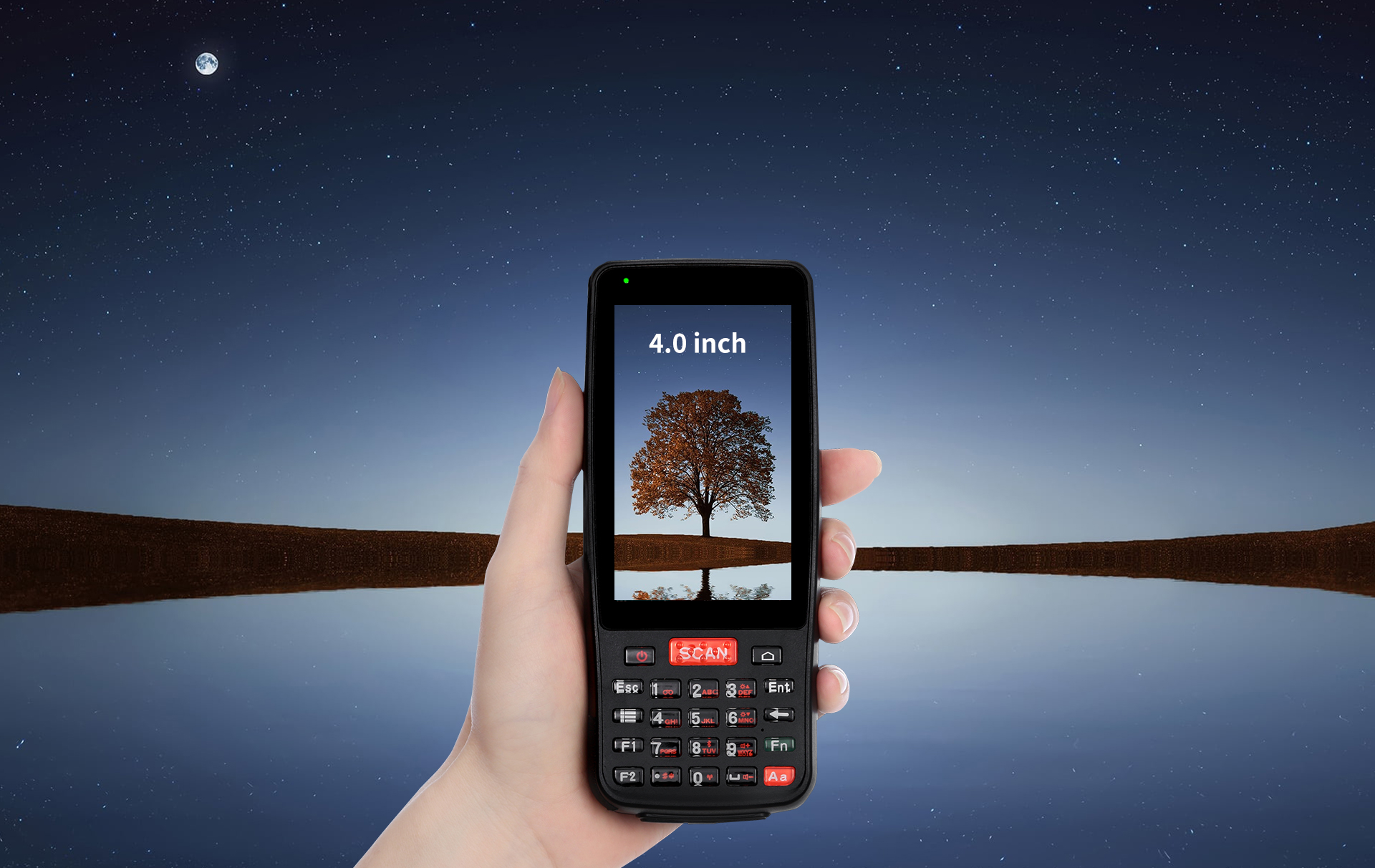

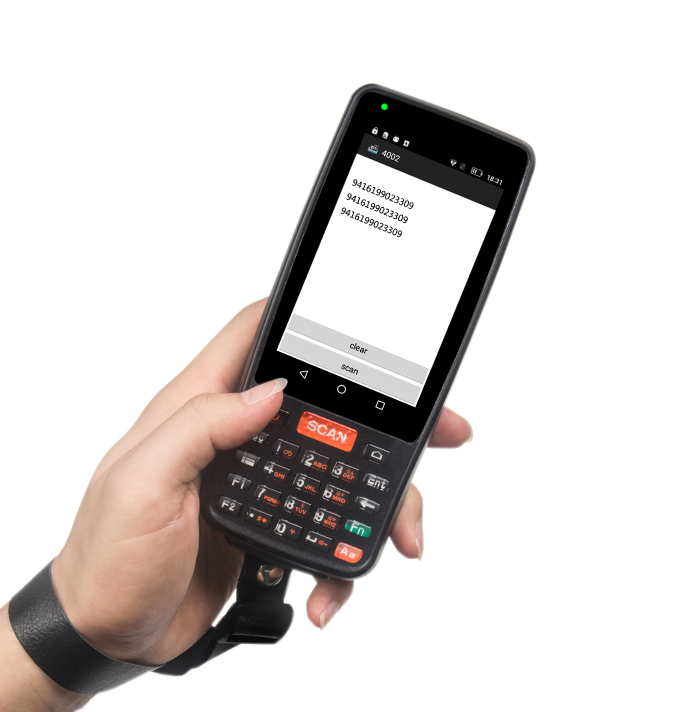

4-inch high-definition screen

its body is thin and light, easy to operate and it is more comfortable
and convenient to hold with one hand

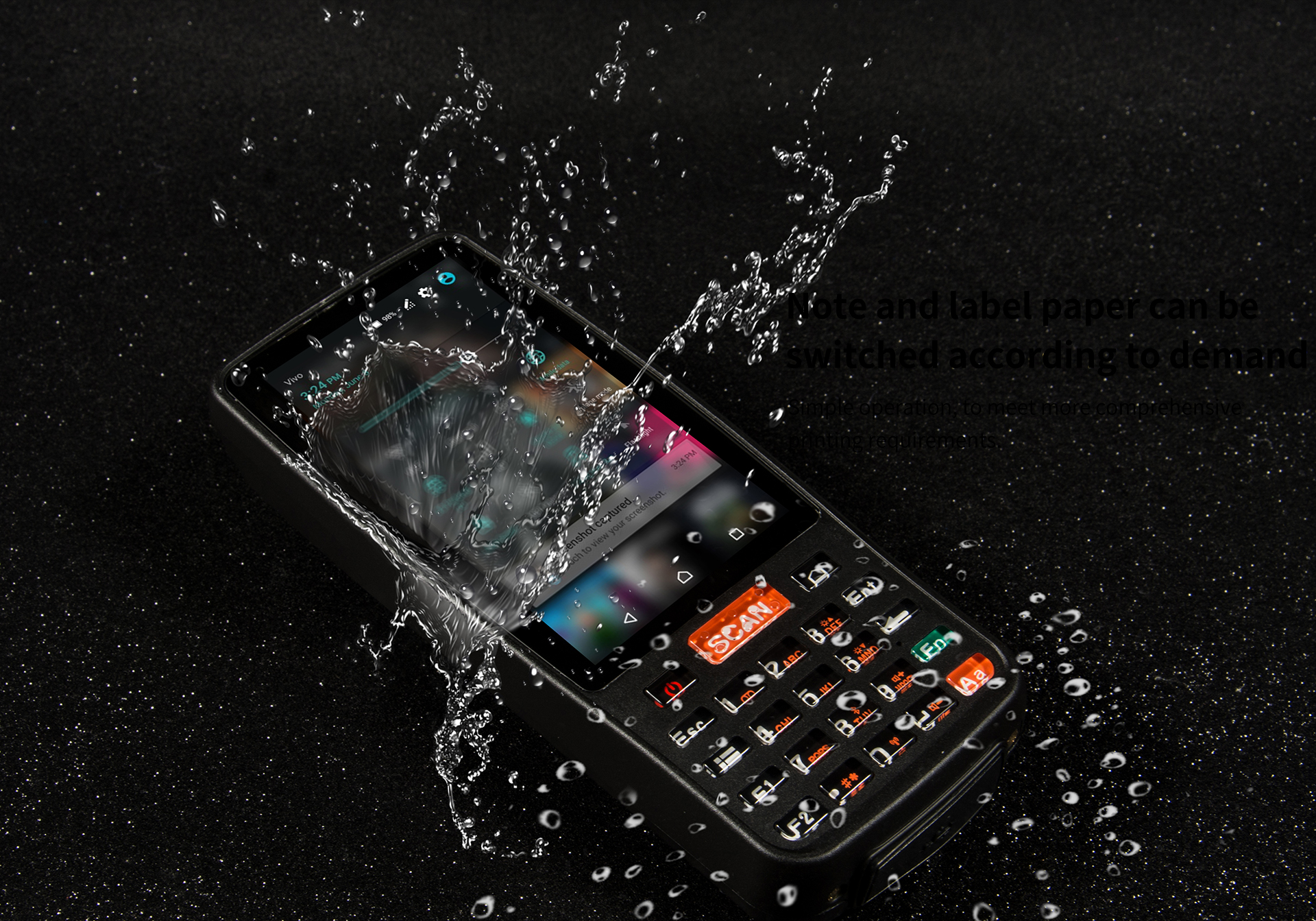

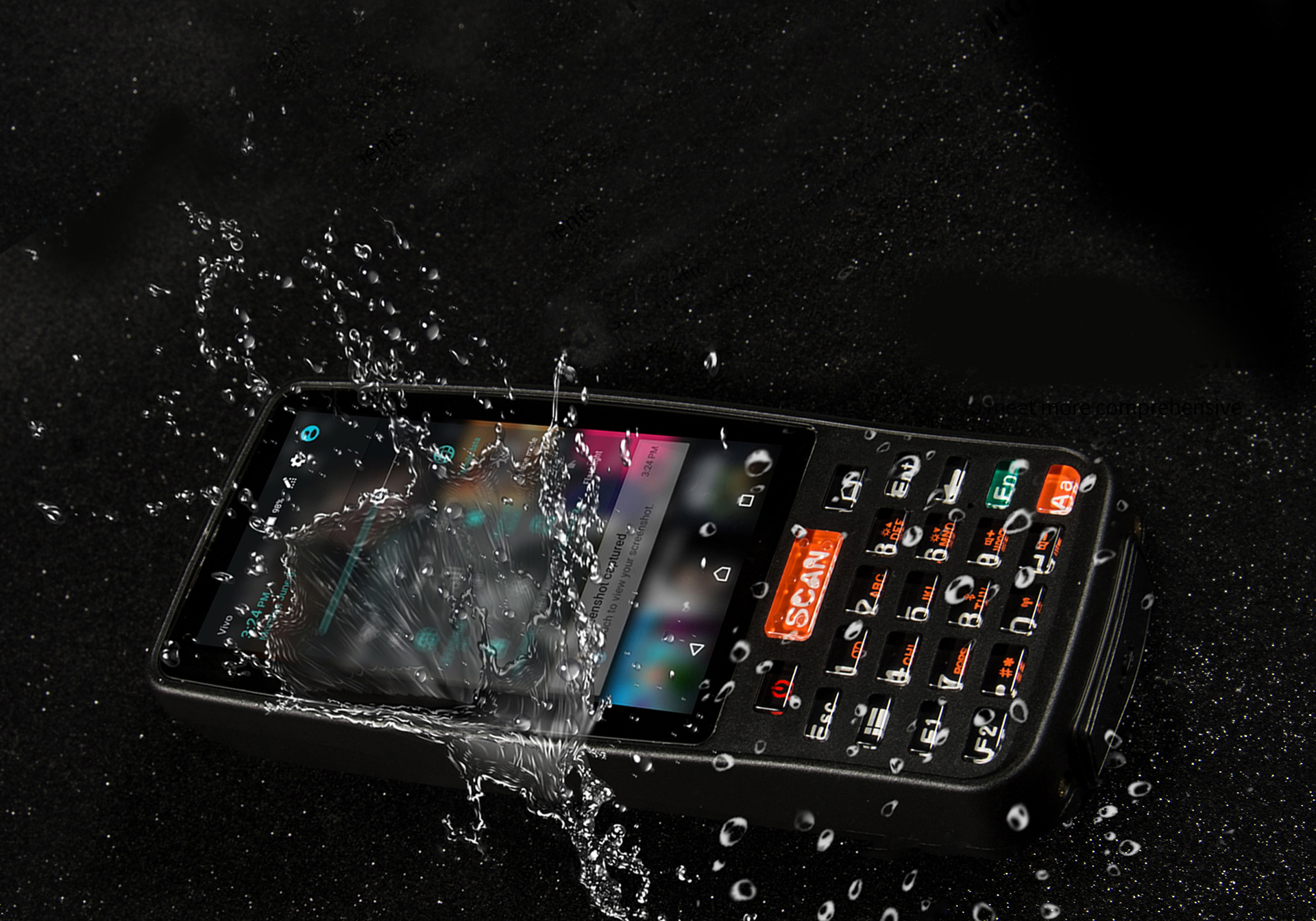

Dustproof waterproof and anti-drop

Strict and meticulous production process, IP65 protection grade,
not only dustproof and waterproof but also specially designed
to adapt to the harsh working environment make

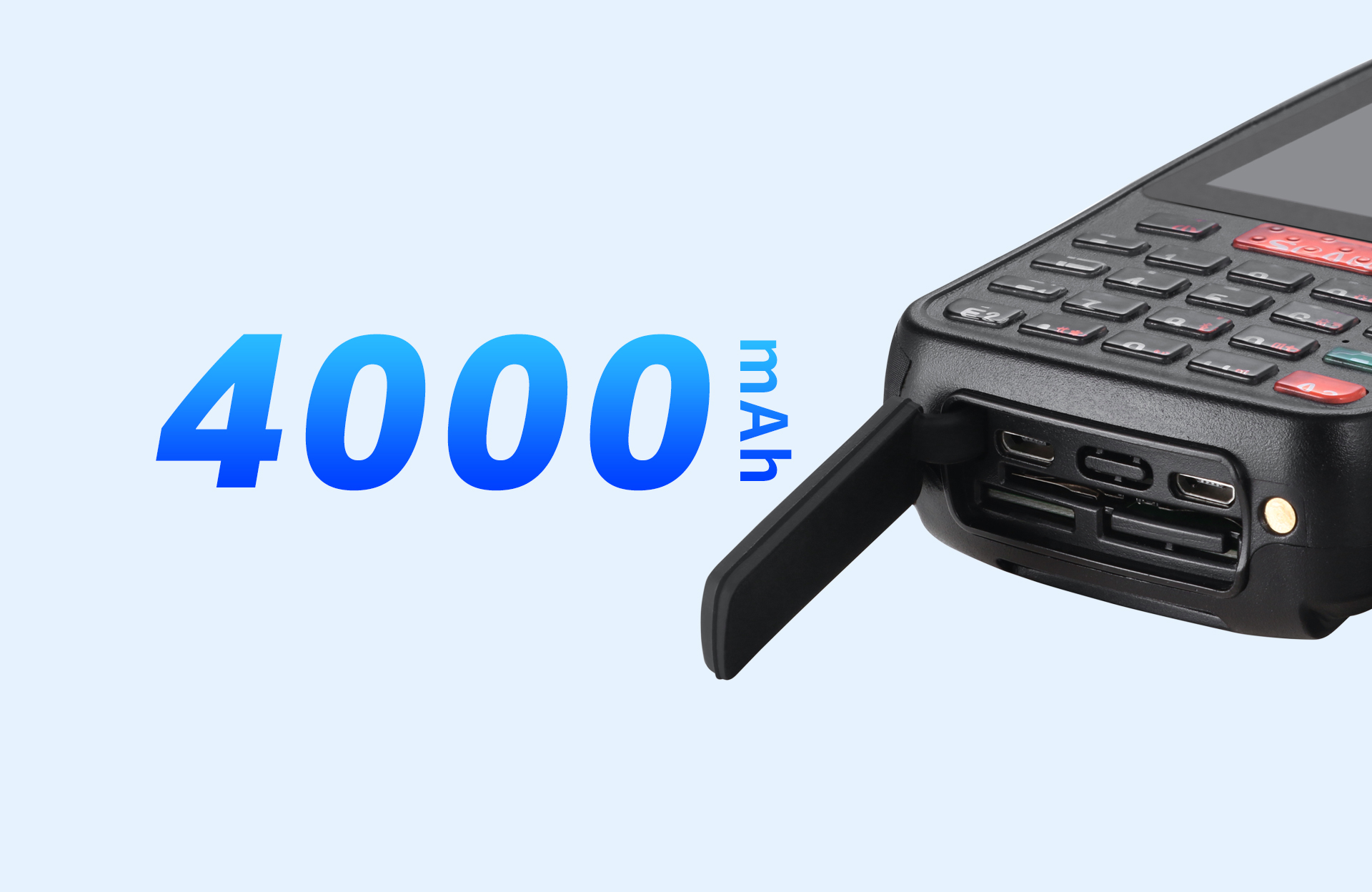

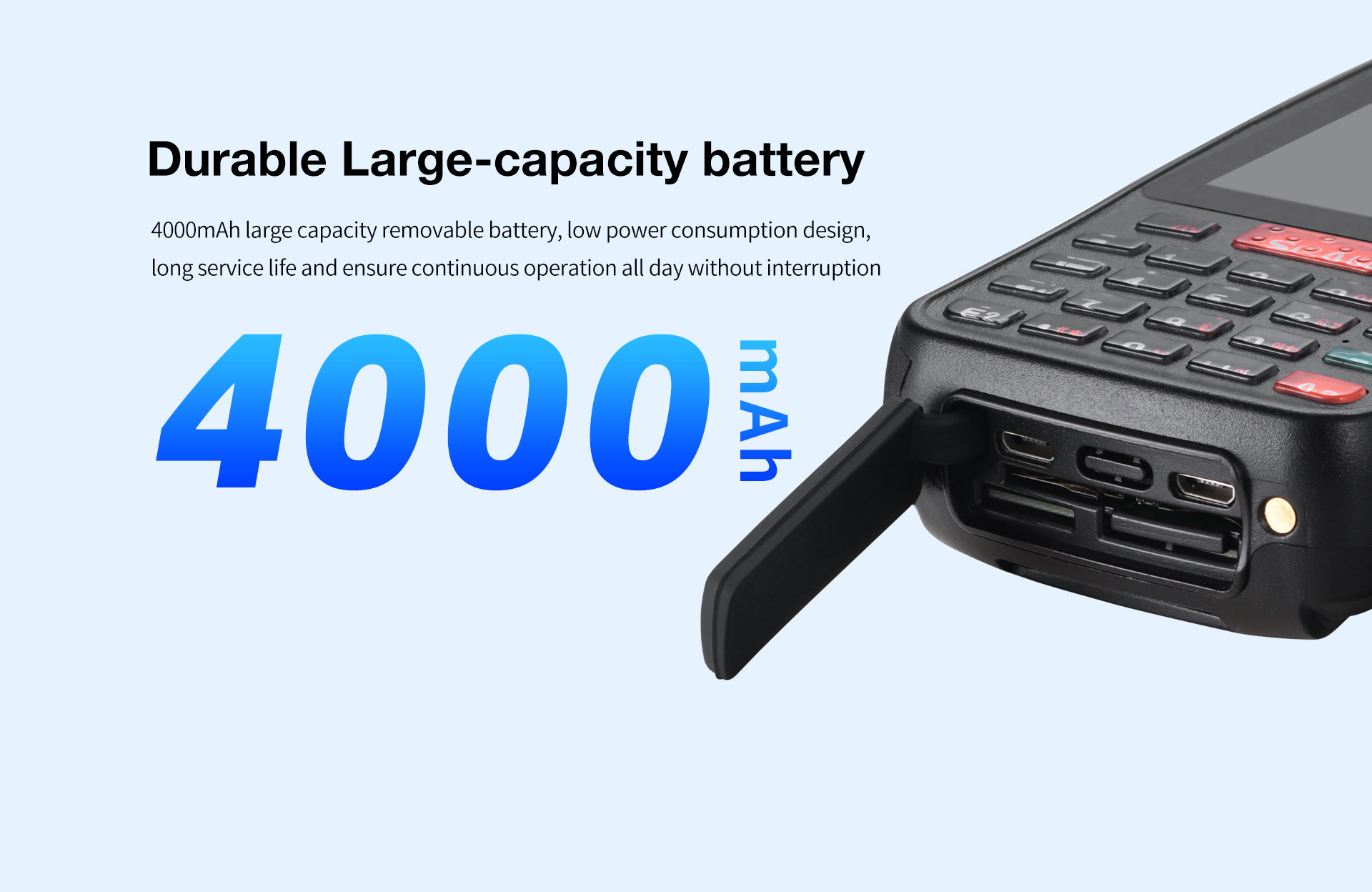

durable Large-capacity battery

4000mAh large capacity removable battery, low power consumption
design, long service life and ensure continuous operation all day
without interruption

Handy Business With Multiple Accessories

  • Wrist strap
  • charging base

Wrist strap

Optional wrist strap for daily mobile use and hang in hand for other tasks cradle charger

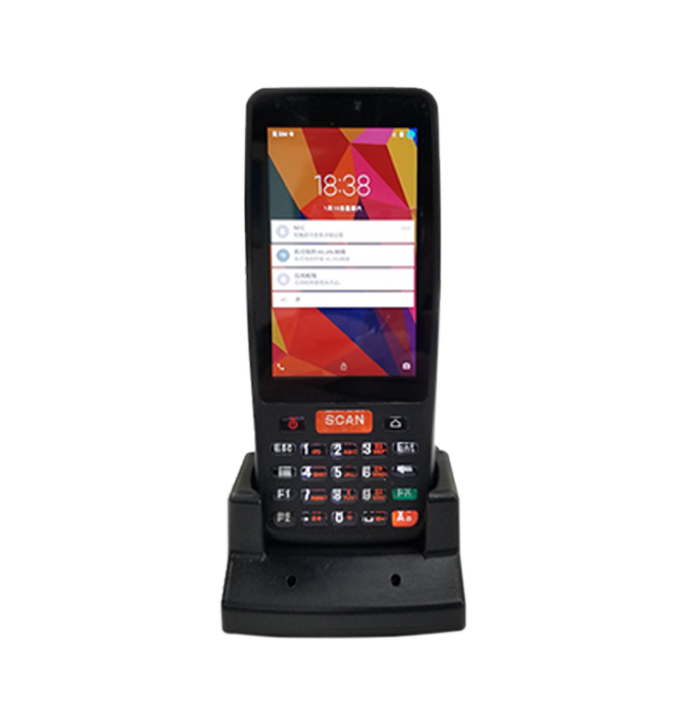

charging base

Optional charging base, optional supporting portable battery and more efficient mobile office

PDA-401 Product Parameters

System Configuration

Processor

ARM Cortex A53 Quad-core 64bits 1.3GHz

O.S

Android 6.0/7.0

Memory

16GB ROM+2GB RAM

Ex-Storage

Micro SD (Up to 64GB)

Display

4.0inch IPS 480x800 High Resolution

Camera

AF 5.0M(8.0M) Pixels with LED flash light

Touch Panel

Industrial-grade capacitive touch panel

Keypad

23 anti-wear, within the light waterproof industrial keyboard

Notification

Vibrator/LED/Speaker

Battery

3.7v 4000mAh rechargeable lithium polymer battery

Audio

Built-in microphone/Speaker

Sensor

G-sensor

Interface

Micro USB/Serial Port(TTL)

Structural Parameters

Dimensions(L x W x D)

162mm×70mm×31mm

Weight

345g(battery included)

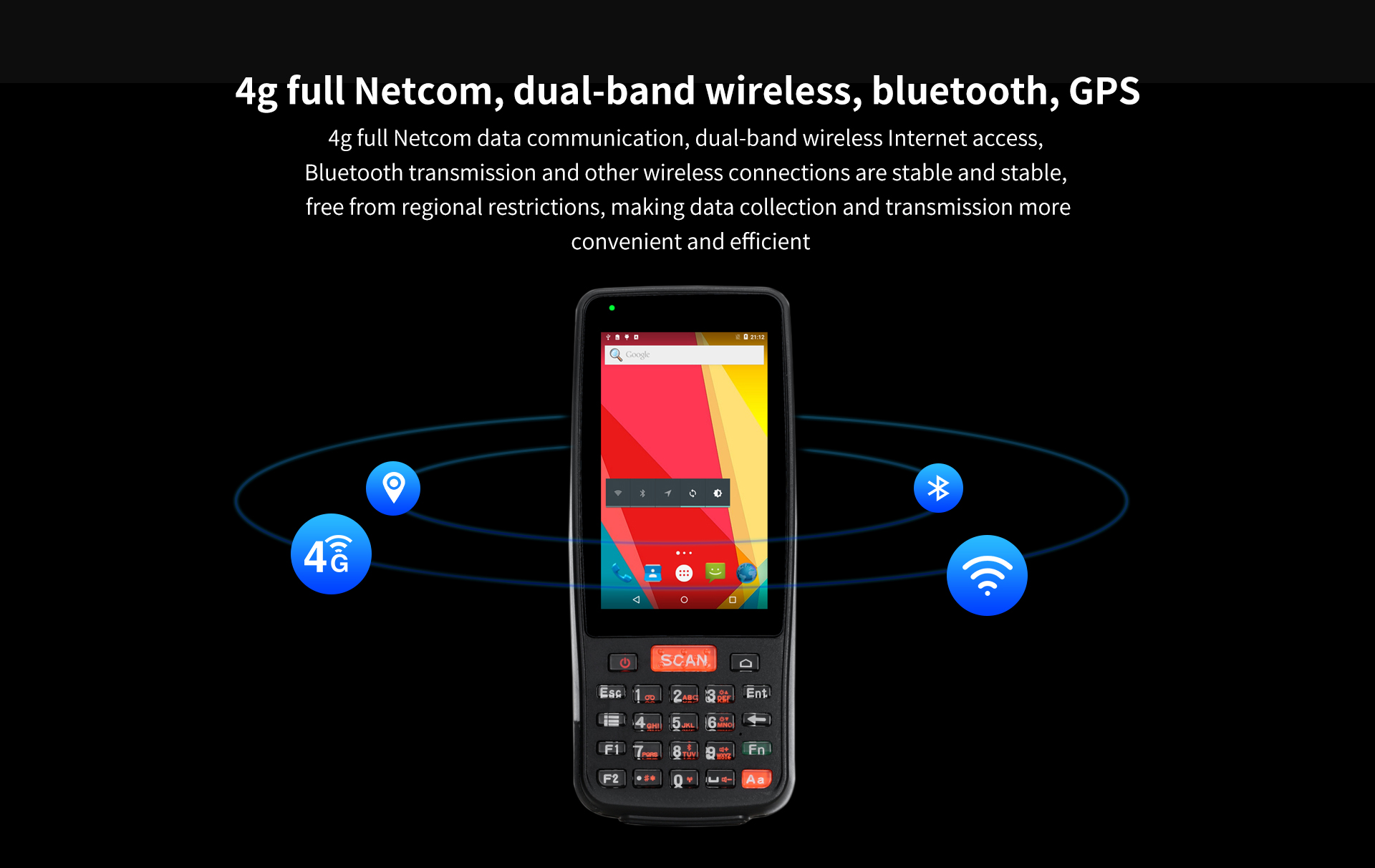

Communication Transmission

Mobile Network

3G： WCDMA:850/900/1900/2100MHz CDMA/EVDO 800MHz
GSM: 850/900/1800/1900MHz
4G：LTE-FDD:B1/B3/B7/B8/B28 LTE-TDD:B38/B39/B40/B41

Wi-Fi

IEEE 802.11 b/g/n

Bluetooth

Bluetooth 4.0

GPS

Supporting GPS/AGPS

NFC/HF RFID/PSAM

Protocol

ISO/IEC 14443A/B,ISO15693

Frequency

13.56MHz

NFC type

Type1-4Tag/Mifare/Felica

PSAM

IS0/IEC 7816 1-4

Operating Environment

Develop Tools

Android SDK + JDK + Eclipse

P-Language

Java

Operating Temp.

-10°~ 50°C

Storage Temp.

-20°~ 70°C

Humidity

0 ~ 95% (non-condensing)

Sealing

IP65

1D Laser Scanner

Speed

100 lines/sec

Scan Angle

±50°

Identification accuracy

≥4mi

Decoding Type

UPC-A，UPC-E，UPC-E1，EAN-13，EAN-8，ISBN/ISSN，Code 39，code39 (ASCII full)， Interleaved 2 of 5，Industrial 2 of 5,Matrix 25,Codebar(NW7)，Code 128，UCC/EAN 128，ISBT128，code 93，MSI/Plessey，UK/Plessey，China post，GS1 Data Bar

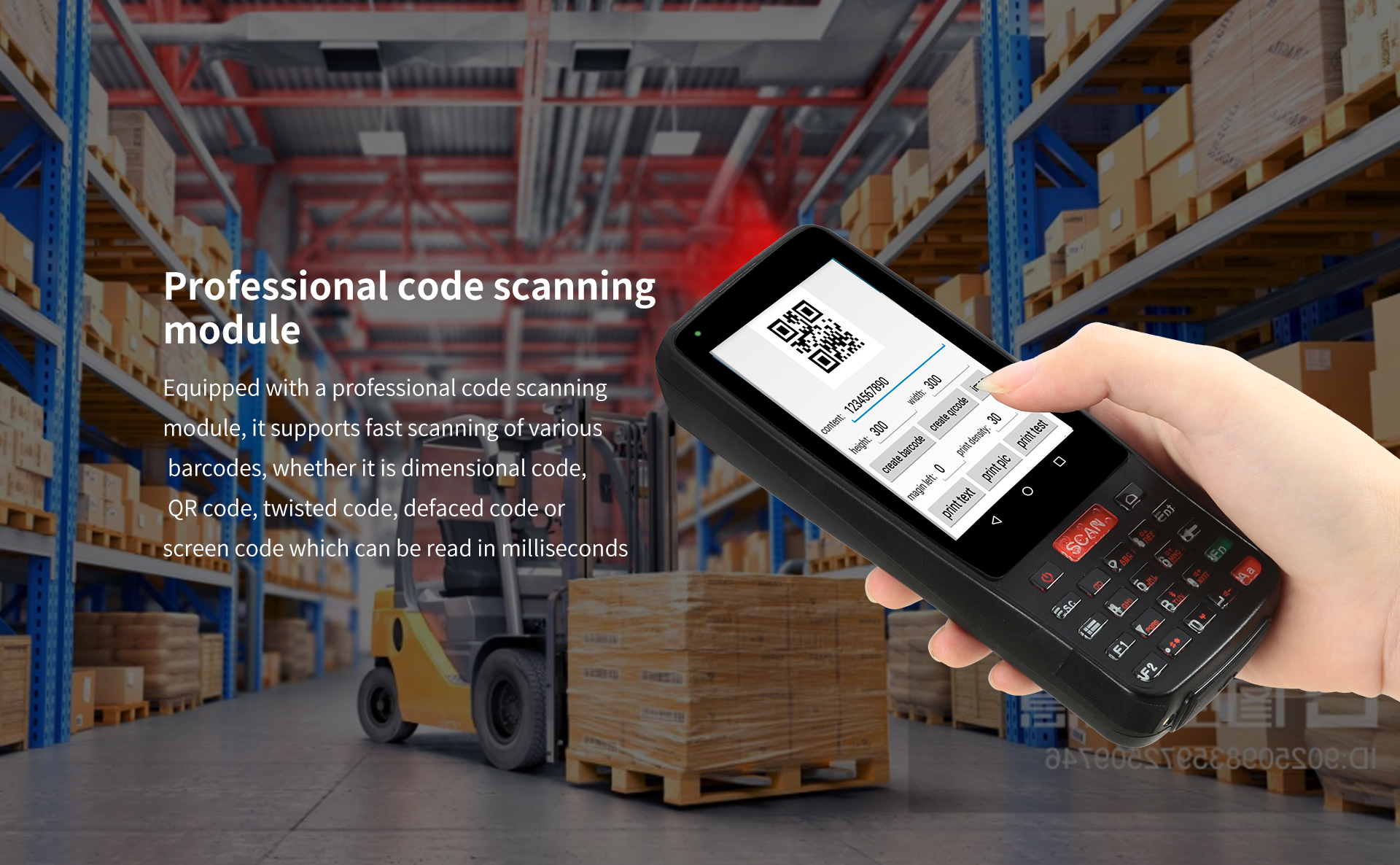

2D Image Scanner

Method

CMOS Image

Scan Speed

60scans/sec

Scan Angle

360 ° angle, Elevation angle ± 55 °, Eeflection angle ± 55 °

Identification accuracy

2D≥7.5mil，1D≥5mil

DPM

Support DPM scanner (optional)

Decoding Type

QR Code, Data Matrix, PDF417，UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar

UHF RFID(Optional)

Frequency

902Mhz-928Mhz、865MHz-868MHz(optional)

Protocol

EPC global UHF Class 1 Gen 2/ISO 18000-6C

Capture Range

1-2m

Output Power

18-26dBm
