10.1 inch Rugged industrial Android tablet

QS - 1002

10.1 inch Rugged industrial Android tablet

Suitable For A Variety Of Environments

applications

Widely Used In Express Logistics, Financial Insurance, Warehouses,
Retail Stores, Supermarkets And Other Industries

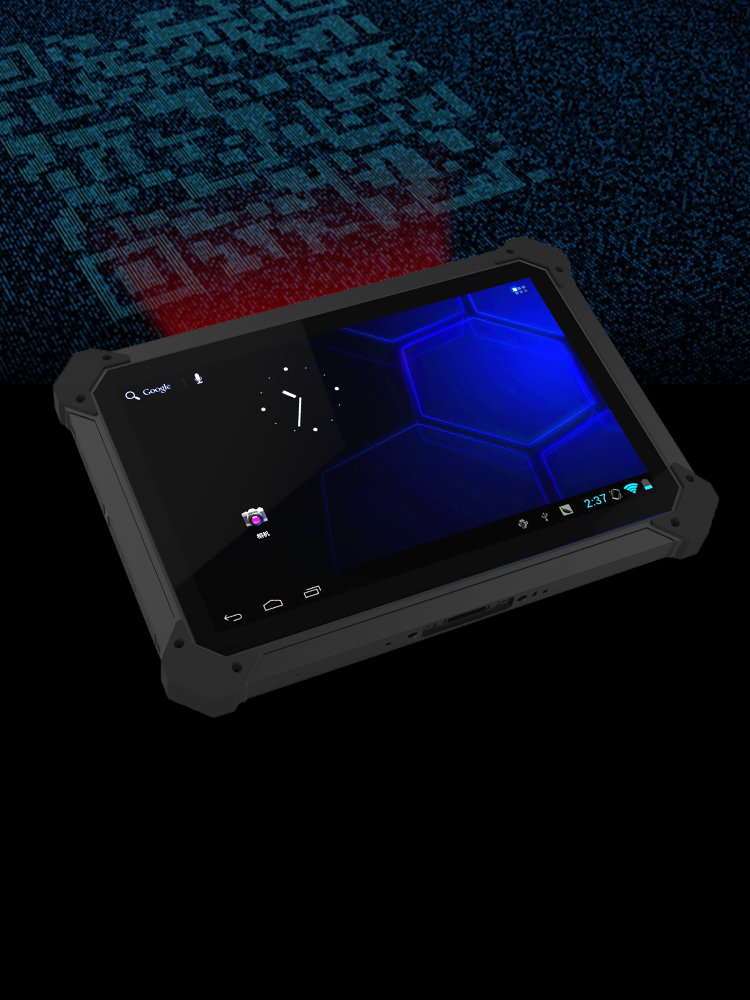

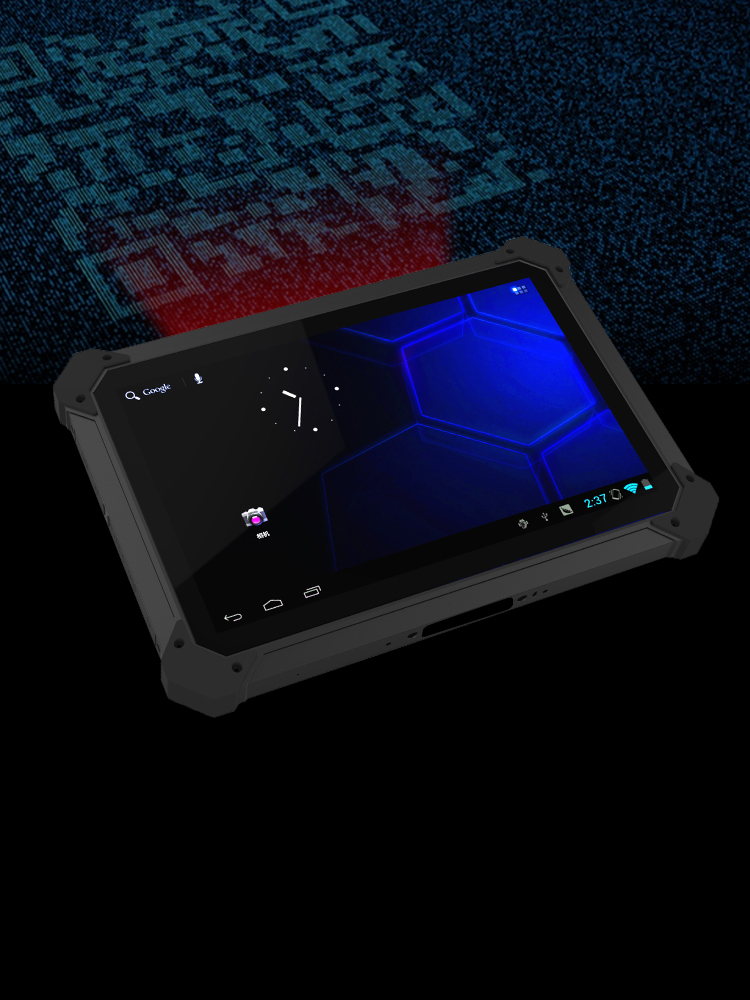

Professional Scanning Engine

It has an international professional scanning code module, which
can quickly identify the old barcodes of 1D/2D/distorted/broken
that are commonly used internationally, so as to maintain
efficient work at any time

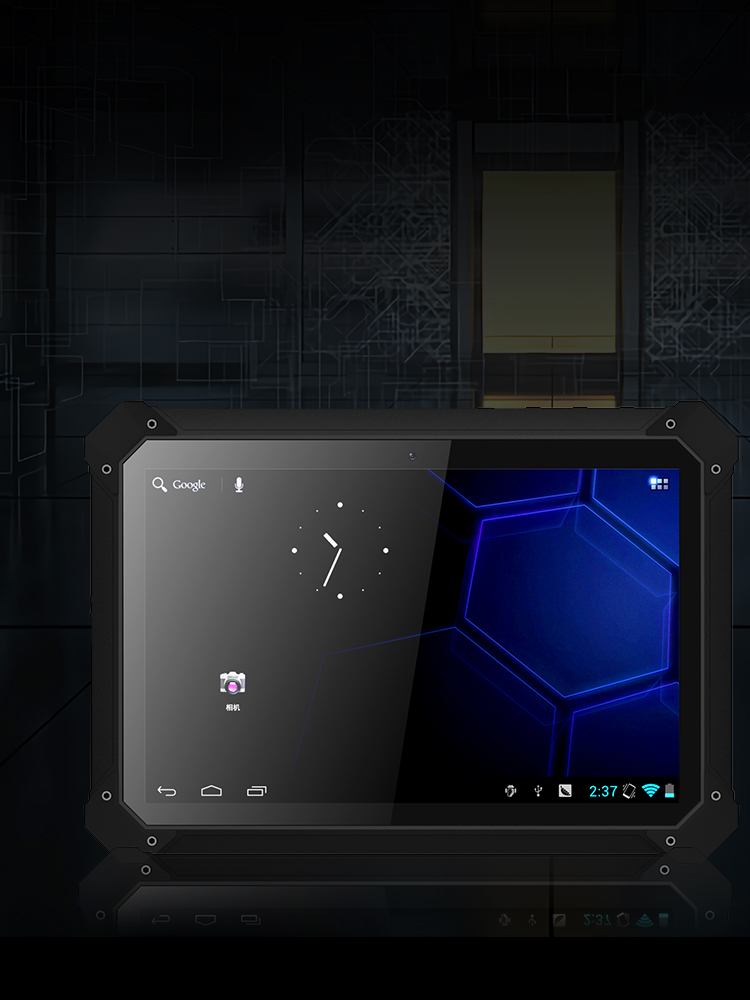

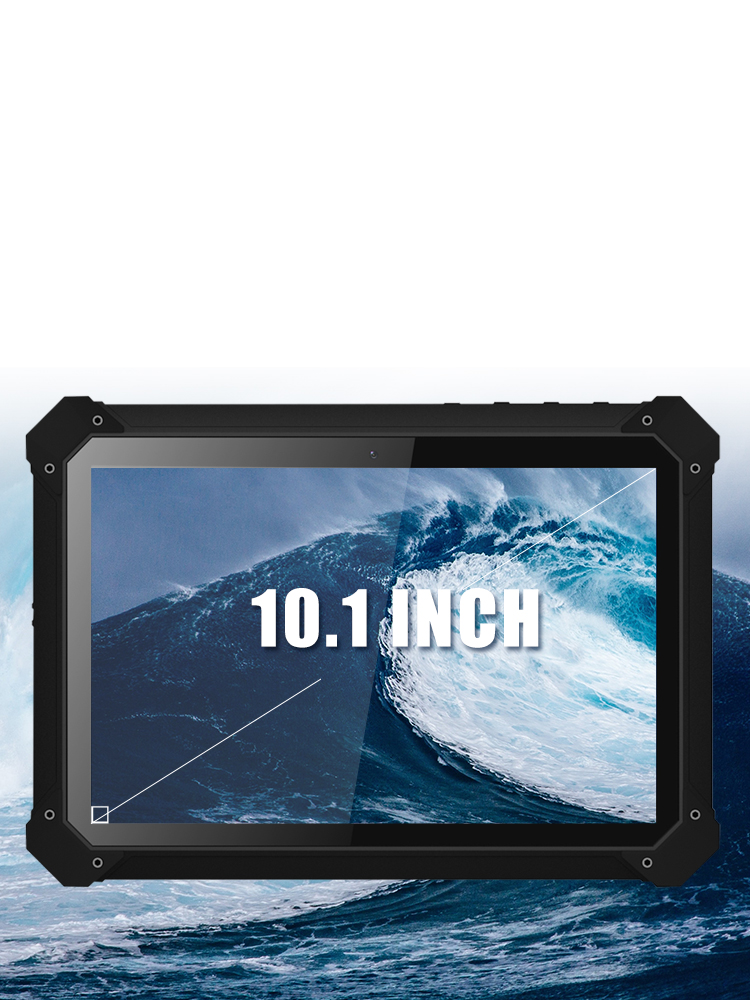

10.1-inch high-definition screen

The 10.1-inch IPS ultra-clear large screen with a display resolution
800*1280 or 1200*1900 allows the perfect presentation of work information and
detailed data at a glance. From then on, instead of being fatigue,
inefficiency, and sufficient display area to get more information at a glance

NFC short-range wireless communication

Built-in proximity sensor identification chip, using mobile terminals
to realize mobile payment, electronic ticketing, anti-counterfeiting

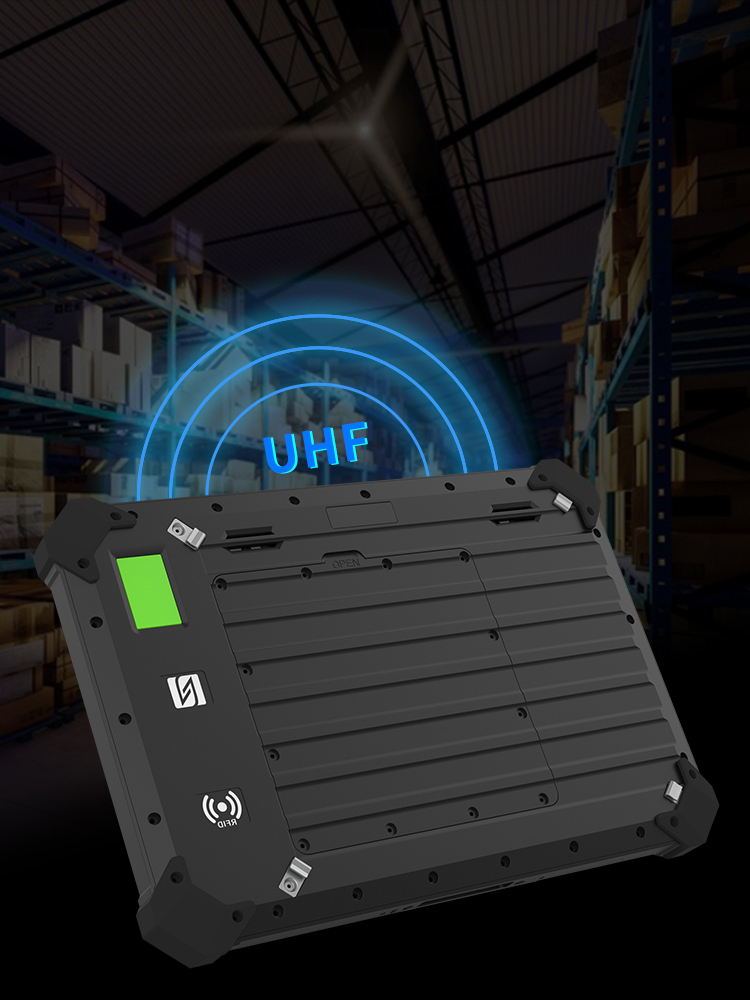

and other industrial applications,UHF UHF RFID (optional) and
providing long-distance reading function

Customized fingerprint recognition

Using high-performance fingerprint identification chip, it can
quickly and accurately identify fingerprints.Realize fast fingerprint
unlocking, protect precious data and escort enterprise information security.

High-performance chip, smooth use without fear of lag

Octa-core

Equipped With MTK Helio Octa-core
High-Performance Processor

6GB RAM+128GM ROM

Large Memory

Android 11.0

Operating System

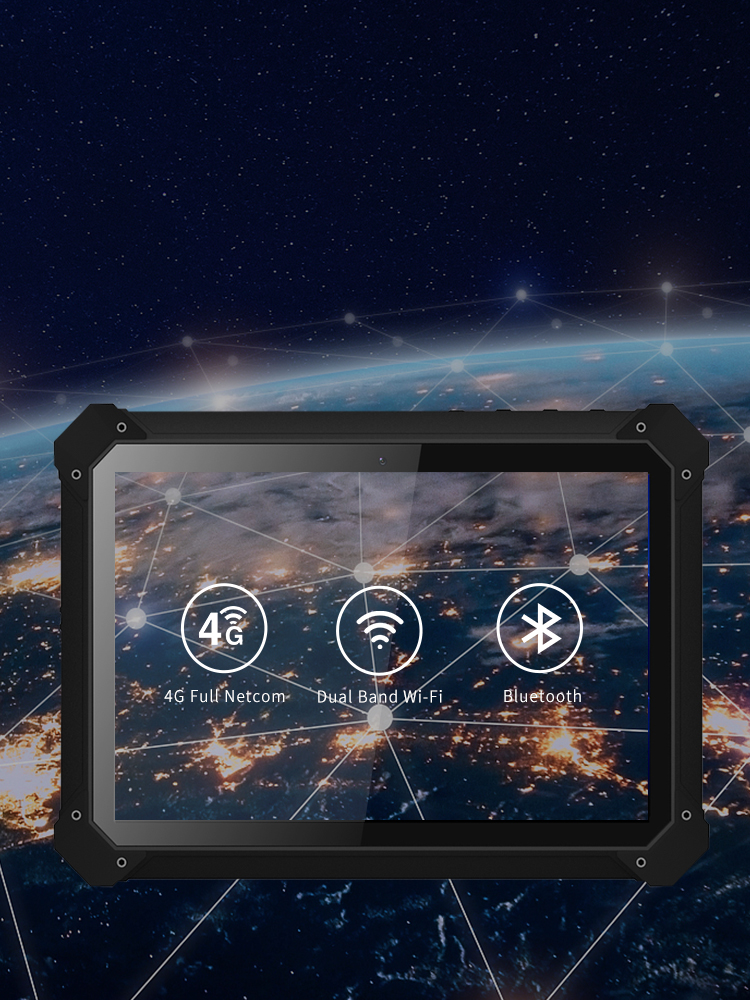

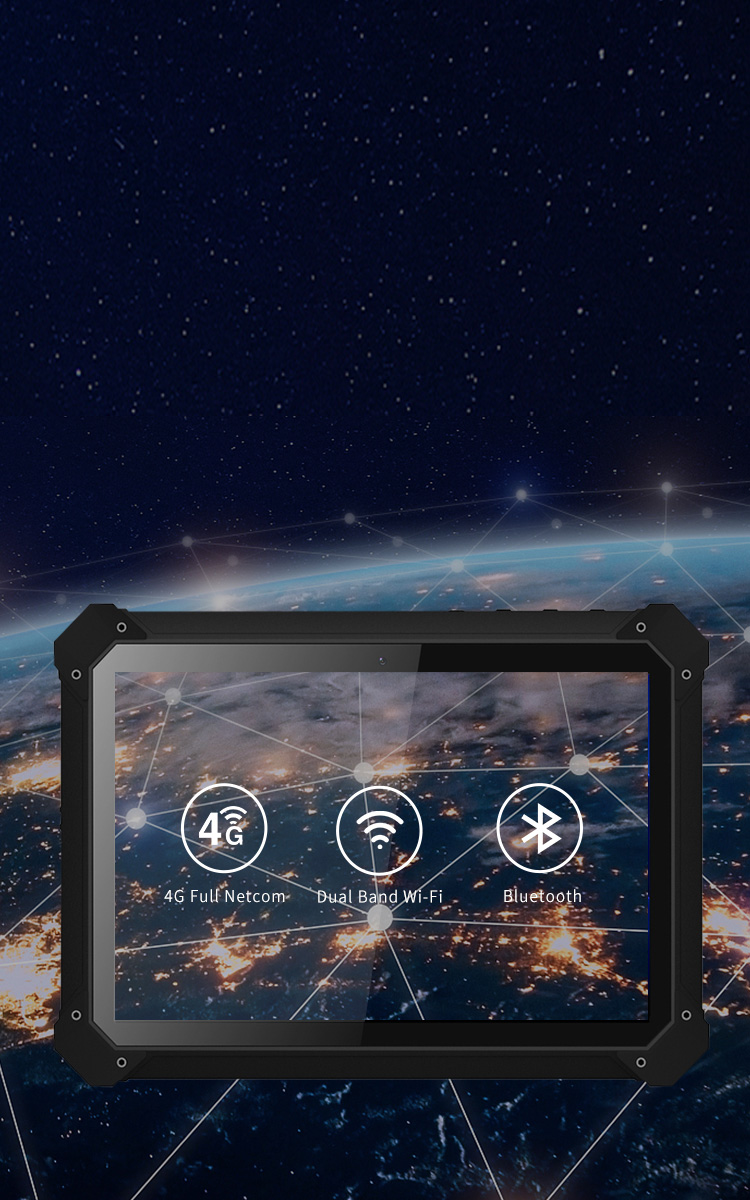

4G full Netcom, dual-band WiFi, Bluetooth , GPS

4G full Netcom data communication, dual-band WiFi, Bluetooth
transmission distance and other wireless connection methods
are stable and smooth, without geographical restrictions, enjoy
high-quality network communication and fast datatransmission
anytime, anywhere and complete data collection and transmission
work more conveniently and efficiently

IP67 advanced protection level

IP67 protection grade, dust-proof and waterproof, can withstand the
impact of 1.5 meters drop to the ground, shock-resistant and
fall-resistant, industrial-grade quality and so that you can use it
with confidence in harsh and harsh environments.

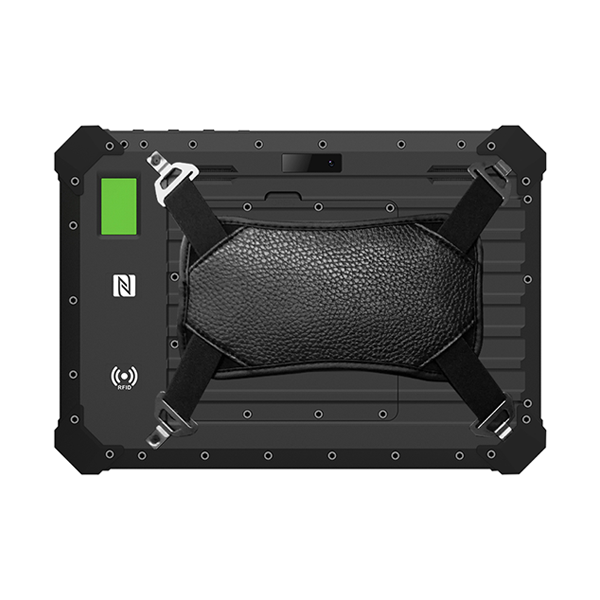

Handy Business With Multiple Accessories

Wrist strap

Optional wrist strap for daily mobile use and hang in hand for other tasks cradle charger

QS-1002 Product Parameters

Structural Parameters

Size

280*198*28 mm

Weight

1030g(battery included)

Keypad

Power button,scanner button, volume button

Battery

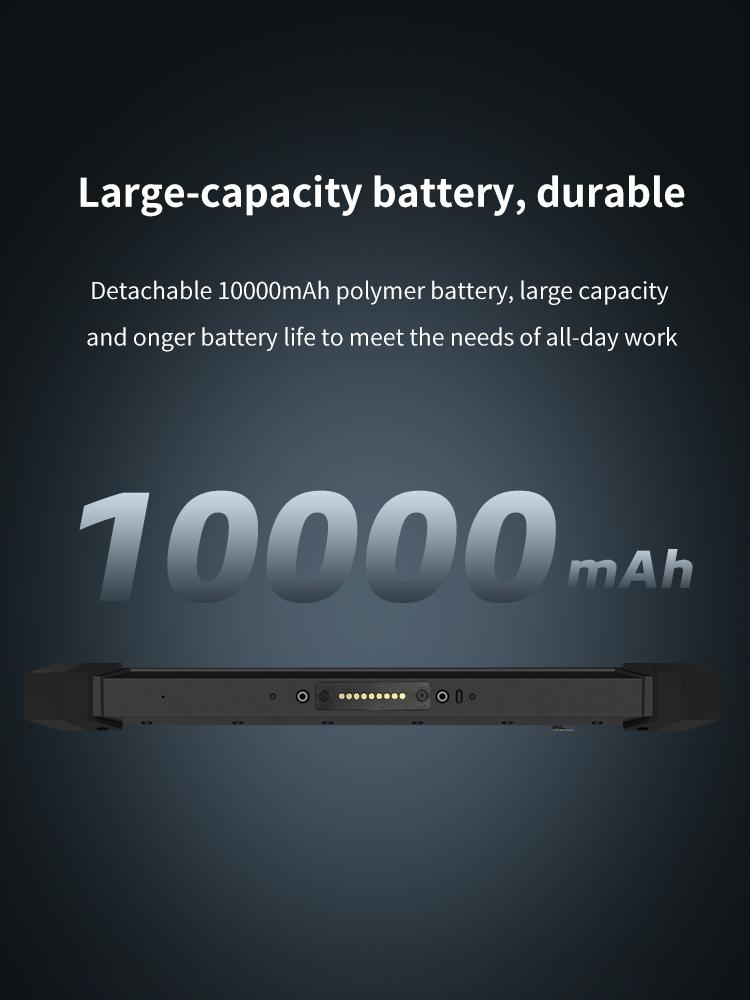

10000mAh rechargeable lithium polymer battery(removable)
Standby time>500h(Only with the host battery installed)
Working time>12h(It depends on usage and network environment)
Charger time 3 h

Speaker

support

Shake

support

Display

10.1 inch IPS 1280x800 pixs
Optional 1920*1200 FHD Screen

Touch Panel

G + G glass, support multi touch, support glove or wet hand operation

Sensor

G-sensor、Vibrating motor

Camera

Front: 5MP Camera
Back:AF 8.0M Pixels autofocus with LED flash light

Card slot

1pcs SIM slot ,1pcs PSM slot,1pcs TF slot

Interface

Micro USB/MINI USB Extend Serial Port/USB 2.0

Earphone

3.5mm standard headphone interface

Quick charge

5V-3A 9V-2A Quick charge

System Configuration

CPU

Cortex-a53 eight core 64 bit 2.0GHz high performance processor

RAM+ROM

4GB+64GB
6GB+128GB(optional)

Operating Environment

O.S

Android 11(64 bit)

SDK

Android SDK + JDK + Eclipse

P-Language

Java

Develop Tools

Eclipse/Android Studio

Working Environment

Operating Temp.

-20 ℃~+50 ℃

Storage Temp.

-40 ℃~+70 ℃

Humidity

0 ~ 95% (non-condensing)

Drop specification

Within the scope of operation, 6 sides are subjected to the impact of 1.5m falling to the concrete

Electrostatic Protection

± 15 kV air discharge, ± 8 kV contact discharge

Rolling Test

After 1000 rolling times and 0.25m, the six contact surfaces still run stably, reaching IEC rolling specifications

Sealing

IP67, up to IEC sealing standard

Communication Transmission

WLAN

2.4g/5g dual band, support 802.11 a / B / g / N / AC /, IPv4, IPv6;

WWAN

2G: 850/900/1800/1900MHz
3G: CDMA EVDO: BC0
WCDMA850/900/1900/2100MHz
4G:B1/B3/B5/B7/B8/B20/B38/B39/B40/B41

Vo-LTE

Support VO LTE HD video voice call

Bluetooth

BT4.1

GNSS

GPS/BEIDOU/GLONASS A-GPS

Data Collection(Optional)

Scanning engine

Newland N1 2D scanner , support scan ning 1D or 2D code

1D

UPC/EAN,Code129,code39,code11,codabar, MSI

2D

QR,PDF417,Mirco QR,RSS,Aztec,Maxincode

NFC/RFID

Frequency

13.56 MHz

Protocol

ISO14443A/B,ISO15693,NFC-IP1,NFC-IP2

Tag standard

M1(S50,S70),CPU card,NFC

Fingerprint

Certificate

FBI PIV Mobile ID FAP 10

Standard

ISO19794-2,ISO19794-4
