3G Handheld Smart Terminal

PDA - 5501L

3G Handheld Smart Terminal

Suitable For A Variety Of Environments

01 / 04

02 / 04

03 / 04

04 / 04

Applications

Widely Used In Express Logistics, Financial Insurance, Warehouses,
Retail Stores, Supermarkets，Healthcare And Other Industries

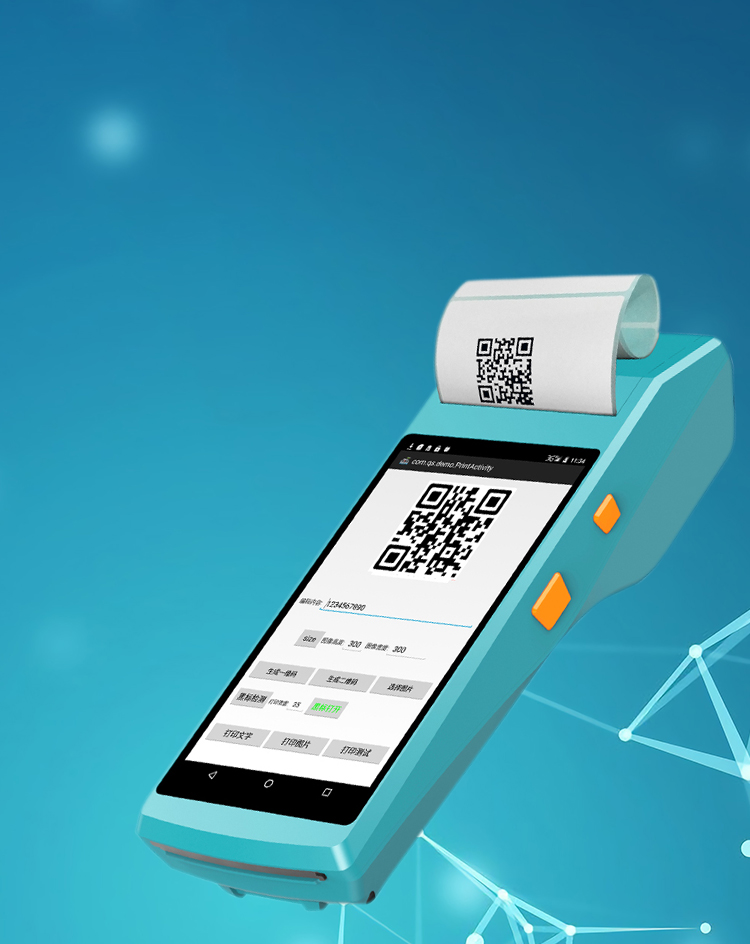

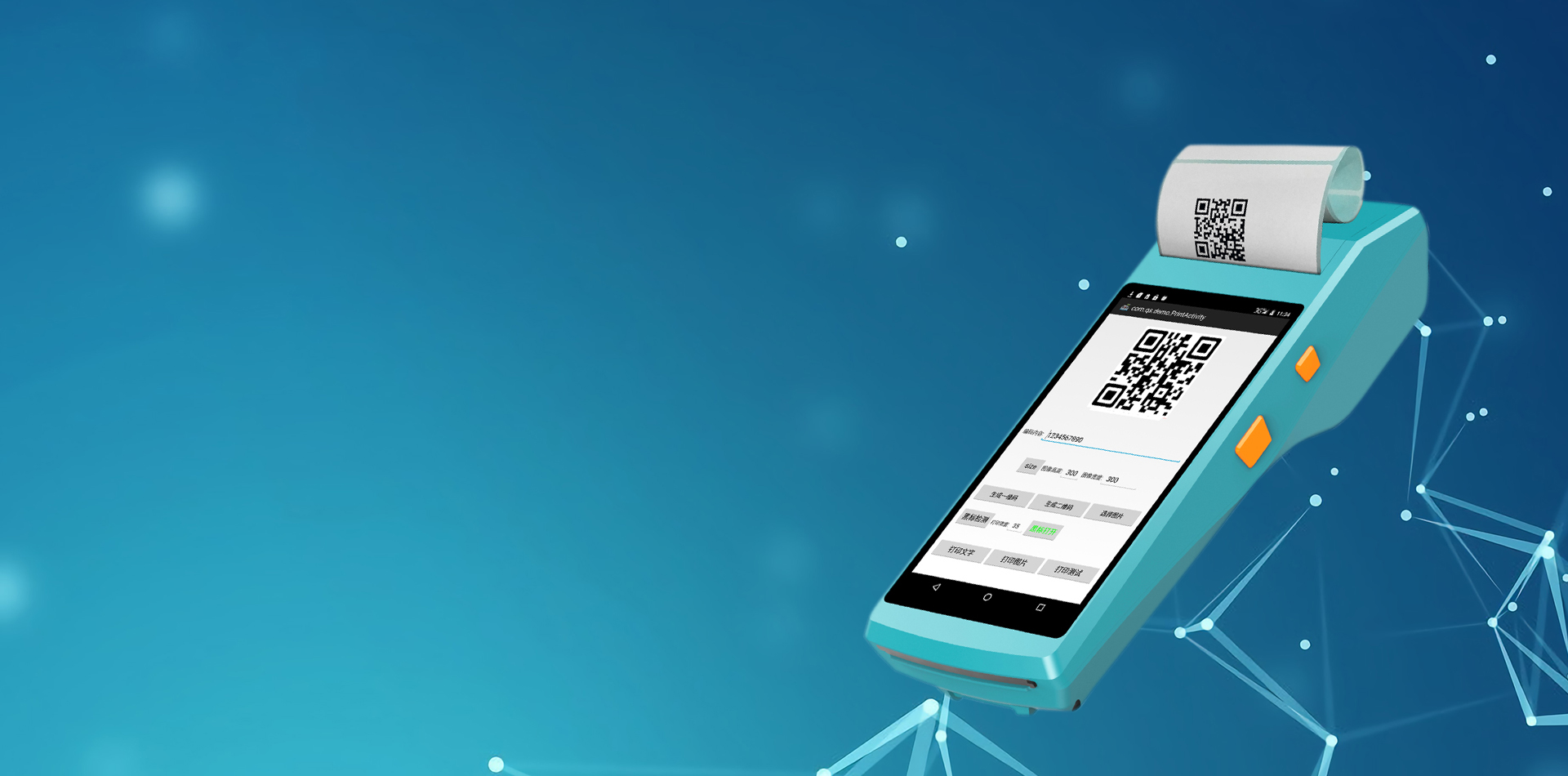

Built-in 58mm Thermal Printer

Receipt and label printing
modes can be switched easily To meet all your needs.

Paper

Label

58mm

Label

70mm/s

Printing Speed

Internally Expandable Function Modules

Internal Function Modules Can Be Expanded According To Customer Needs

NFC Module

It Can Read RFID Tags Within A Range Of 3 Meters In Batches
Without Touching And Easily Scan , And Can Read More Than 50 Tags Per Second,
Helping Enterprises To Leap To A New Level Of Work Efficiency.

3G Full Netcom + Dual-Band Wi-Fi + Bluetooth,
High-Speed And Stable Wireless Transmission

HD camera

Standard 2 million pixel camera, auto focus,
flash, anti-shake, effectively improve the shooting
effect in low light, convenient for users to flexibly
collect video information, and work easier

64-bit power processor

64 Bit multi-core processor, plus 8 GB of storage, powerful configuration,
let the system, run more smoothly

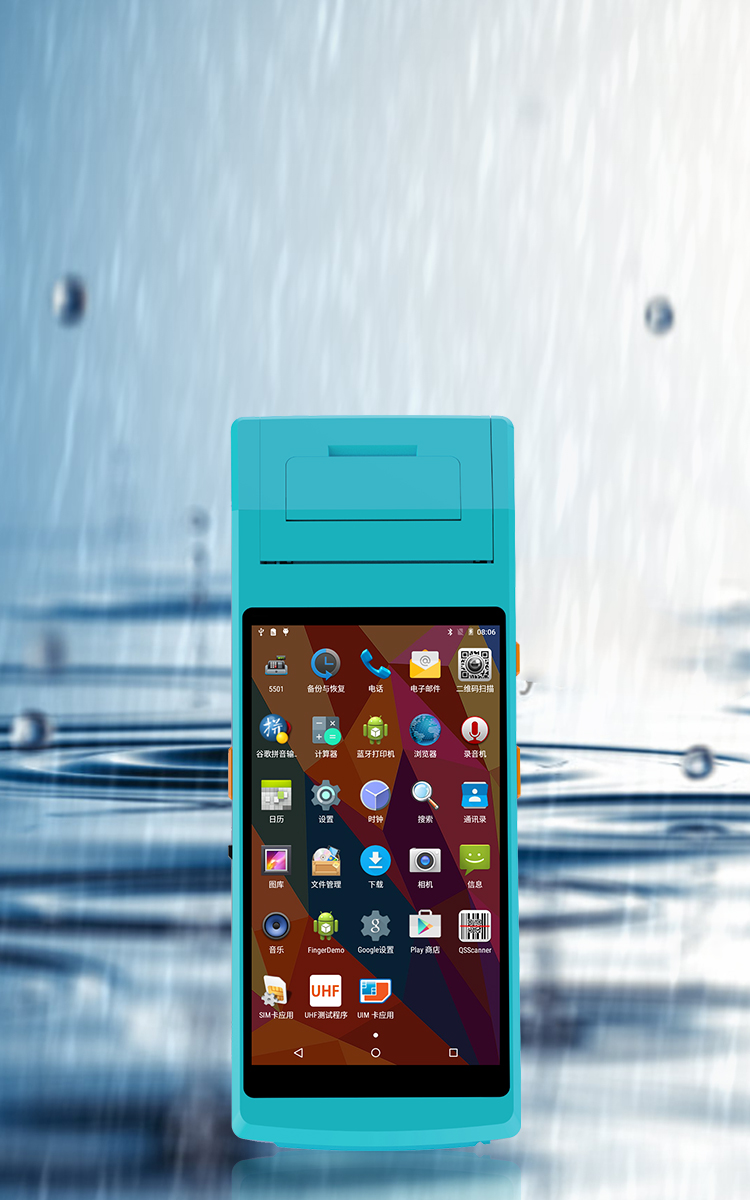

IP65 high security

IP65 protection level standard, dust completely occluded,
anti-living water, anti-1.5 m natural fall

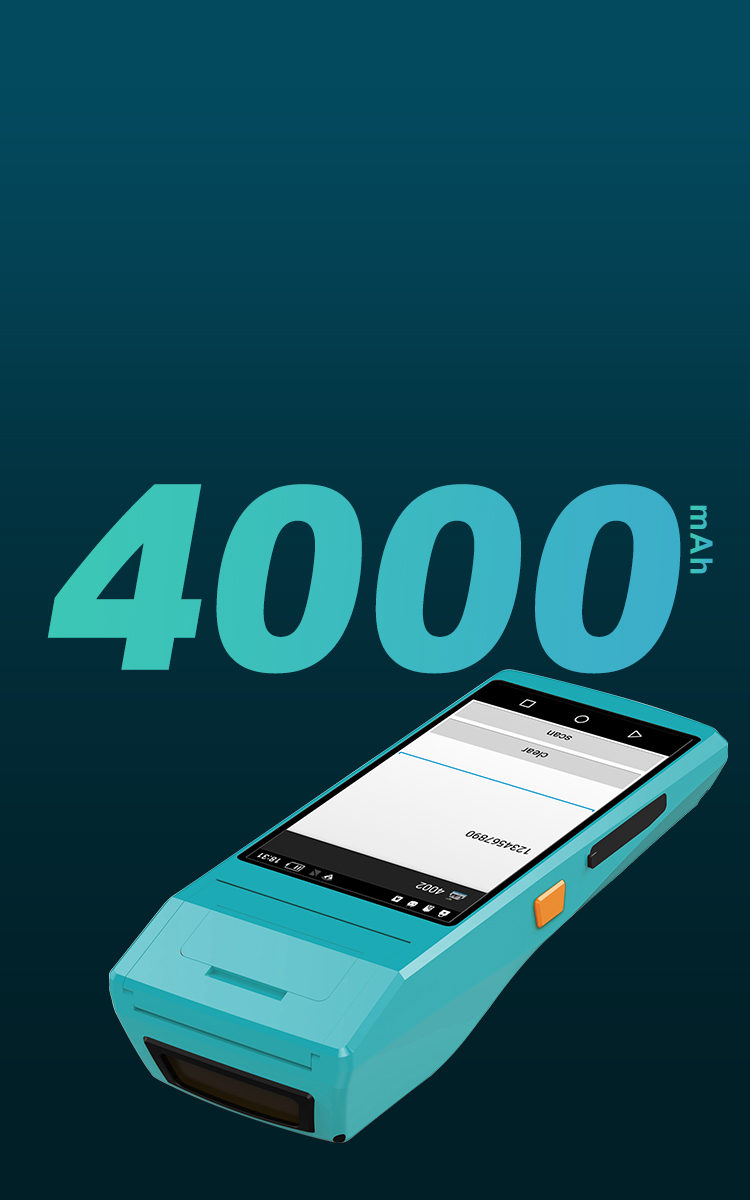

4000mAh high power battery detachable

Full power, long endurance, continuous on-line, with battery management, can meet the needs of the whole day scheduling

PDA-5501/3g Product Parameters

System Configuration

Processor

3G Version ARM7 Quad-core1.3GHz

OS

Android 6.0

Storage

16GB R0M+2GB RAM

Extended Storage

Micro SD（UP to 64G )

Display

5.5 inch IPS(720 x 1280) high-definition screen

Camera

2.0M pixels AF with LED light automatic focusing

Touch screen

Industrial capacitive screen

Indicator

Vibration indicator / LED indicator / audio indicator

Battery

Built in detachable 7.4v 4000mAh Lithium Polymer Battery

Audio

Built-in microphone / speaker

Sensor

G-sensor

Structural parameters

Size:(LxWxD)

210*80*42mm

Weight

505g（including battery）

Data communication

Mobile data communication

3G Version: WCDMA :850 /900 /1 90 0/210 0M Hz GSM: 850/900/1800/1900MHz

Wi -Fi

IEEE 802.11 b/g/n

Blue tooth

Bluetooth 4.0

GPS

High pe rformance GPS / AGPS nav igation chip

Printer

Printing method

Built in line thermal printer

Printing width

58 mm

Print media

The rmal printer and thermal labe l paper

Sensor

Black mark / out of paper / ove rheat ove r voltage protec tion

Print type

Tex t / image/bar code/Q R code

Using Environmental

Development tools

Android SDK + JDK + Eclipse

Language

Java

Operating Temperature

-10 ° ~ 50 °C

Storage Temperature

-20 °~ 70 °C

Humidity

0 to 95% rel ative humidity (non- condensing)

Drop Specifications

can bear impac t from 1.5m drop to cement floor

Electrostatic discharge

± 15kV air discharge, 8kV direct discharge

Protection class

IP65 /Explosion-Proof certificate

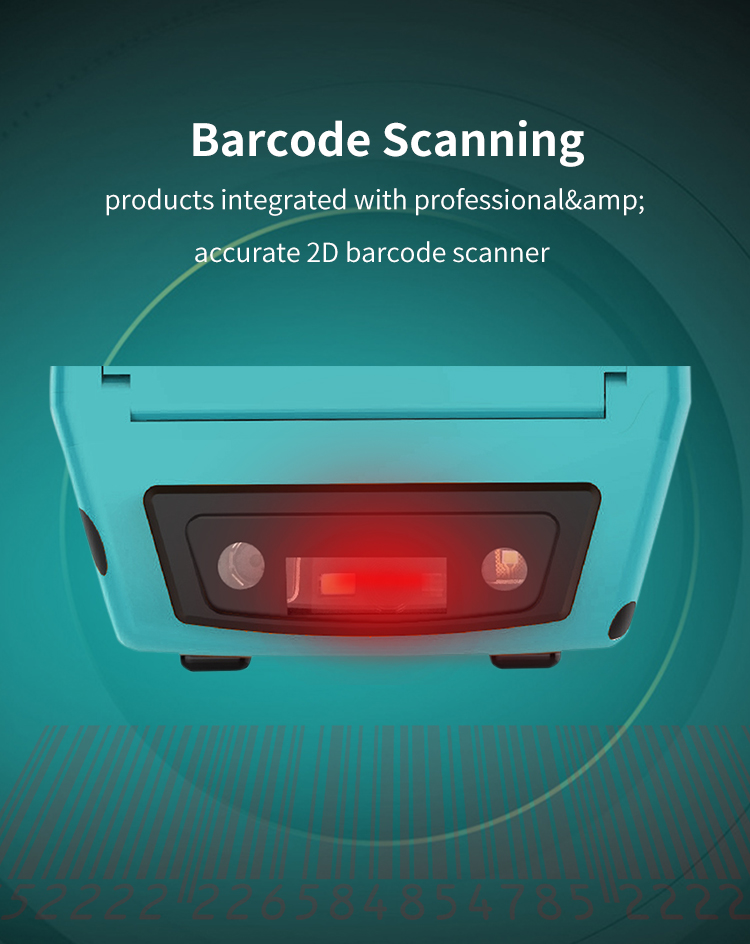

Scanning

1D laser scanner

UPC-A ，UPC-E ，UPC-E1 ，EA N-1 3 ，EA N-8 ，ISBN/ ISSN ，39 code ， 39 code （ ASCII code ）， 32 code ， Trioptic 39 code ， Interle aved 25 code ， indus tr y 25 code （ Disc re te 2 of 5）， Matrix 25 code ， Codabar（ NW7 ）， 128 code ， UCC/EAN 128 ， ISBT1 28 ， 93 code ， 11 code （ USD-8 ）， MSI /Ples sey ， UK/Plessey ， China Pos tal， GS1 DataBar

2D image scanner

QR Code , Data Matrix , PDF4 17 ， Hanlette r code in line with inte rnational and domestic gene ric 1D code standards : UPC-A , UPC-E, EA N-8 , EAN-1 3, ISBN , Code 128 , GS1 128, ISBT 128, Code 39, Code93,Code 11, Inte rle aved 2 of 5, Indus trial 2 of 5,Matrix 25, Standard 25, Codabar, MSI /MSI PLESSEY, GS1 DataBar etc .

NFC/HF RFID/PSAM

Communication

ISO / IEC 1444 3A/B,ISO 15693

Work ing frequency

13.56MHz

Card type

Type1-4Tag/Mifare /F elica

PSAM card

IS0 / IEC 781 6 1-4
