QS-8003 Product Parameters

System Configuration

processor

M3 32-bit processor

Flash

2048Kb RAM

ROM

4MB

Display screen

0.96inch OLED

button

Switch on / Set / Feed

battery

Removable 7.4v 1400mAh High Performance Lithium Battery

Power Adapter

Input AC 110-200V, input DC 5V/2A

Size (LxWxD)

109mmX104mmX48.5mm

weight

345g

Communications

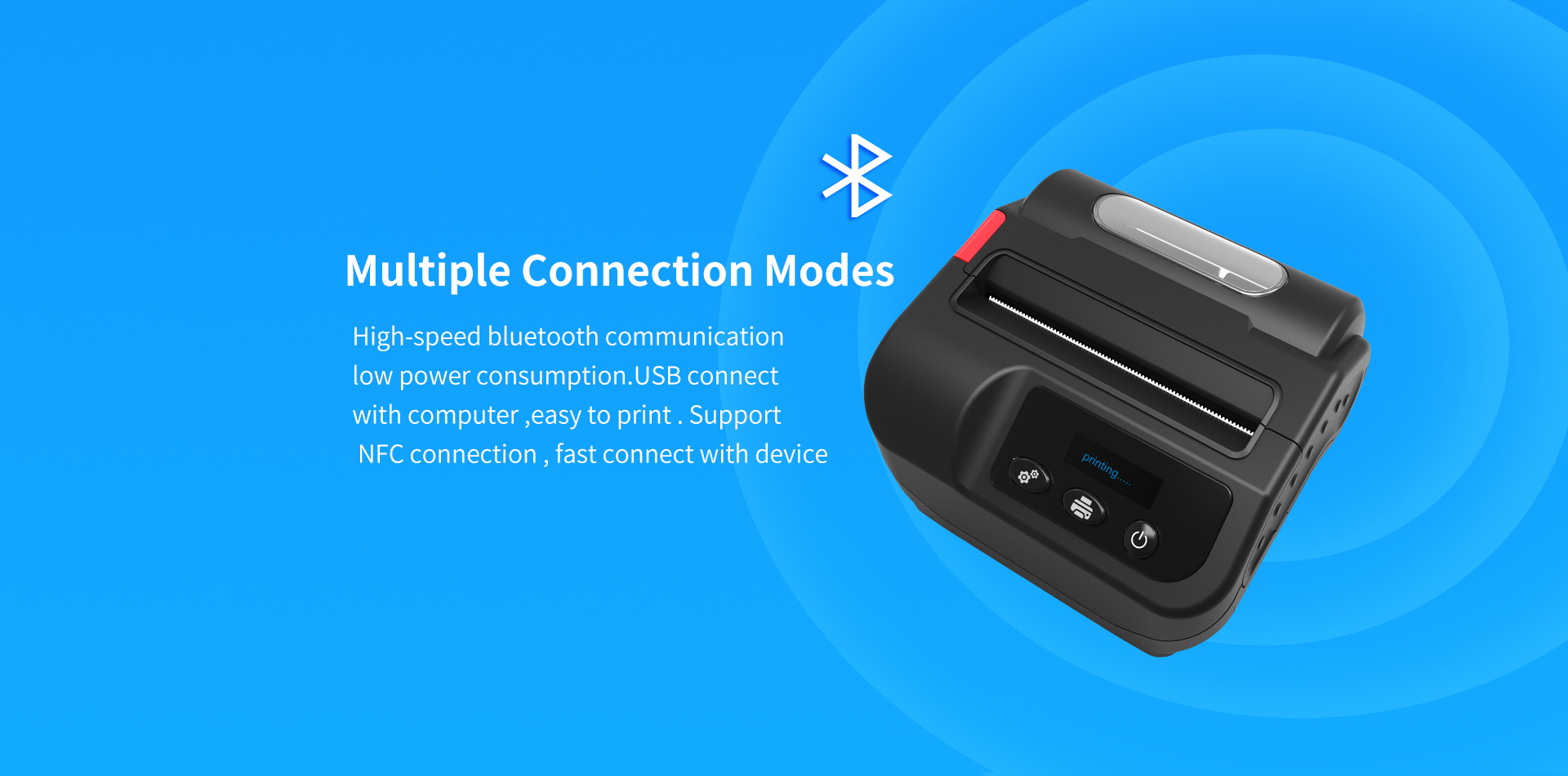

Bluetooth

Bluetooth 5.0

USB

USB2.0

Printing parameters

printing method

Line thermal printing

Print width

72mm (24 characters/line 48 English characters/line or standard 24 dot matrix font)

printing speed

80mm/s max

Character
Encoding

Codepage, Unicode,UTF-8

Built-in font

ASCII font (8x16, 12x24, 16x32, 24x48, 32x64)
GB13080(16 x16,24 x24,68 x48)

Print instruction

TSPL tag instruction POS/ESC instruction

sensor

Double black mark / paperless / low power

Error warning

Out of paper/paper bin door open/low power

Error message

Buzzer/OLED display tips

System languag

Chinese-English

support system

Android/IOS/Windows/Symbian/Win CE

Paper type

Ordinary thermal paper/heat-sensitive label paper

Roll diameter

Maximum Φ39mm

Handheld Terminal

Healthcare PDA

Rugged Tablet PC

Mobile Printers

Barcode Scanner

About Qunsuo

News

QS - 8003

80MM Portable thermal printer

Support Printing Thermal Paper & Label Paper

Support Different Multiple Printer Instructions & Language Printing

Fashion Appearance With Buzzer And OLED Display

Small & Delicate Appearance

Support Printing Multi-Language Support For Special Language Customization
