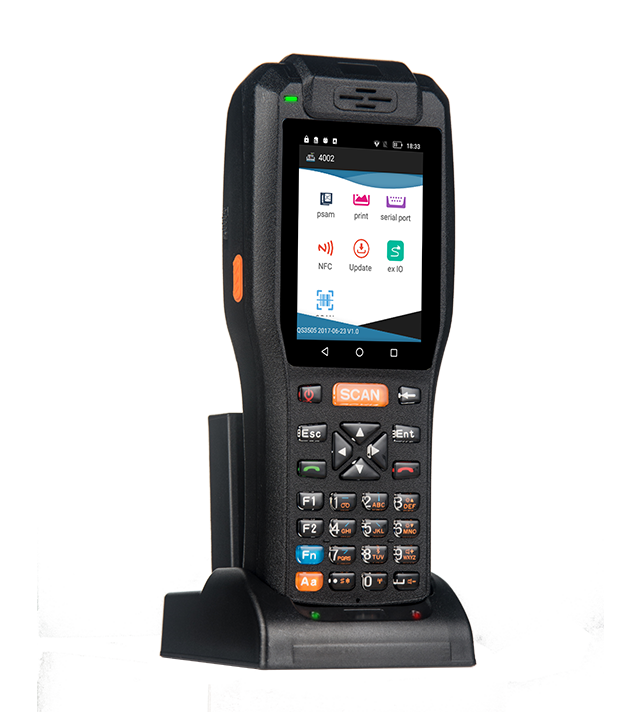

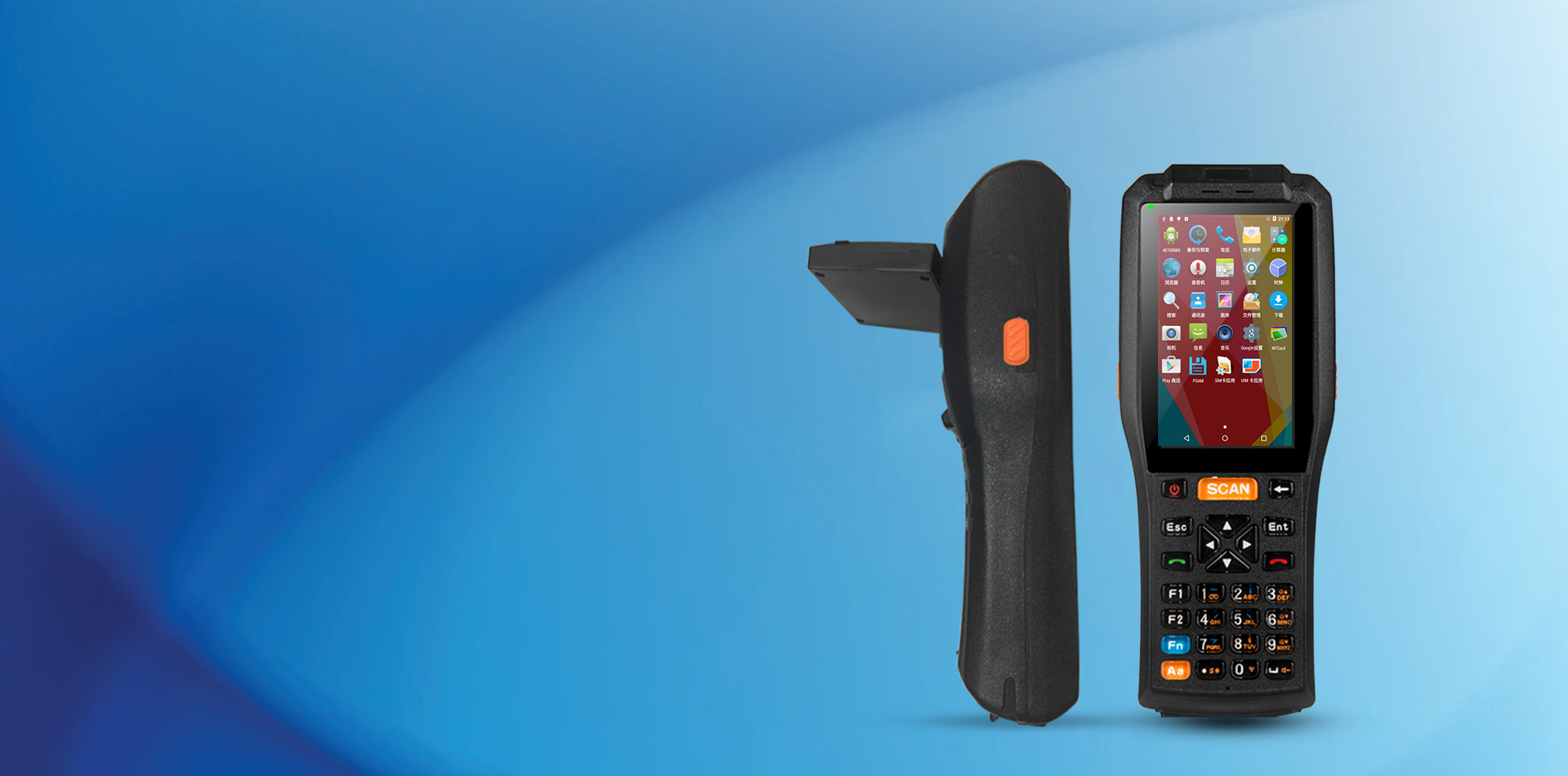

PDA - 3505U

UHF handheld terminal

Stable and reliable performance

ARM Cortex A53 Quad-core 64 bits 1.3 GHz

Android6.0 /7.0 OS

2GB ROM + 16GB RAM (optional 32GB ROM + 3GB RAM)

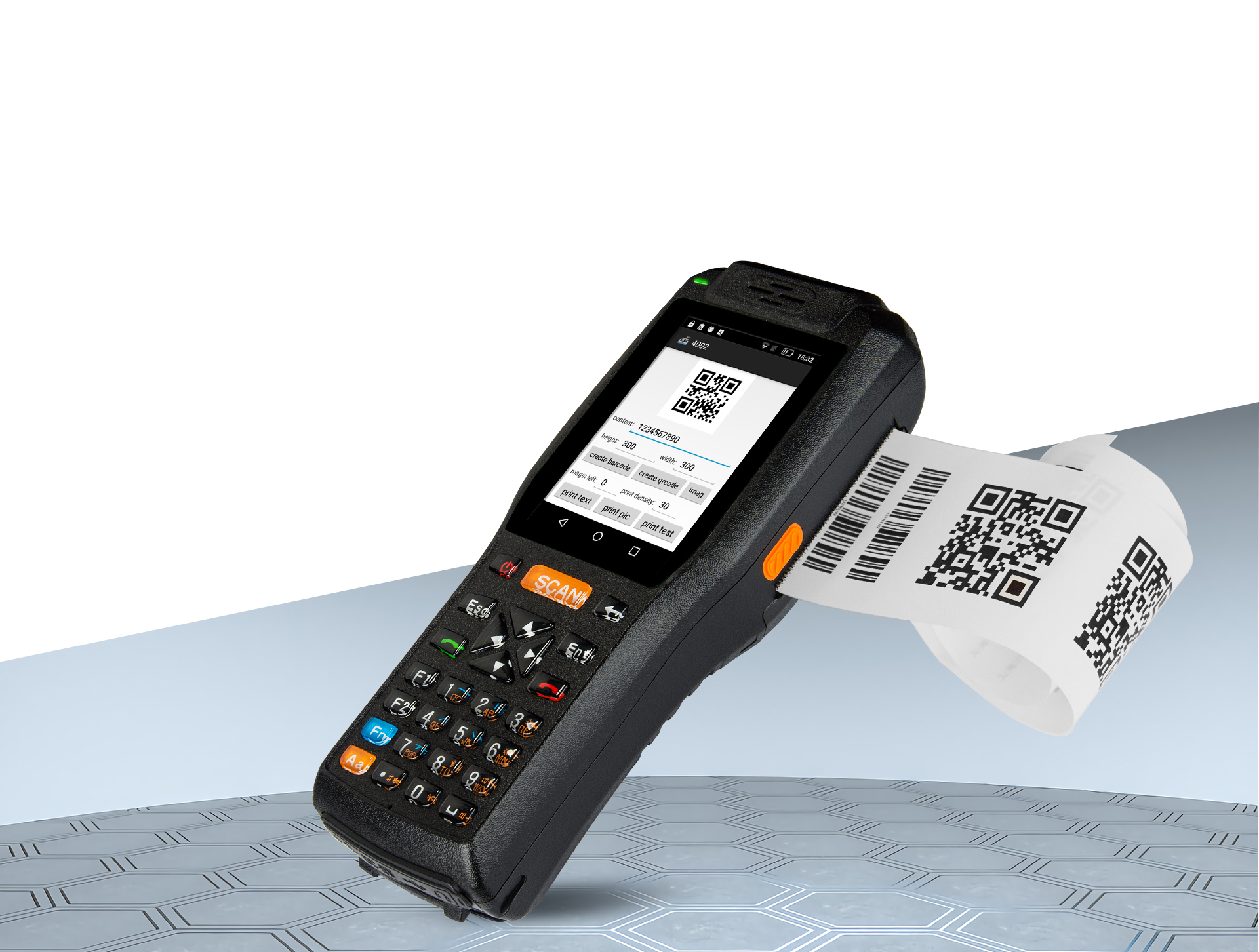

Ticket and label paper can be switched according to demand

Simple operation to meet more comprehensive printing needs

Support text image, barcode, two-dimensional code printing; clear handwriting and fast printing speed

It is 58mm print width and could reach fast thermal printing

Work is not restricted by the network environment

It is the whole network 4G + dual-band Wi-Fi + Bluetooth, high-speed and stable wireless transmission,
without geographical restrictions, and users could enjoy high-quality network communication and
high-speed data transmission anytime and anywhere.

Custom IC card function

It can complete the payment function of IC card with chip

Large-capacity battery, durable

3400mAh large-capacity detachable battery, long battery life and on standby
at any time to meet all-day schedules.

Handy Business With Multiple Accessories

  • Wrist strap
  • charging base

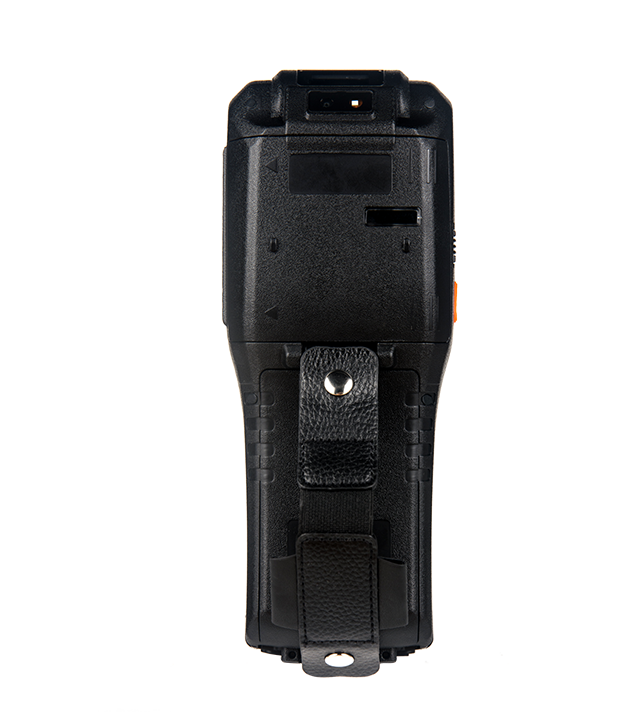

Wrist strap

Optional wrist strap for daily mobile use
and hang in hand for other tasks cradle charger

charging base

Optional charging base, optional supporting portable battery
could be more efficient mobile office

System Configuration

Processor

4G Version: ARM Cortex A53 Quad-core 64 bites 1.3 GHz

OS

Android 6.0/7.0

Storage

8GB R0M+2GB RAM（32GBROM+3GBRAM for optional）

Extended Storage

Micro SD（UP to 64G )

Display

Standard：4inch HVGA (320 x 480) high-definition screen

Camera

5.0M pixels AF with LED light automatic focusing (8.0 M optional)

Touch screen

Industrial capacitive screen

Keyboard

29 anti-wear, within the light waterproof industrial keyboard

Indicator

Vibration indicator / LED indicator / audio indicator

Battery

Built in detachable 7.4v 3400mAh Lithium Polymer Battery

Audio

Built-in microphone / speaker

Sensor

G-sensor

Structural parameters

Size:(LxWxD)

220*85*59mm

Weight

485g（including battery）

Data communication

Mobile data communication

3G Version: WCDMA:850/900/1900/2100MHz
GSM: 850/900/1800/1900MHz
4G Version： LTE-FDD:B1/B3/B7/B8/B28 E-TDD:B38/B39/B40/B41
CDMA/EVDO 800MHz WCDMA:850/1900/2100MHz

Wi-Fi

IEEE 802.11 b/g/n

Bluetooth

Bluetooth 4.0

GPS

High performance GPS / AGPS navigation chip

Using Environmental

Development tools

Android SDK + JDK + Eclipse

Language

Java

Operating Temperature

-10° ~ 50°C

Storage Temperature

-20°~ 70°C

Humidity

0 to 95% relative humidity (non-condensing)

Drop Specifications

can bear impact from 1.5m drop to cement floor

Electrostatic discharge

± 15kV air discharge, 8kV direct discharge

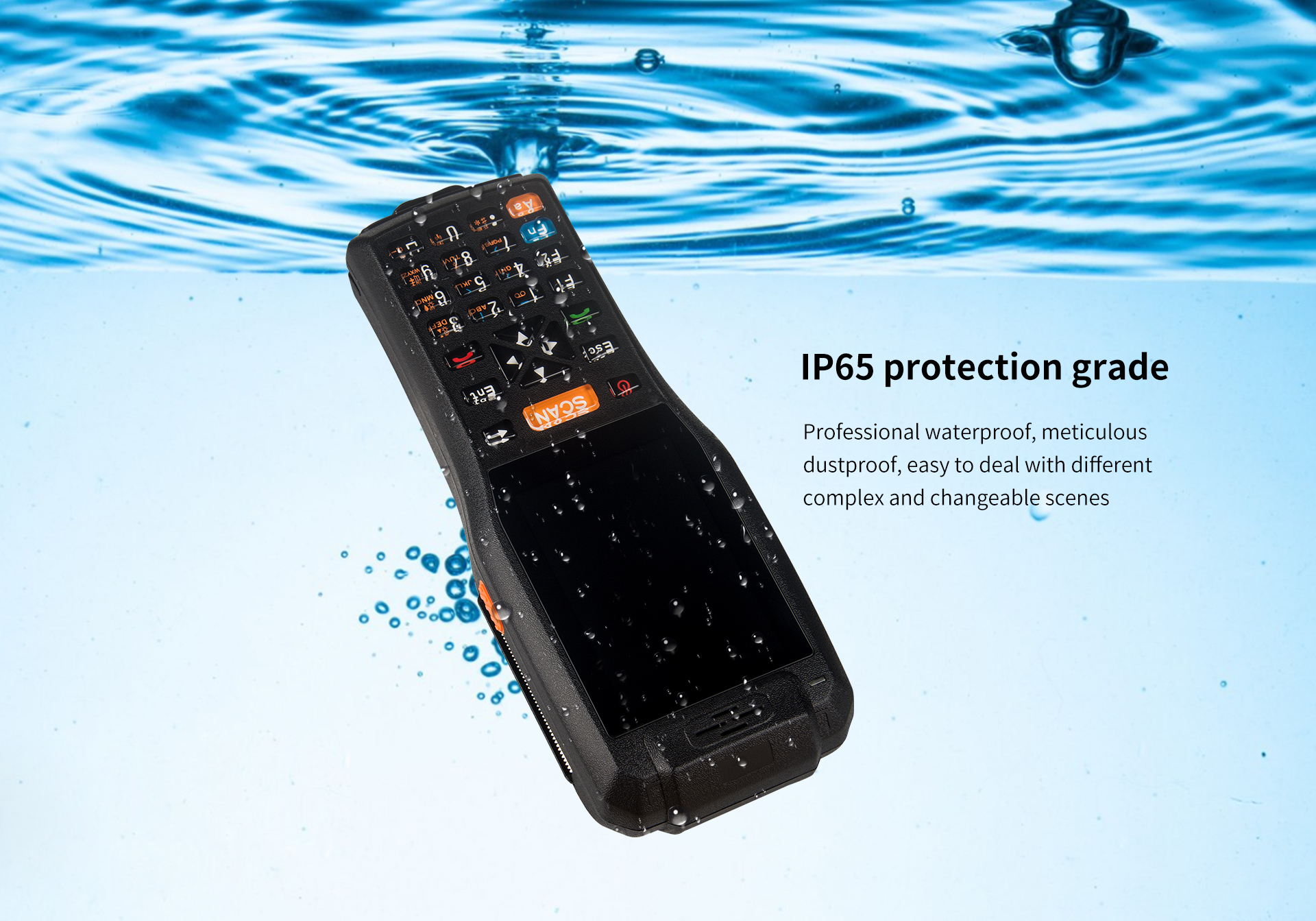

Protection class

IP65/Explosion-Proof certificate

1D laser scanner

Scanning light

Visible laser diodes with a wavelength of 650 nm

Scanning speed

100 line/s

Scanning angle

±50°，±65°（R/L, F/B）

Resolution

4mil

Decoding type

UPC-A，UPC-E，UPC-E1，EAN-13，EAN-8，ISBN/ISSN，39 code，39 code（ASCII code），32 code，Trioptic 39 code，Interleaved 25 code，industry 25 code（Discrete 2 of 5），Matrix 25 code，Codabar（NW7），128 code，UCC/EAN 128，ISBT128，93 code，11 code（USD-8），MSI/Plessey， UK/Plessey， China Postal，GS1 DataBar

2D image scanner

Collection method

CMOS

Scanning speed

1/60s

Scanning angle

Corner 360°，Elevation angle ± 55°，Declination ± 55°

Resolution

QR code≥7.5mil，Bar code≥5mil

2D optiona

Support DPM (component identification code)

Decoding type

QR Code, Data Matrix, PDF417，Han letter code in line with international and domestic generic 1Dcode standards:
UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar etc.

NFC/HF RFID/PSAM

Communication

ISO/IEC 14443A/B,ISO15693

Working frequency

13.56MHz

Card type

Type1-4Tag/Mifare/Felica

PSAM card

IS0/IEC 7816 1-4

Contact chip card

IS0/IEC 7816（optional）

UHF RFID

Frequency

902Mhz - 928Mhz 、865MHz - 868MHz( optional )

Protocol

EPC global UHF Class 1 Gen 2/ISO 18000 - 6 C

Capture Range

3m

Output Power

18 - 26 dBm
