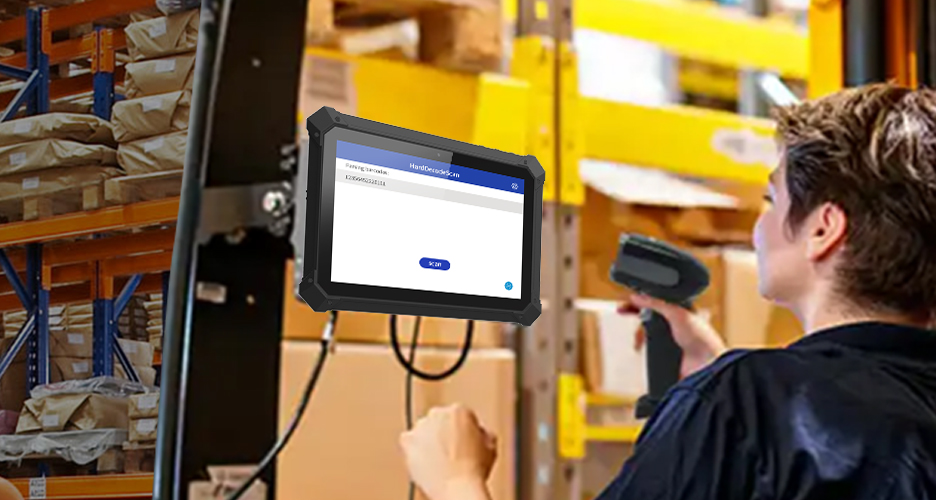

Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Supermarkets And Other Industries

Equipment Accessories

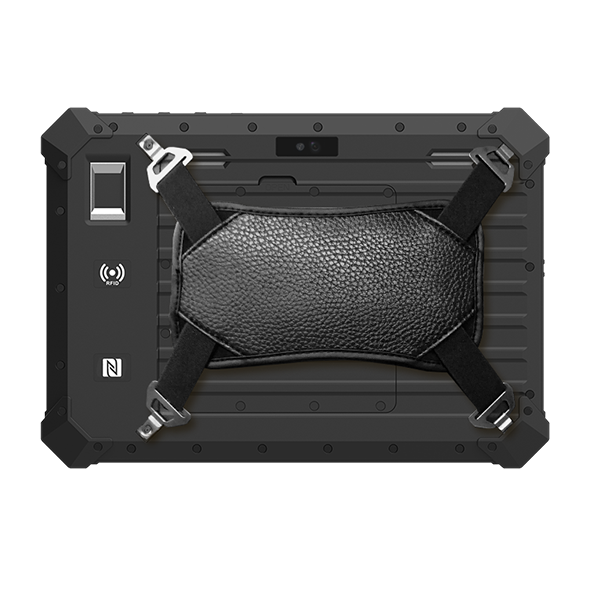

Wrist strap
Equipment fixing pendant

Wrist strap

Optional wrist strap for daily mobile use and hang
in hand for other tasks cradle charger

Equipment fixing pendant

For use where equipment is to be used in a fixed position

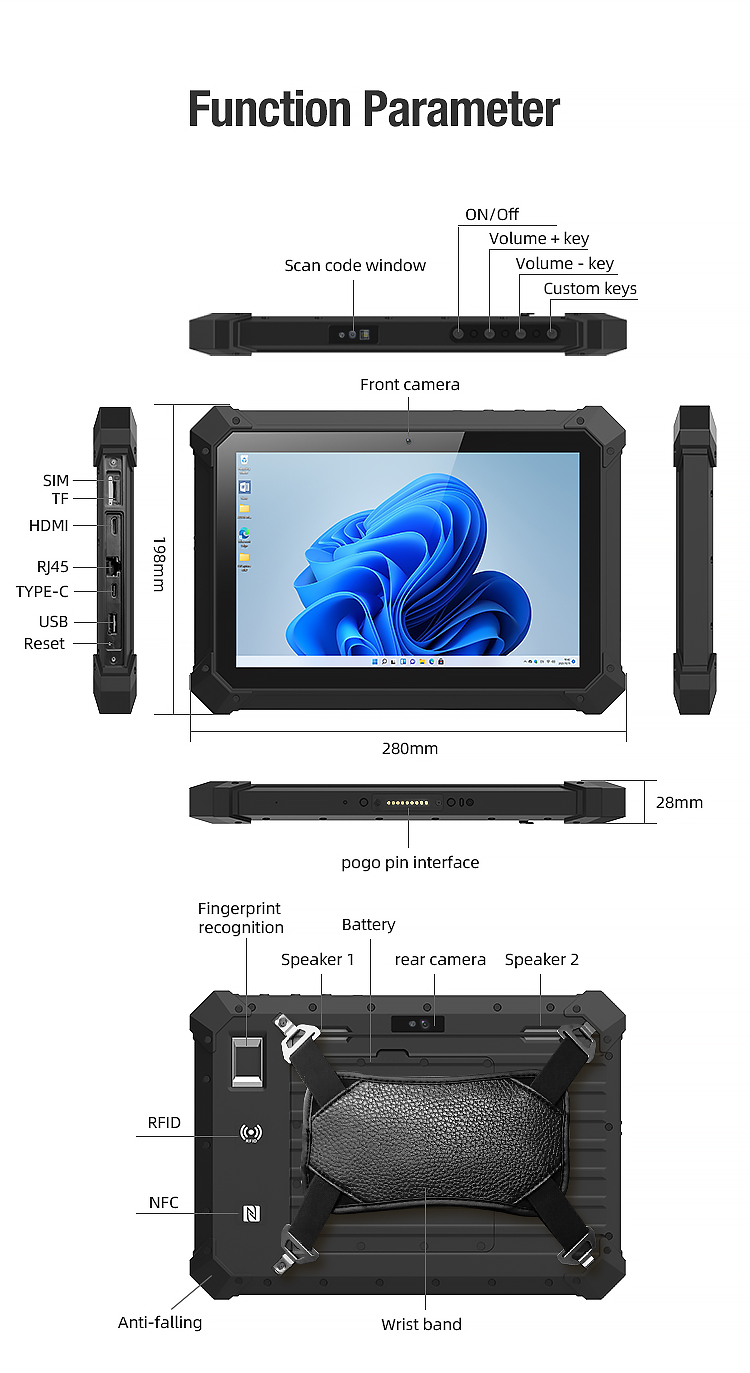

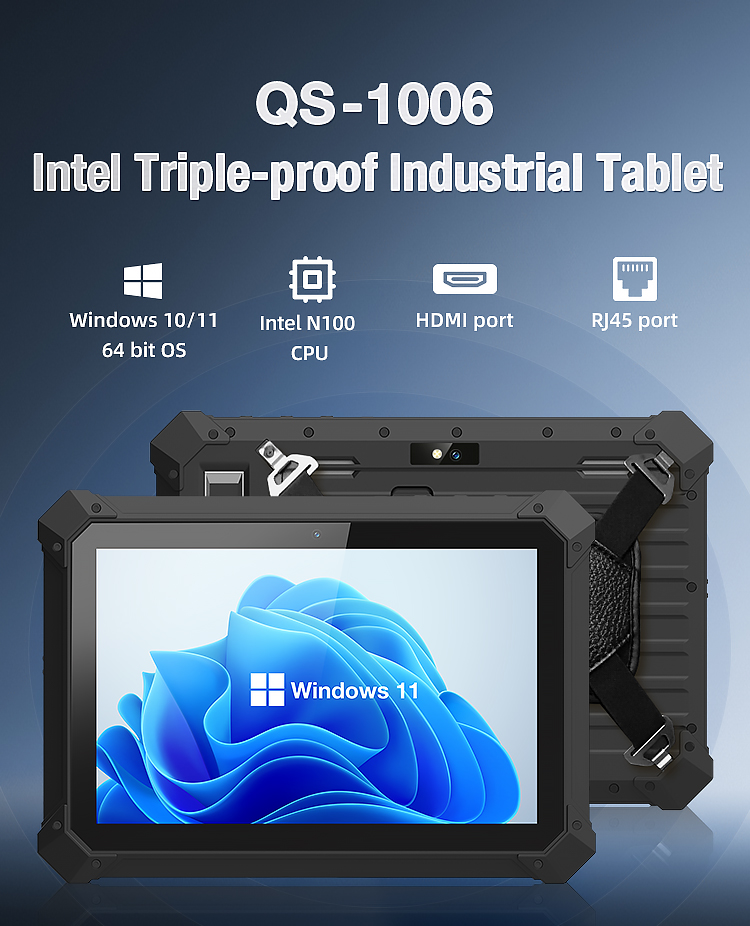

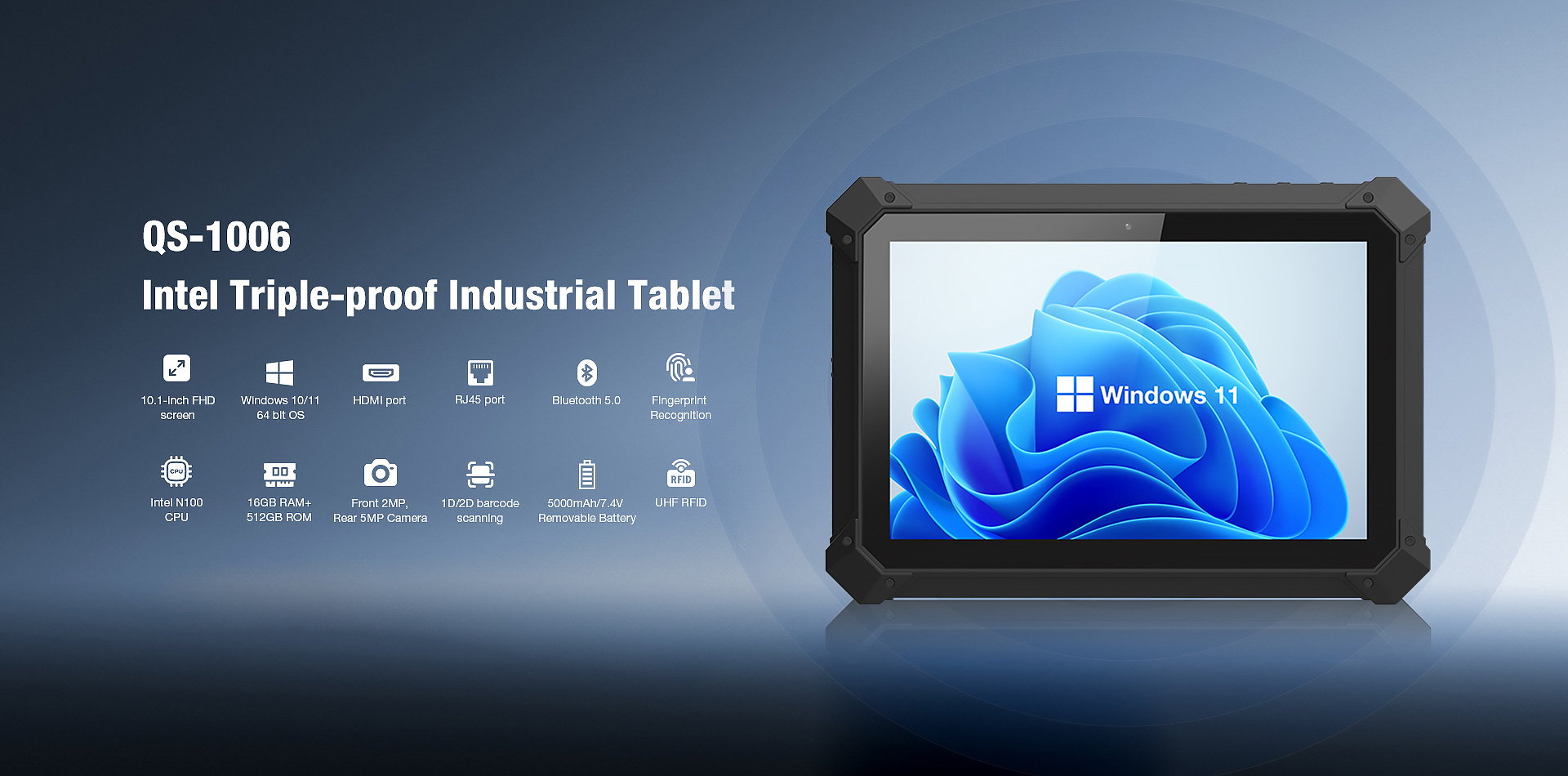

QS-1006 Product Parameters

Structural Parameters

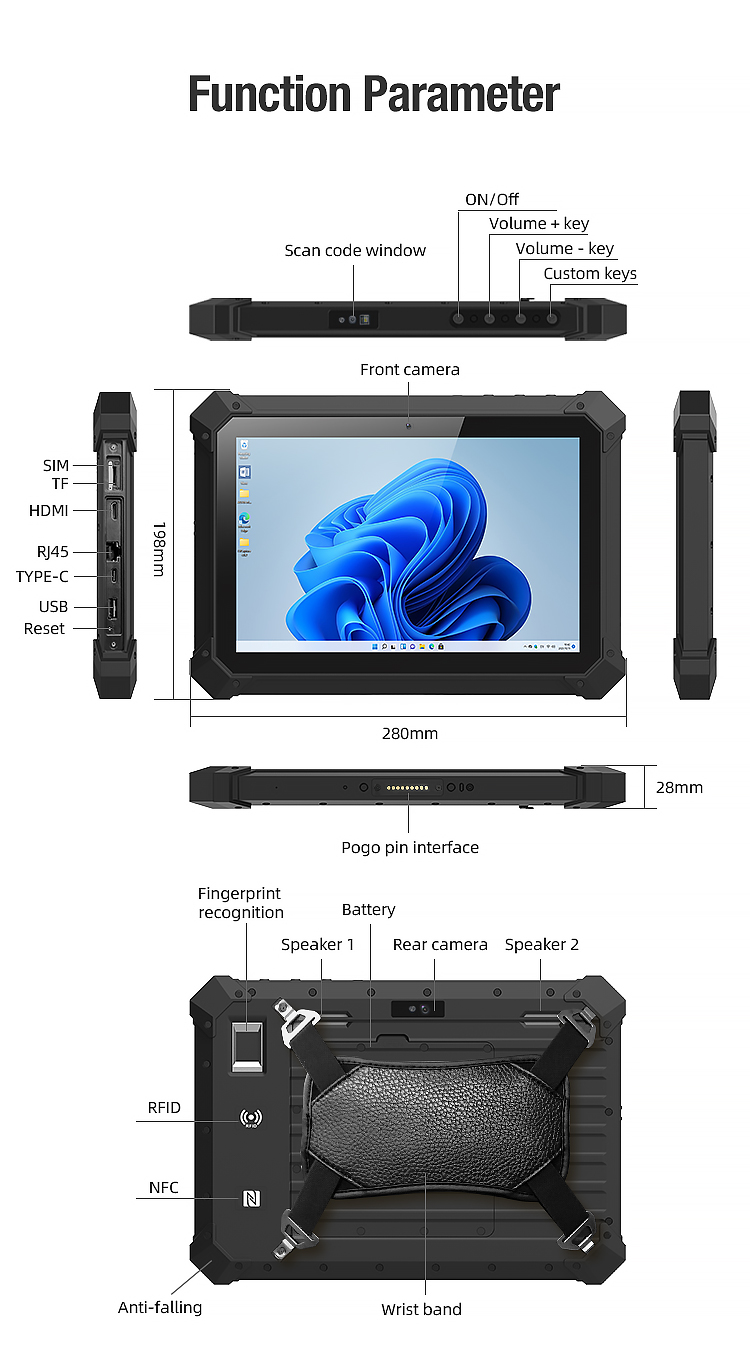

Size

274.9 x 188.7 x 23.1mm

Weight

1197g (battery included)

Camera

Front: 2MP Camera
Back: 5MP Camera

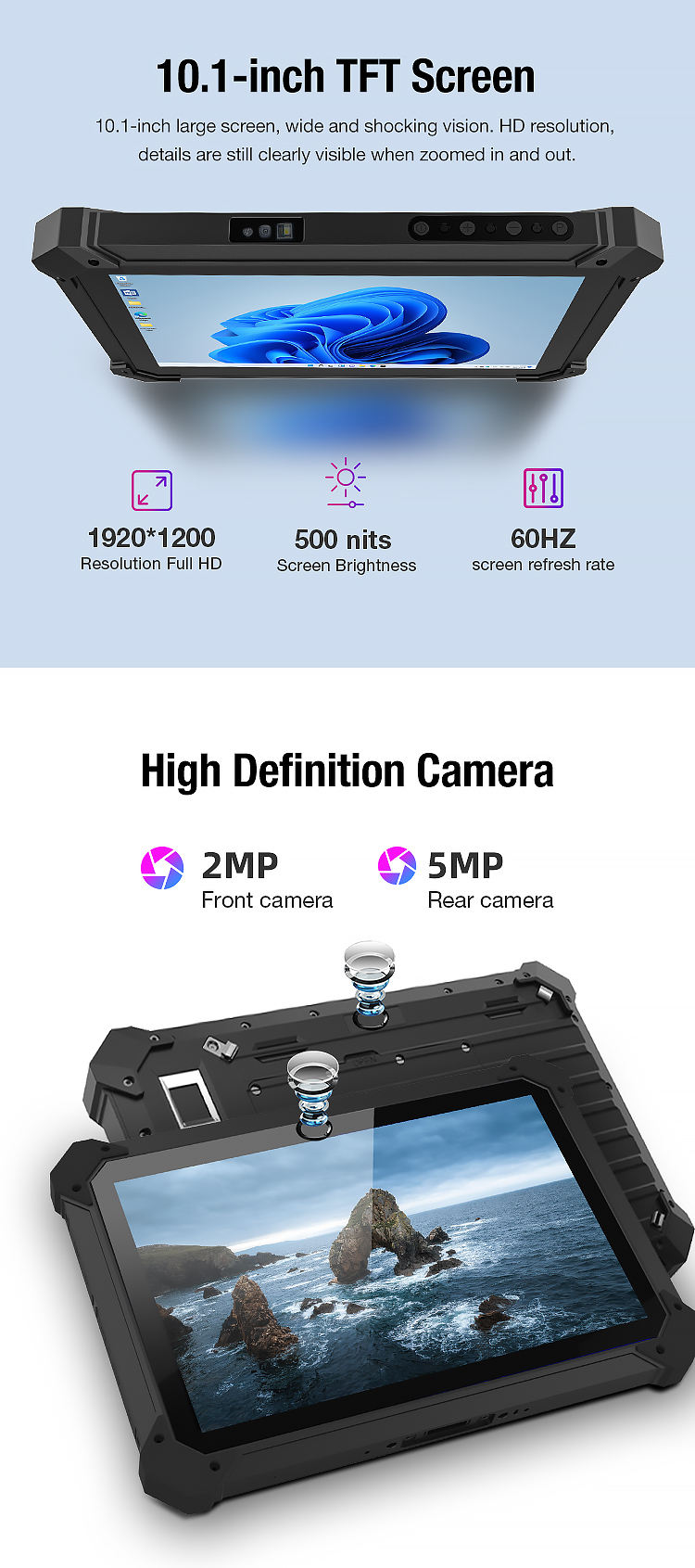

Display

10.1 inch 1920x1200 pixs TFT Screen

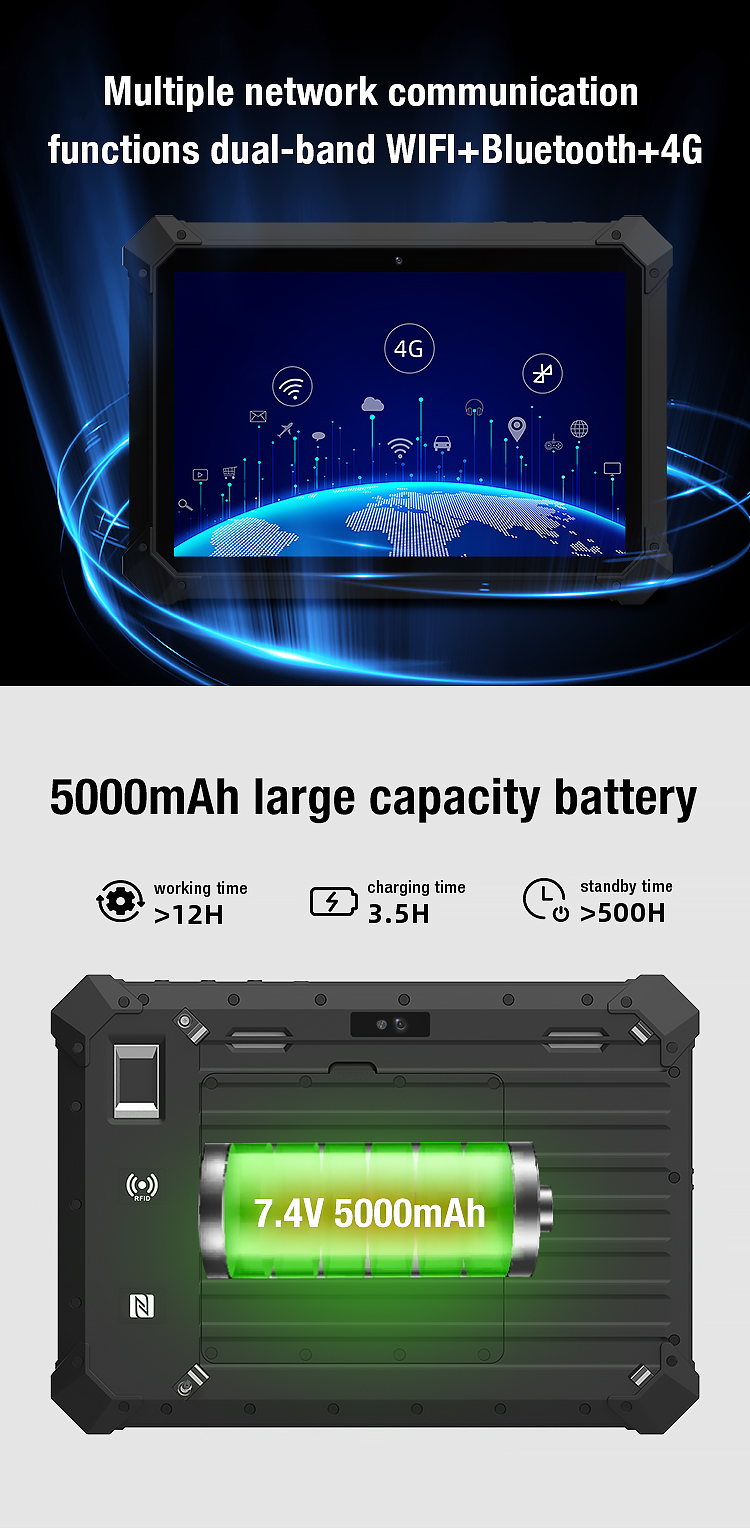

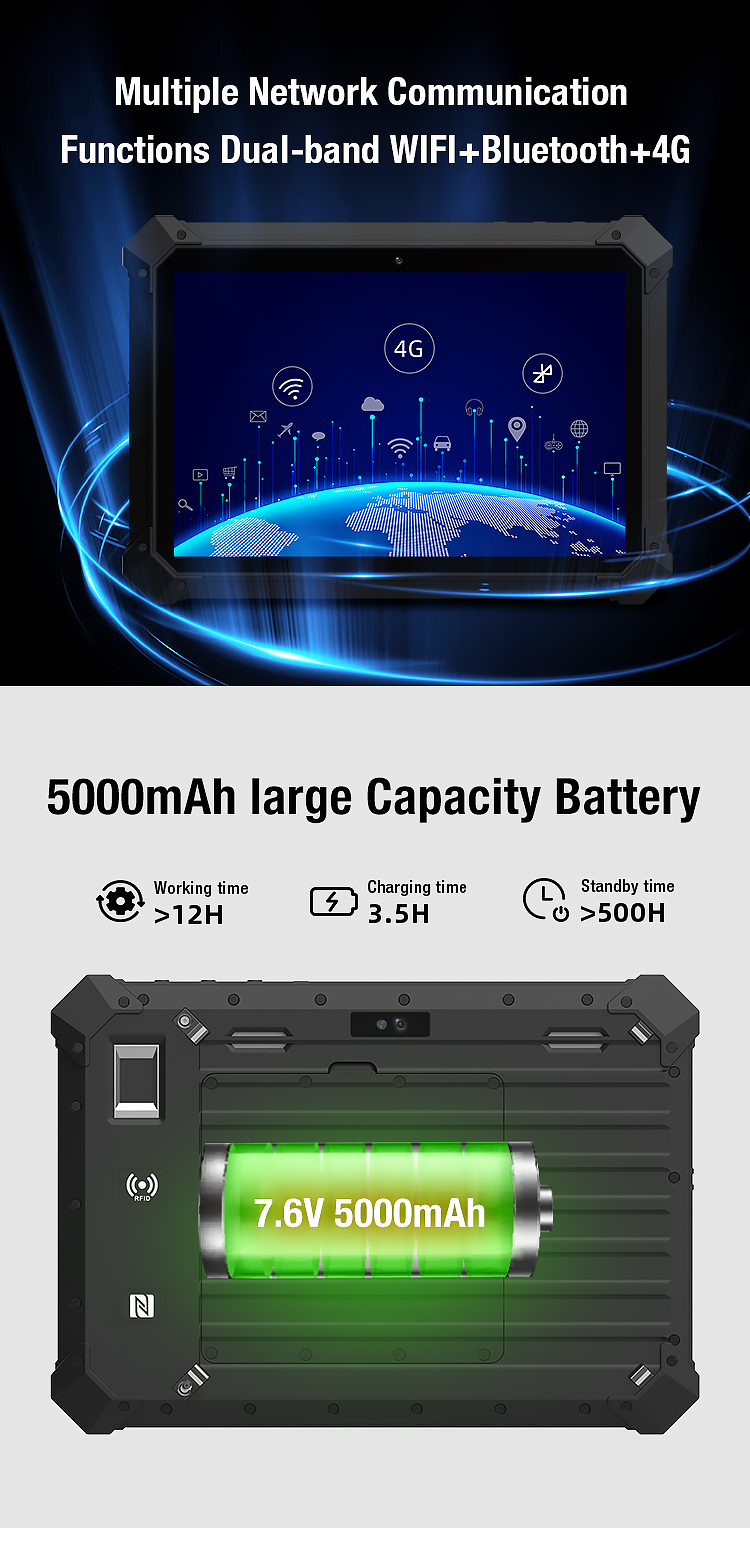

Battery

5000mAh rechargeable lithium polymer battery(removable)

Speaker

support

Shake

support

Touch Panel

G+ G glass, support multi touch, support glove or wet hand operation

Sensor

G-sensor, Vibrating motor

Quick charge

5V-3A 9V-2A Quick charge

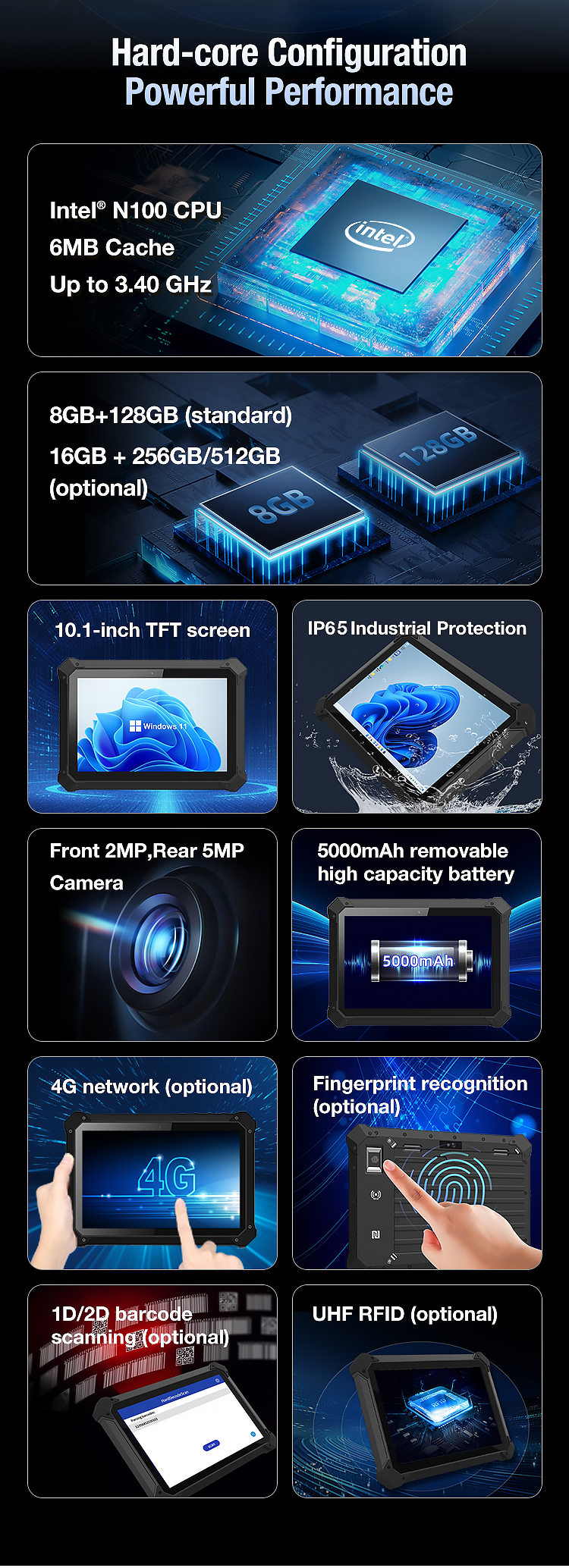

System Configuration

CPU

Intel® N100 Turbo 3.4GHZ CPU

OS

Windows10/11 64 bit OS

RAM+ROM

8GB+128GB (standard)
16GB+256GB/512GB (optional)

Working Environment

Operating Temp

-10℃~+50℃

Storage Temp

-20 ℃~+60 ℃

Humidity

95% (non-condensing)

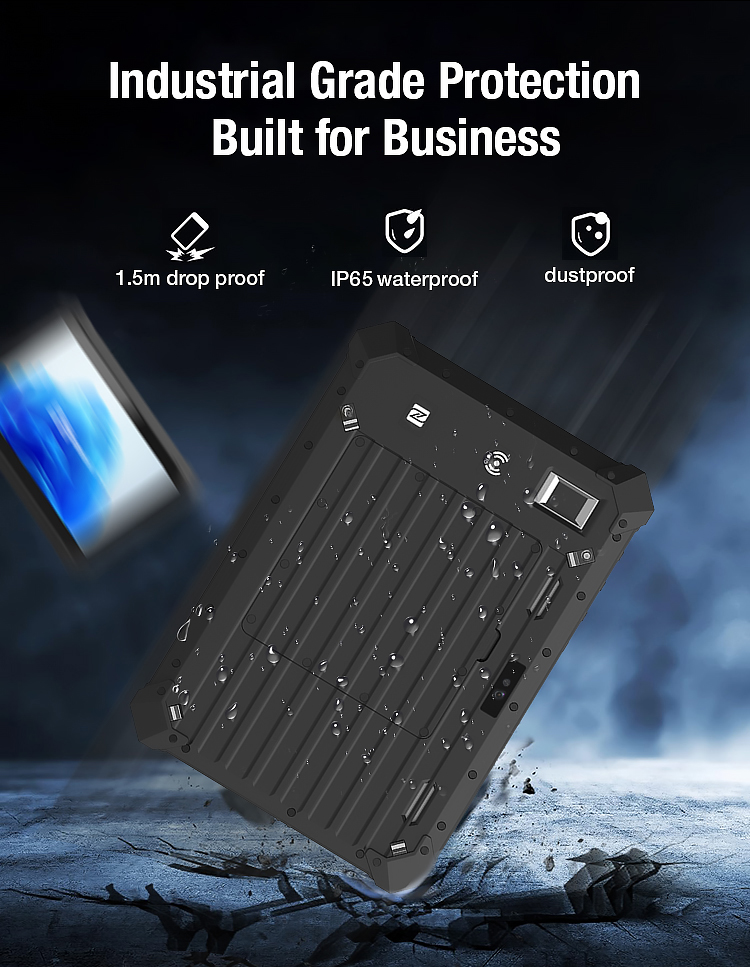

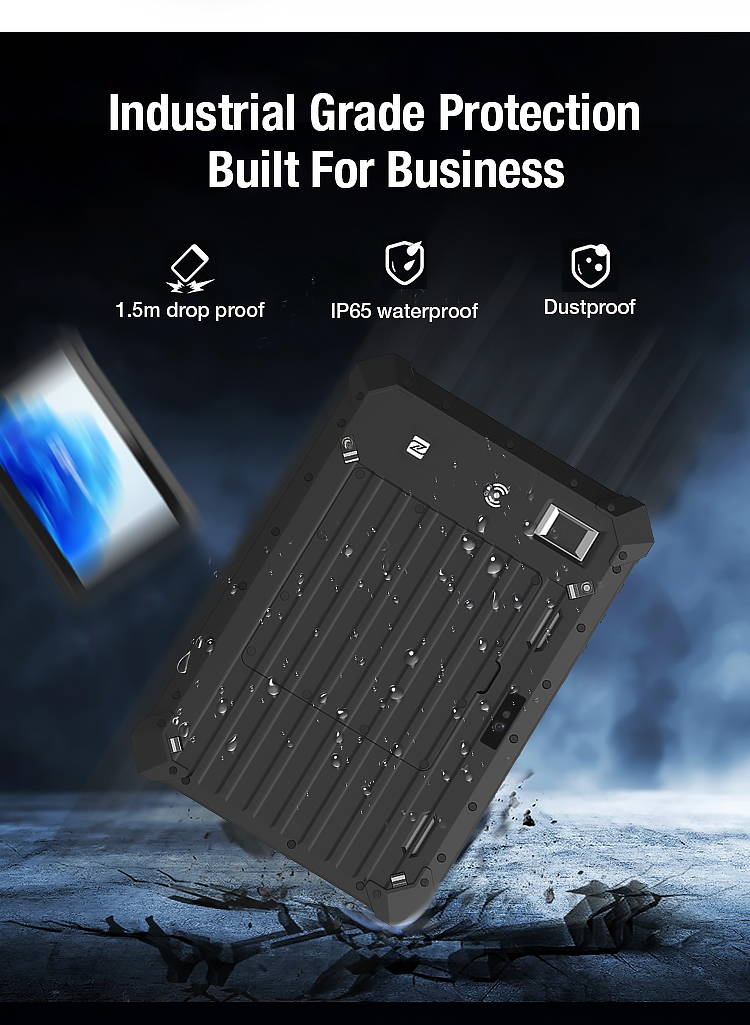

Drop specification

Within the scope of operation, 6 sides are subjected to the impact of 1.5m falling to the concrete

Electrostatic Protection

+ 15 kV air discharge, 8 kV contact discharge

Rolling Test

After 1000 rolling times and 0.25m, the six contact surfaces still run stably, reaching IEC rolling specifications

Sealing

IP65, up to IEC sealing standard

Communication Transmission

WLAN

2.4g/5g dual band, support 802.11 a/B/g/N
/AC/, IPv4, IPv6;

WWAN (Optional)

2G: 850/900/1800/1900MHz
3G: CDMA EVDO: BCO
WCDMA850/900/1900/2100MHz
4G:B1/B3/B5/B7/B8/B20/B38/B39/B40/B41

Vo-LTE

Support VO LTE HD video voice call

Bluetooth

Bluetooth 5.2

GNSS(Optional)

GPS/BEIDOU/GLONASS A-GPS

Data Collection

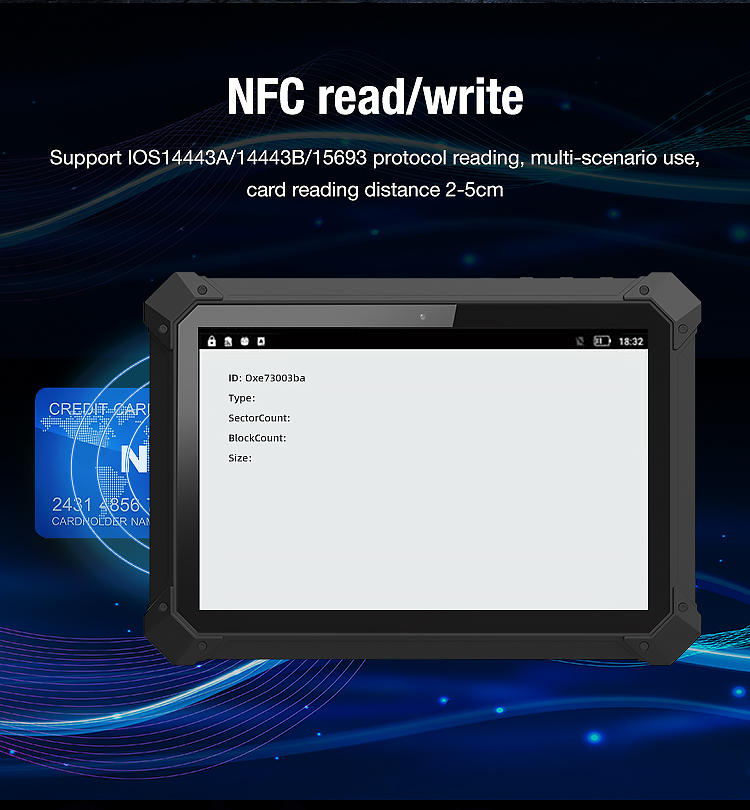

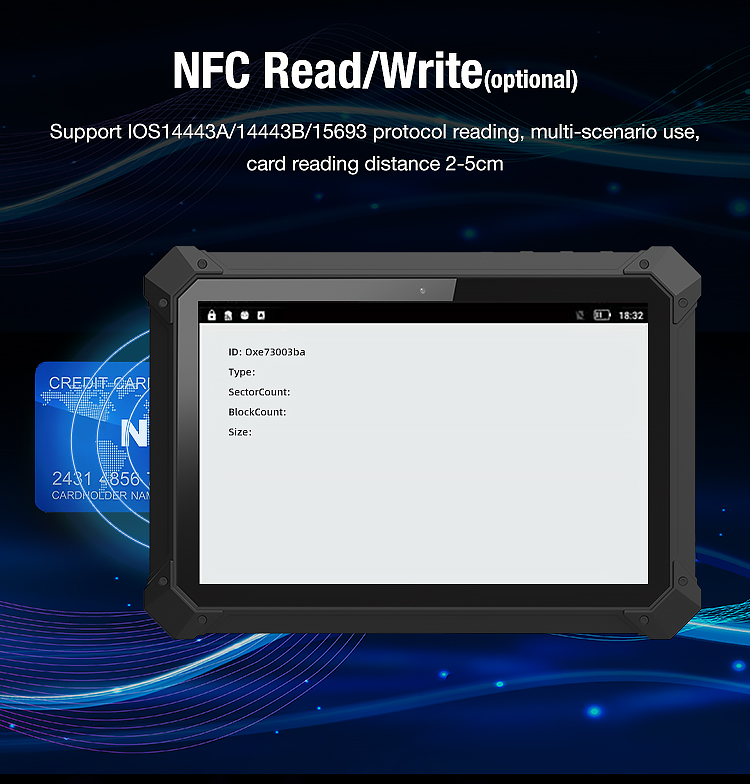

NFC

13.56MH supports ISO/IEC14443A/B/15693/18092/mifare protocol.
Card reading distance: 4cm

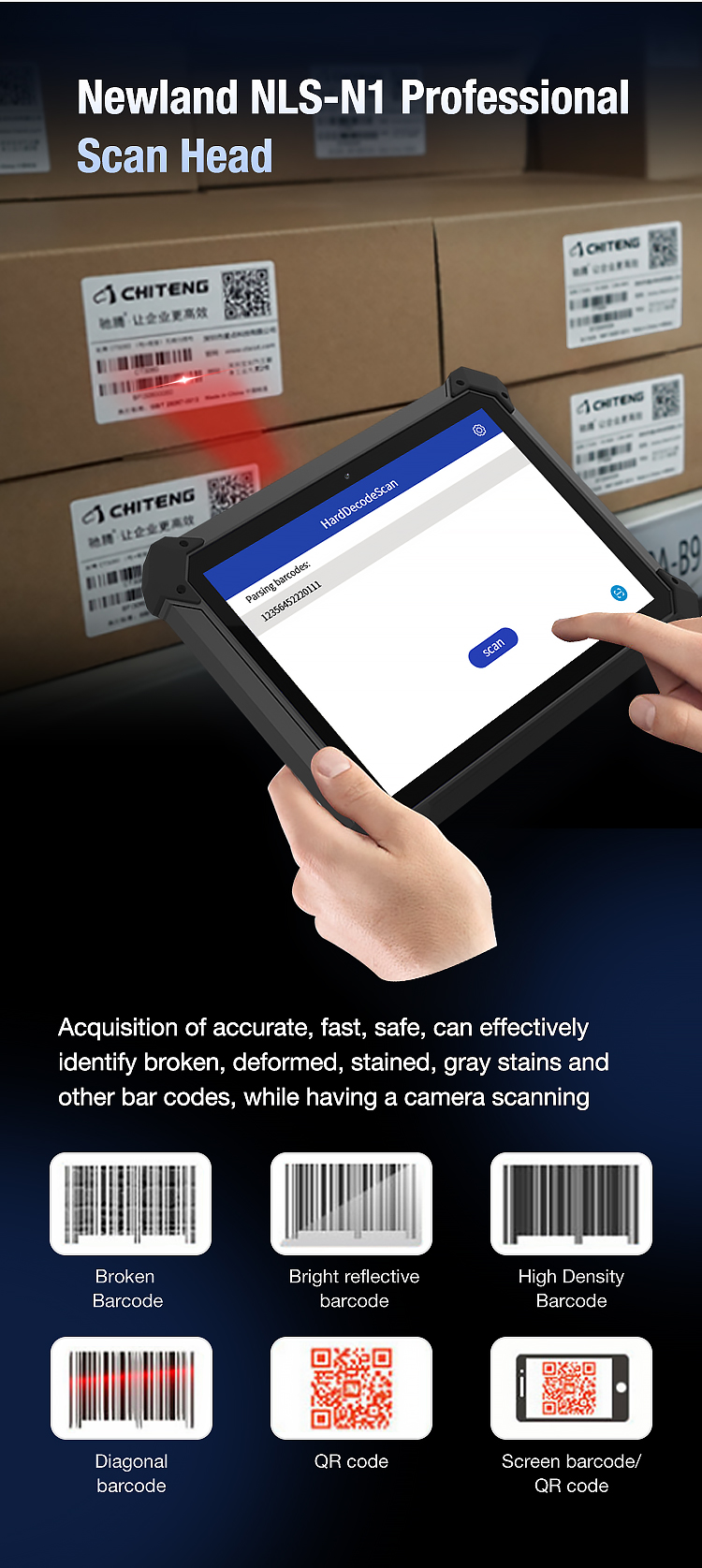

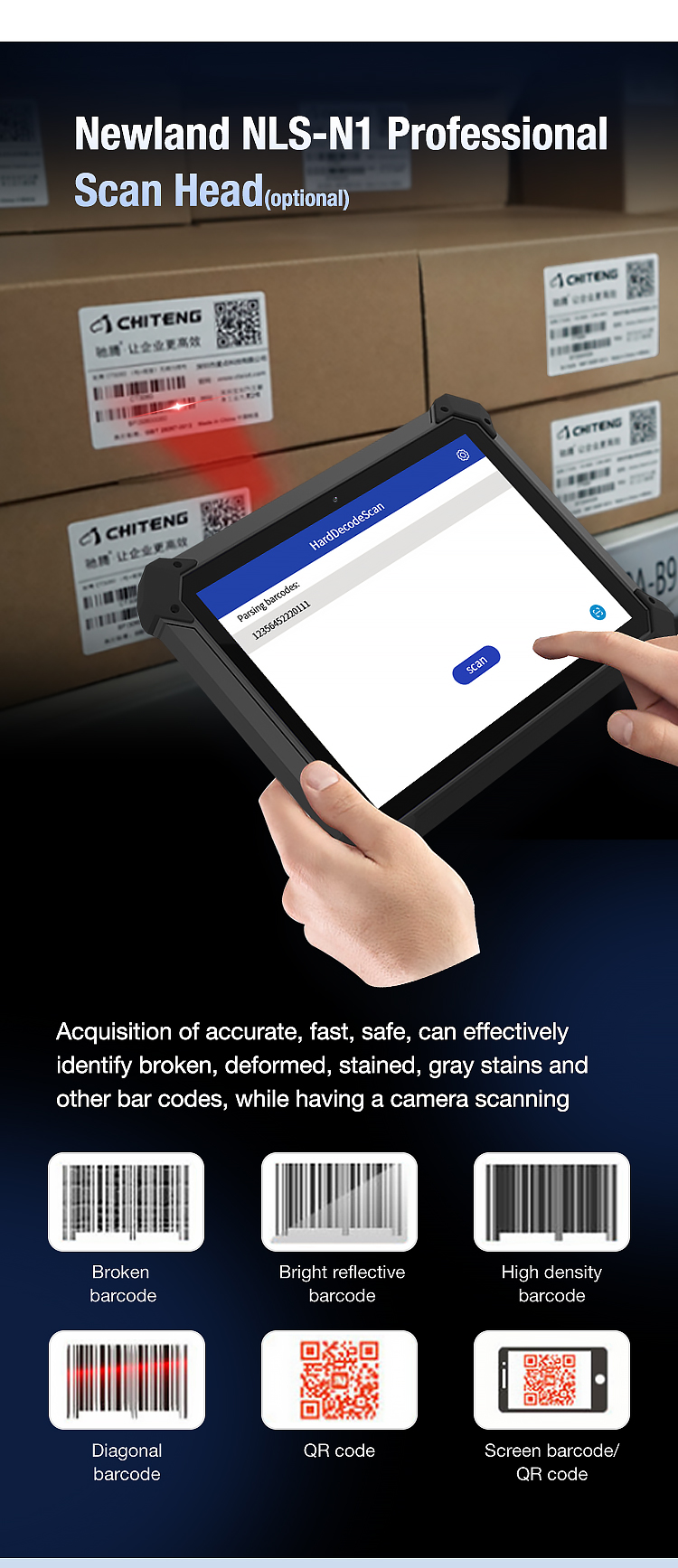

Scanning engine (Optional)

Newland N1 2D scanner, support scan ning 1D or 2D code

1D

UPC/EAN,Code129,code39,code11,codabar, MSI

2D

QR,PDF417,Mirco QR,RSS,Aztec,Maxincode

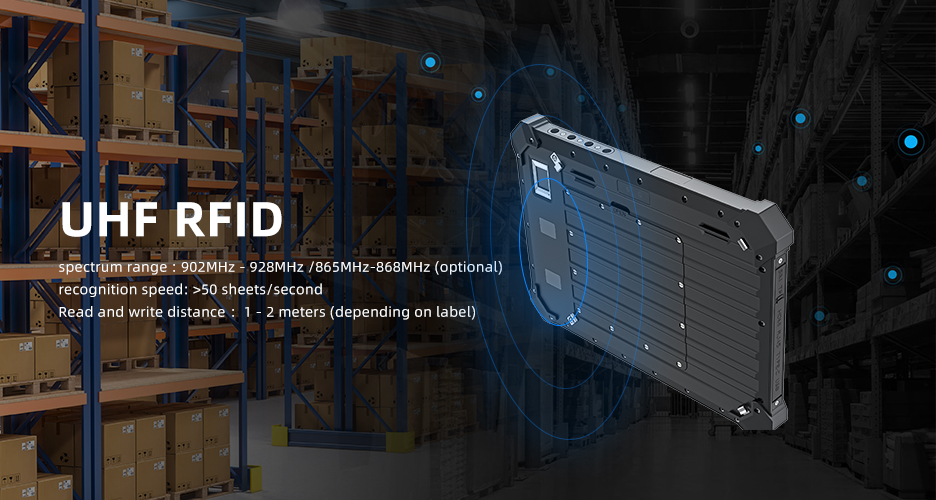

UHF RFID (Optional)

spectrum range :902MHz - 928MHz /865MHz - 868MHz (optional)
recognition speed:>50 sheets/second

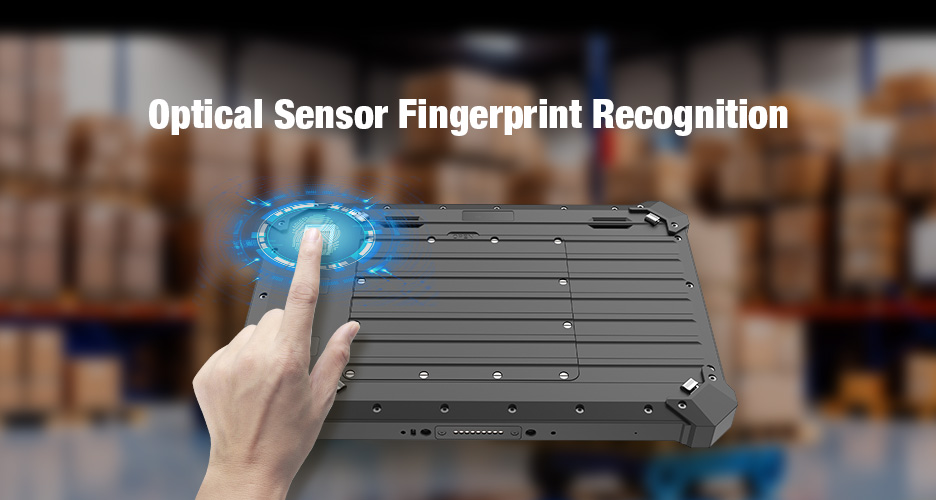

Fingerprint (Optional)

FBI PIV Mobile ID FAP 10
Standard ISO19794-2, ISO19794-4

Interface

TF memory

Supports TF*1 max: 128G

SIM

SIM*1

USB interface

USB 2.0 Type-A*1

RJ45 network port

Support 100MB/S transfer rate speed

type-c

USB Type-C*1

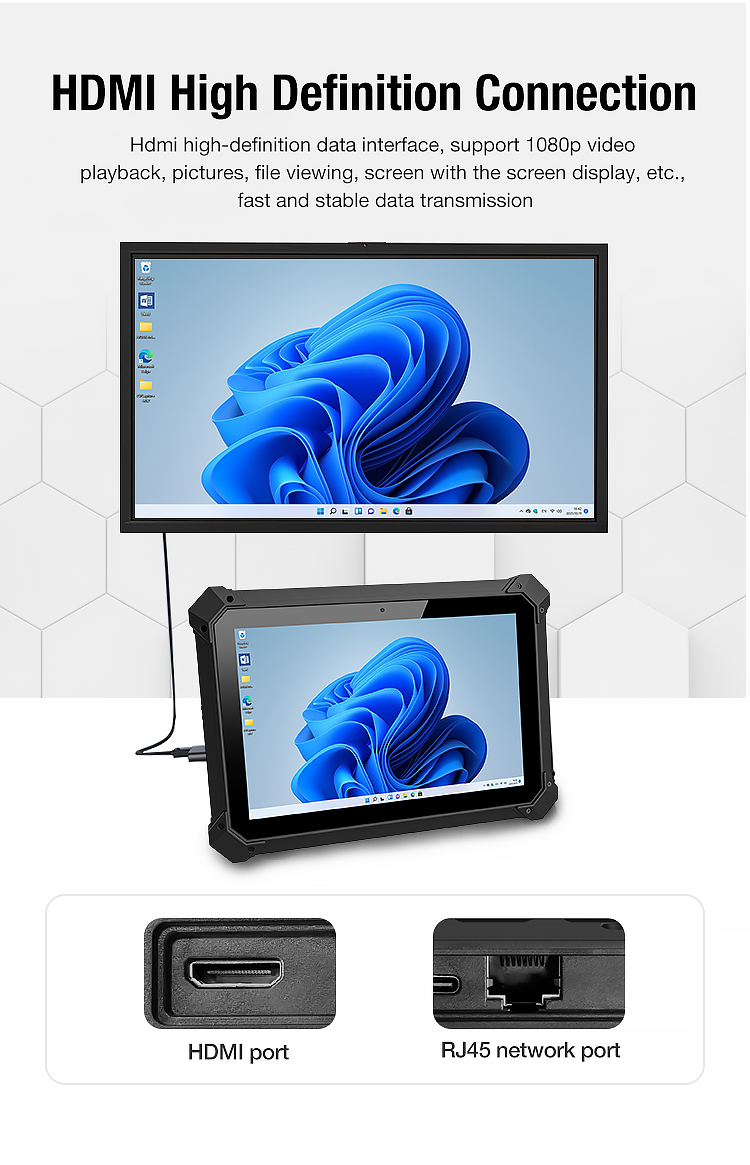

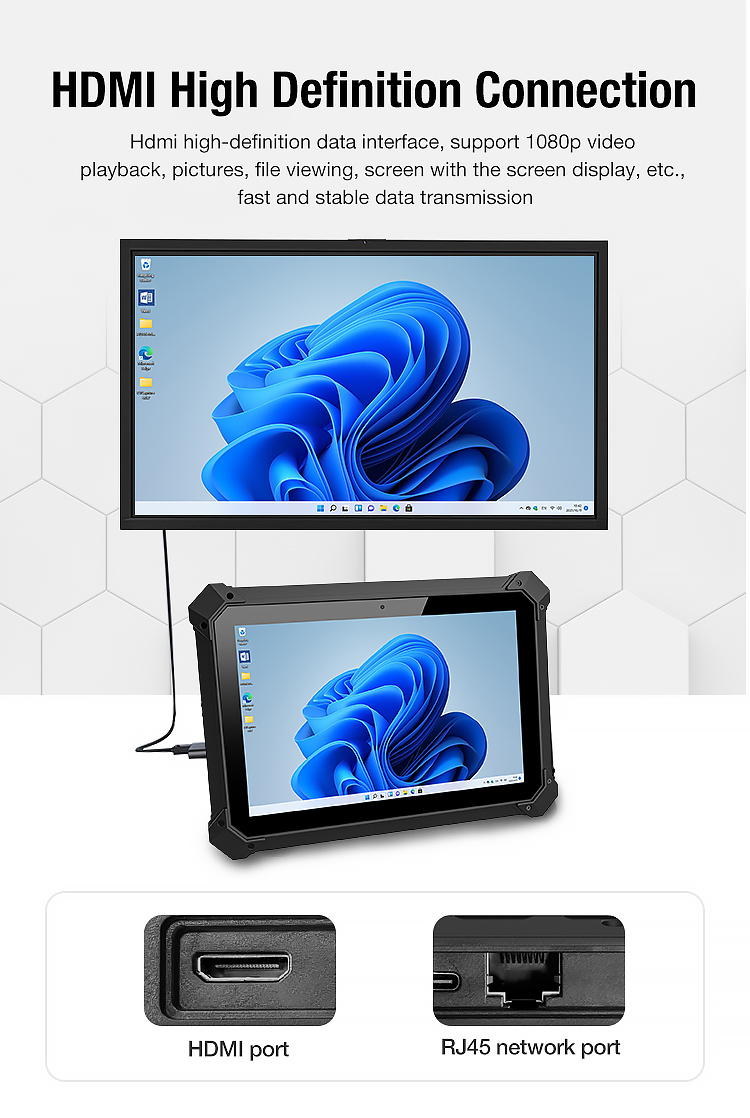

HDMI

HDMI*1
