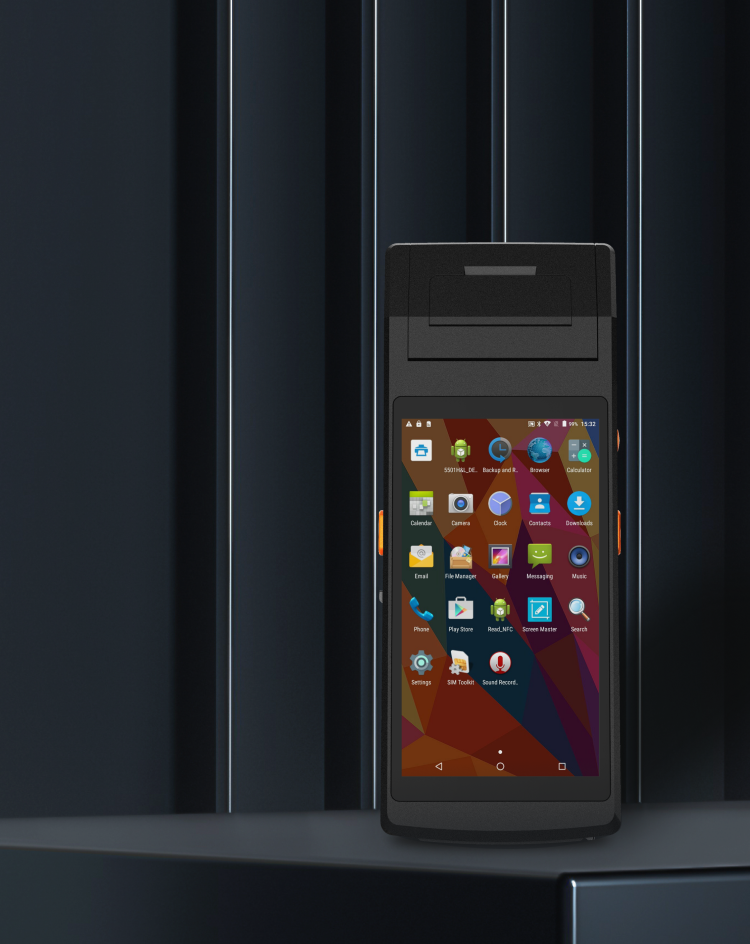

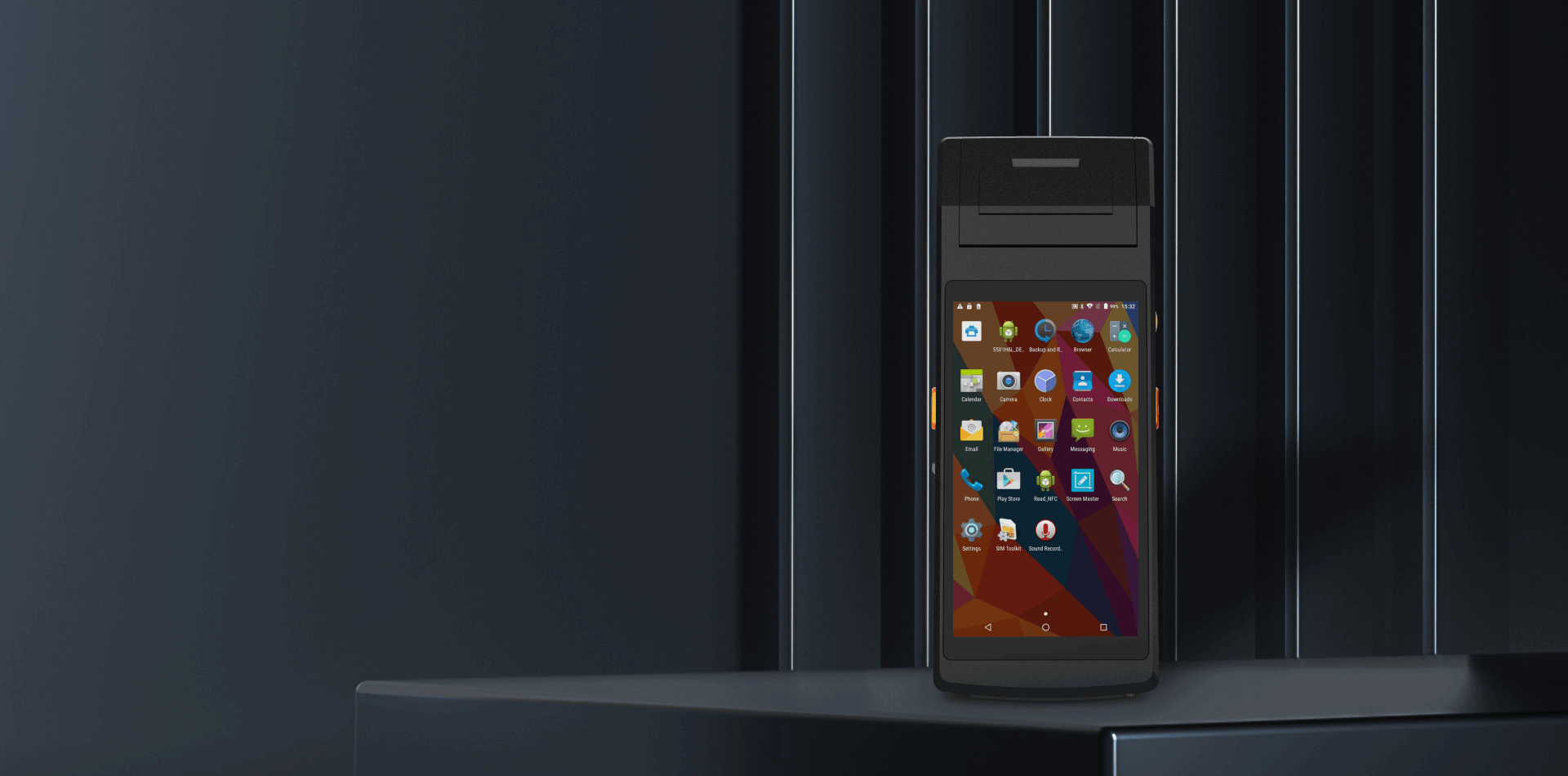

All-in-one smart handheld terminal

PDA-5501

All-in-one smart handheld terminal

Suitable For A Variety Of Environments

applications

Widely Used In Express Logistics, Financial Insurance, Warehouses,
Retail Stores, Public Service And Other Industries

Built-in 58mm Thermal Printer

Receipt and label printing
modes can be switched easily To meet all your needs.

Label

Paper

58mm

Thermal Printer

70mm/s

Printing Speed

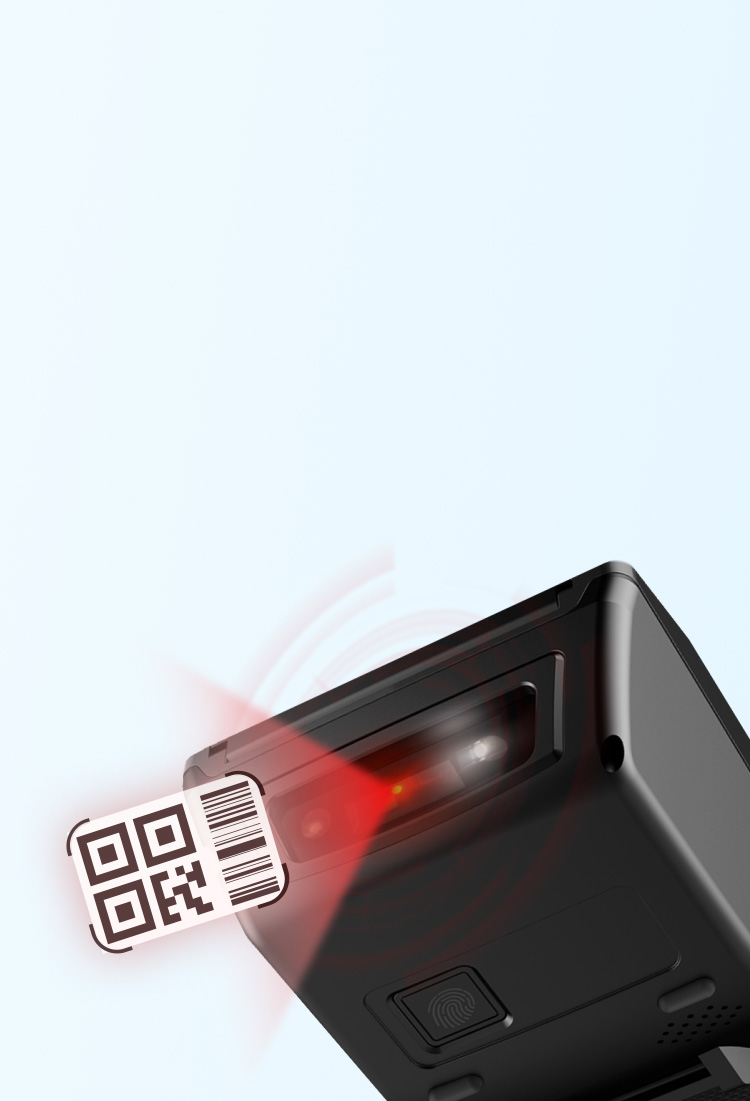

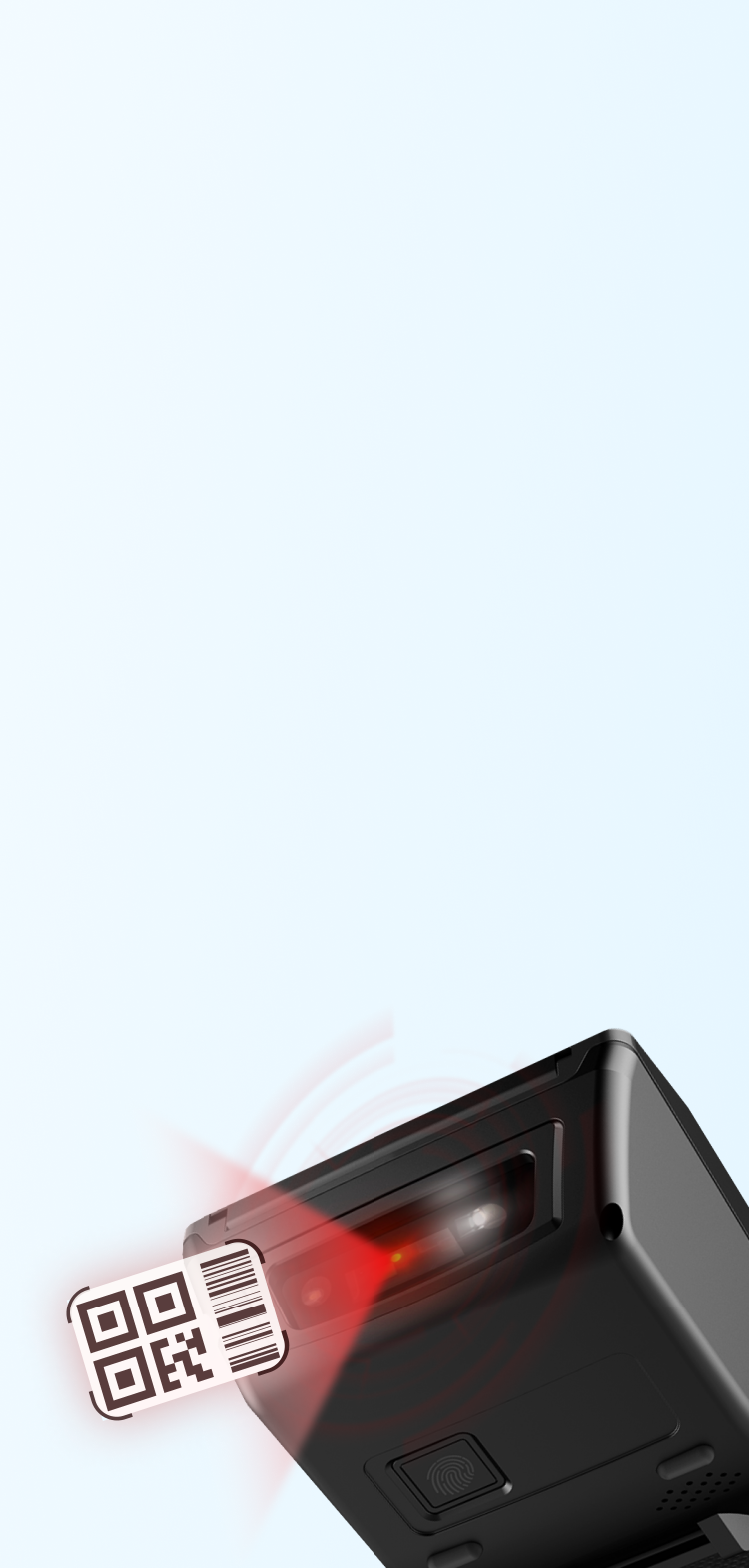

To recognize more, swiftly and easily.

A professional 1D/2D barcode scan engine can scan
barcodes in all directions, even when the barcode is damaged, scratched or stained.

1D Barcode

2D Barcode

Internally Expandable Function Modules

Internal Function Modules Can Be Expanded According To Customer Needs

ISO7816 1-3 Contact IC Card

NFC Module

UHF RFID

IC card module is safe, stable and efficien,t Perform well in swiping and scenes,
and step into a new realm of work efficiency

It Can Read RFID Tags Within A Range Of 3 Meters In Batches Without Touching And Easily Scan ,
And Can Read More Than 50 Tags Per Second, Helping Enterprises To Leap To A New
Level Of Work Efficiency.

spectrum range : 902MHz - 928MHz /
865MH z - 868MH z (optional)Read and write distance : 1 - 2 meters

4G Full Netcom + Dual-Band Wi-Fi + Bluetooth,
High-Speed And Stable Wireless Transmission

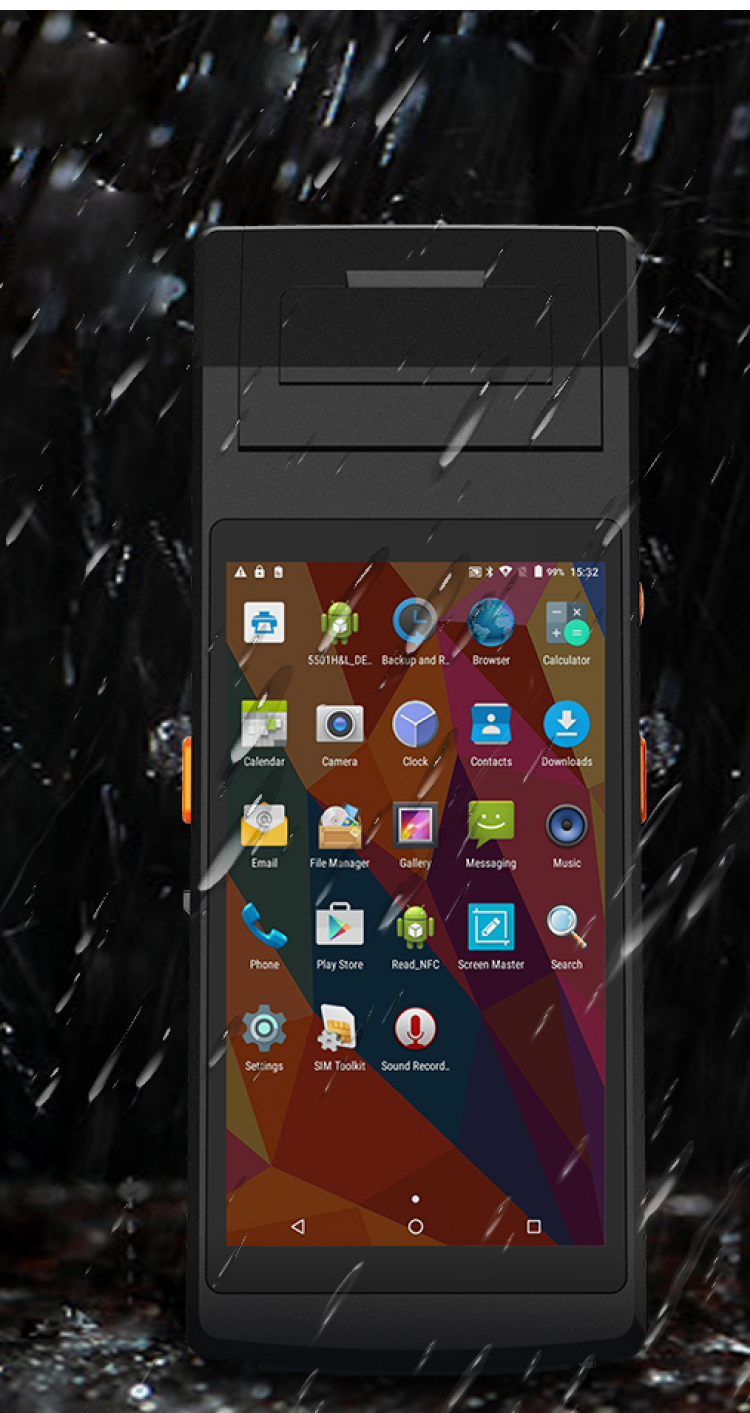

IP65 Protection Class

Working Temperature -10~60°C Easily Adapt To Various Complex
And Harsh Application Scenarios, Safe, Reliable And Durable

Dustproof and
waterproof

IP65

High-Performance Configuration Is More Outstanding

Equipped With Qualcomm 8-Core High-Performance Processor, Android9.0 Operating
System, Synchronous Processing Of Multiple Processes, Low Power
Consumption, More Efficient Work;4GB RAM+ 64GB ROM Mass Data Storage

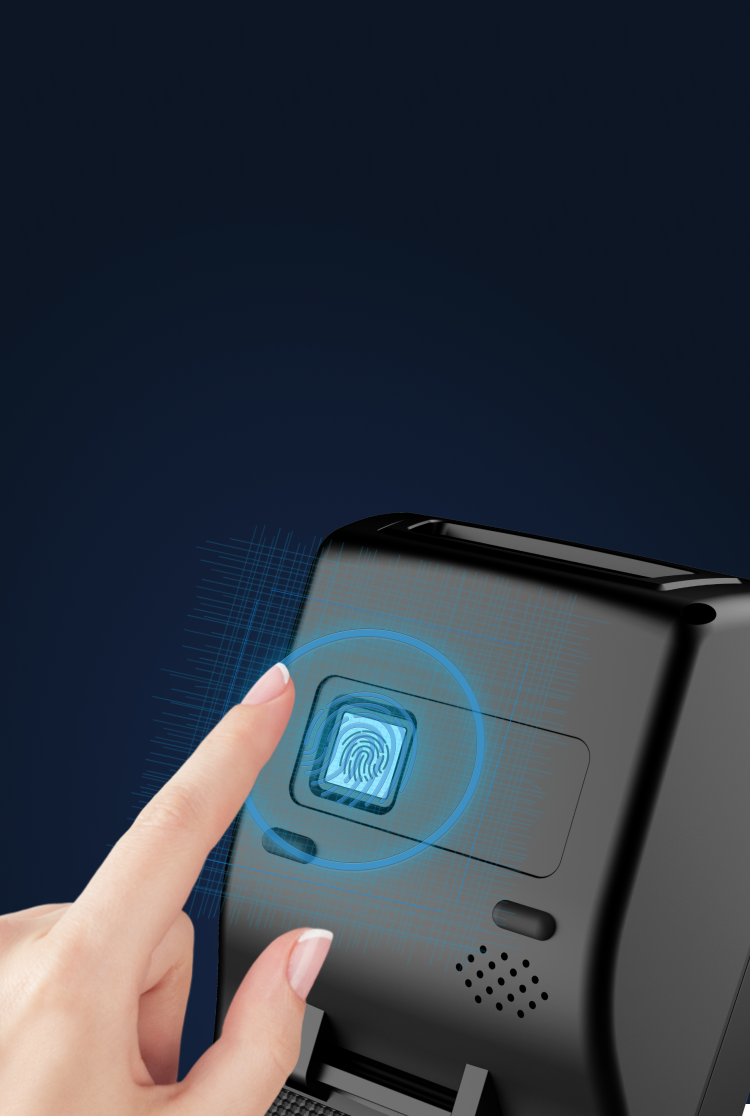

Scalable Fingerprint Module For
Safer And More Convenient Work

Using High-Performance Fingerprint Identification Chip, It Can
Quickly And Accurately Identify Fingerprints, Realize Fast
Fingerprint Unlocking, Protect Precious Data, And Escort
Enterprise Information Security.

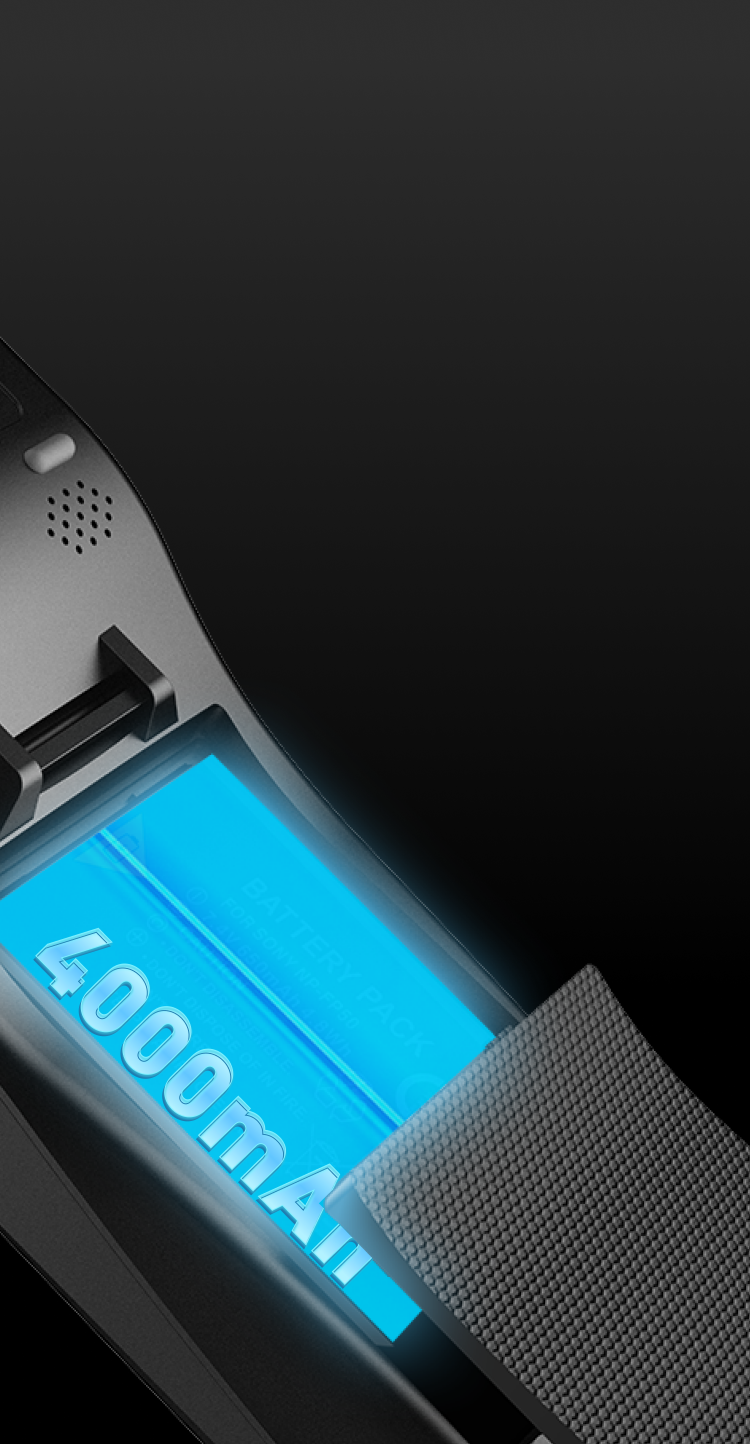

Long Battery Life, Continuous Online

Optional 4000mAh/8000mAh Removable High-Capacity Lithium Battery
Low-Power Design, Long-Lasting Battery Life Can Meet The Needs Of All-Day Work;

4000mAh

8000mAh

PDA-5501 Product Parameters

System Configuration

Processor

ARM Cortex A53 Quad-core 64bits 1.3GHz

O.S

Android 6.0/7.0/9.0

Memory

2GB+ 16GB/ 3GB+32GB / 4GB+64GB

Ex-Storage

Micro SD Card (Up To 128G)

Display

5.5inch IPS 720x1280 High Resolution

Camera

AF 8.0M Pixels with LED flash light

Touch Panel

Industrial-grade capacitive touch panel

Keypad

2 side keys,Power key

Notification

Vibrator/LED/Speaker

Battery

7.4v 4000mAh rechargeable lithium polymer battery

Audio

Built-in microphone/Headphone slot

Sensor

G-sensor

Interface

Micro USB/Serial Port(TTL)

Structural Parameters

Dimensions (LxWxD)

210*80*42mm

Weight

505g(battery included)

Communication Transmission

Mobile Network

3G: WCDMA:850/900/1900/2100MHz CDMA/EVDO 800MHz
GSM: 850/900/1800/1900MHz
4G:LTE-FDD:B1/B3/B7/B8/B28 LTE-TDD:B38/B39/B40/B41

Wi-Fi

IEEE 802.11 b/g/n

Bluetooth

Bluetooth 4.0

GPS

Supporting GPS/AGPS

Printer

Printing Method

Direct Thermal

Speed

70mm/sec

Width

48mm(384 Dots/lines)

Sensor

Black mark / out of paper / overheat over-voltage protection

Medium

Thermal paper and label

Type

Text/image/bar code/QR code

Operating Environment

Develop Tools

Android SDK + JDK + Eclipse

P-Language

Java

Operating Temp.

-10°~ 50°C

Storage Temp.

-20°~ 70°C

Humidity

0 ~ 95% (non-condensing)

Sealing

IP65

NFC/HF RFID

Protocol

ISO/IEC 14443A/B,ISO15693

Frequency

13.56MHz

NFC type

Type1-4Tag/Mifare/Felica

PSAM/ Contact Card

PSAM

IS0/IEC 7816 1-4

Contact chip card

IS0/IEC 7816 (optional)

2D Image Scanning (Optional)

Method

CMOS Image

Scan Speed

60scans/sec

Scan Angle

360 ° angle, Elevation angle ± 55 °, Eeflection angle ± 55 °

Identification accuracy

2D≥7.5mil,1D≥5mil

DPM

Support DPM scanner (optional)

Decoding Type

QR Code, Data Matrix, PDF417,UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar

1D Laser Scanner

Speed

100 lines/sec

Scan Angle

±50°

Identification
accuracy

≥4mil

Decoding Type

UPC-A,UPC-E,UPC-E1,EAN-13,EAN-8,ISBN/ISSN,Code 39,code39 (ASCII full), Interleaved 2 of 5,Industrial 2 of 5,Matrix 25,Codebar(NW7),Code 128,UCC/EAN 128,ISBT128,code 93,MSI/Plessey,UK/Plessey,China post,GS1 Data Bar

Fingerprint(Optional)

Method

Flat surface press to semiconductor sensor

Sensor

FPC1020


242*266 pixels

Image resolution

508dpi

Storage

2000 pieces

UHF RFID(Optional)

Frequency

902Mhz-928Mhz、865MHz-868MHz(optional)

Protocol

EPC global UHF Class 1 Gen 2/ISO 18000-6C

Capture Range

1-2m

Output Power

18-26dBm
