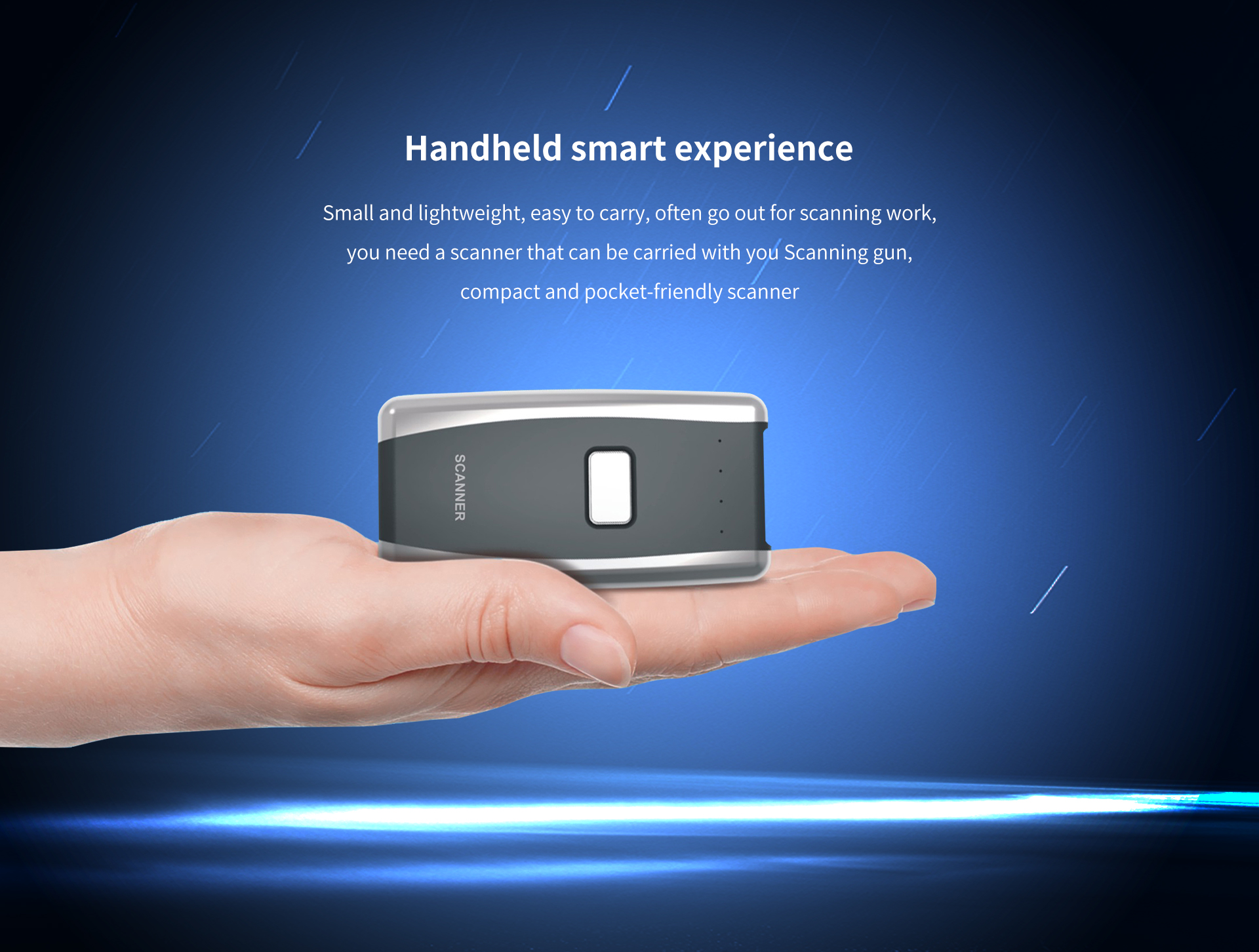

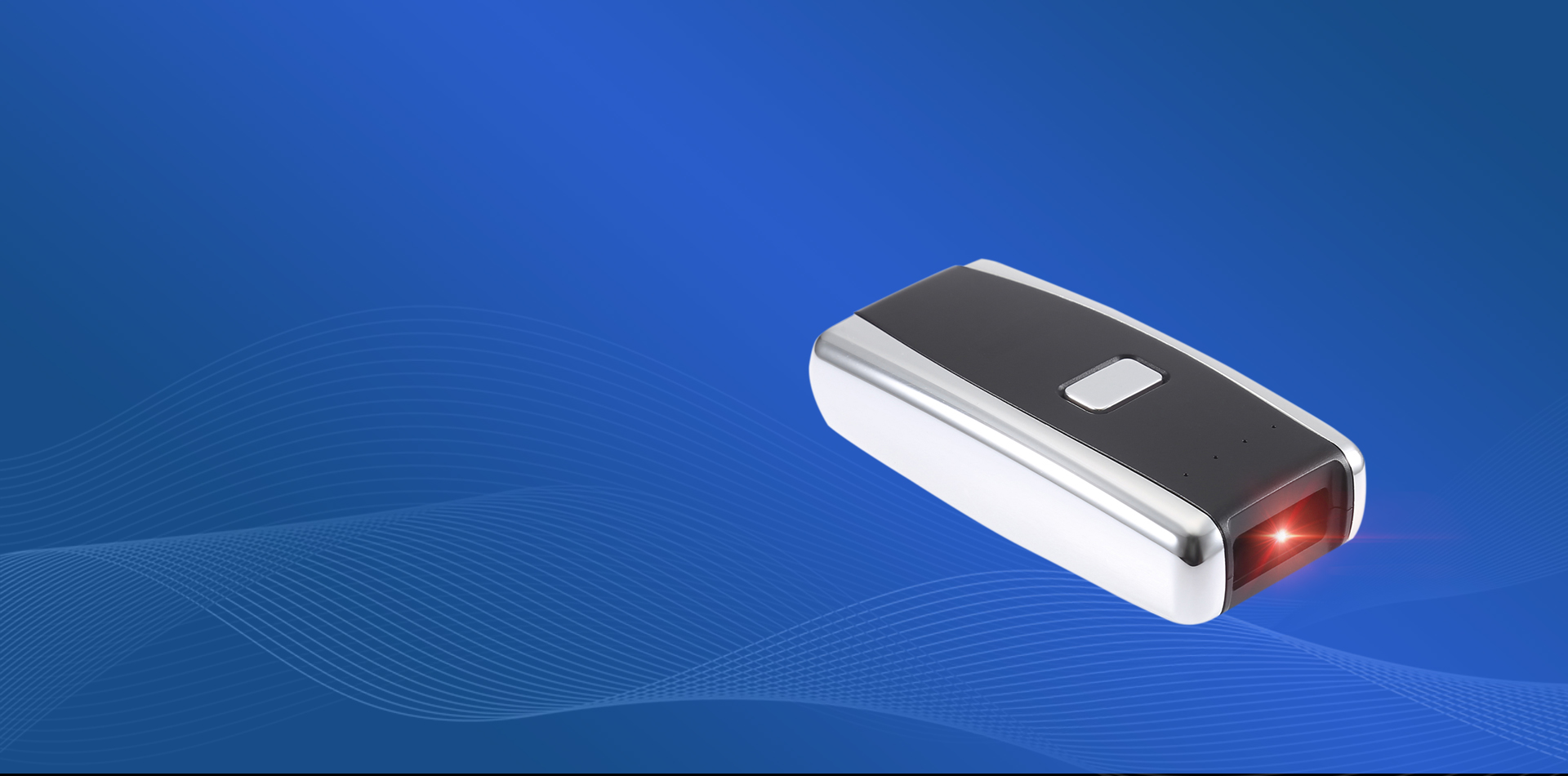

Mini Portable Scanner

QS - S01

Mini Portable Scanner

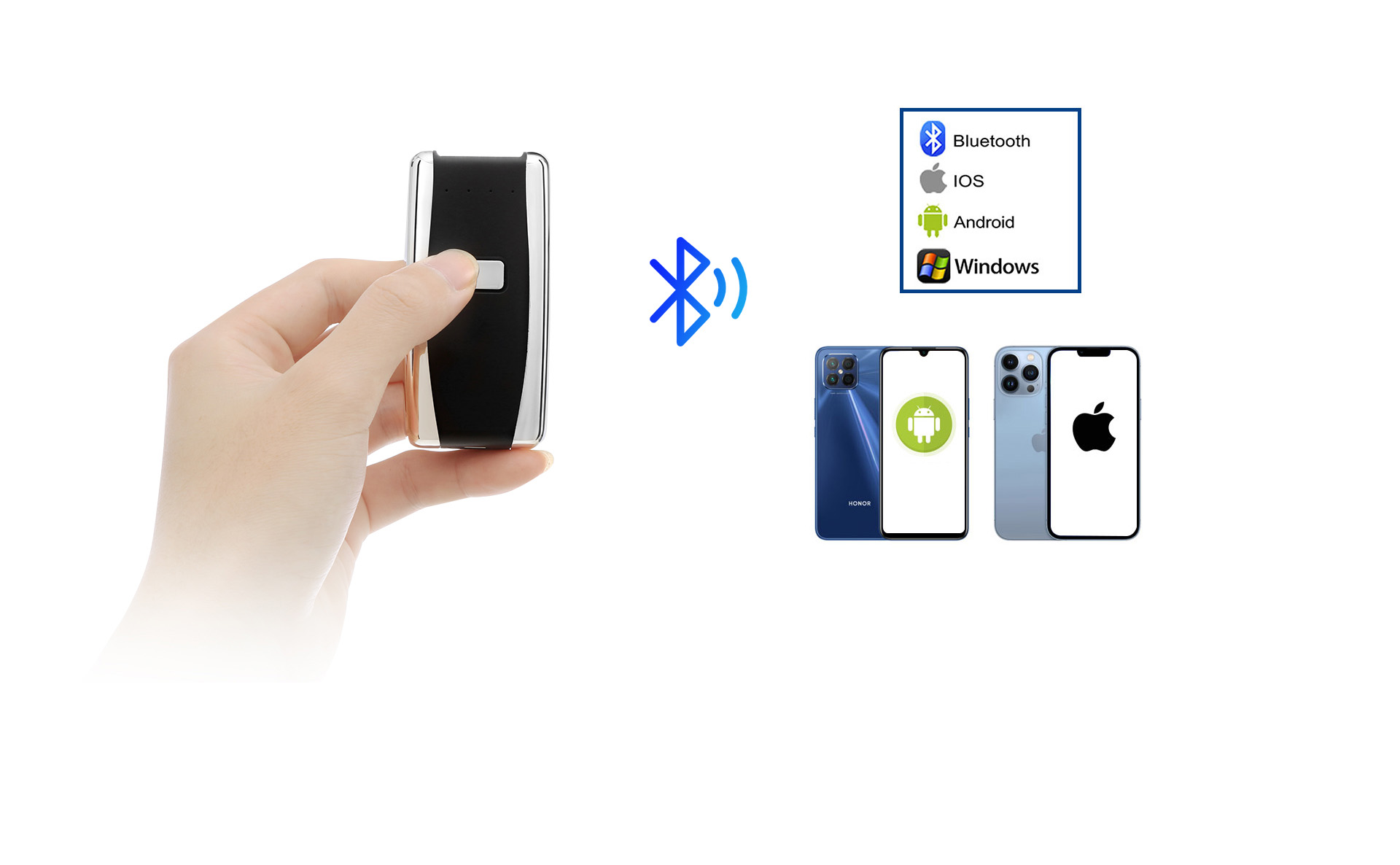

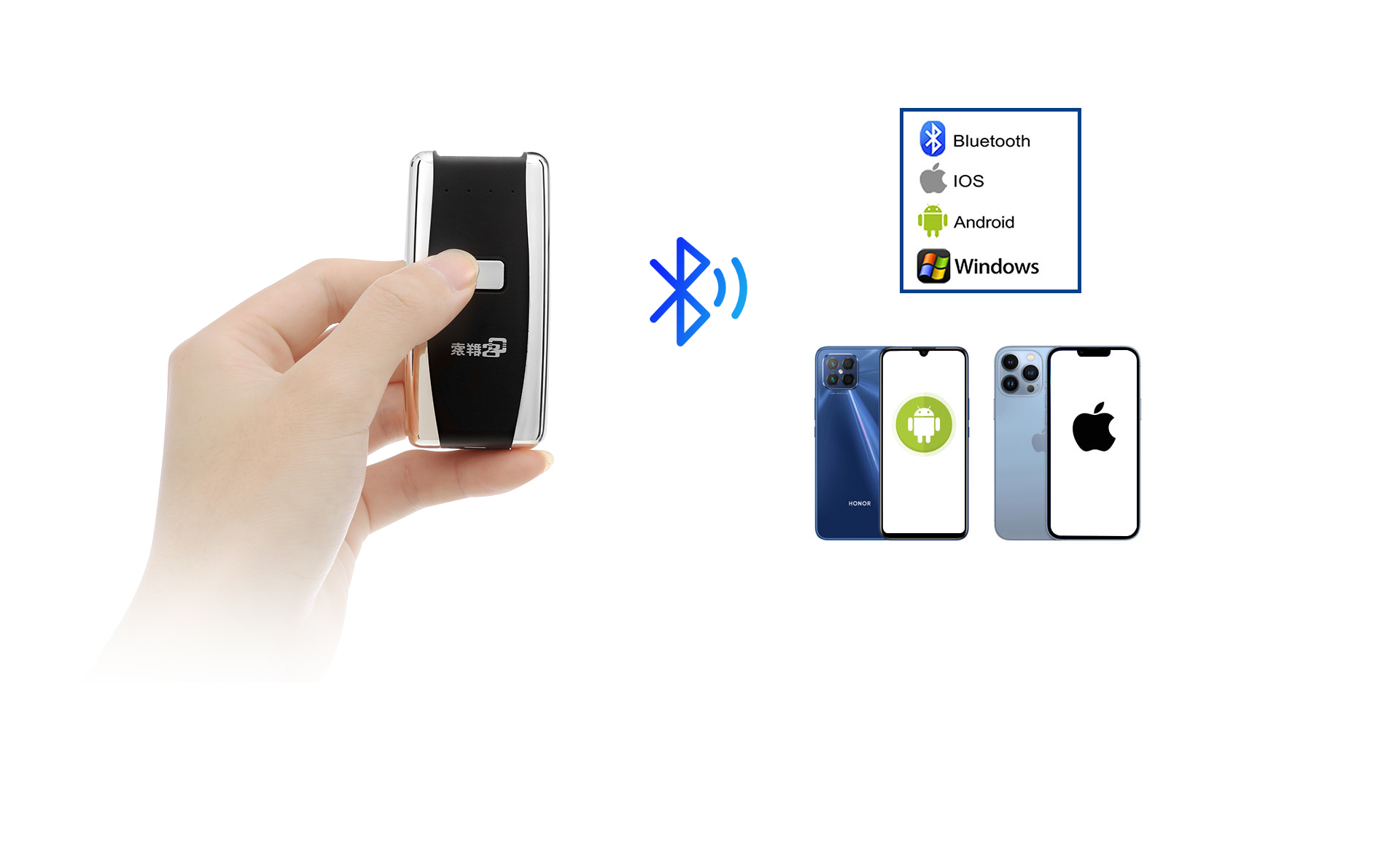

Bluetooth connection is simple and fast

The use mode is divided into wireless mode and wired mode, using
Bluetooth to communicate with mobile terminal devices (such as
hand computer\tablet computer, etc.), or directly connect to the
computer using a data cable

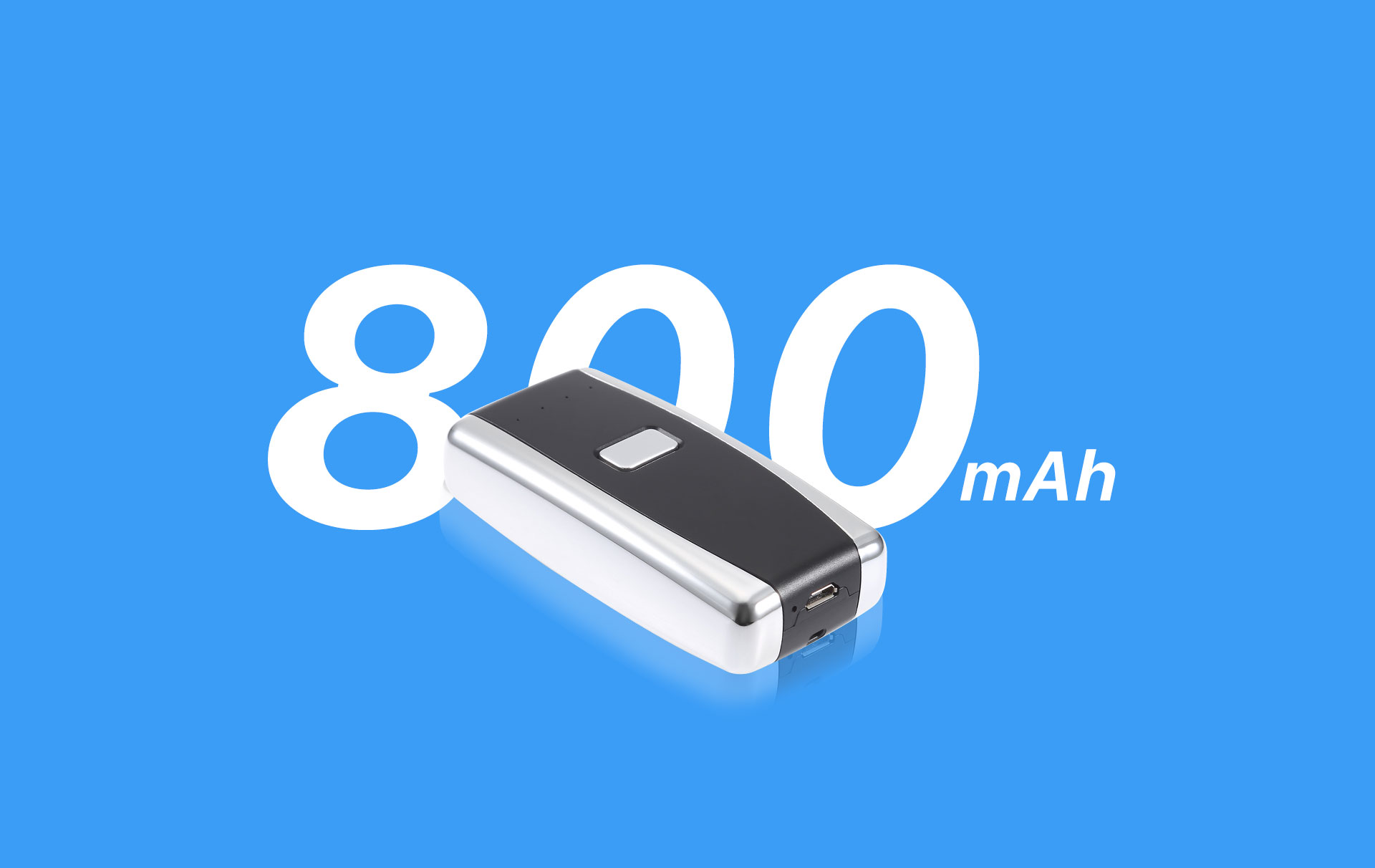

Battery capacity 800mAh

It is Built-in rechargeable lithium battery, charging for 3-4
hours and standby for 10 days

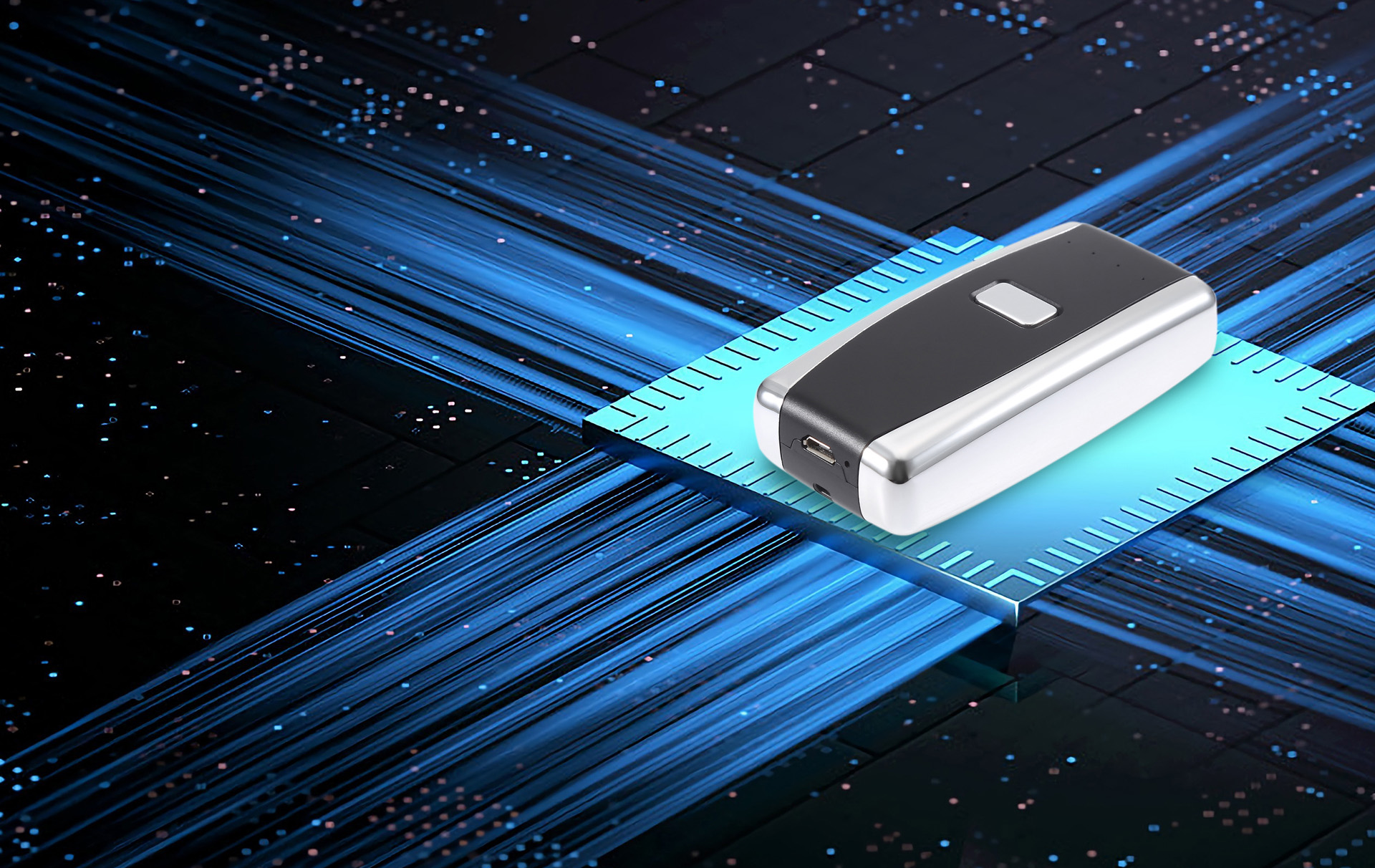

16MB large memory

You can scan without connecting the device, and the scanning gun will automatically record the scanned information. After connecting to the device, there will be no lost uploads.

The standard version has 4MB of memory that can store 5000 barcodes. Upgraded version, memory can be expanded to 16MB, and if the content is a 10 bit barcode, it can store over 1,000,000 barcodes

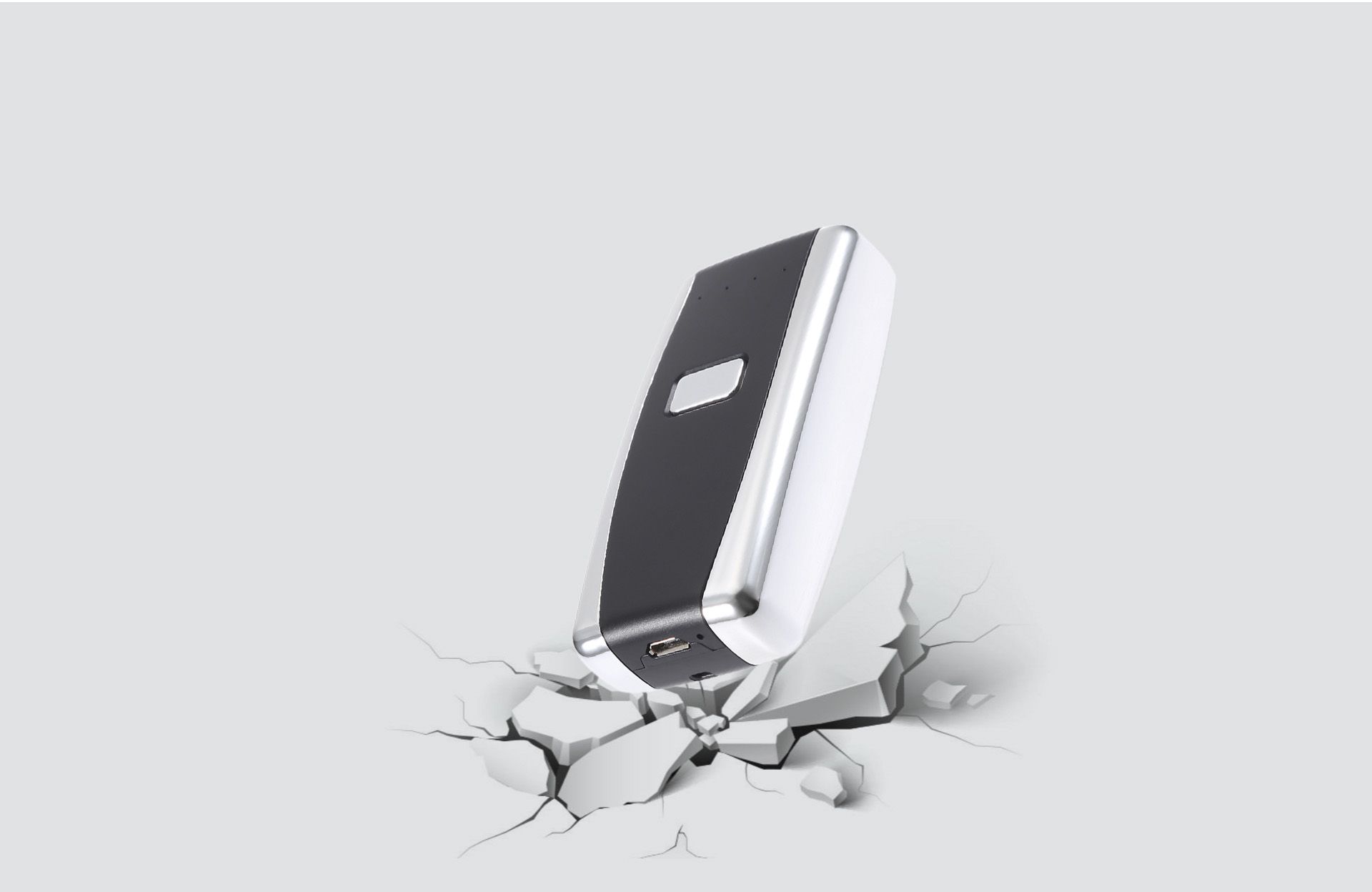

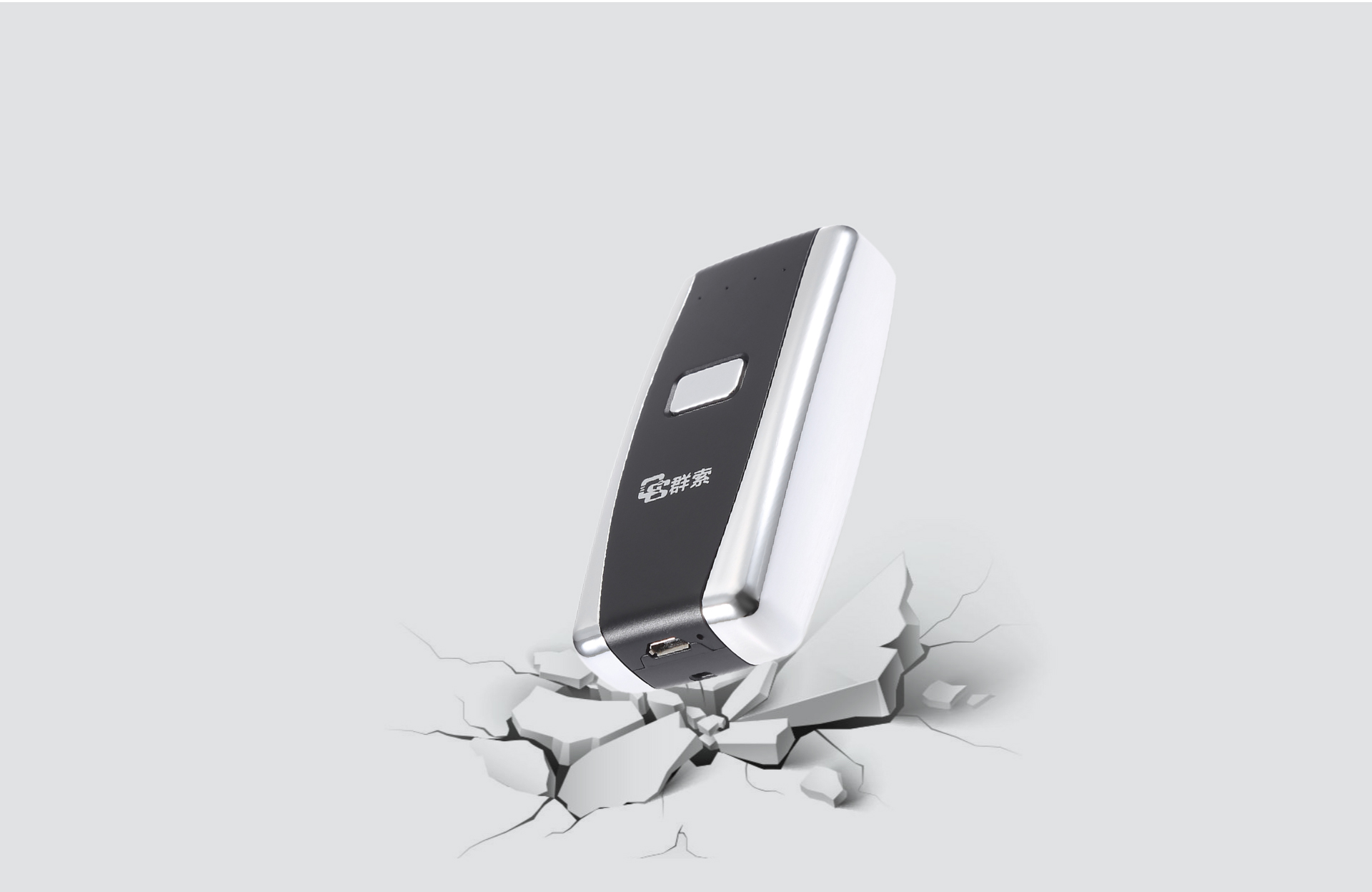

Strong anti-fall performance

It has Stable structure, shock-proof and anti-fall
and adapt to various complex environments

S-01 Product Parameters

System Configuration

Processor

ARM M332 bit 108MHz processor

System Internal Memory

RAM 128kbs

Flash

ROM 4MB
ROM 16MB (optional)

Button

1 button for power and scan

Prompt

LED light/Buzzer/Vibration

Battery

Internal 800mAh rechargeable battery

LED Status

Power/Battery/Bluetooth/ScanStatus

Charging

USB 5V

Structural parameters

Dimension

80*40*20mm

Weight

40g

Data communication

Communication

Bluetooth 3.0

Protocol

SPP/HID

Use environment

development tools

Provides SDK for SPP mode

Language

Java

Support O.S

Android/IOS/Windows

Scan mode

Standard mode/ inventory mode

Settings

Sleep,Buzzer,Vibration,Keyboardetc

Operating temperature

-10° ~ 50°C

Storage temperature

-20°~ 70°C

Humidity

0 ~ 95% (without condensation

Protection level

IP65

with 1D CCD barcode scanner engine (optional)

Collection method

CMOS video

Scan speed

1/60 s

Scan angle

Angle 360°, Angle of elevation ± 55°, Angle of deviation ± 55°

Resolution

5mil

Code Type

EAN, EAN-8, EAN-13, UPC-A, UPC-E, Code 39,Code 93, Code 128, Code 12 8C, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, GS1 Databar, GS1 Composite Code, Matrix 2 / 5, Code 11, Industrial 25, Standard 25, Plessey, MSI-Plessey, etc

1D laser barcode scanner engine(optional)

Collection method

Visible light secondary tube, wave length 650 nanometers

Scan speed

100 lines/second

Scan angle

Angle 360°, Angle of elevation ± 55°, Angle of deviation ± 55°

Resolution

≥4mil

Code Type

UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN/ISSN, 39 yards, 39 yards (ASCII Full size), 32 yards, Trioptic Code 39, Cross 25 yards, Industry 25 yards (Discrete 2 of 5), Matrix 25 Code, Kudaba Code (NW7), 128 yards, UCC/EAN 128, ISBT128, 93 yards, 11 yards (USD-8), MSI/Plessey, UK/Plessey, China Post Code, GS1 DataBar

2D(QR code) scanner engine (optional)

Collection method

CMOS video

Scan speed

1/60 s

Scan angle

Angle 360°, Angle of elevation ± 55°, Angle of deviation ± 55°

Resolution

≥7.5mil

optional

Supports DPM (Part Marking Code)

Code Type

QR Code, Data Matrix,PDF417,UPC-A,UPC-E,EAN-8,EAN-13,ISBN,Code 128, GS1 128,ISBT 128,Code 39,Code 11,Interleaved 2 of 5,Industrial 2 of 5, Matrix 25, Standard 25,Coba bar,MSI/MSI PLESSEY,GS1 Data Bar
