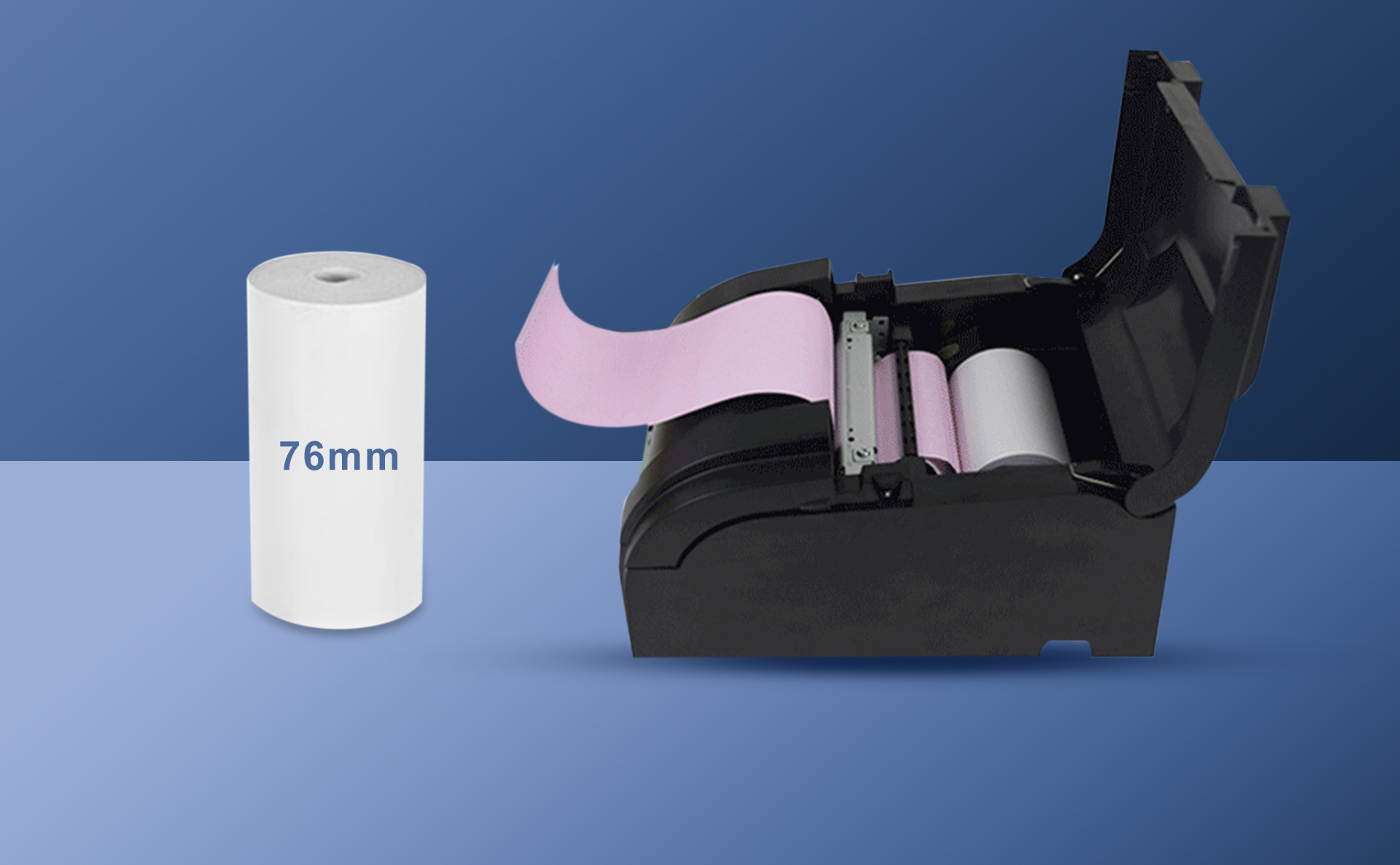

Support ordinary white paper/3-up carbon paper printing

76mm printing width, multiple receipt printing, clear handwriting,
needle type printing, long-term storage and no fading

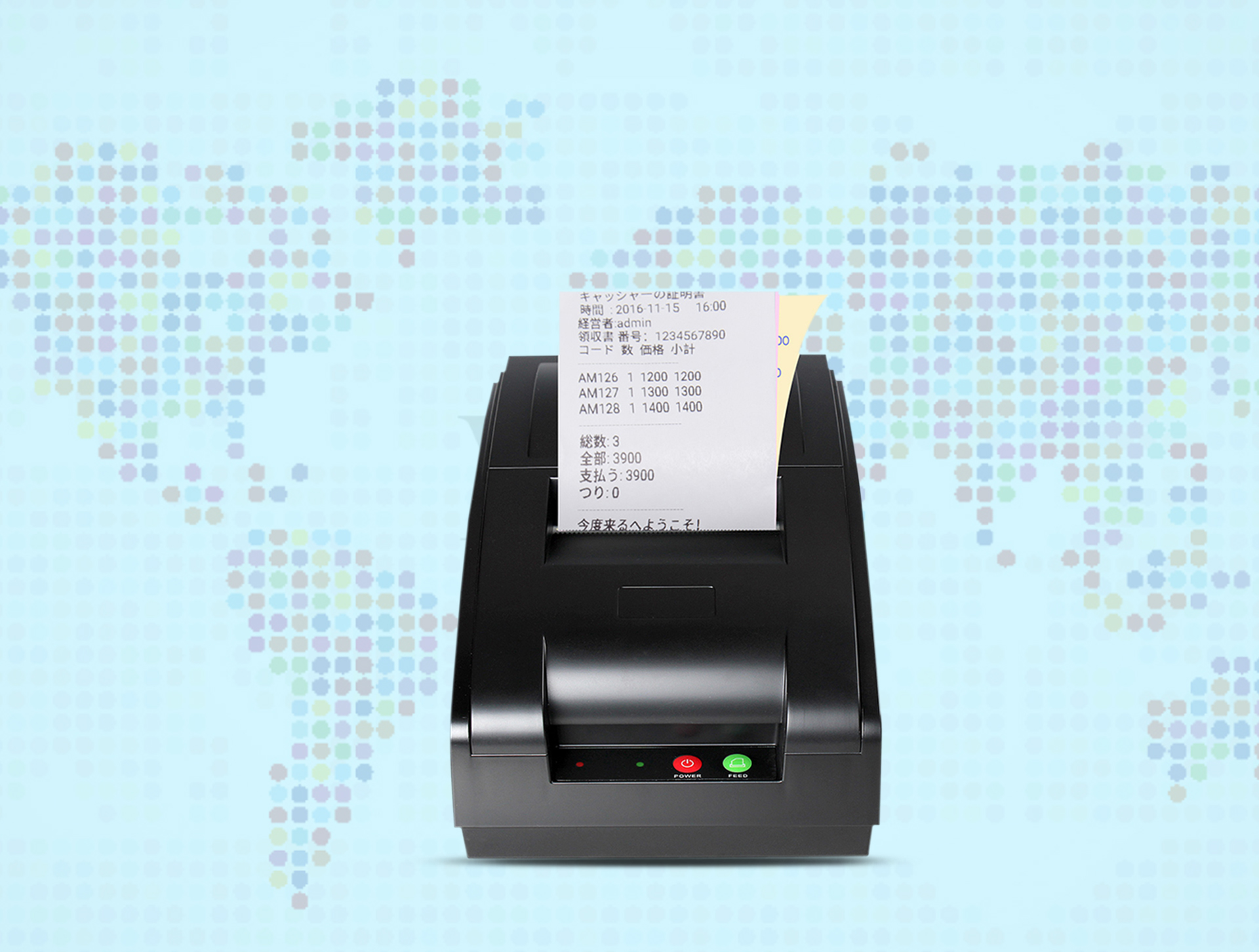

Support Printing Multi-Language

Spanish ,Arabic ,Vietnamese,Cambodian,Japanese, Korean,
Italian, Portuguese,Turkish, Russian,French, German

Customized-set up language base on customer requirements

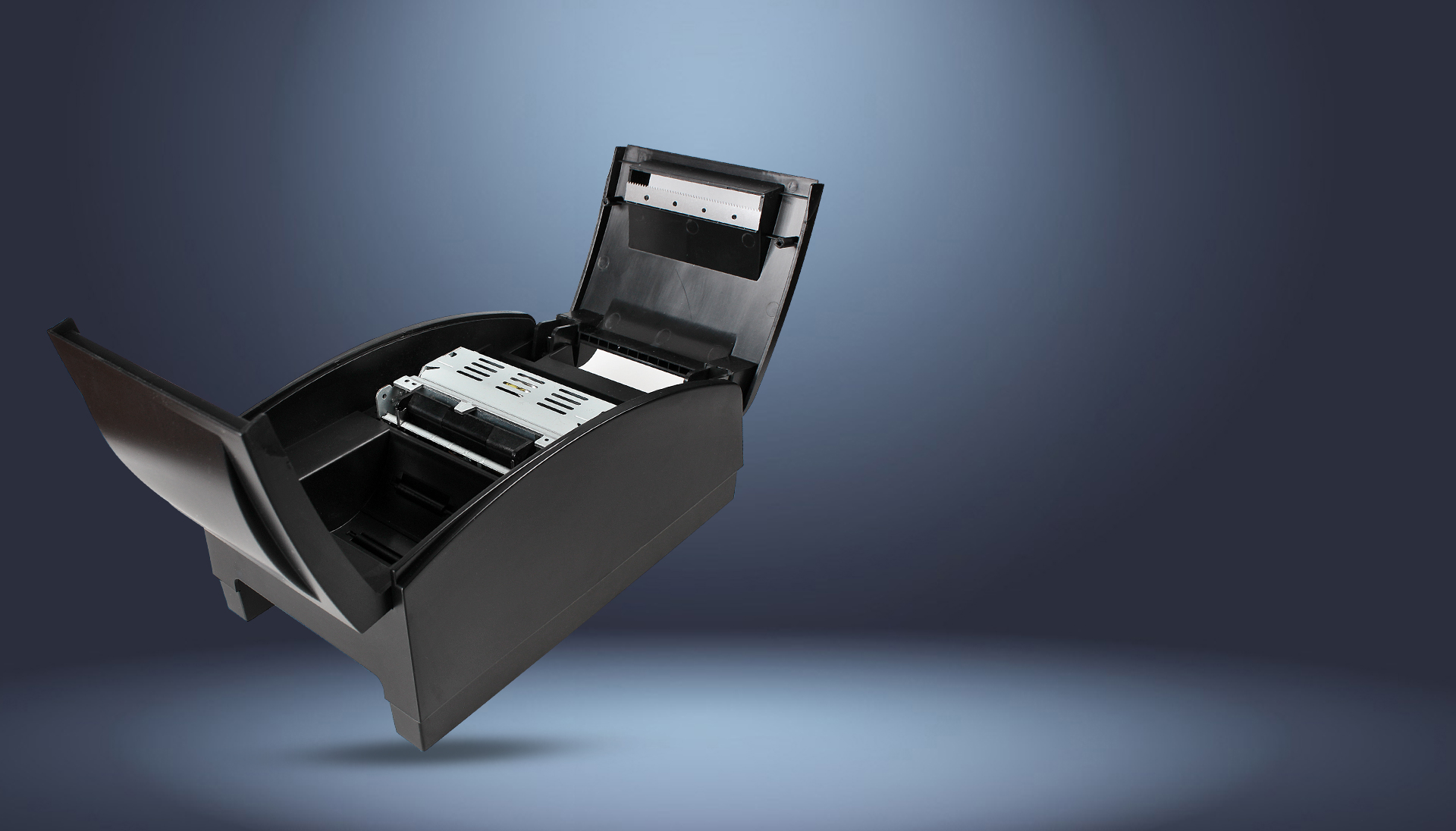

Efficient print head

High-performance print head, print clearly and show
quality, reject blurry and unclear printing effect, stable
and fast and efficient.

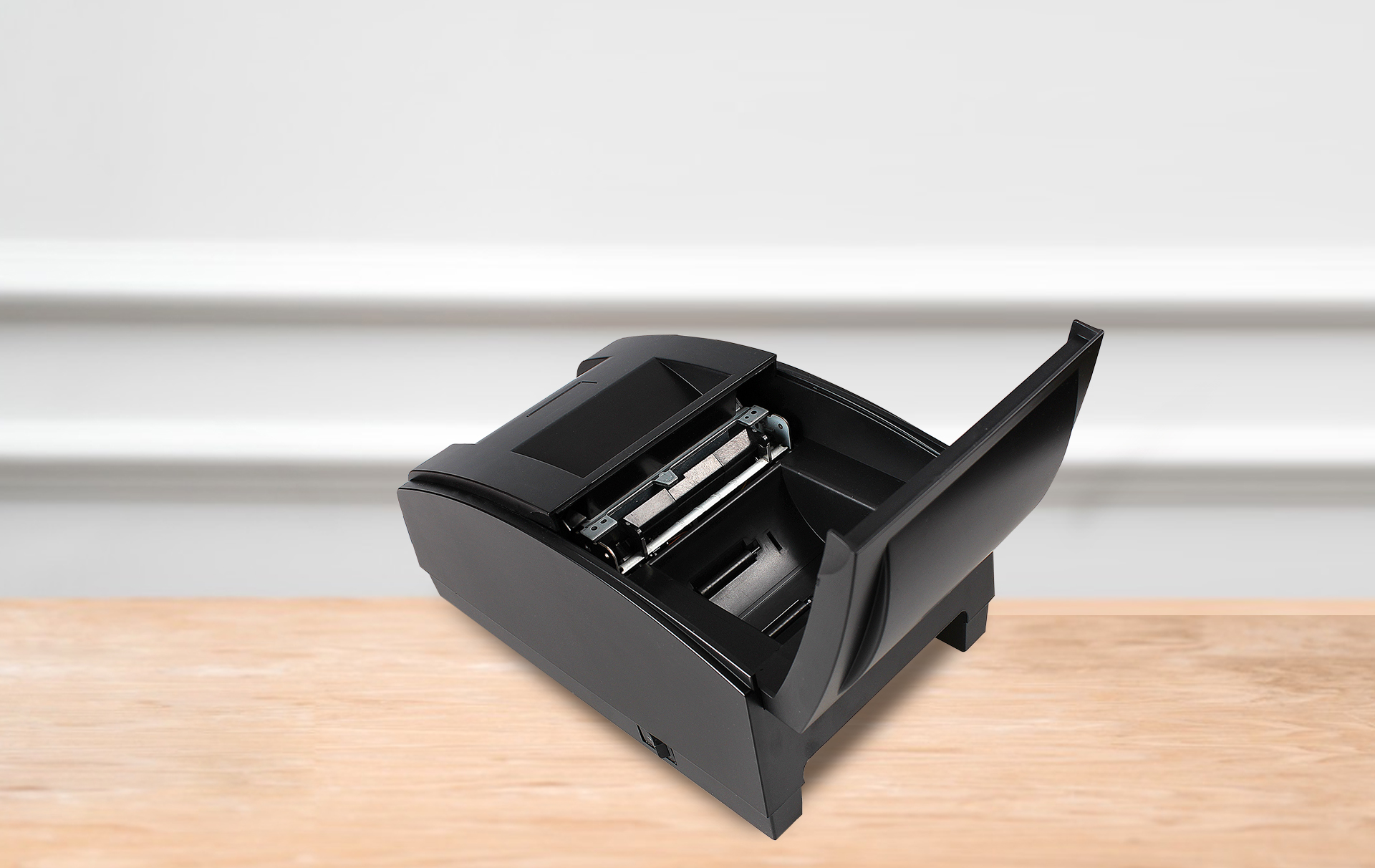

The sharp edge makes tearing paper easier

Sharp edges, neat tearing and high efficiency

Independent R & D to provide technical services

Professional technical support is easy to operate

QS-7601 Product Parameters

Specification

Adapter

Input AC 110V-240V Output DC 24V-2A

Printing life

1.5million lines

Weight

1.65KG

Size

258mm*158mm*158mm

Net weight

200g

Package weight

500g

Packing List

1* printer 1*adapter 1*USB cable 1* paper roll 1 box package

Communication

Interface

Bluetooth/USB 2.0/RS232

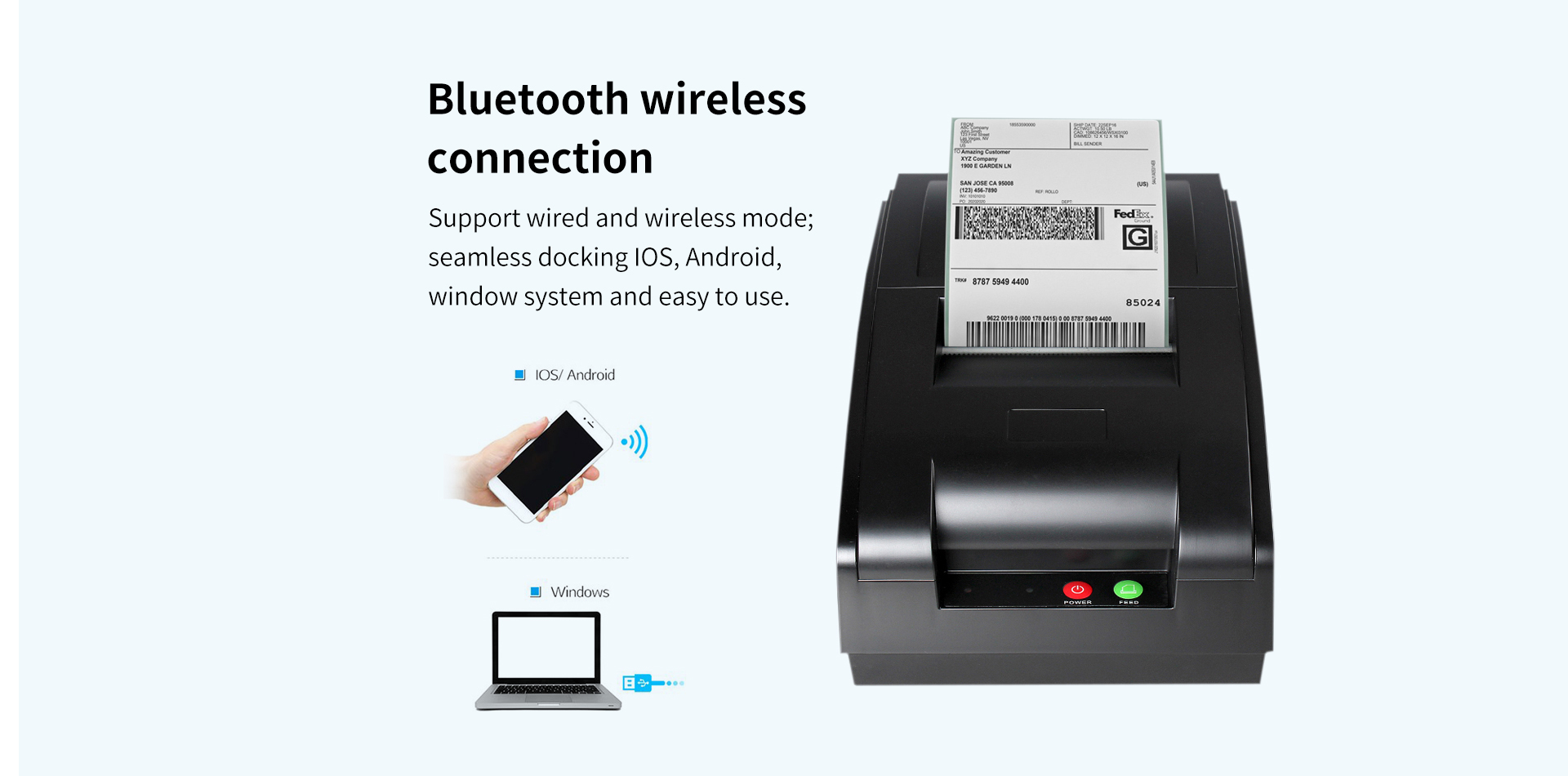

Bluetooth

Bluetooth 4.0

Printing parameters

Printing method

9 needles Bi-directional printing

Print Width

72mm (24 Chinese characters/line 48 English words/line)

Printing

Printing Speed

5.5MM/S

Printer Width

72mm

Paper Width

76mm

Paper thickness

0.06-0.08mm

Sensor

Double Black mark sensor ;low-energy;no-paper sensor

Error Reminder

No paper; door open ; print head over-heat

Installed Character

ASII(8*16 12*24 16*32 24*48 32*64) GB13080(13*13 24*24 68*48)

Instruction system

POS/ESC

Resolution

5 dot /mm

Paper Cut

Manually

System Language

English/Chinese

Paper type

2 page copy paper

Paper roll

Max 50mm
