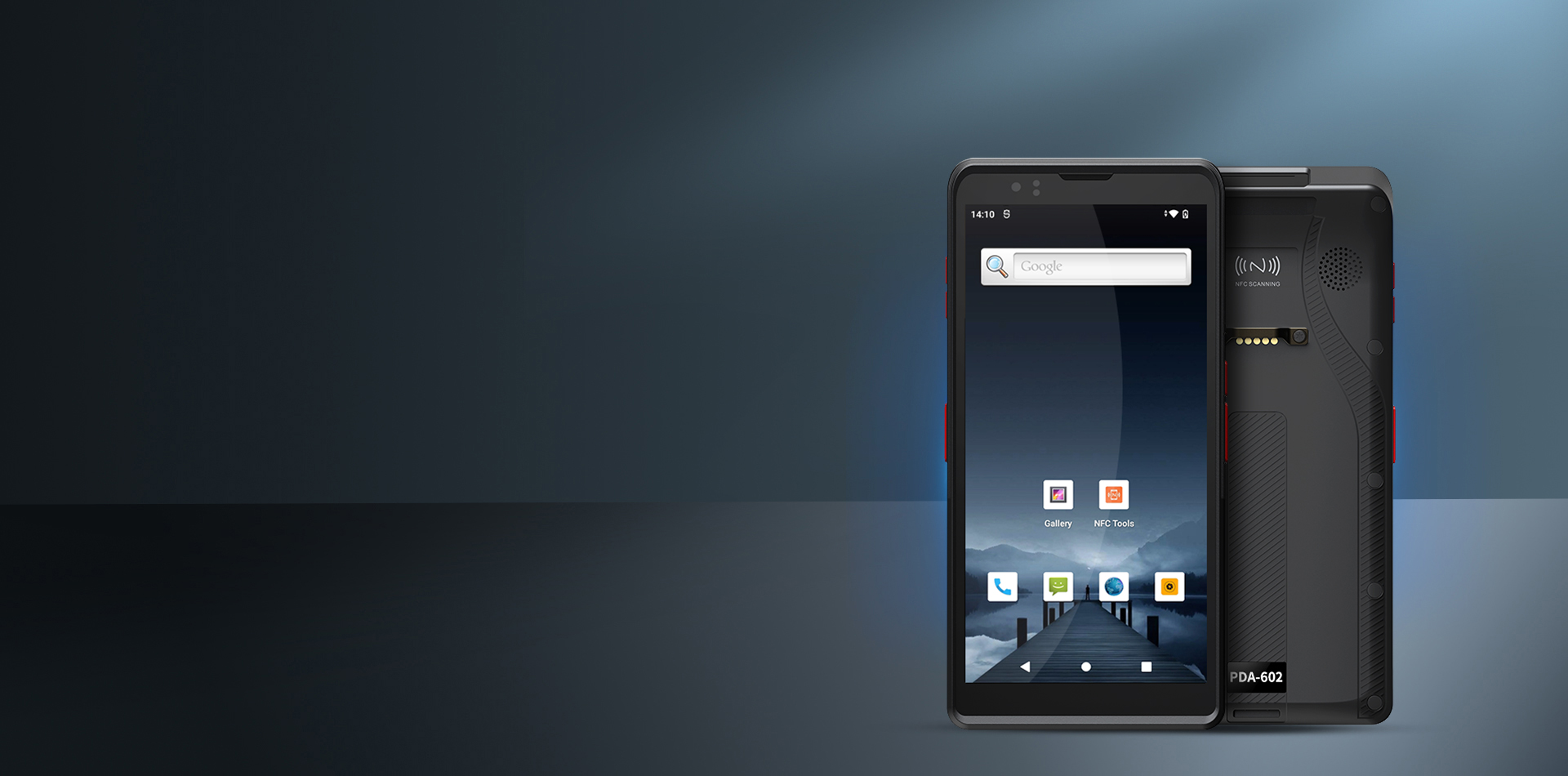

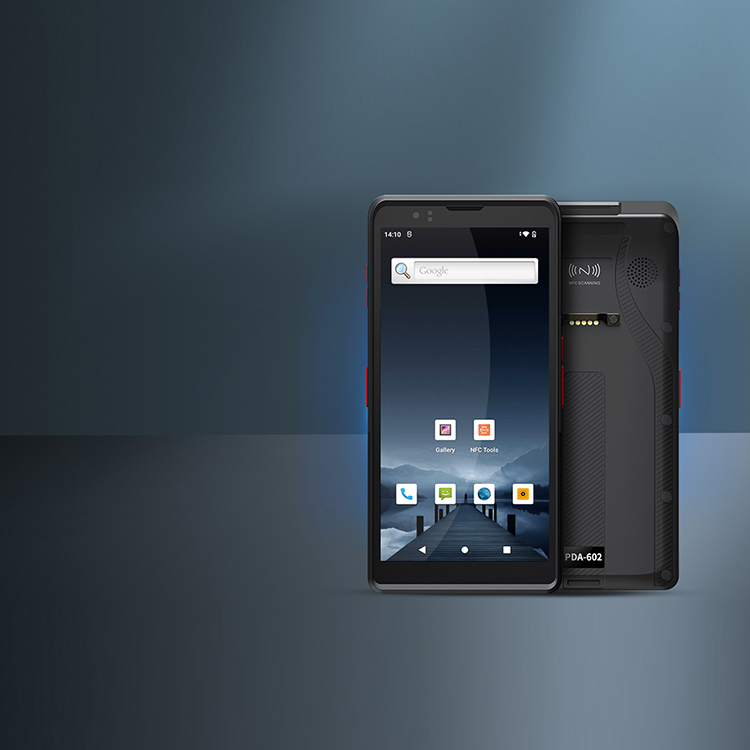

Full screen smart handheld terminal<br />
Thin and light 6-inch design

PDA - 602

Full screen smart handheld terminal
Thin and light 6-inch design

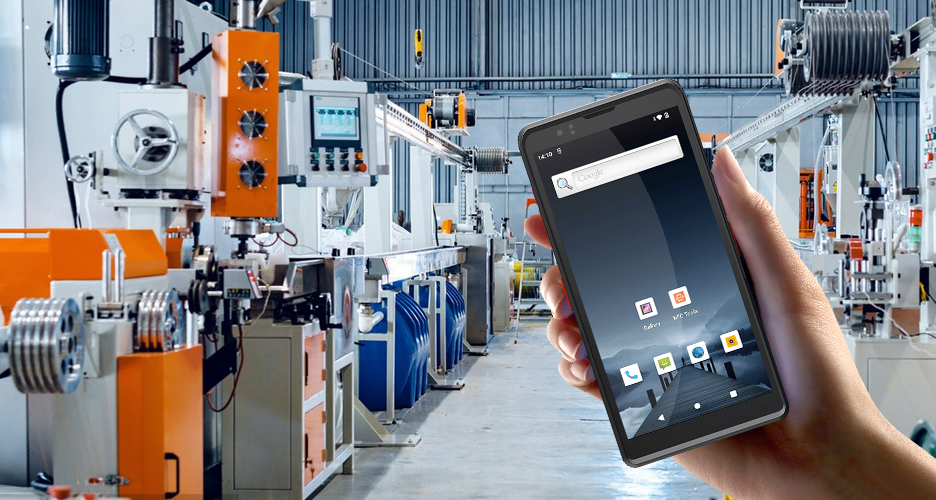

Suitable For A Variety Of Environments

applications

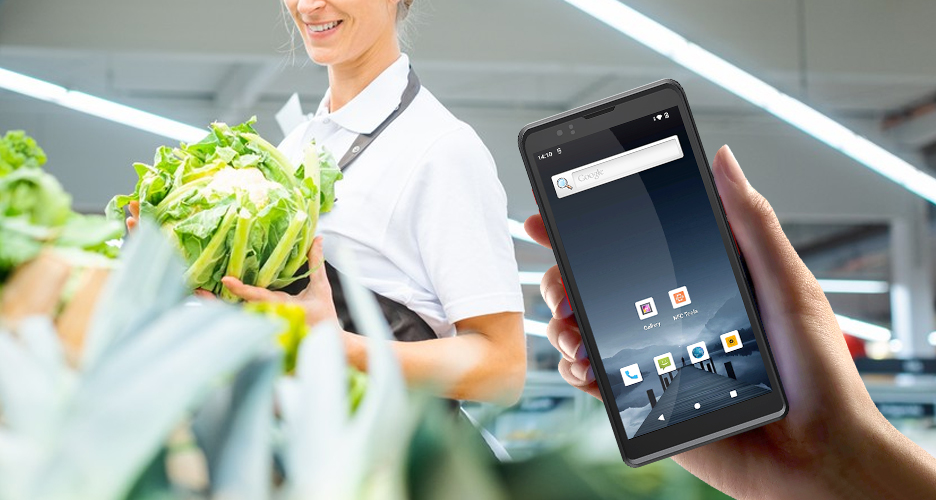

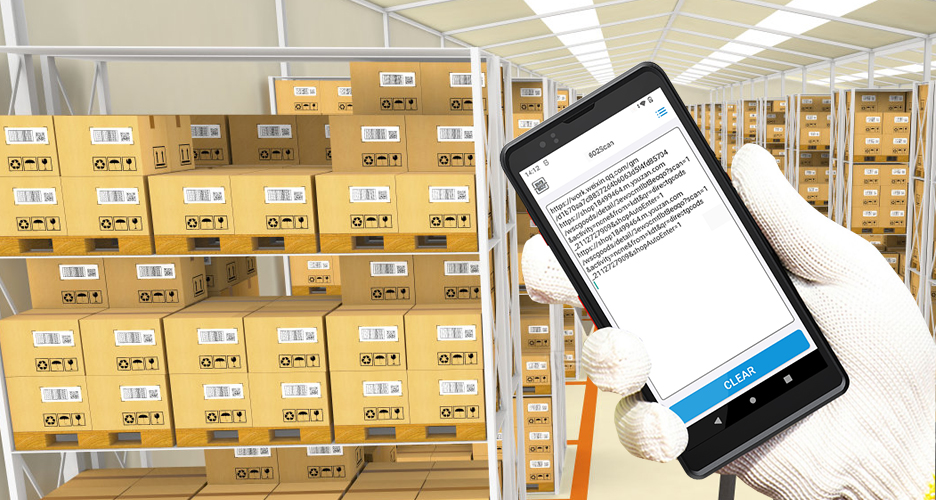

Widely Used In Express Logistics, Financial Insurance, Warehouses,
Retail Stores, Supermarkets And Other Industries

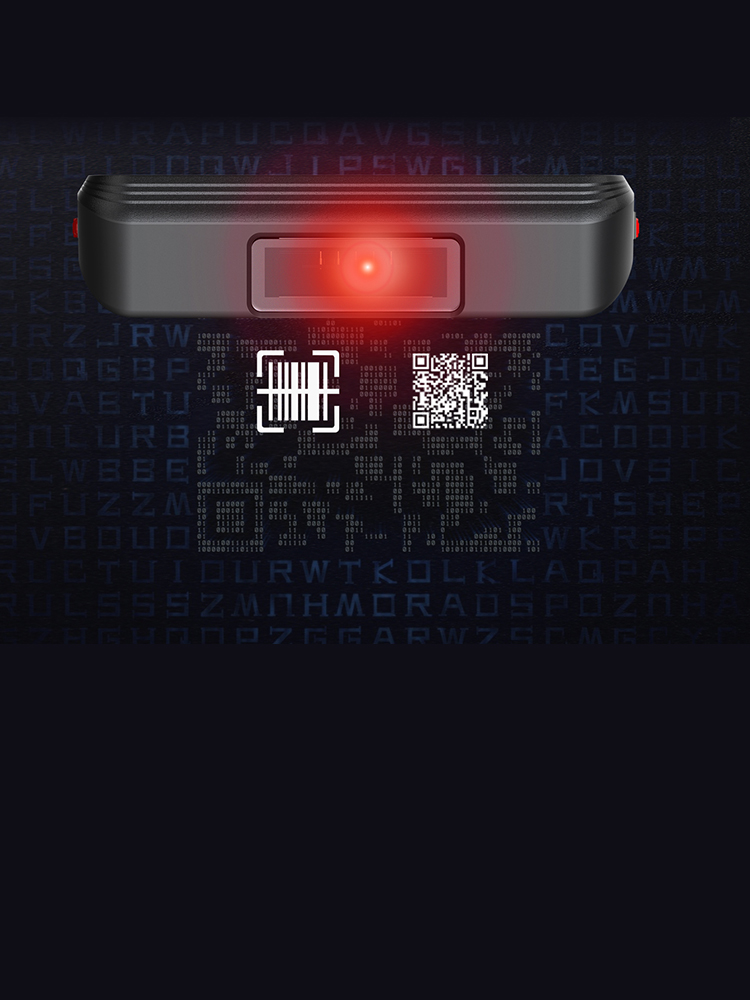

High performance barcode scanner

Industrial-grade professional scanning engine, accurate and
fast data collection Safety; can identify damaged, stained
gray and other barcodes to improve work efficiency

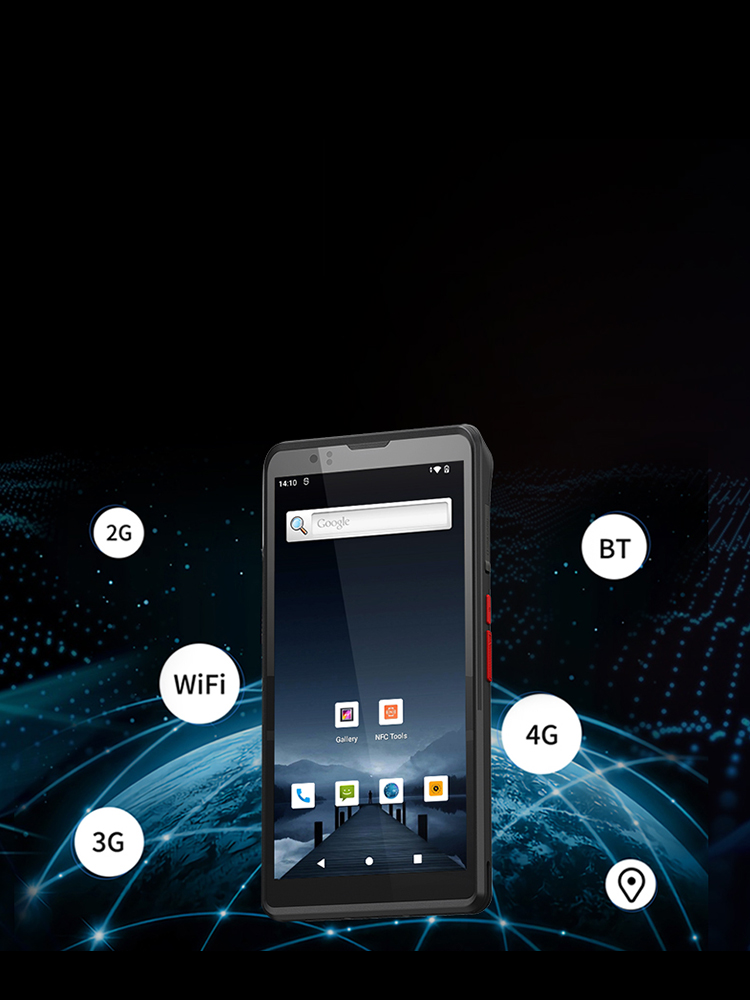

Rich function configuration

The machine series integrates 4G full Netcom,Dual-frequency
WIFI, Bluetooth and other communication methods.
high-precision GPS+AGPS or Beidou to meet various
application needs,Improve work efficiency.

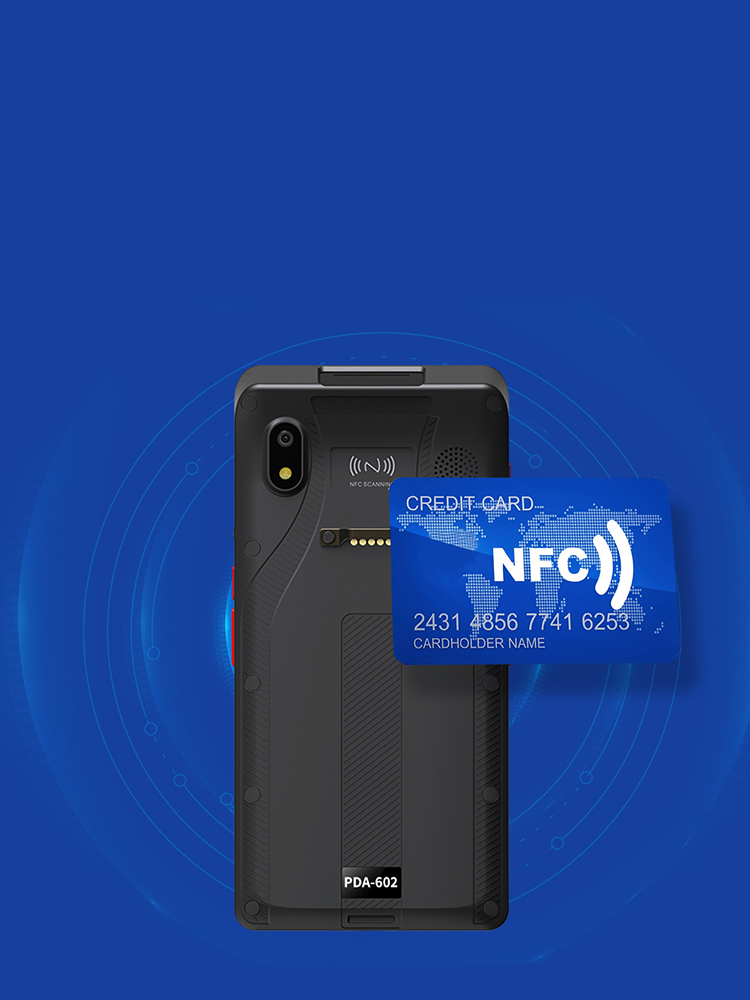

NFC read and write function is
convenient and fast

NFC read and write function is convenient and fast With
NFC module, expand more card swiping scenarios,
support IS014443A/ 14443B/15693 protocol, which can
be used for communication and data transmission between
close-range devices, with high security,The connection is stable
and fast and low power consumption

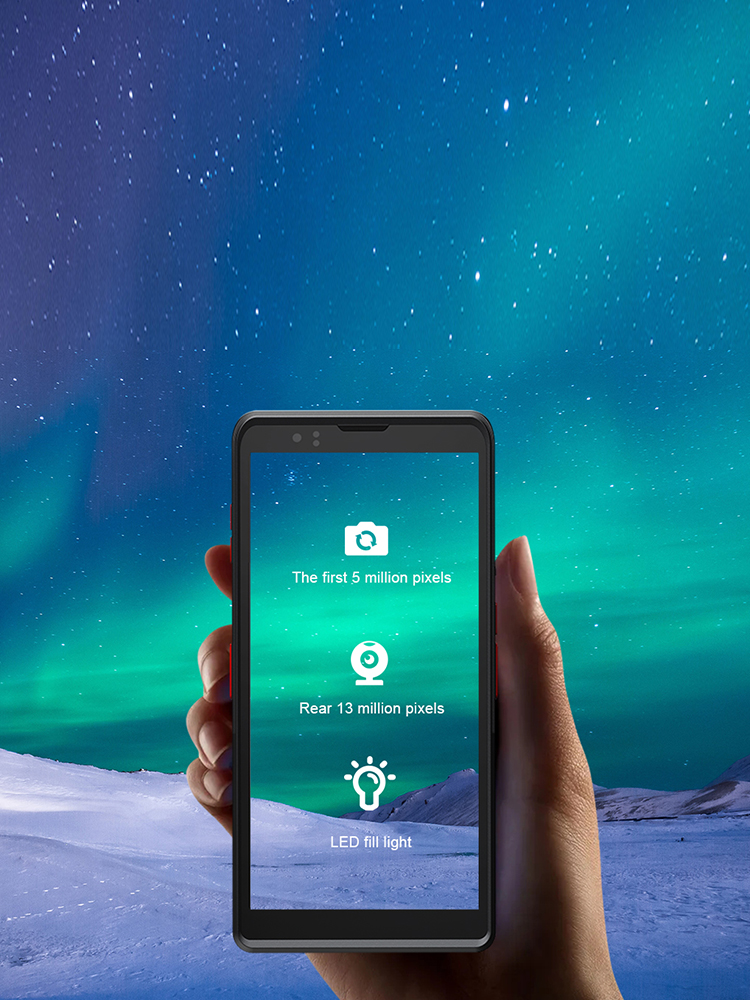

High-definition "dual camera" is clearer

Front camera: 5 million pixels support face recognition
Rear camera: 13MP autofocus band
Take pictures more clearly Capture clear pictures
and shoot high-quality images

Brand new configuration
Take performance by leaps and bounds

Octa-core

8-core 2.0GHZ high-performance processor

3GB RAM+32GB ROM or 4GB+64GB

Large Memory

Android 12.0

Operating System

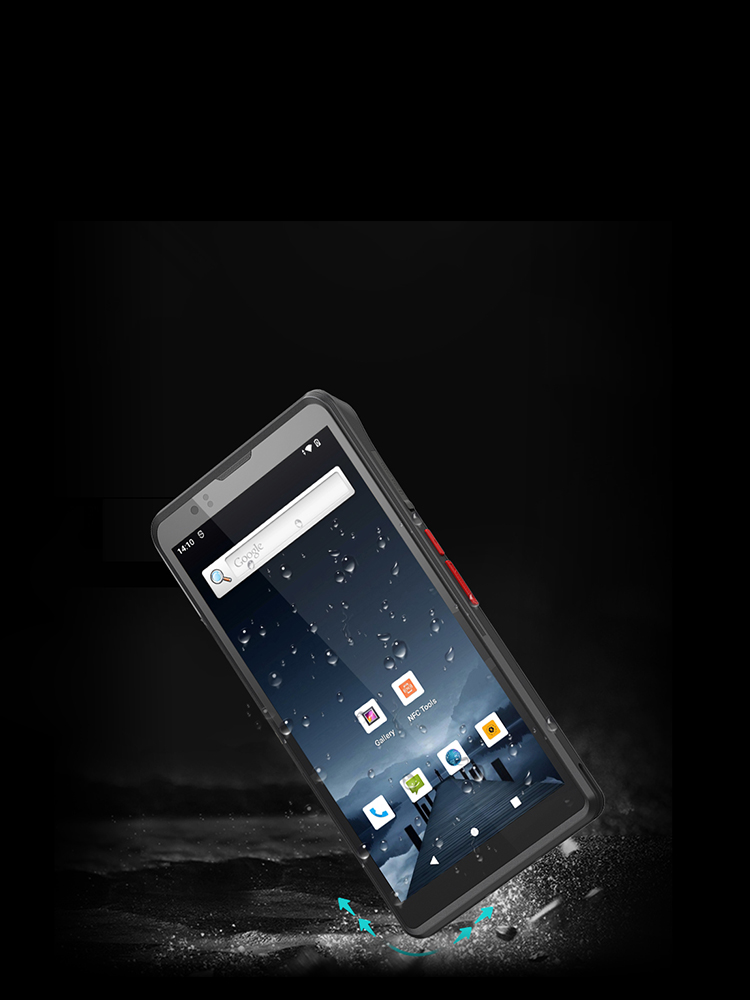

IP67 protection class

Using industrial-grade raw materials to meet IP67 protection level,
Anti-drop 1.5 meters, outdoor dustproof and waterproof,Easy to
face harsh application environment

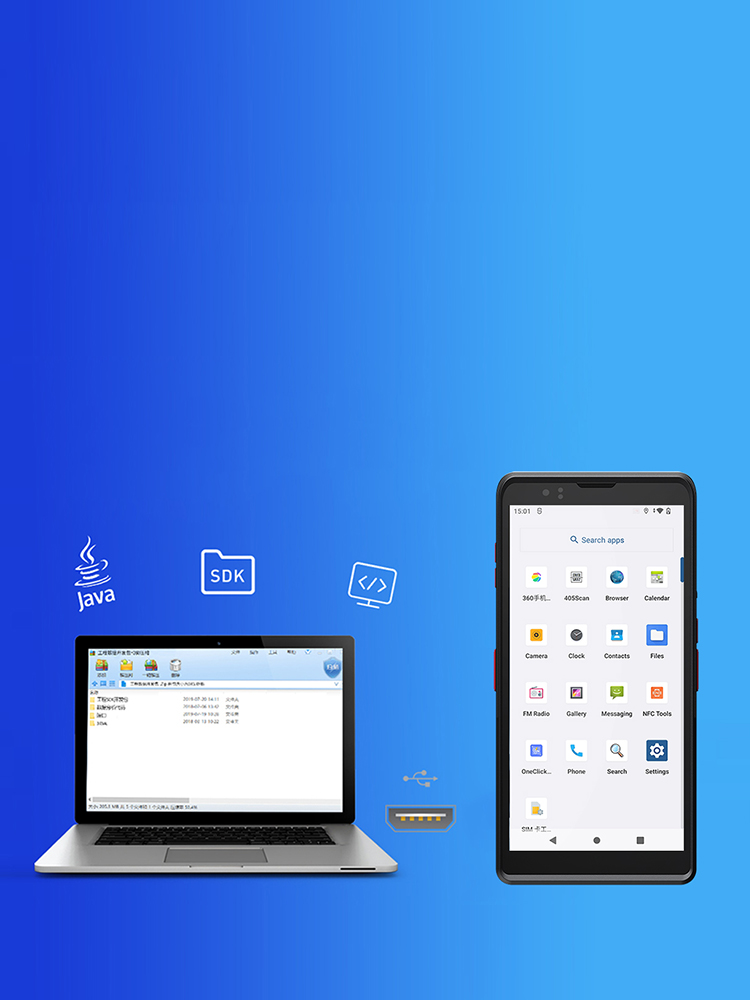

SECONDARY DEVELOPMENT

Provide SDK development kit, support secondary development and
installation of various software, support port scanning Free
development port, JAVA language development

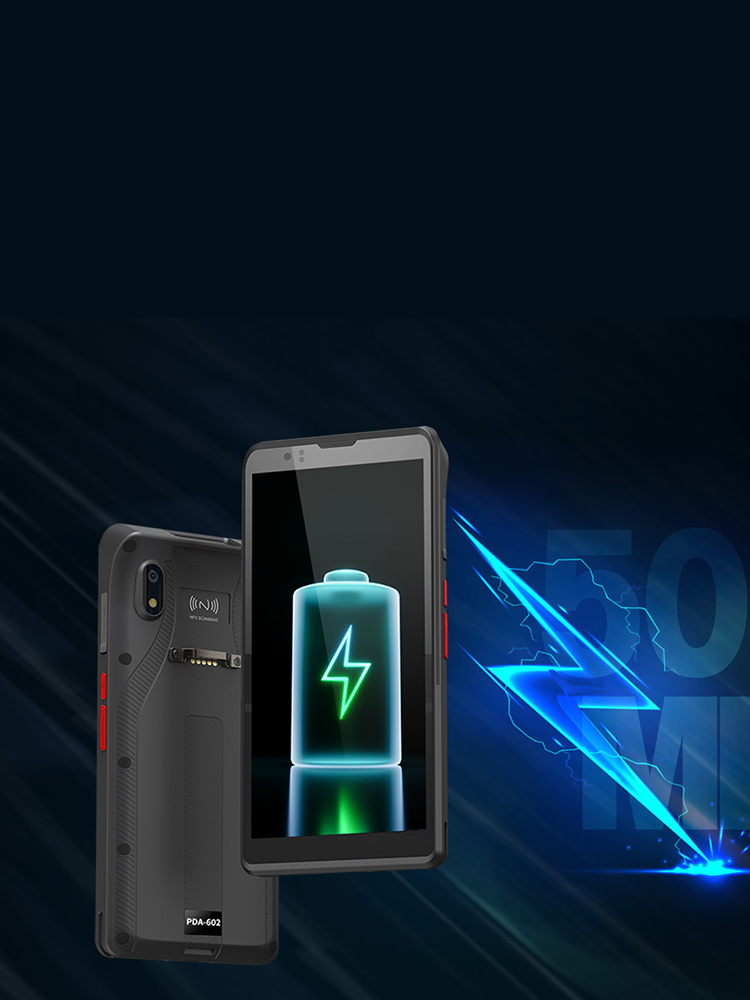

5000mAh large battery,fast flash charging

For continuous use by couriers during frequent operations, we are
equipped with a large 5000MAH battery.For a large amount of power,
we use the TYPE-C fast charging scheme, according to the current
charging state of the battery,It can intelligently output voltage and
current to directly charge the battery, effectively improving the
charging efficiency

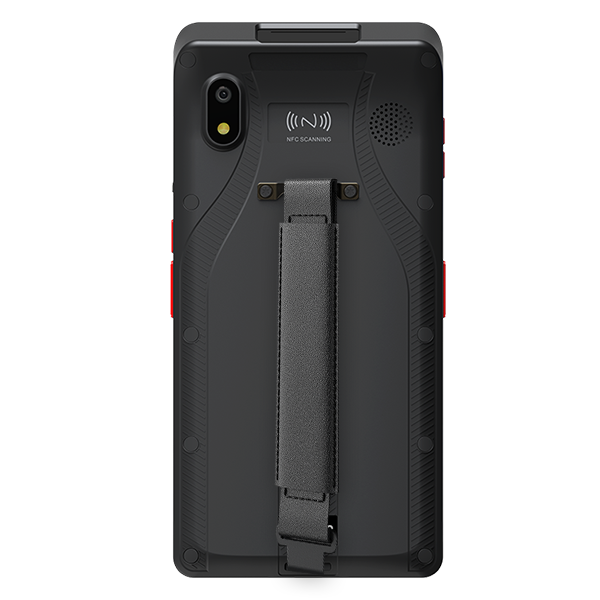

Wrist Band

With An Extension Strap, It Is Convenient For Daily Mobile Use.
The Wearable Can Be Hung In The Hand To Complete Other Tasks

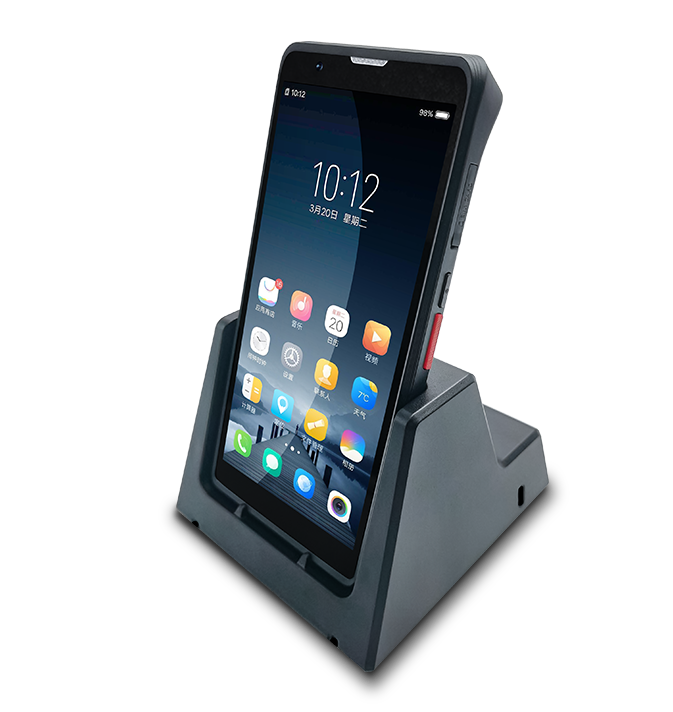

Independent seat charging

The seat charger can charge the battery separately, or it can be directly charged by placing it on the machine, and can be fully charged when working outside

System Configuration

Processor

Octa-core 2.0GHz high-performance processor

Operating System

Android 12.0

Memory

3GB RAM+32GB ROM or 4GB+64GB

Display

6.0inch IPS 720x1440 High Resolution

Camera

Front:5MP Camera
Back:AF 13.0M Pixels autofocus with LED

Touch Panel

Industrial-grade capacitive touch panel

Keypad

1 power key + 1 scan key + 1 volume key (+-) + custom key

Notification

Vibrator/LED/Speaker

Battery

High voltage 3.7V 5000mAh

Audio

Built-in microphone/Speaker

Sensor

Ambient Light sensor, Proximity sensor

Interface

Type-C interface, support PE fast charging

Structural Parameters

Dimensions (LxWxD)

Approx. 164mm×81mm×20mm

Weight

290g(battery included)

Communication Transmission

Mobile Network

2G(GSM): B2/B3/B5/B8
3G(WCDMA): :B1/B5/B8
4G(FDD-LTE): :B1/B3/B5/B7/B8/B20
4G(TDD-LTE):B34/B38/B39/B40/B41

Wi-Fi

Wi-Fi 802.11a/b/g/n/r/ac (2.4G+5G dual-band Wi-Fi)

Bluetooth

Bluetooth 5.0, supports BLE

GPS

GPS/AGPS/Beidou/Galileo/GLONASS/QZSS

Operating Environment

Develop Tools

Android SDK + JDK + Eclipse

P-Language

Java

Operating Temp.

-10°~ 50°C

Storage Temp.

-40°~ 70°C

Humidity

0 ~ 95% (non-condensing)

Sealing

IP67

NFC

Protocol

ISO14443A/14443B/15693

Frequency

13.56MHz

NFC type

NXP PN557

1D Laser Scanner

Speed

100 lines/sec

Scan Angle

±50°

Identification accuracy

≥4mil

Decoding Type

UPC-A,UPC-E,UPC-E1,EAN-13,EAN-8,ISBN/ISSN,Code 39,code39 (ASCII full), Interleaved 2 of 5,Industrial 2 of 5,Matrix 25,Codebar(NW7),Code 128,UCC/EAN 128,ISBT128,code 93,MSI/Plessey,UK/Plessey,China post,GS1 Data Bar

2D Image Scanner

Method

CMOS Image

Scan Speed

60scans/sec

Scan Angle

360 ° angle, Elevation angle ± 55 °, Eeflection angle ± 55 °

Identification accuracy

2D≥7.5mil,1D≥5mil

Decoding Type

QR Code, Data Matrix, PDF417,UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar

DPM

Support DPM scanner (optional)
