applications

Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Supermarkets And Other Industries

Equipment Accessories

Wrist strap
Equipment fixing pendant

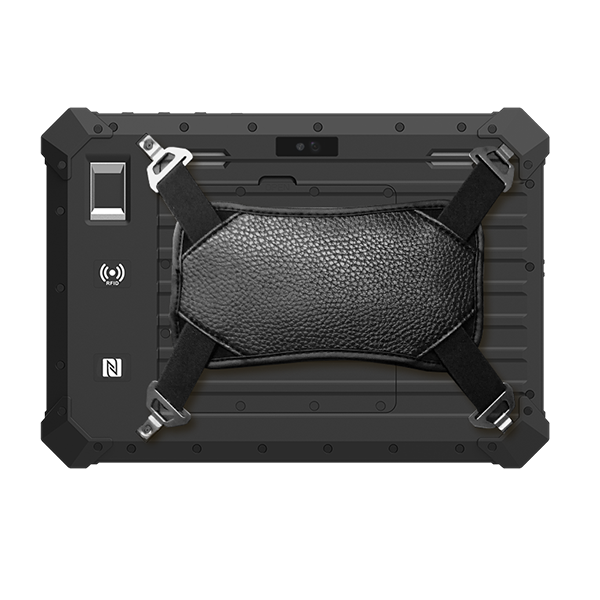

Wrist strap

Optional wrist strap for daily mobile use and hang
in hand for other tasks cradle charger

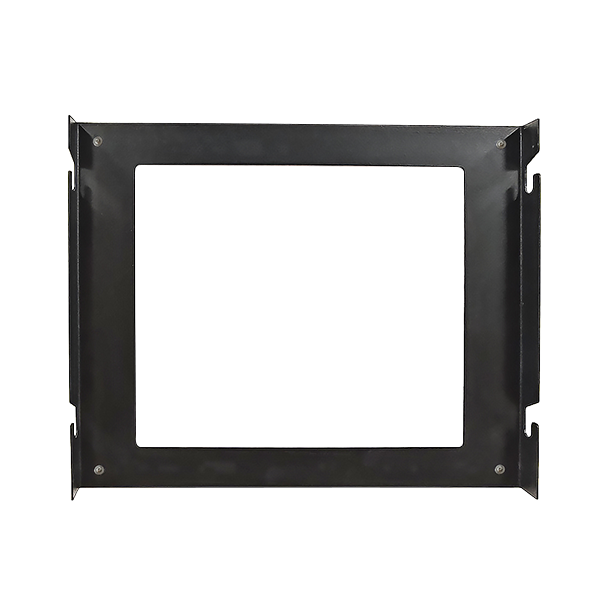

Equipment fixing pendant

For use where equipment is to be used in a fixed position

Structural Parameters

Size

274.9 x 188.7 x 23.1mm

Weight

1140g (battery included)

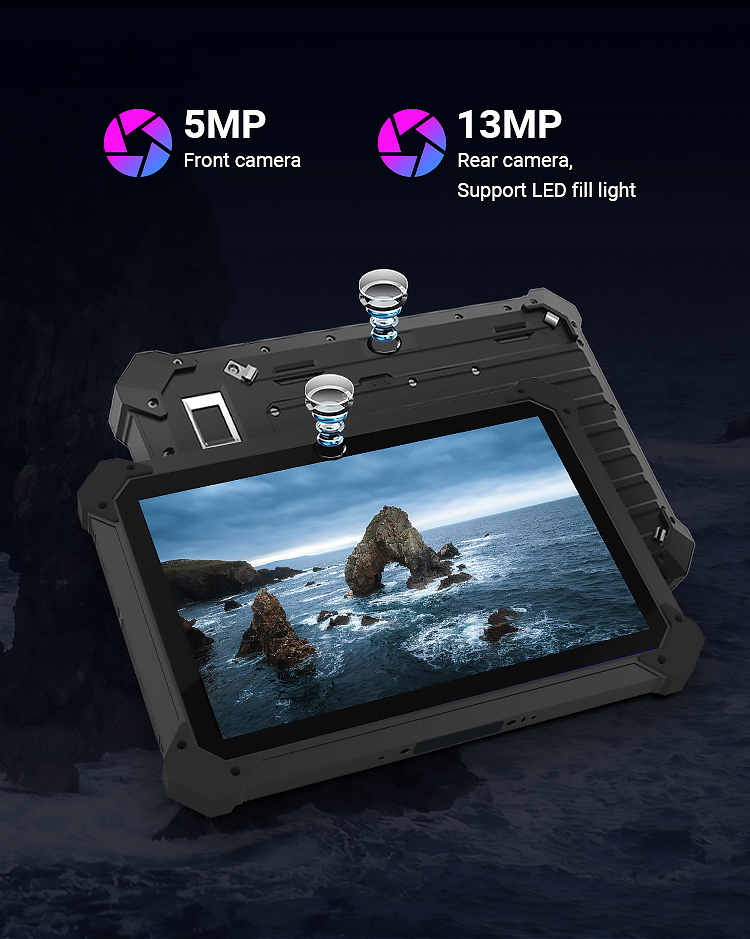

Camera

Front: 5MP Camera
Back:AF 13M Pixels autofocus with LED flash light

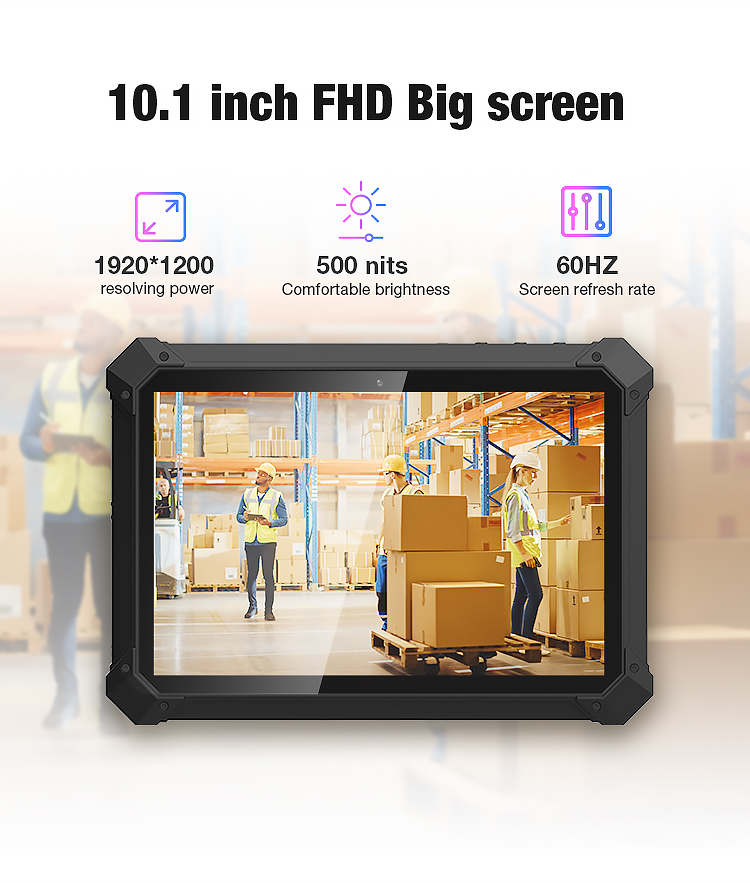

Display

10.1 inch 1920x1200 pixs TFT Screen

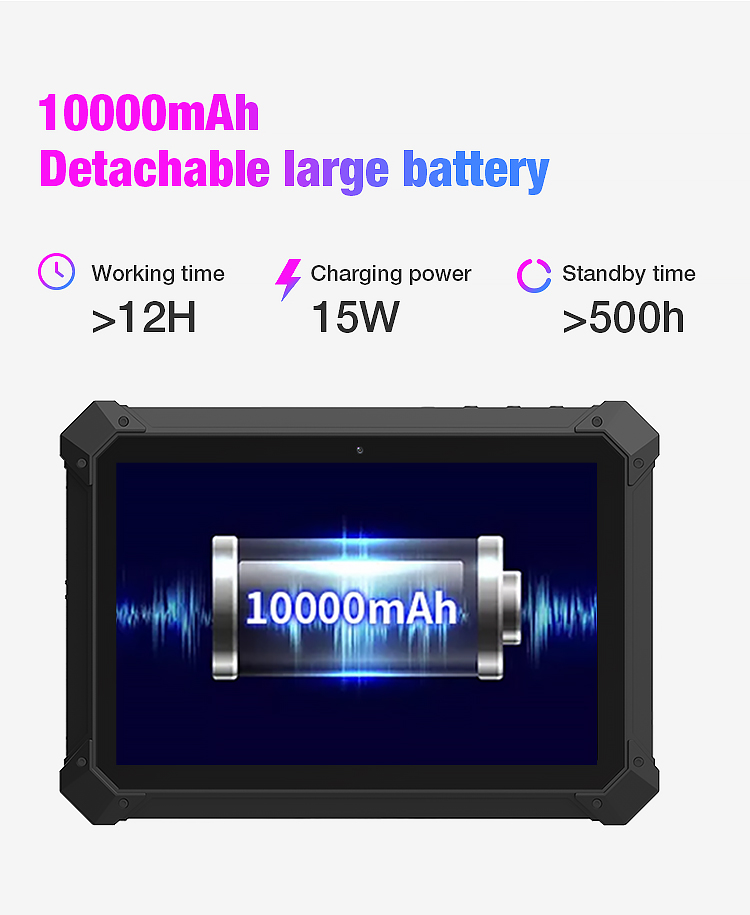

Battery

10000mAh rechargeable lithium polymer battery(removable)
Standby time> 500h ( Only with the host battery installed)
Working time>12h (It depends on usage and network environment)
Charger time 3 h

Speaker

support

Shake

support

Touch Panel

G + G glass, support multi touch, support glove or wet hand operation

Sensor

G-sensor, Vibrating motor

Quick charge

5V-3A 9V-2A Quick charge

System Configuration

CPU

MT8788, ARM 8-core 2.0GHZ

OS

Android 12.0 (64 bit)

RAM+ROM

6GB+128GB

Working Environment

Operating Temp

-20 °℃~+60°℃

Storage Temp

-30 ℃~+70 °℃

Humidity

0~95% (non-condensing)

Drop specification

Within the scope of operation, 6 sides are subjected to the impact of 1.5m falling to the concrete

Electrostatic Protection

+ 15 kV air discharge, 8 kV contact discharge

Rolling Test

After 1000 rolling times and 0.25m, the six contact surfaces still run stably, reaching IEC rolling specifications

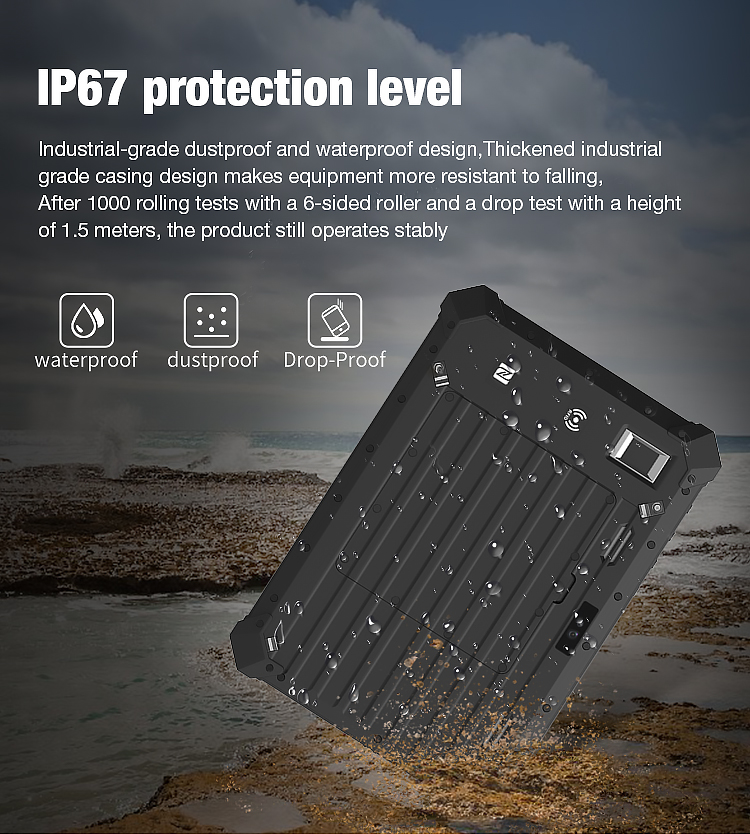

Sealing

IP67, up to IEC sealing standard

Communication Transmission

WLAN

2.4g/5g dual band, support 802.11 a/B/g/N
/AC /, IPv4, IPv6;

WWAN

2G: 850/900/1800/1900MHz
3G: CDMA EVDO: BCO
WCDMA850/900/1900/2100MHz
4G:B1/B3/B5/B7/B8/B20/B38/B39/B40/B41

Vo-LTE

Support VO LTE HD video voice call

Bluetooth

BT5.2

GNSS

GPS/BEIDOU/GLONASS A-GPS

Data Collection

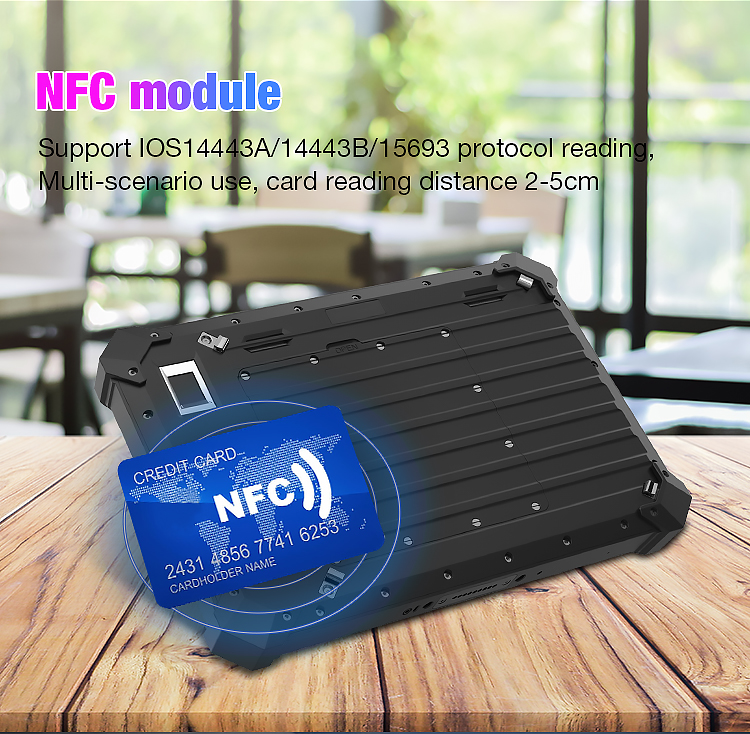

NFC

13.56MH supports ISO/IEC14443A/B/15693/18092/mifare protocol. Card reading distance: 4cm

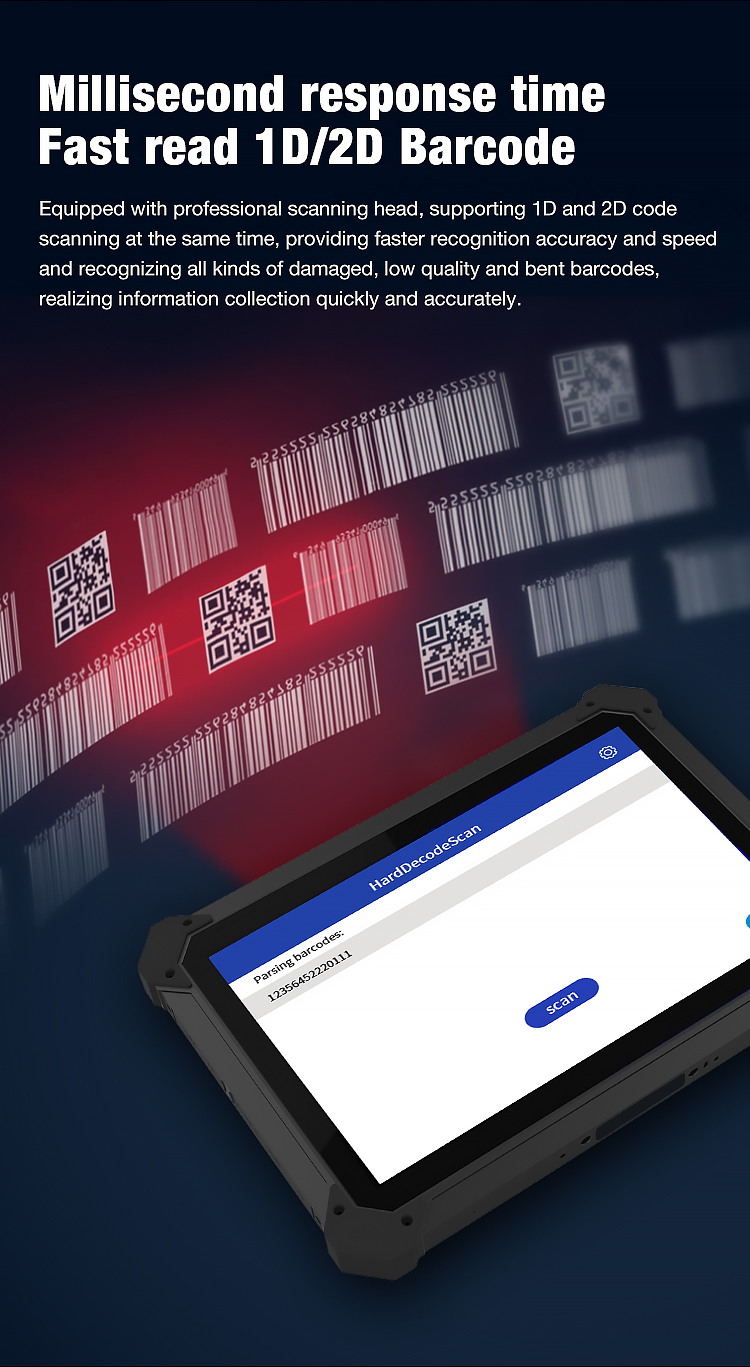

Scanning engine (Optional)

Newland N1 2D scanner, support scan ning 1D or 2D code

1D

UPC/EAN,Code129,code39,code11,codabar, MSI

2D

QR,PDF417,Mirco QR,RSS,Aztec,Maxincode

RFID (Optional)

Frequency13.56 ΜΗz
Protocol ISO14443A/B,ISO15693,NFC-IP1,NFC-IP2

Fingerprint (Optional)

FBI PIV Mobile ID FAP 10
Standard ISO19794-2, ISO19794-4

interface

TF memory

Supports TF *1 max: 128G

SIM

SIM*2

USB interface

USB 2.0 Type-A * 1

RJ45 network port

Support 100MB/S transfer rate speed

type-c

USB Type-C*1

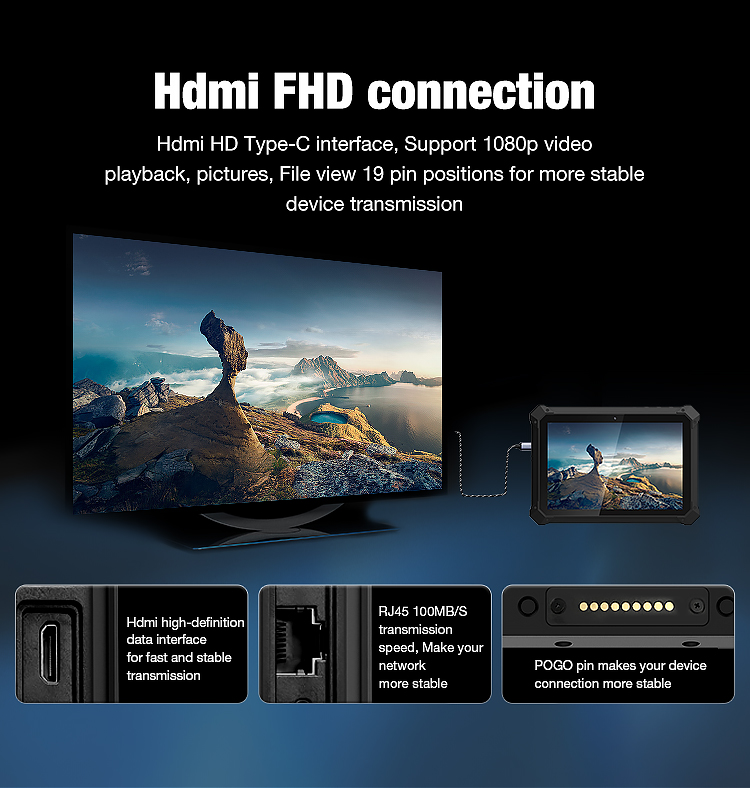

HDMI

HDMI*1

pogo Pin

9pins Pogo Pin *1

PSAM (Optional )

PSAM*1
