Suitable For A Variety Of Environments

applications

Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Supermarkets And Other Industries

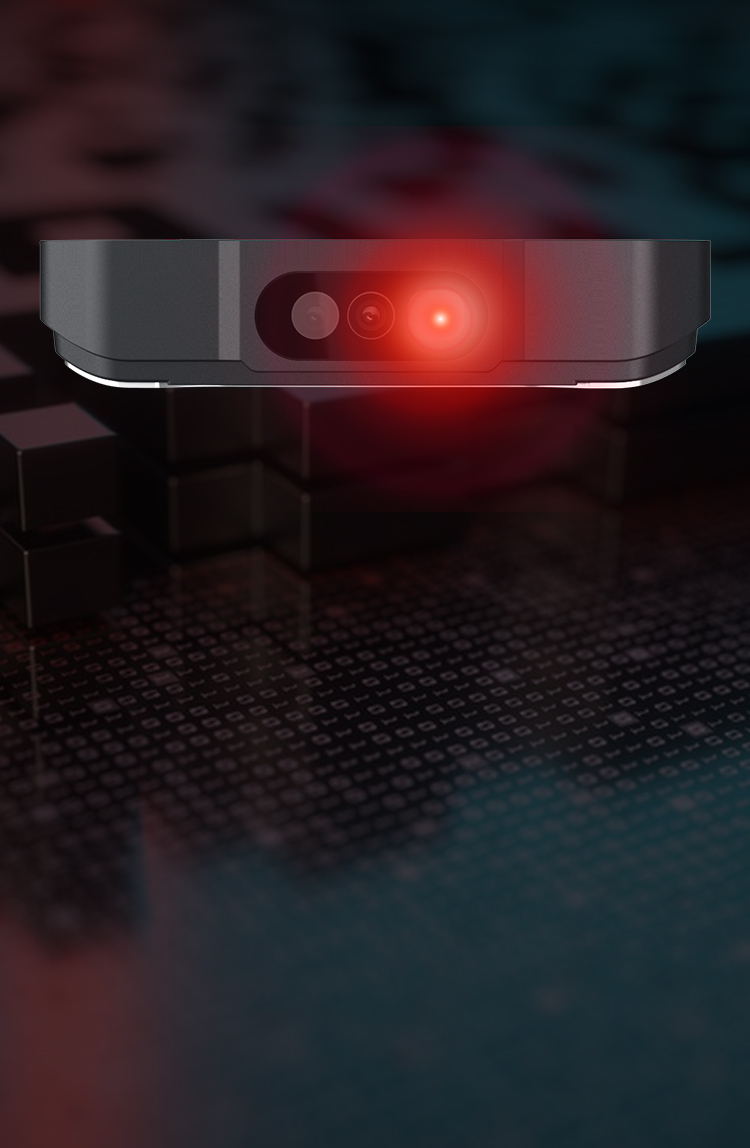

Zebra 4710 Scan Head

Industrial-Grade Professional Scan Engine, Supports
Scanning Of 1D/2D Barcodes, Providing Faster
Identification

Accuracy And Speed, And The Ability To Read Dirty/Low Quality Barcodes, Ensure Efficient And Convenient Reading.

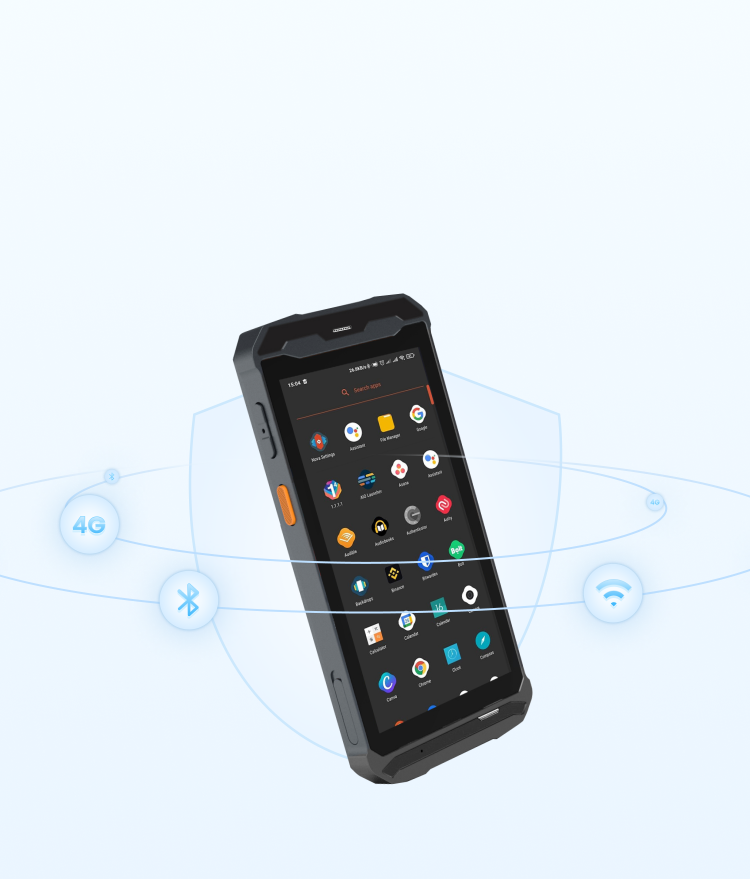

Data Transfer Wireless Connection

Integrate 4G Full Netcom, WIFi Bluetooth And Other Wireless Communication Methods

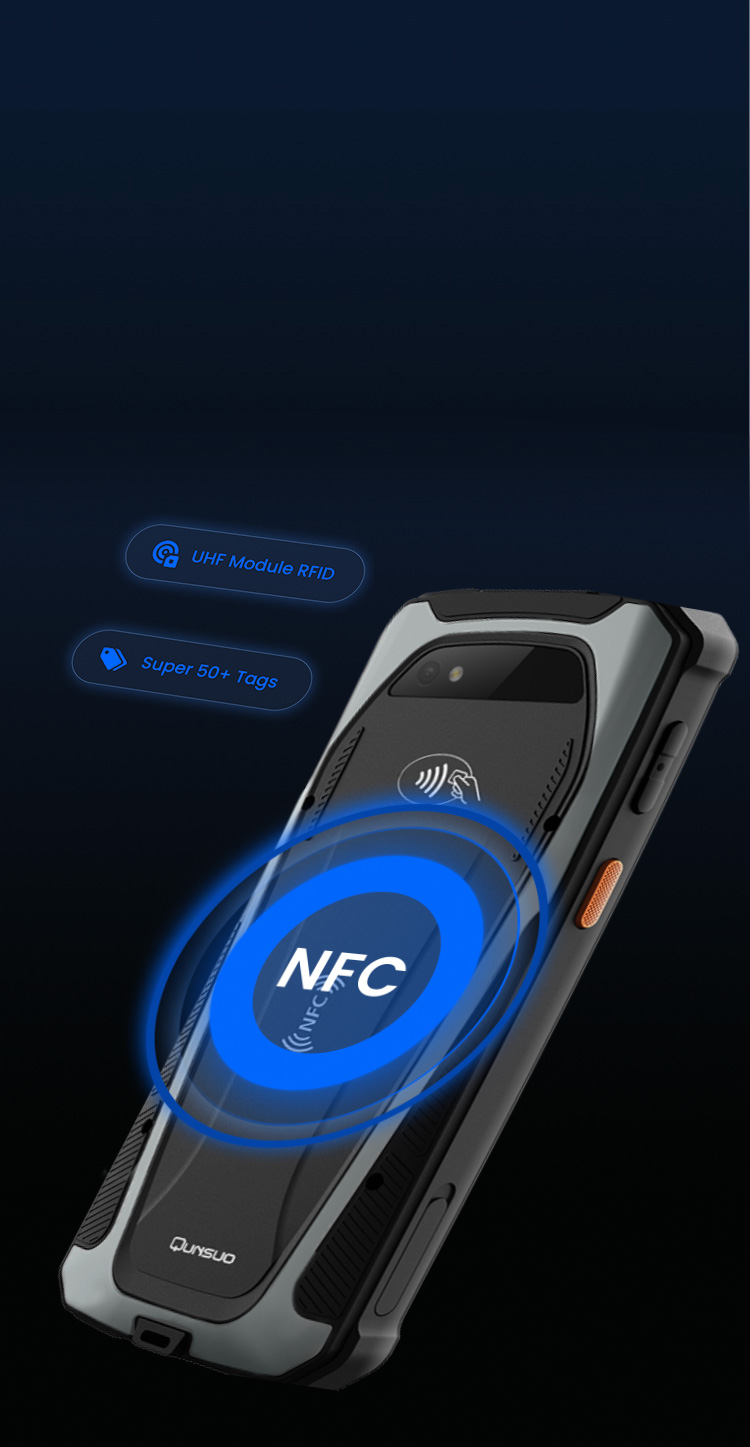

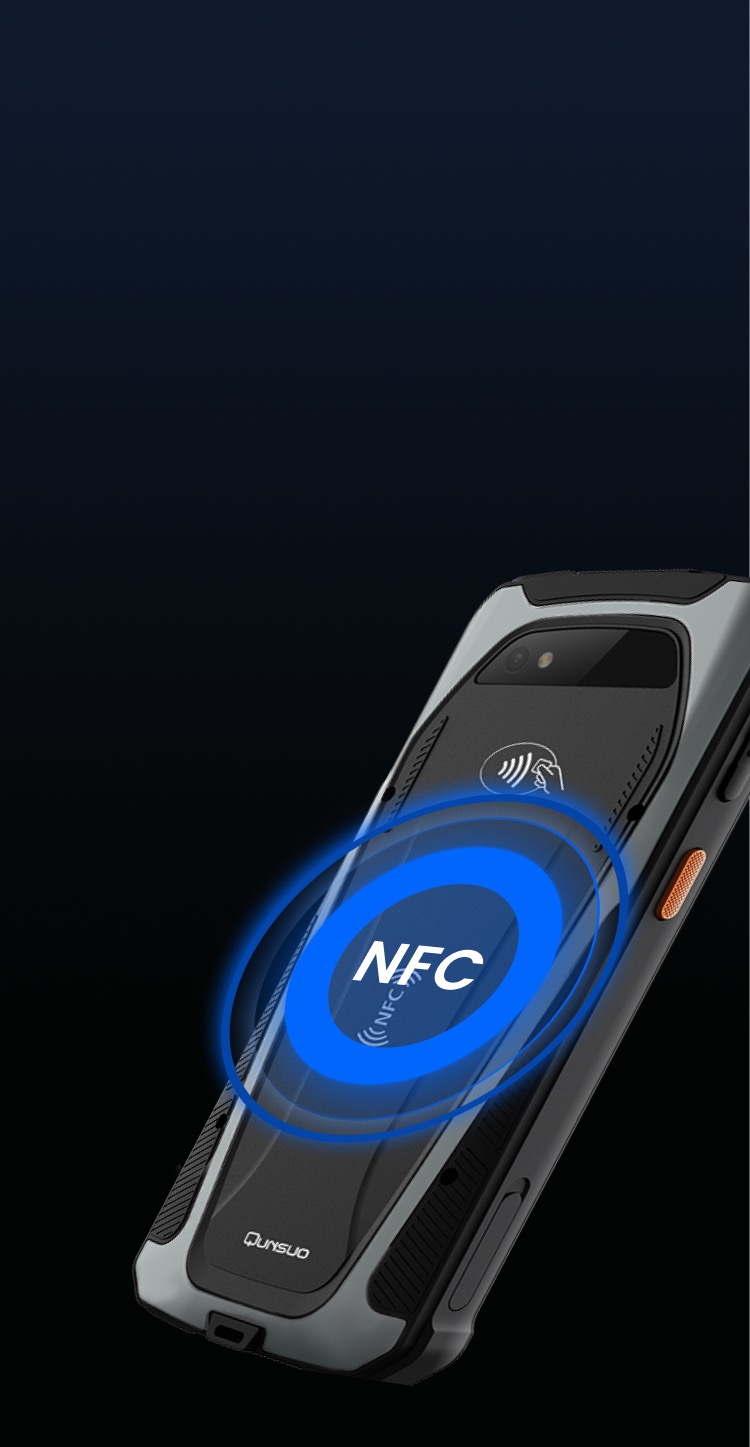

NFC Module Scalable UHF Module RFID (UHF)
Batch Reading, Fast And Accurate

It Can Read RFID Tags Within A Range Of 3 Meters In Batches Without Touching And Easily Scan, And Can Read More Than 50 Tags Per Second, Helping Enterprises To Leap To A New Level Of Work Efficiency.

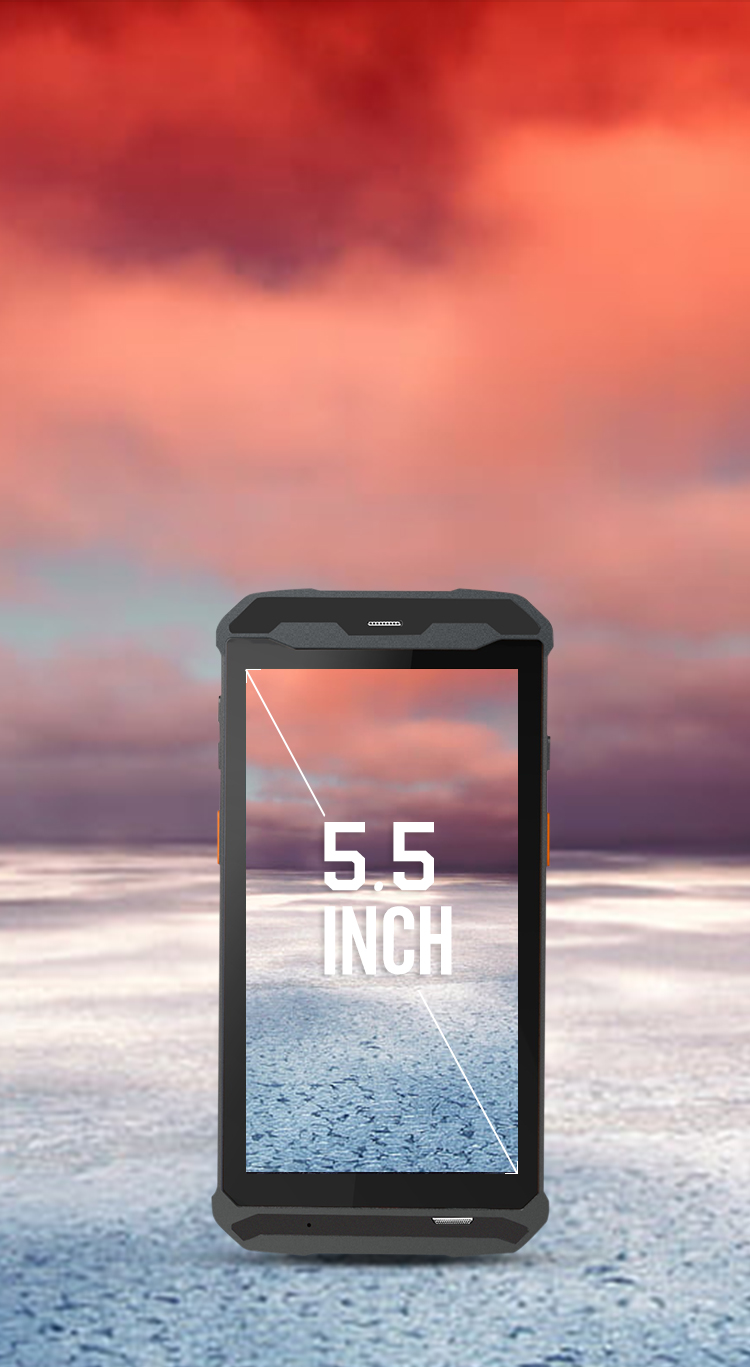

5.5-Inch High-Definition Screen Rugged
Explosion-Proof Design Certification

The Screen Is Made Of Extremely Tough Corning Gorilla Explosion-Proof Glass, National Explosion-Proof
Certification, Exib IICT 4GB Explosion-Proof, Suitable For High-risk Environments

Sturdy And Durable, Scratch-Resistant And Wear-Resistant, With A Silky Touch, You Can Immediately Get
Rid Of The Embarrassment Of Using The Film And Enjoy The Pleasure Of Sliding Through Your Fingers.

High-Performance
Configuration Is More Outstanding

Octa-core

Octa-core ARM@Cortex -A53 MPCore 2.0 GHz

4GB RAM+ 64GB ROM

Large Memory

Android9.0

Operating System

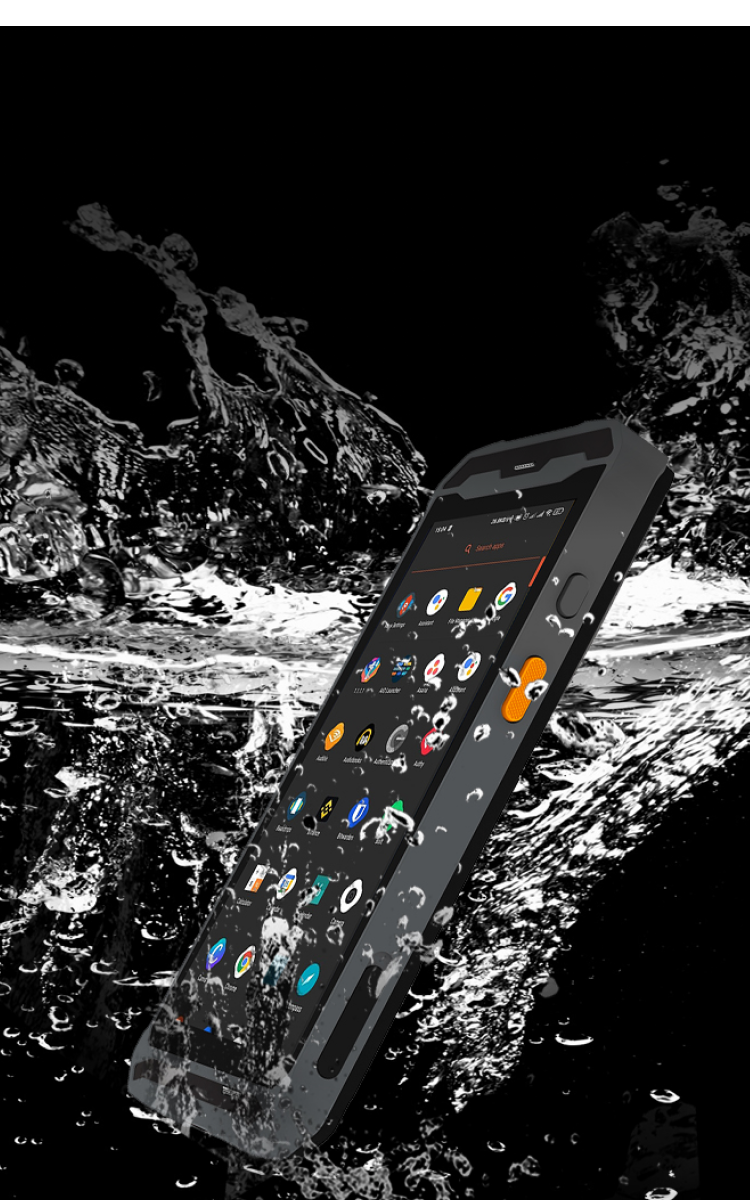

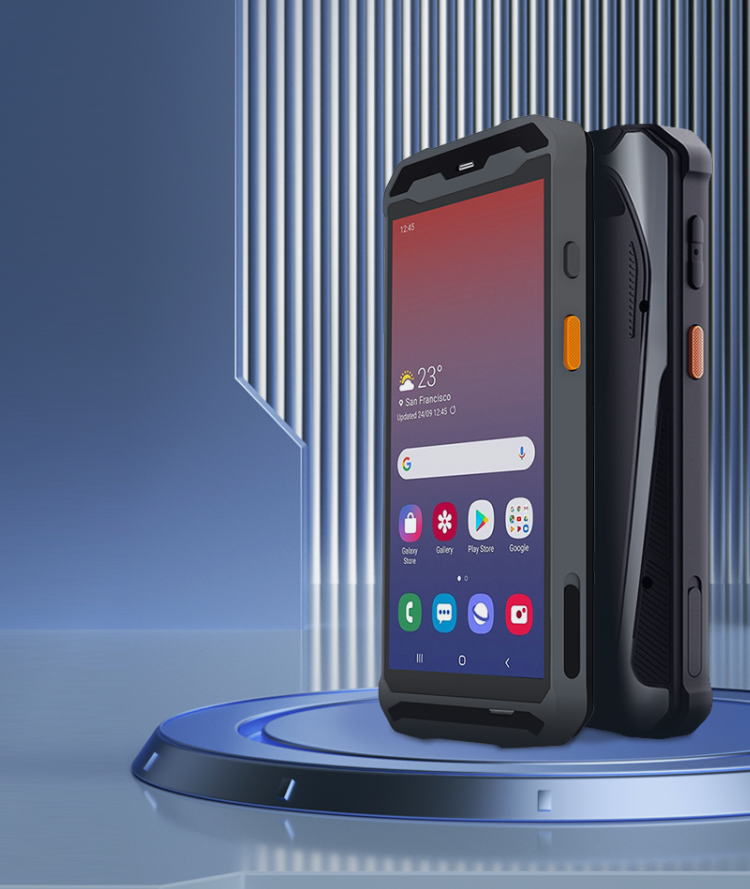

IP67 Hard Core Protection, Sturdy And Anti-Drop

Submerged In 1 Meter Of Water For 30 Minutes,
It Can Still WorkNormally.
1.5m Drop Test Without Fear Of Falling

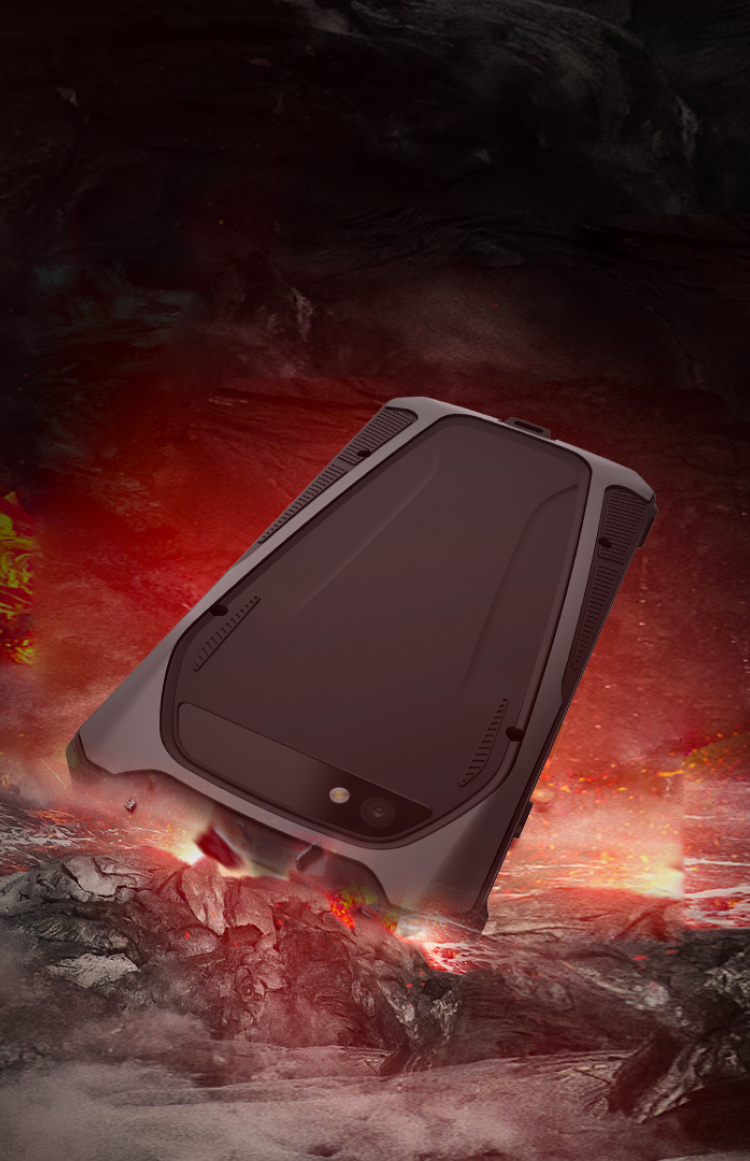

Industrial explosion-proof design

Explosion-proof certificate, suitable for high-risk Working Environment

Long Battery Life, Continuous Online

5100mAh Removable High-Capacity Battery Low-Power Design, Long-Lasting Battery Life Can Meet The Needs Of All-Day Work

Handy Business With Multiple Accessories

Cradle Charger

Accessory Description Copy Accessory Description Copy Accessory Description

PDA-5502 Product Parameters

Physical parameter

Keypad

1 Power key, 1 scan key, 2 volume key

Microphone

2 mic, one for speaking, one for denoise

Card slot

2 SIM card slot

Structure

Bi-color injection molding

Display

5.5inch(18:9) High Resolution IPS LTPS 720*1280

Camera

13MP camera

Loudspeaker

Support

Touch Screen

Corning Gorilla Glass(High durability)

Vibrator

Support

Indicator

Power, charging, status indicator

Sensor

G-sensor, Range sensor, Light sensor, Vibrator

Interface

Type-C

Battery

5100mAh rechargeable lithium polymer battery
Stand by time>300h
Working time>12h（Depend on actual status and internet）
Charging time: 4h

Performance parameter

CPU

Octa-core ARM@Cortex -A53 MPCore 2.0 GHz

RAM+ROM

4GB+64GB

Ex-storage

Support extend to 128Gb

Structural Parameters

Dimension (LxWxD)

160.0 x 84.0 x 17.5 mm

Weight

287g(including battery)

Data Communication

WWAN

2G: 850/900/1800/1900MHz
3G: CDMA EVDO: BC0
WCDMA：850/900/1900/2100MHz
4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41

Bluetooth

BT 5.0

Vo-LTE

Support Vo-LTE HD voice video call

WLAN

2.4G/5G dual-band，Support 802.11 a/b/g/n/ac/,IPV4,IPV6；

GNSS

Support GPS/Beidou/Glonass/AGPS

Operating environment

Working temp.

20 ℃~+50 ℃

Storage temp.

-40 ℃~+70 ℃

Humidity

5%RH~95%RH（Non-condensing）

Drop test

Within operating range, 6 sides withstand 1.5 meter drop test

ESD protection

±15 KV air discharge，±8 KV contact discharge

Rolling test

Rolling up to 1000 times 0.25 meters, 6 surface contact surfaces still running steadily after rolling, reaching IEC rolling standard

IP level

IP67(Meet IEC sealing standard)

Development environment

O.S.

Android 9.0

SDK

Qunsuo terminal development tool

P-Language

Java

Development tool

Eclipse/Android Studio

NFC/ RFID

Working frequency

13.56MHZ

Communication

ISO14443A/B,ISO15693,NFC-IP1,NFC-IP2 and etc.

NFC standard

M1(S50,S70), CPU card, NFC tag and etc.

UHF RFID Reader(optional)

Frequency

902Mhz-928Mhz、865MHz-868MHz(optional)

Capture Range

1-3m

Output Powe

18-26dBm

2D Barcode scanner(optional)

Scanner engine

Zebra SE4710

Scan pixels

1280*800

Decoding type

QR Code, Data Matrix, PDF417, Han letter code in line with international and domestic generic 1D code standards: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, IS BT 128, Code39, Code93, Code11, Interleaved 2 of 5, Industrial 2 of 5, Matrix25, Standard25, Code bar MSI/MSIPLESSEY, GS1 Data Bar etc.
