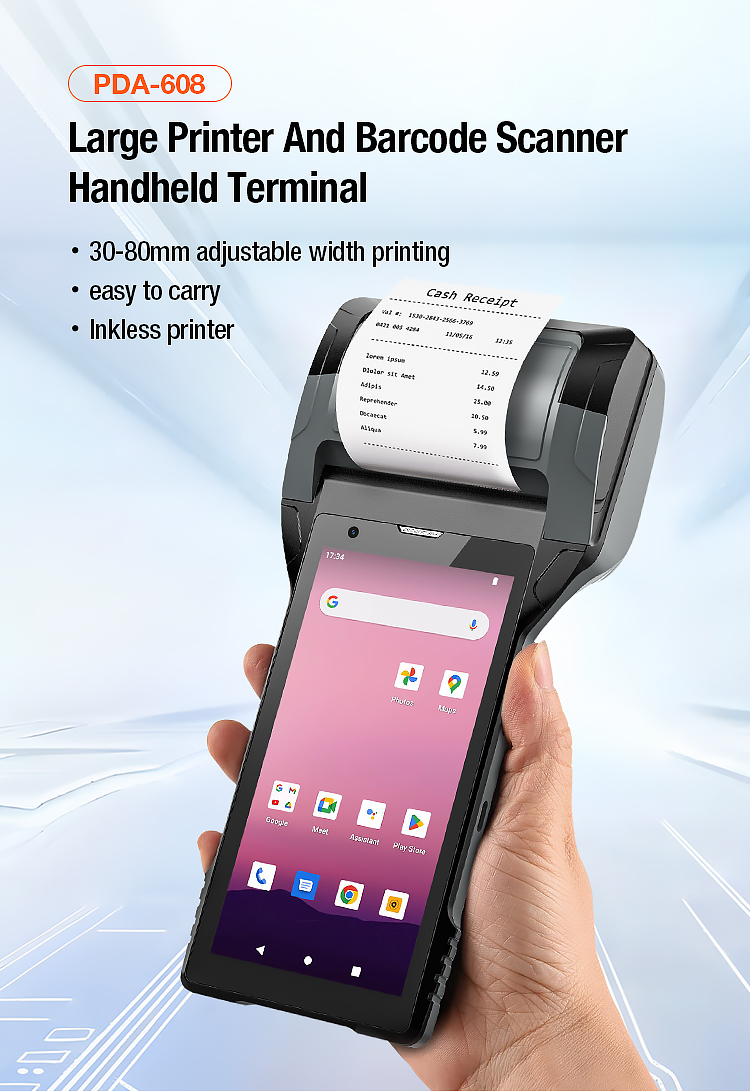

PDA-608 Product parameters

System Configuration

Processor

8-core 2.0GHz CPU

OS

Android 12.0

Memory

4GB RAM+128GB ROM

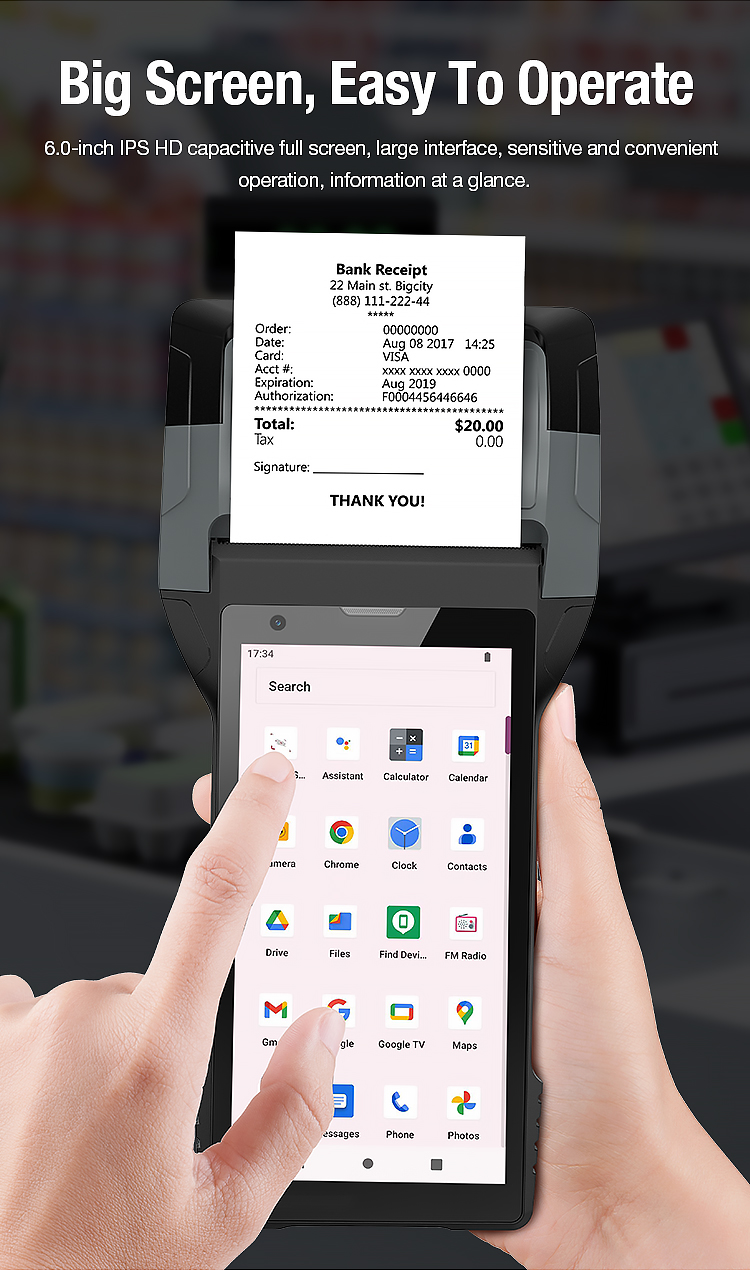

Display

6.0inch IPS 720x1440 High Resolution

Front camera

5.0 MP support face recognition

Rear camera

13.0 MP autofocus with flash light

Printer

80mm(3inch) thermal printer

Touch screen

Industrial-grade capacitive touch
panel

Keypad

Scan key/Power key/Custom key/Volume key

Notification

Vibrator/LED/Speaker

Battery

7.7v 2800mAh rechargeable lithium polymer battery

Audio

Built-in microphone/Speaker Sensor G-sensor

Sensor

G-sensor

Charging method

Type-C, 9V-2A support PE Quickly Charge

TF card

Supports TF *1 max: 512G

Extension ports

SIM card*2, PSAM card*2, MicroSD card*1 , Type-C USB interface (fast charge)*1, Support UHF/ customer plug-
in module

Structural Parameters

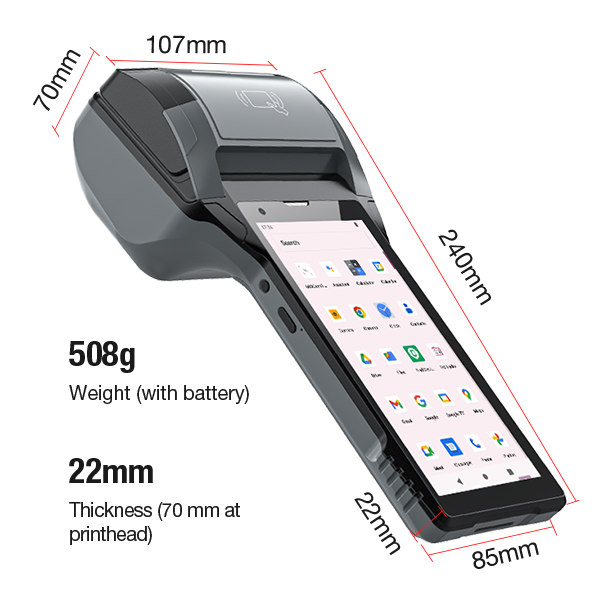

Dimensions (LxWxD)

Approx: 240*85*70mm

weight

508g(battery included)

color

Black+Gray

Operating Environment

Develop Tools

Android SDK+ JDK +Eclipse

P-Language

Java

Operating Temp

-20°C ~+ 50℃

Storage Temp

-40°C~ 70℃

Humidity

0-95% (non-condensing)

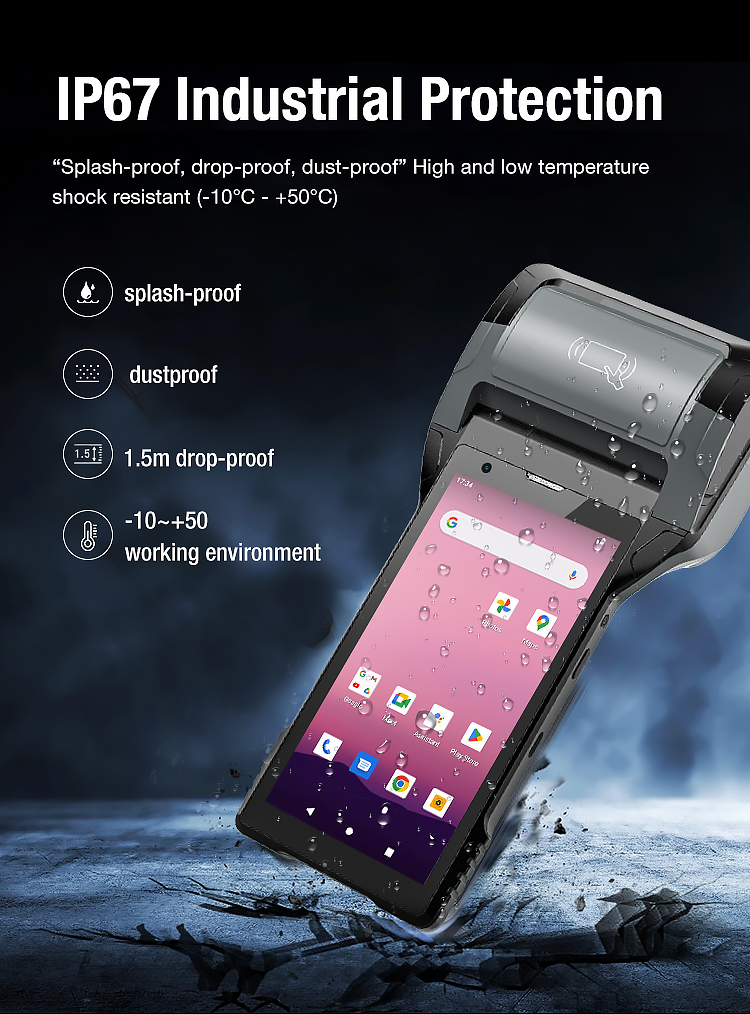

Sealing

IP67

Drop test

1.5 meter drop test

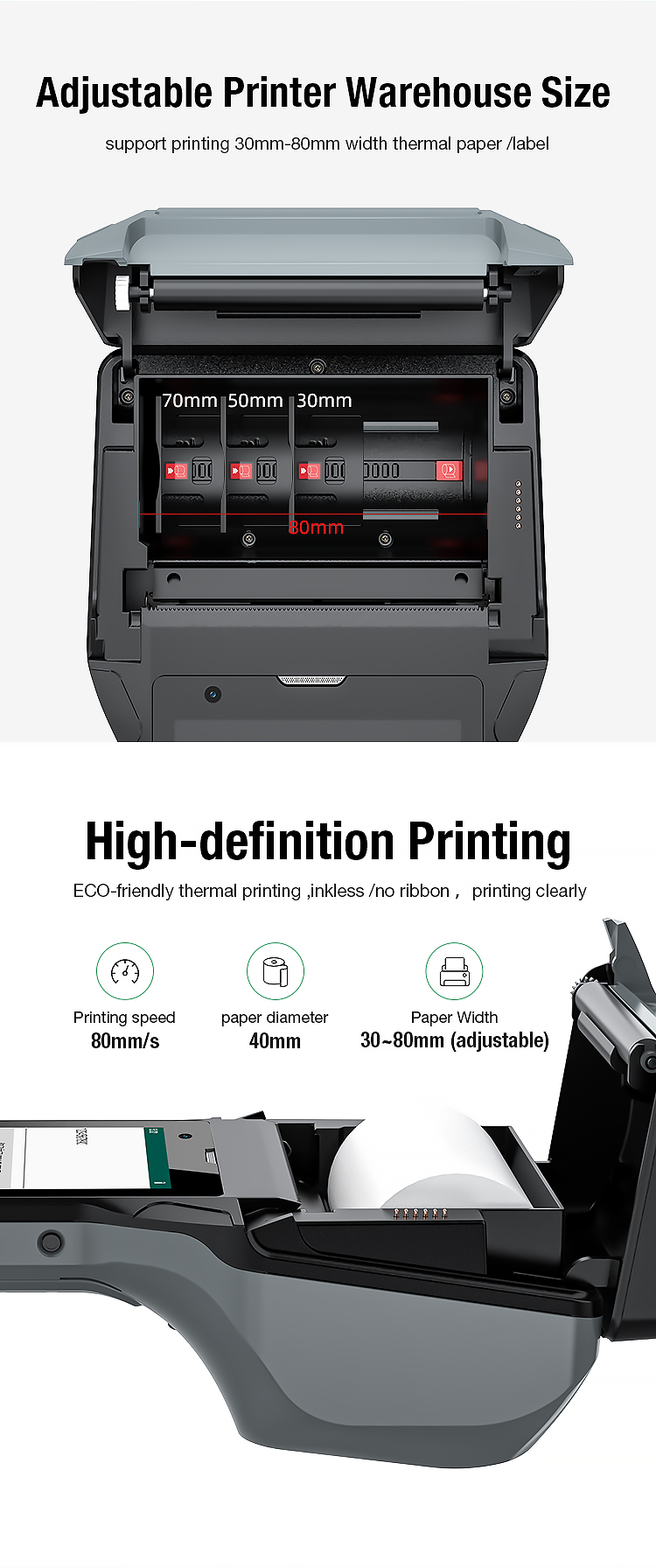

Printer

Printing method

Built-in line thermal printer

Print width

support printing 30mm-80mm width thermal paper /label

Print media

Thermal paper and thermal stickers

Sensor

Black mark/out of paper/overheating
and overvoltage protection

Rint type

Text/image/barcode/QR code

NFC/Barcode/QR code

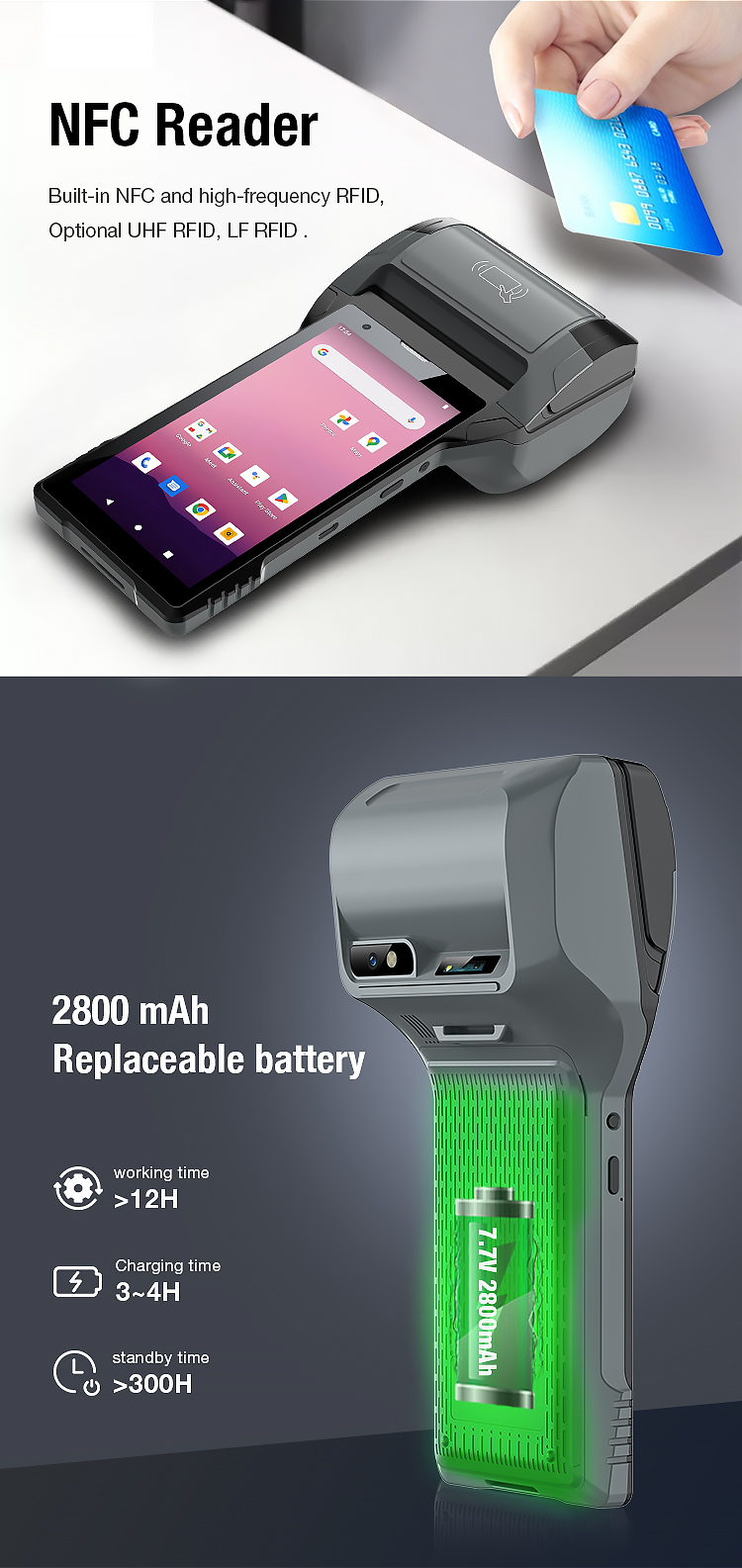

NFC

13.56MH supports ISO/IEC 14443A/B, ISO15693
protocol Card reading distance: 4cm

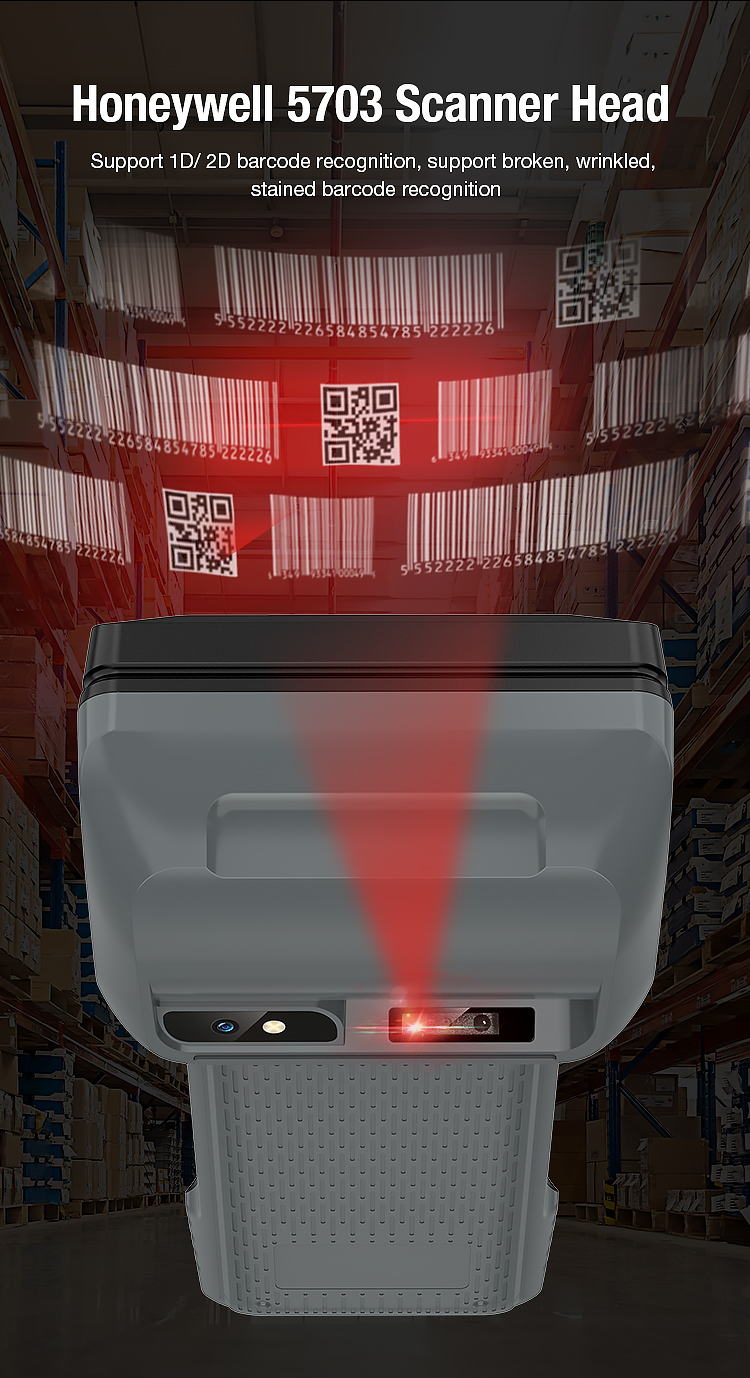

Barcode

1D laser scanning : Support UPC/EAN, Code129, code39, code11, cross 25 code, codabar, MSI, etc.

QR code

2D professional scanning module: Supports QR, PDF417, Mirco QR, RSS, Aztec, Maxincode, etc.

UHF RFID (Optional)

spectrum range

902MHz - 928MHz /865MH z - 868MHz (optional)

Security module

EPCglo bal UH F Class 1 Gen 2/ ISO
180 00-6C

Recognition speed

>50 sheets/second

storage

2000 pieces

Read and write distance

1- 2 meters (depending on label)

Communication Transmission

WLAN

W-Fi 802.11a/b/g/n/r/ac (2.4G+5G dual-band W-Fi)

WWAN

GSM (B2/B3/B5/B8)
CDMA (B1/B2/B5/B8)
FDD(B1/B2/B3/B5/B7/B8/B20/B28a&b)
TDD (B38/B39/B40/B41) C network (BCO Bc1)

Bluetooth

Bluetooth5.0, Support BLE

Position

GPS/AGPS/Bidou/Gaieo/GLONASS/QZSS
