Medical Mobile Data Terminal <br /> Antibacterial & Sterilizable Materials

PDA - 603

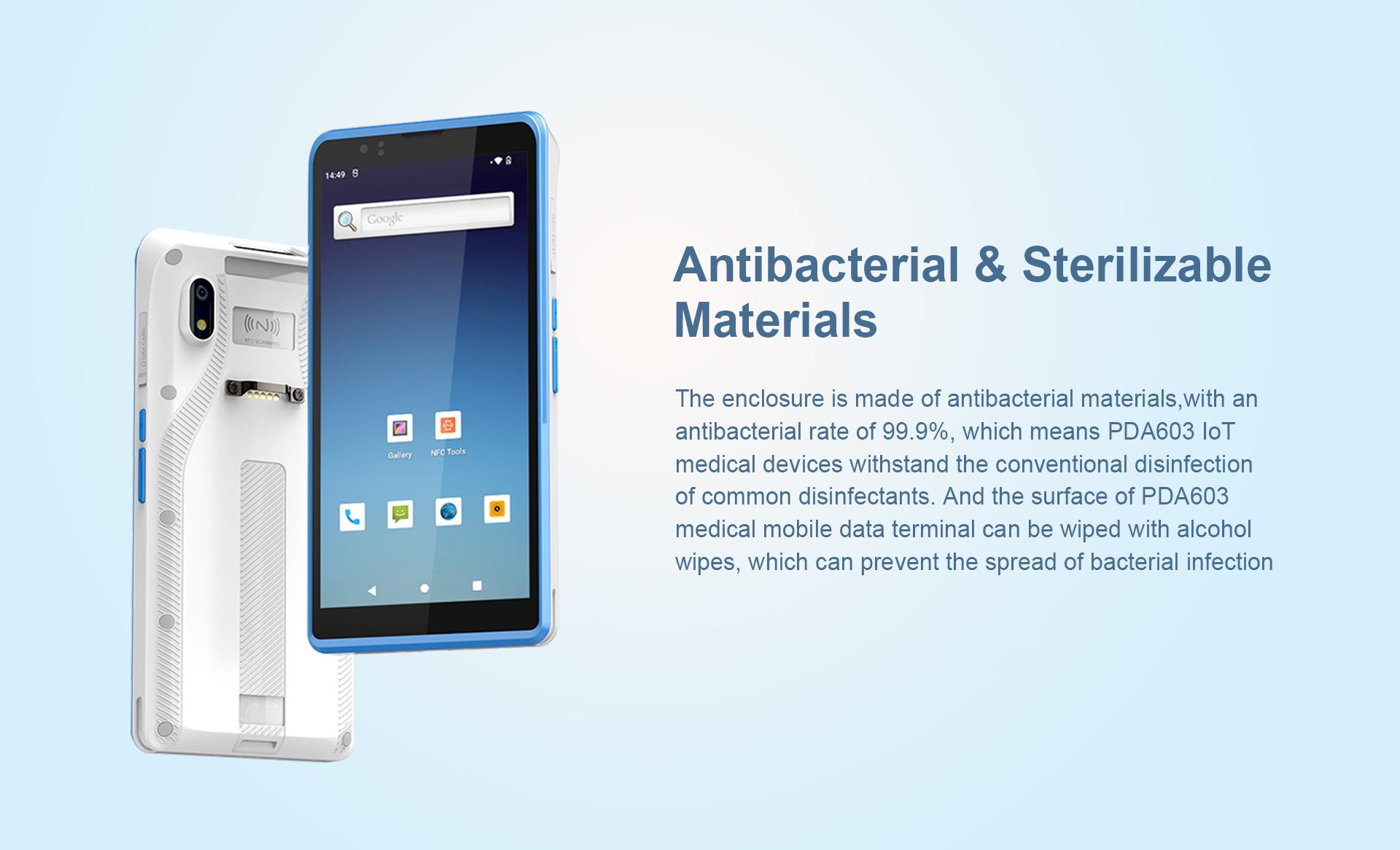

Medical Mobile Data Terminal

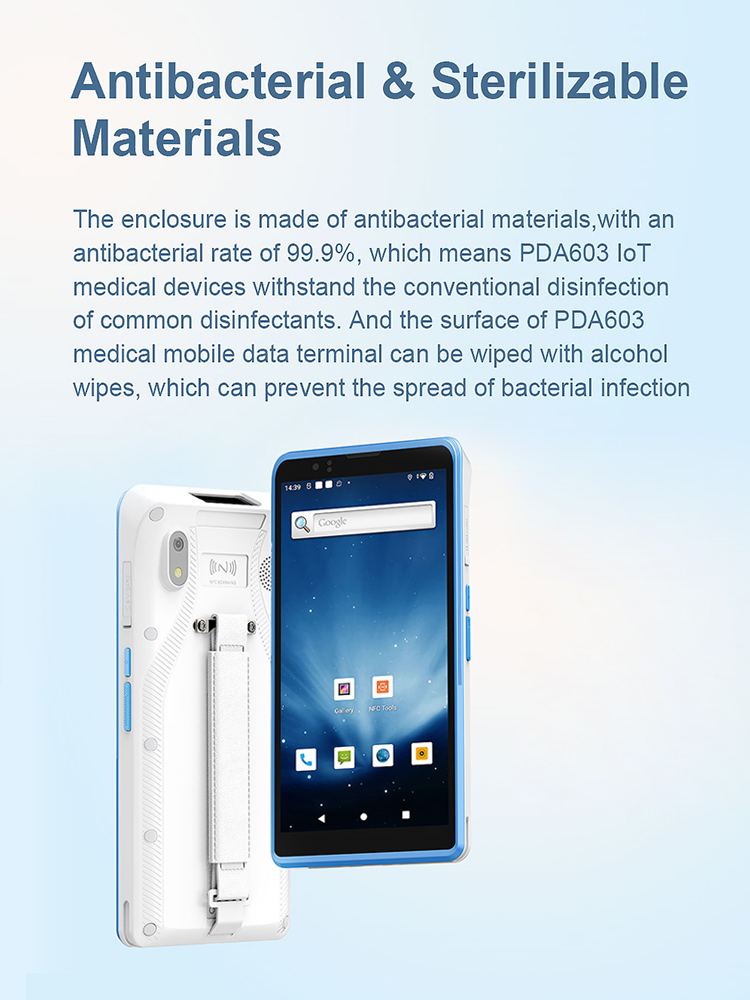

Antibacterial & Sterilizable Materials

Suitable For A Variety Of Environments

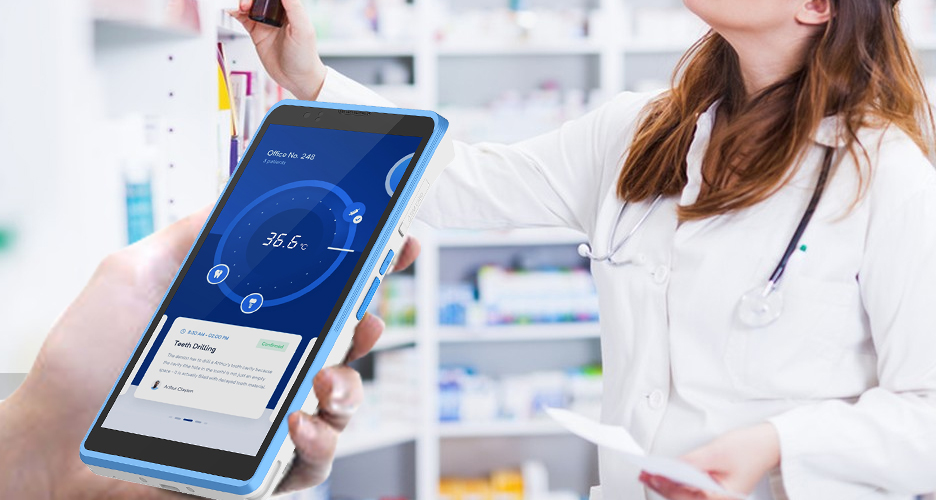

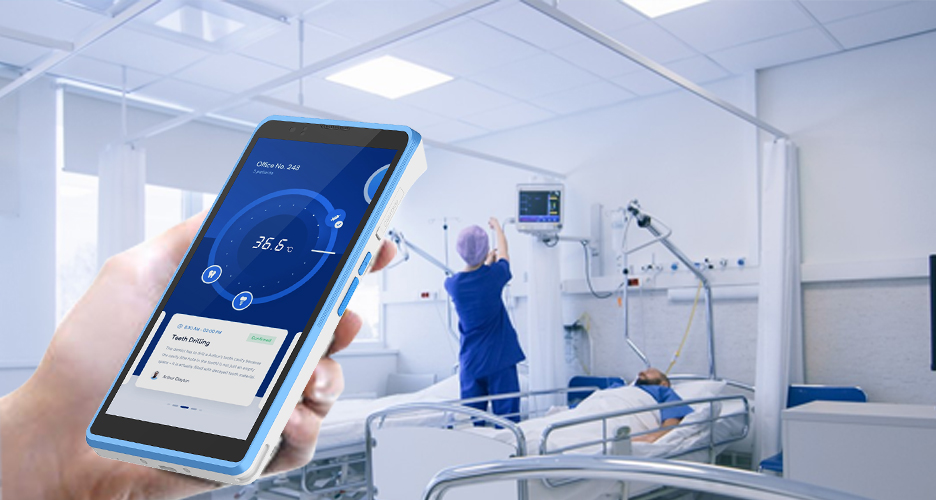

applications

It is suitable for various scenarios such as epidemic situation,
medical treatment, identity verification, pharmacy, etc. It is
specially designed for medical staff

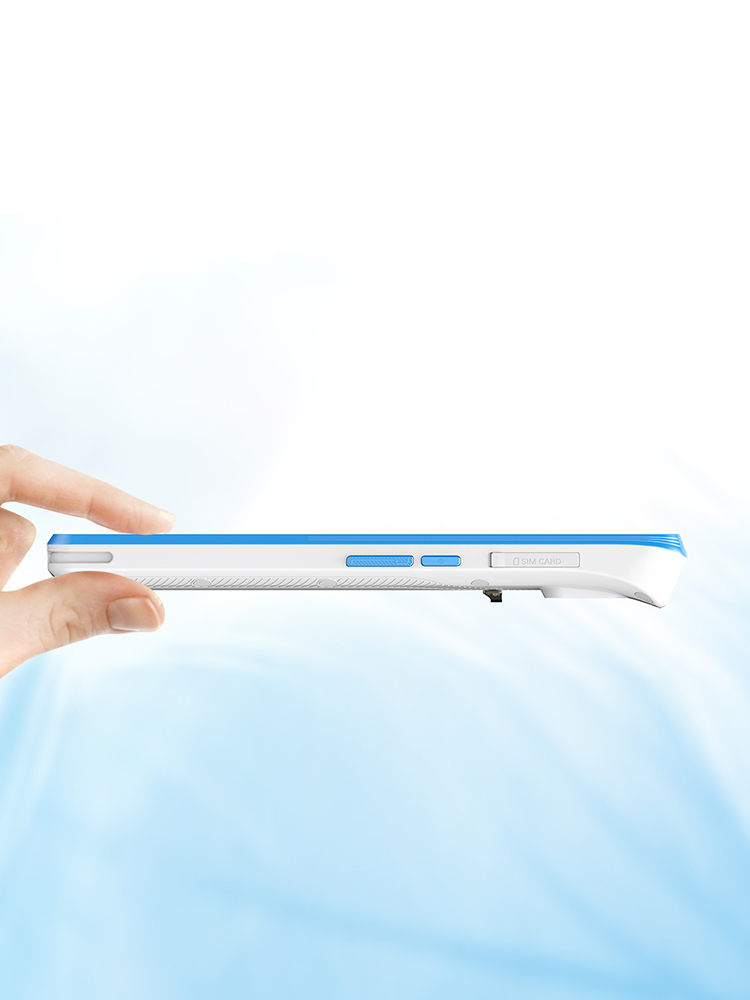

6.0 Inch Large Screen Light And Thin Design

Slim design, weight 290g, easy to carry, long time use without
fatigue, more convenient operation, high-definition display,
Support wearing gloves, dry and wet hand touch
Designed To be Light And Comfortable For Medical Staff

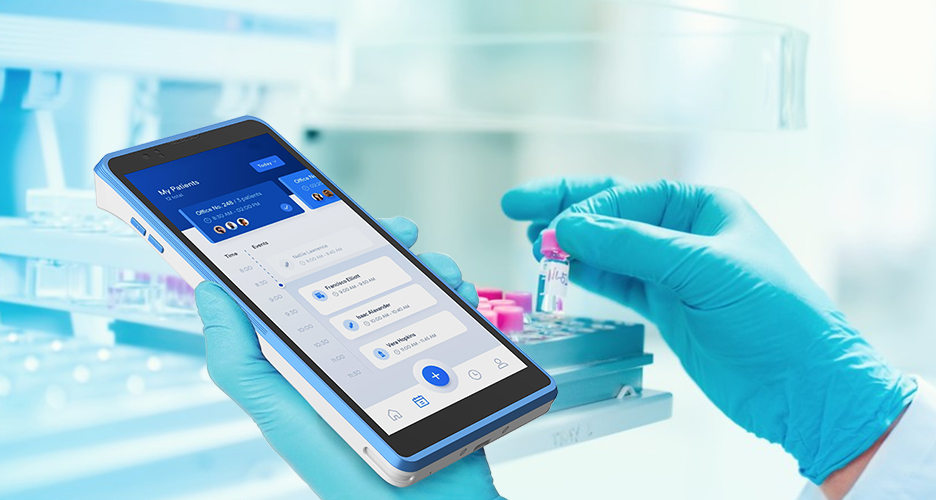

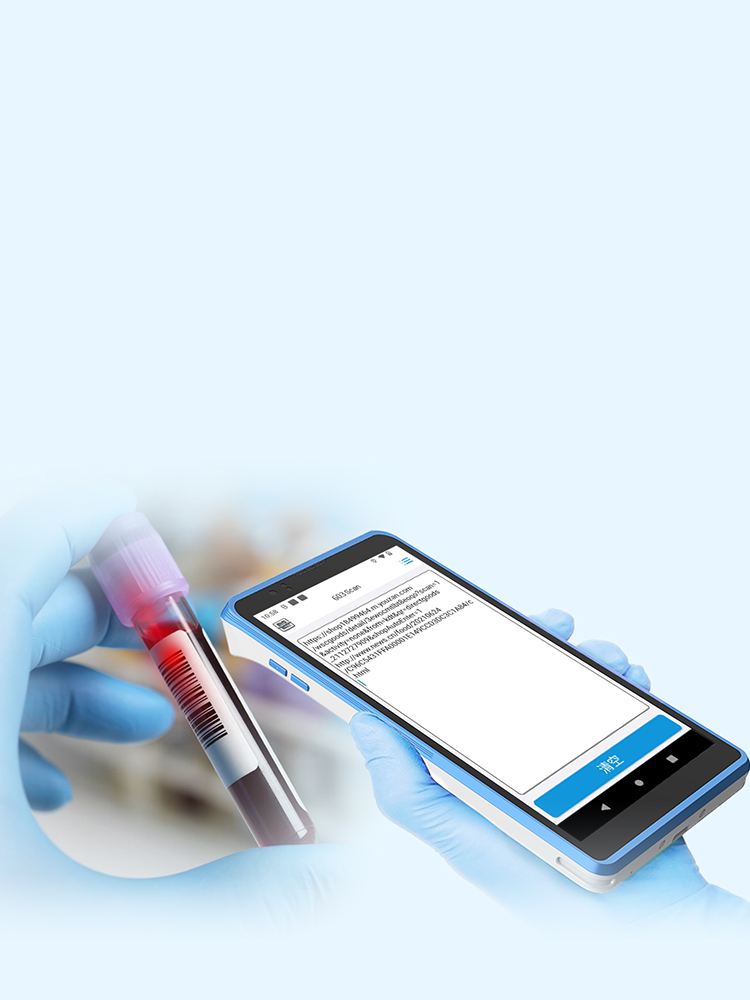

High Speed Barcode Data Collection

Industrial level professional scanning engine, supporting 1D/2D
scanning, accurate data collection, fast and safe; It can identify
damaged and stained barcodes to improve work efficiency

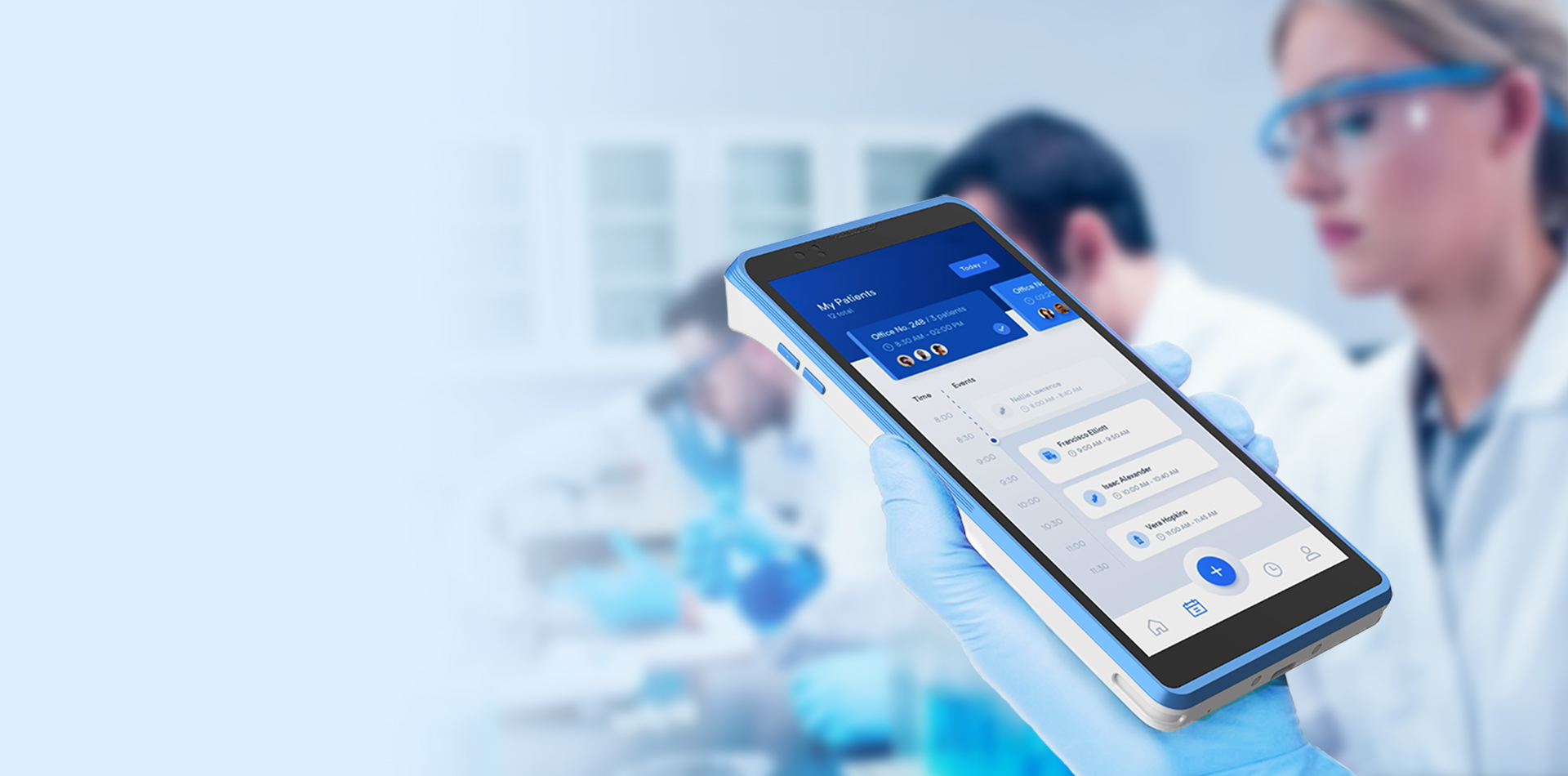

Applicable To Multiple Medical Data Collection

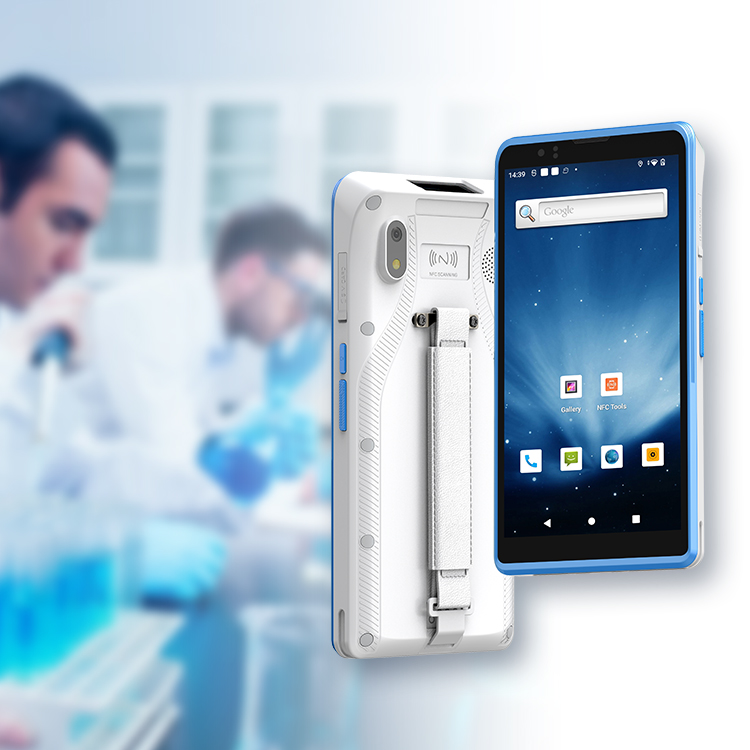

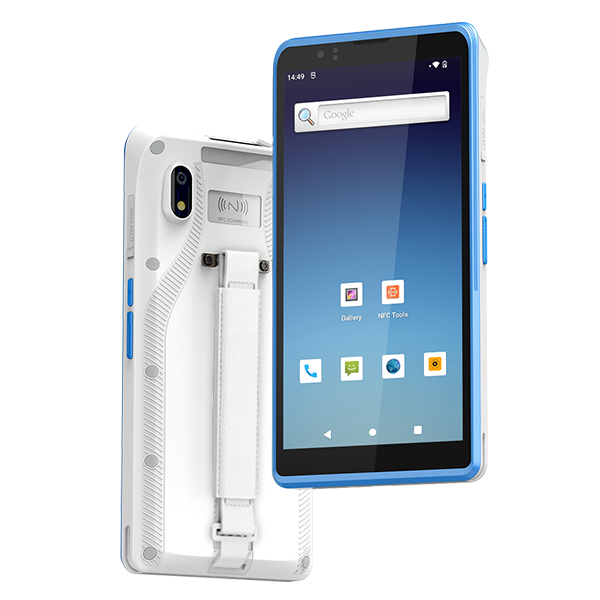

Handy Business With Multiple Accessories

Wrist Band

Wrist Band

With An Extension Strap, It Is Convenient For Daily Mobile Use.
The Wearable Can Be Hung In The Hand To Complete Other Tasks

System Configuration

Processor

Octa-core 2.0GHz high-performance processor

Operating System

Android 12.0

Memory

32GB ROM+3GB RAM

Display

6.0inch IPS 720x1440 High Resolution

Camera

Front:5MP Camera
Back:AF 13.0M Pixels autofocus with LED

Touch Panel

Industrial-grade capacitive touch panel

Keypad

1 power key + 1 scan key + 1 volume key (+-) + custom key

Notification

Vibrator/LED/Speaker

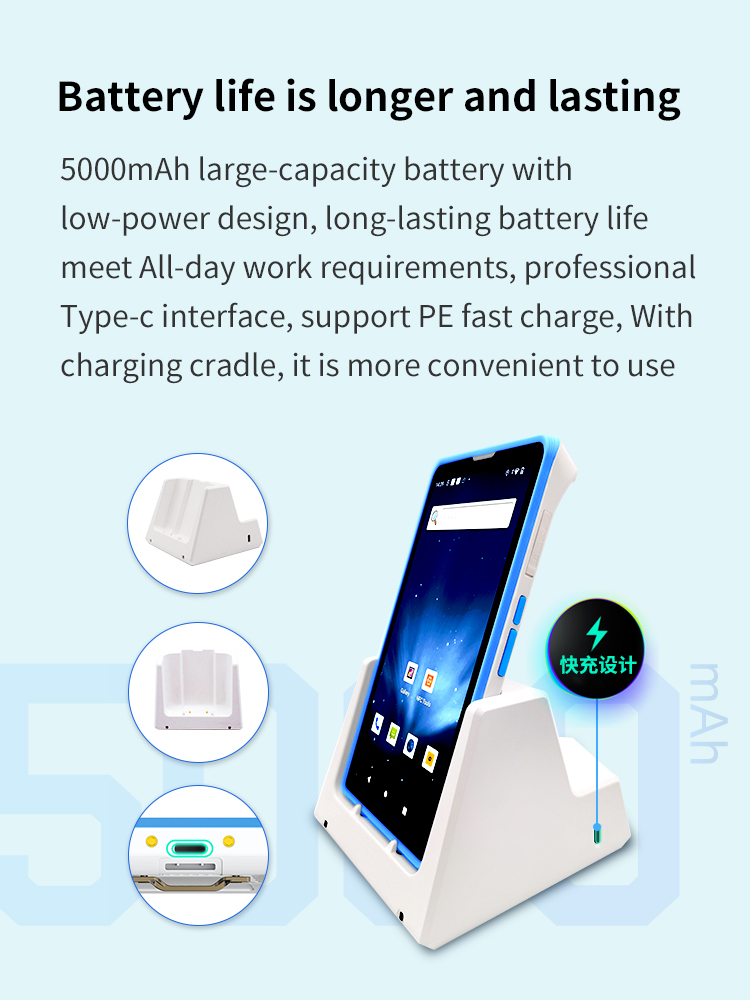

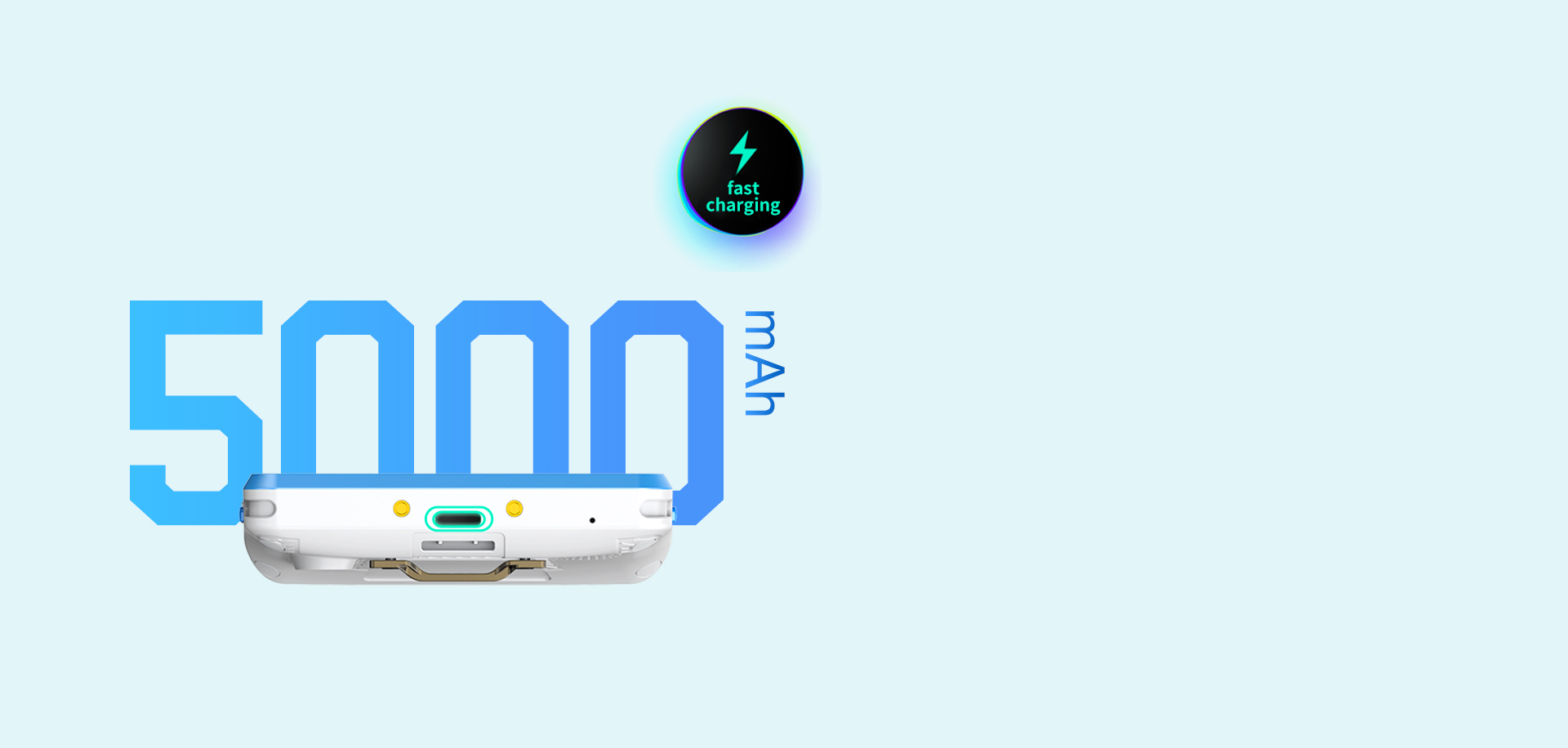

Battery

High voltage 3.7V 5000mAh

Audio

Built-in microphone/Speaker

Sensor

Ambient Light sensor, Proximity sensor

Interface

Type-C interface, support PE fast charging

Structural Parameters

Dimensions (LxWxD)

Approx. 164mm×81mm×20mm

Weight

290g(battery included)

Communication Transmission

Mobile Network

2G(GSM): B2/B3/B5/B8
3G(WCDMA): ：B1/B5/B8
4G(FDD-LTE): ：B1/B3/B5/B7/B8/B20
4G(TDD-LTE):B34/B38/B39/B40/B41

Wi-Fi

Wi-Fi 802.11a/b/g/n/r/ac (2.4G+5G dual-band Wi-Fi)

Bluetooth

Bluetooth 5.0, supports BLE

GPS

GPS/AGPS/Beidou/Galileo/GLONASS/QZSS

Operating Environment

Develop Tools

Android SDK + JDK + Eclipse

P-Language

Java

Operating Temp.

-10°~ 50°C

Storage Temp.

-40°~ 70°C

Humidity

0 ~ 95% (non-condensing)

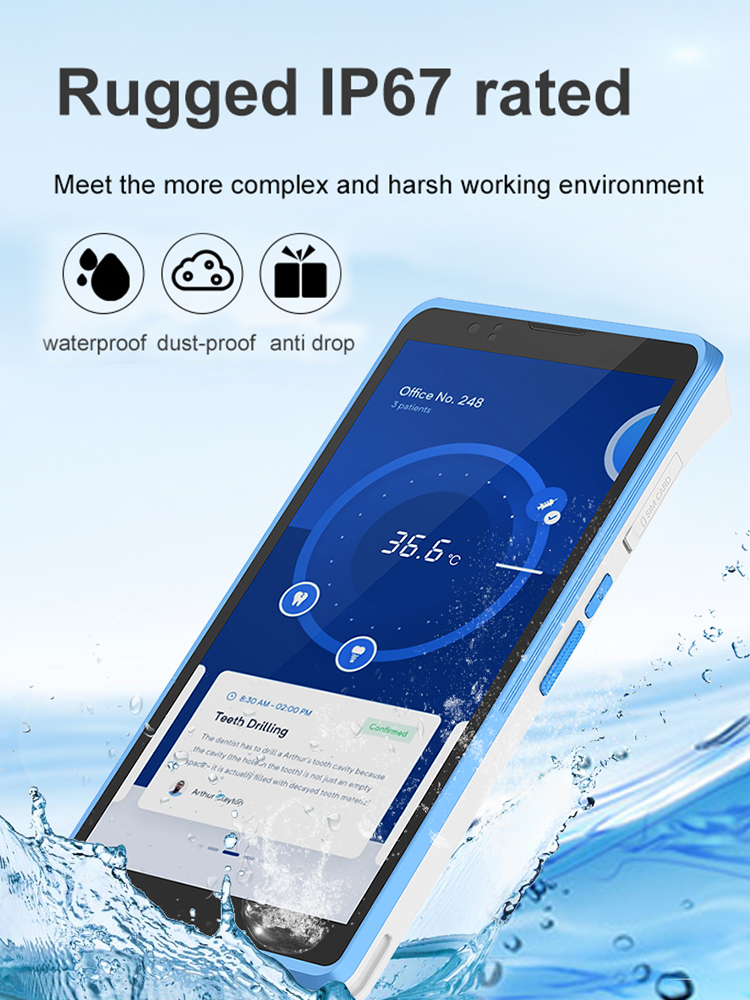

Sealing

IP67

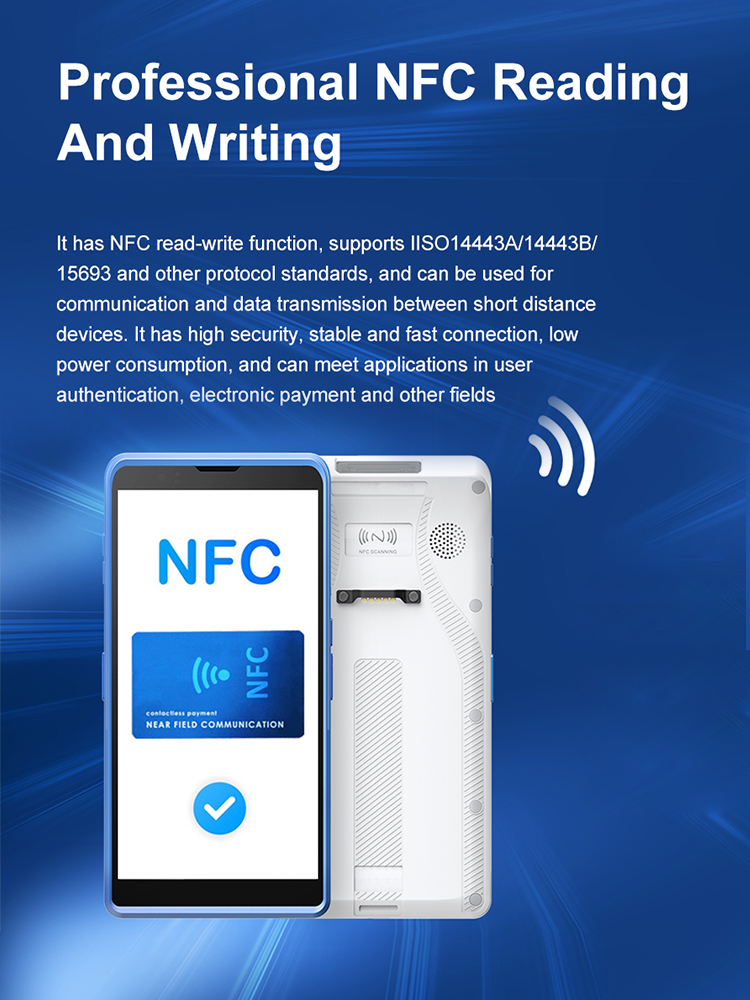

NFC

Protocol

ISO14443A/14443B/15693

Frequency

13.56MHz

NFC type

NXP PN557

1D Laser Scanner

Speed

100 lines/sec

Scan Angle

±50°

Identification accuracy

≥4mil

Decoding Type

UPC-A，UPC-E，UPC-E1，EAN-13，EAN-8，ISBN/ISSN，Code 39，code39 (ASCII full)， Interleaved 2 of 5，Industrial 2 of 5,Matrix 25,Codebar(NW7)，Code 128，UCC/EAN 128，ISBT128，code 93，MSI/Plessey，UK/Plessey，China post，GS1 Data Bar

2D Image Scanner

Method

CMOS Image

Scan Speed

60scans/sec

Scan Angle

360 ° angle, Elevation angle ± 55 °, Eeflection angle ± 55 °

Identification accuracy

2D≥7.5mil，1D≥5mil

Decoding Type

QR Code, Data Matrix, PDF417，UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar

DPM

Support DPM scanner (optional)
