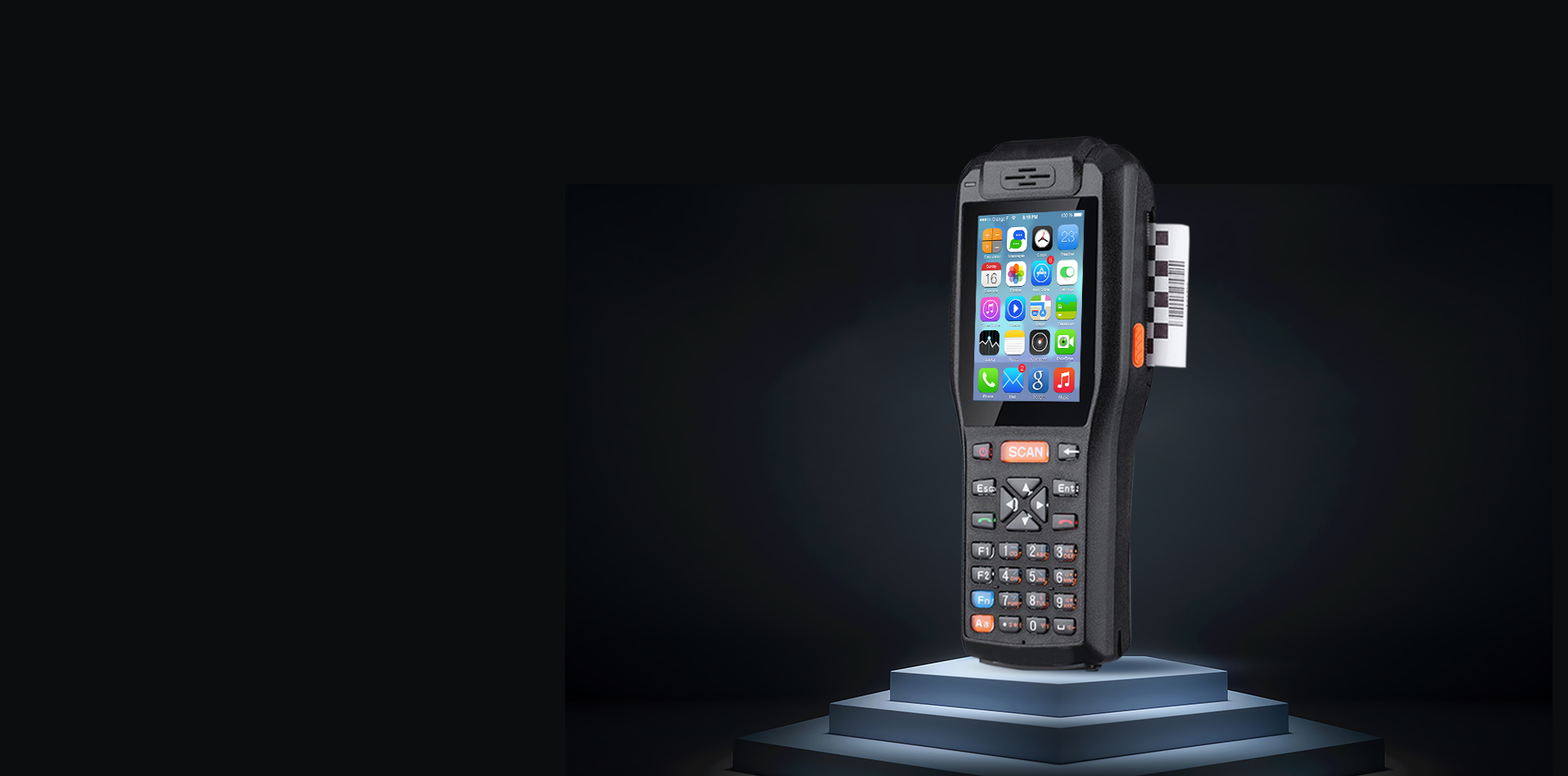

PDA - 3505

Handheld terminal built in
scanner and printer

Stable reliability performance

ARM Cortex A53 Quad-core 64 bites 1.3 GHz

Android6.0 /7.0 OS

2GB RAM + 16GB ROM (optional 32GB ROM + 3GB RAM)

Ticket and label paper can be switched according to demand

Simple operation to meet more comprehensive printing needs

Support text image, barcode, two-dimensional code printing; clear handwriting and fast printing speed

It is 58mm print width with fast thermal printing

Work is not restricted by the network environment

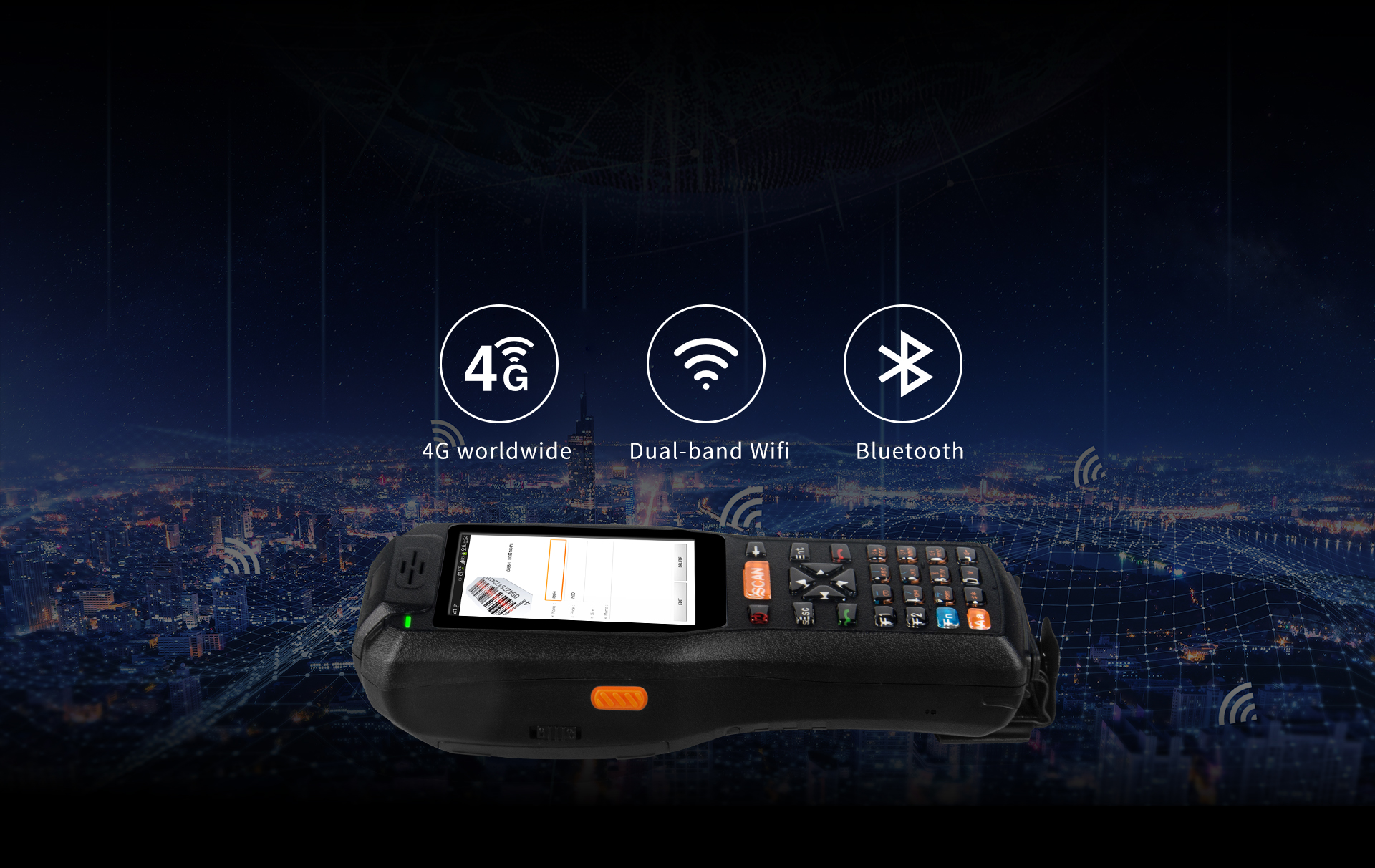

The whole network 4G + dual-band Wi-Fi + Bluetooth, high-speed and
stable wireless transmission, without geographical restrictions, enjoy
high-quality network communication and high-speed data transmission
anytime and anywhere

Custom IC card function

It can complete the payment function of IC card with chip

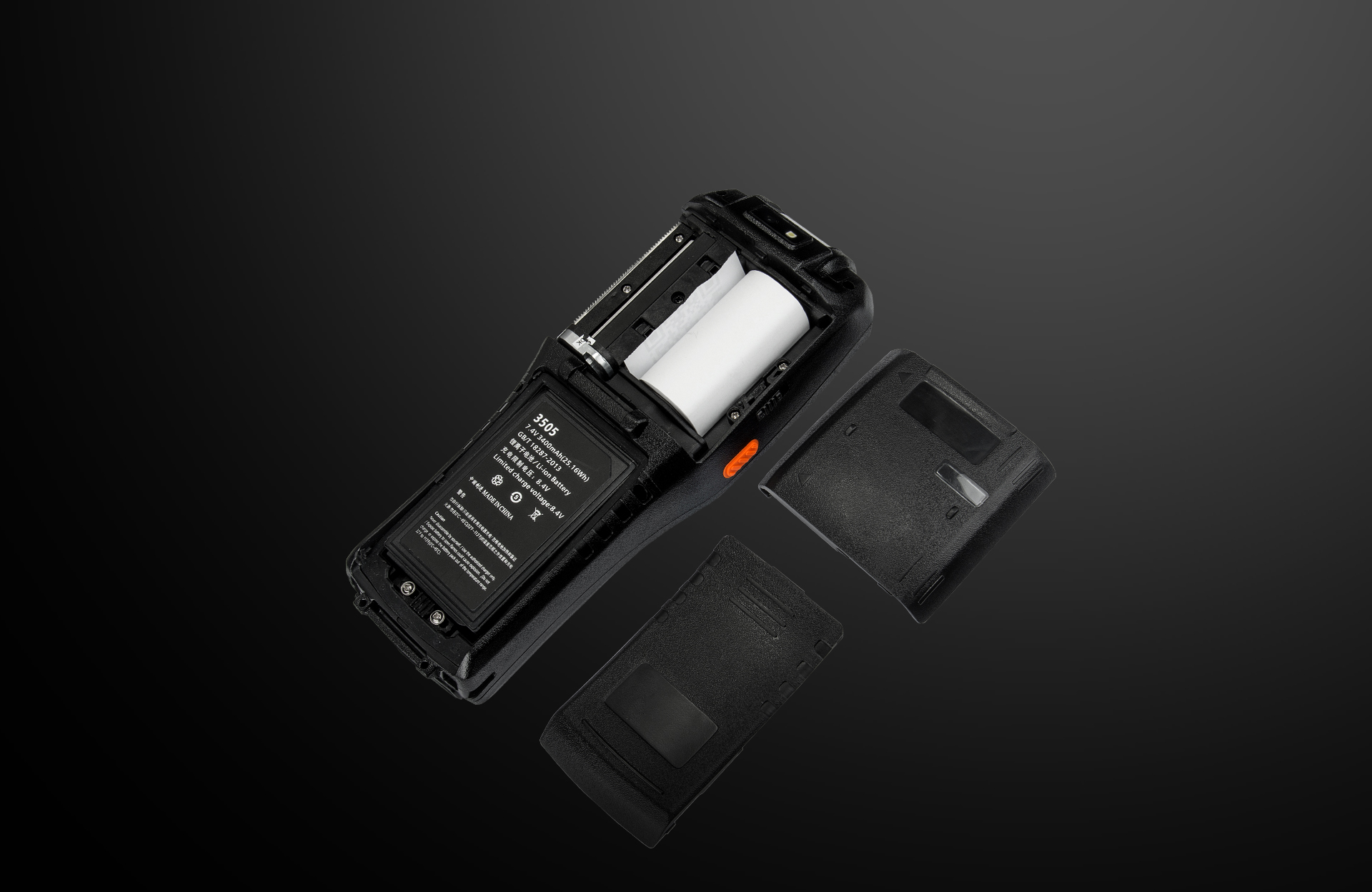

durable Large-capacity battery

3400mAh large-capacity detachable battery and long battery life;
on standby at any time to meet all-day schedules.
Optional seat charger, more efficient and convenient

Handy Business With Multiple Accessories

  • Wrist strap
  • charging base

Wrist strap

Optional wrist strap for daily mobile use
and hang in hand for other tasks cradle charger

charging base

Optional charging base, optional supporting portable battery and more efficient mobile office

PDA-3505 Product Parameters

Structural parameters

Size:(LxWxD)

220*85*59mm

Weight:

485g（including battery）

System Configuration

Processor

4G Version: ARM Cortex A53 Quad-core 64 bites 1.3 GHz

OS

Android 6.0 / 7.0

Storage

2GB RAM+16GB ROM 3GB RAM+32GB ROM(optional)

Extended Storage

Micro SD（UP to 64G )

Display

Standard：4inch HVGA (320 x 480) high-definition screen

Camera

5.0M pixels AF with LED light automatic focusing (8.0 M optional)

Touch screen

Industrial capacitive screen

Indicator

Vibration indicator / LED indicator / audio indicator

Keyboard

29 anti-wear, within the light waterproof industrial keyboard

Battery

Built in detachable 7.4v 3400mAh Lithium Polymer Battery

Audio

Built-in microphone / speaker

Sensor

G-sensor

Data Communication

Mobile data communication

3G Version: WCDMA:850/900/1900/2100MHz
GSM: 850/900/1800/1900MHz
4G Version： LTE-FDD:B1/B3/B7/B8/B28 E-TDD:B38/B39/B40/B41
CDMA/EVDO 800MHz WCDMA:850/1900/2100MHz

Wi-Fi

IEEE 802.11 b/g/n

Bluetooth

Bluetooth 4.0

GPS

High performance GPS / AGPS navigation chip

Using Environmental

Development tools

Android SDK + JDK + Eclipse

Language

Java

Operating Temperature

-10° ~ 50°C

Storage Temperature

-20°~ 70°C

Humidity

0 to 95% relative humidity (non-condensing

Drop Specifications

can bear impact from 1.5m drop to cement floo

Electrostatic discharge

± 15kV air discharge, 8kV direct discharge

Protection class

IP65/Explosion-Proof certificate

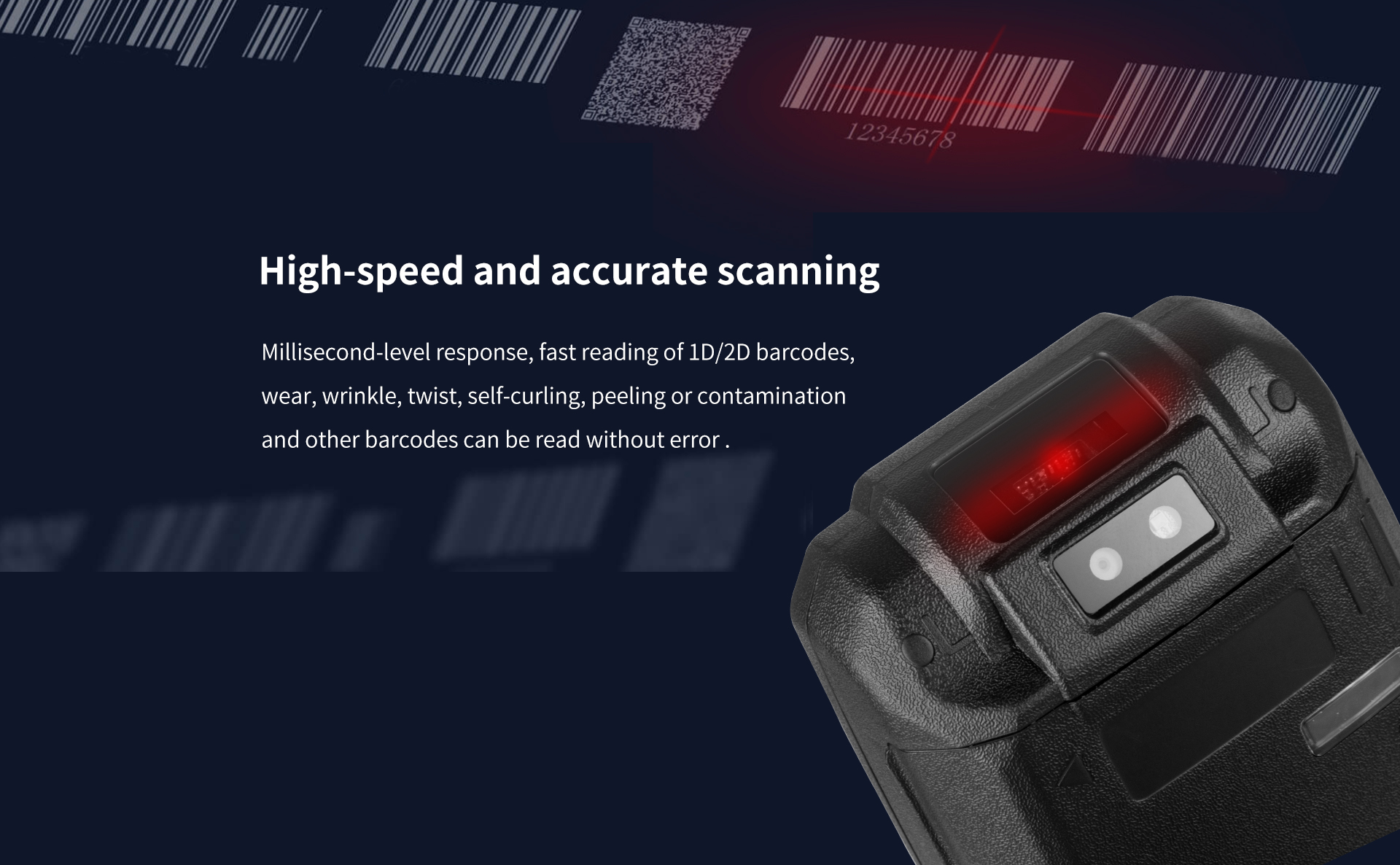

1D laser scanner

Scanning light

Visible laser diodes with a wavelength of 650 nm

Scanning speed

100 line/s

Scanning angle

±50°，±65°（R/L, F/B）

Resolution

4mil

Decoding type

UPC-A，UPC-E，UPC-E1，EAN-13，EAN-8，ISBN/ISSN，39 code，39 code（ASCII code），32 code，Trioptic 39 code，Interleaved 25 code，industry 25 code（Discrete 2 of 5），Matrix 25 code，Codabar（NW7），128 code，UCC/EAN 128，ISBT128，93 code，11 code（USD-8），MSI/Plessey， UK/Plessey， China Postal，GS1 DataBar

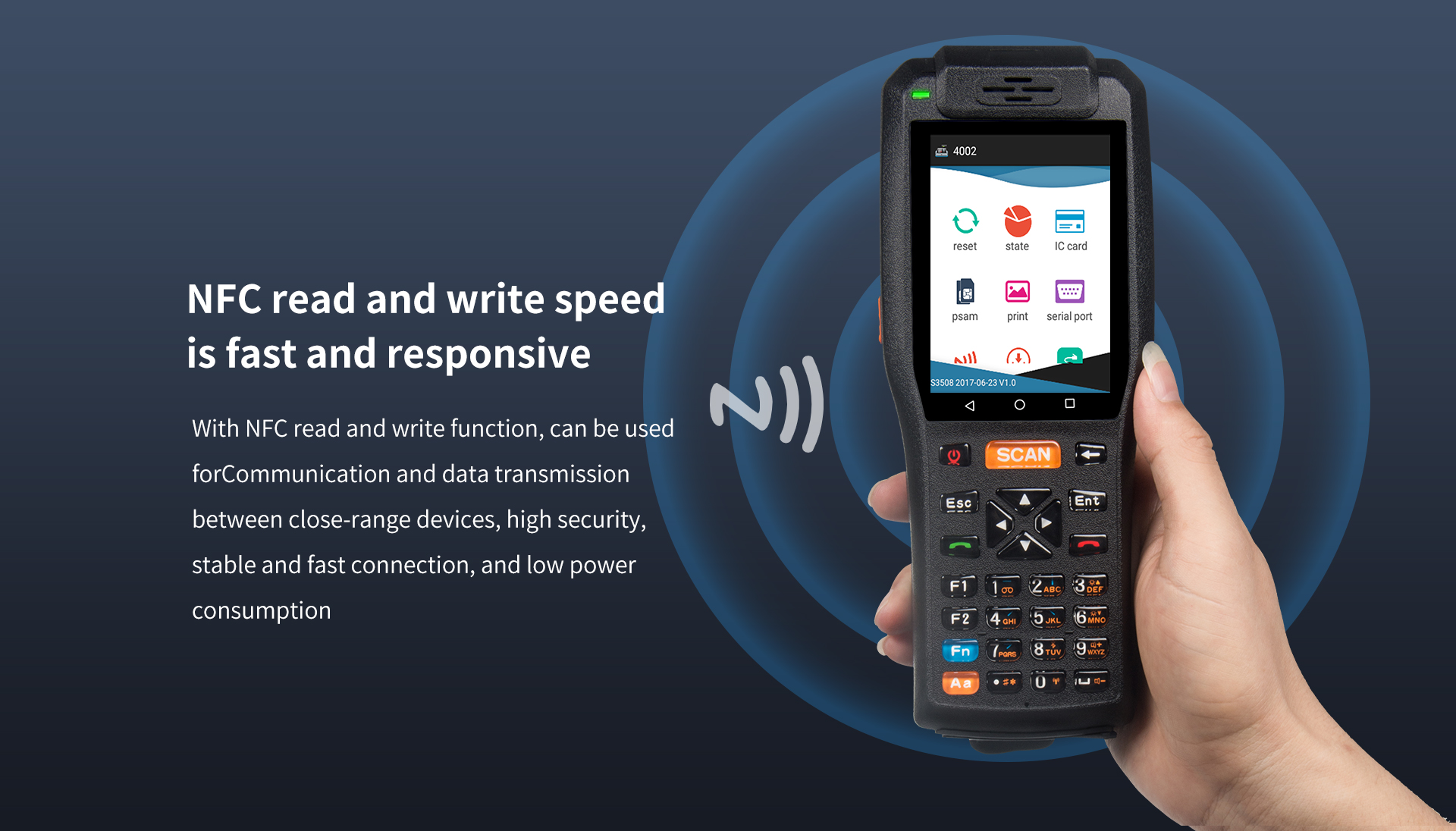

NFC/HF RFID/PSAM

Communication

ISO/IEC 14443A/B,ISO15693

Working frequency

13.56MHz

Card type

Type1-4Tag/Mifare/Felica

PSAM card

IS0/IEC 7816 1-4

Contact chip card

IS0/IEC 7816（optional）

2D image scanner

Collection method

CMOS

Scanning speed

1/60s

Scanning angle

Corner 360°，Elevation angle ± 55°，Declination ± 55°

2D optional

Support DPM (component identification code)

Decoding type

QR Code, Data Matrix, PDF417，Han letter code in line with international and domestic generic 1Dcode standards:
UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar etc.
