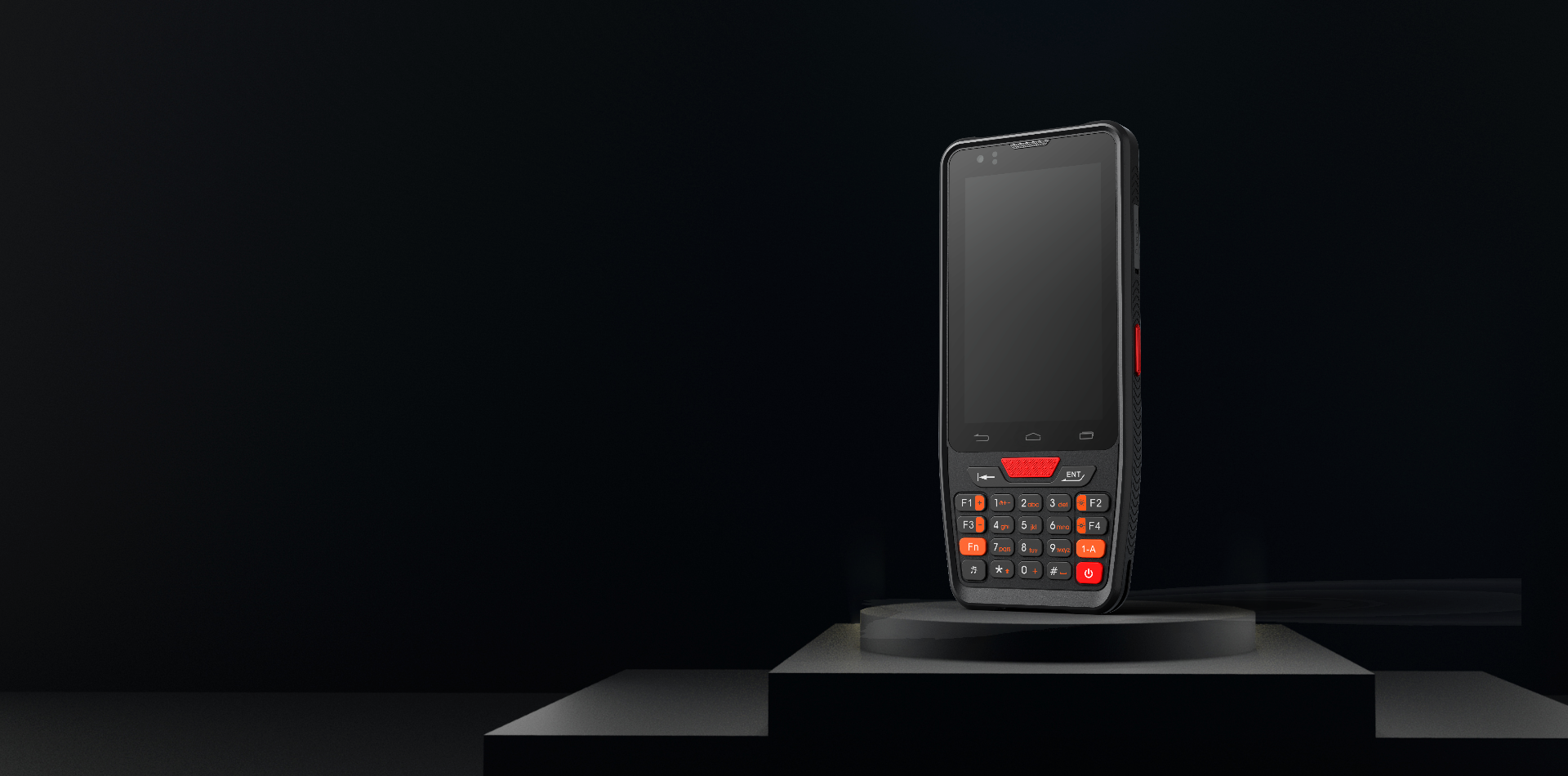

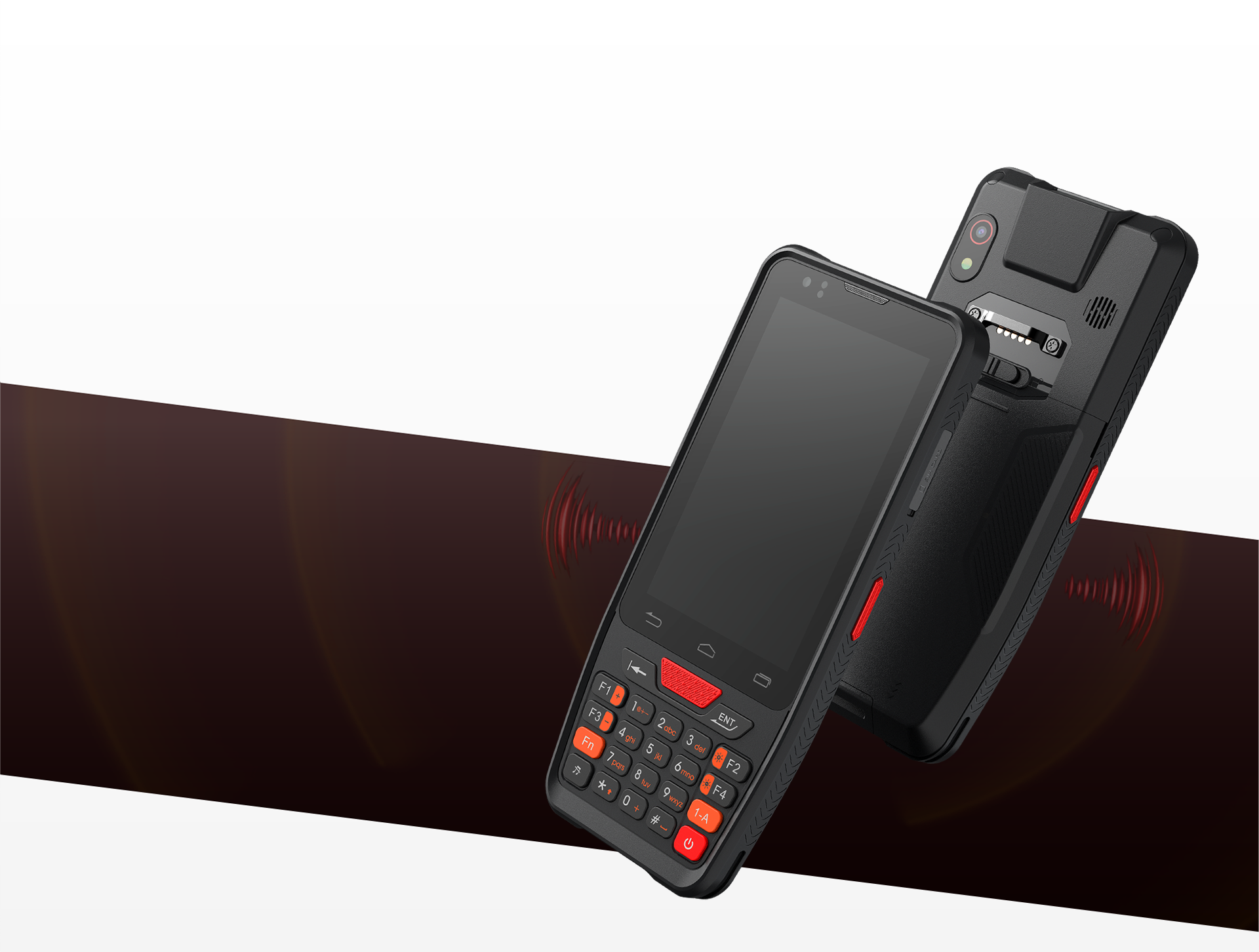

PDA-405

Handheld Smart Terminal

Suitable For A Variety Of Environments

Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Supermarkets And Other Industries

Express Logistics

Supermarket

Storehouse

Financial Insurance

Government Affairs

Professional Performance
Escort For You

8-Core High-Performance Processor

Android12.0 Operating System

3GB RAM+ 32GB ROM Large Memory

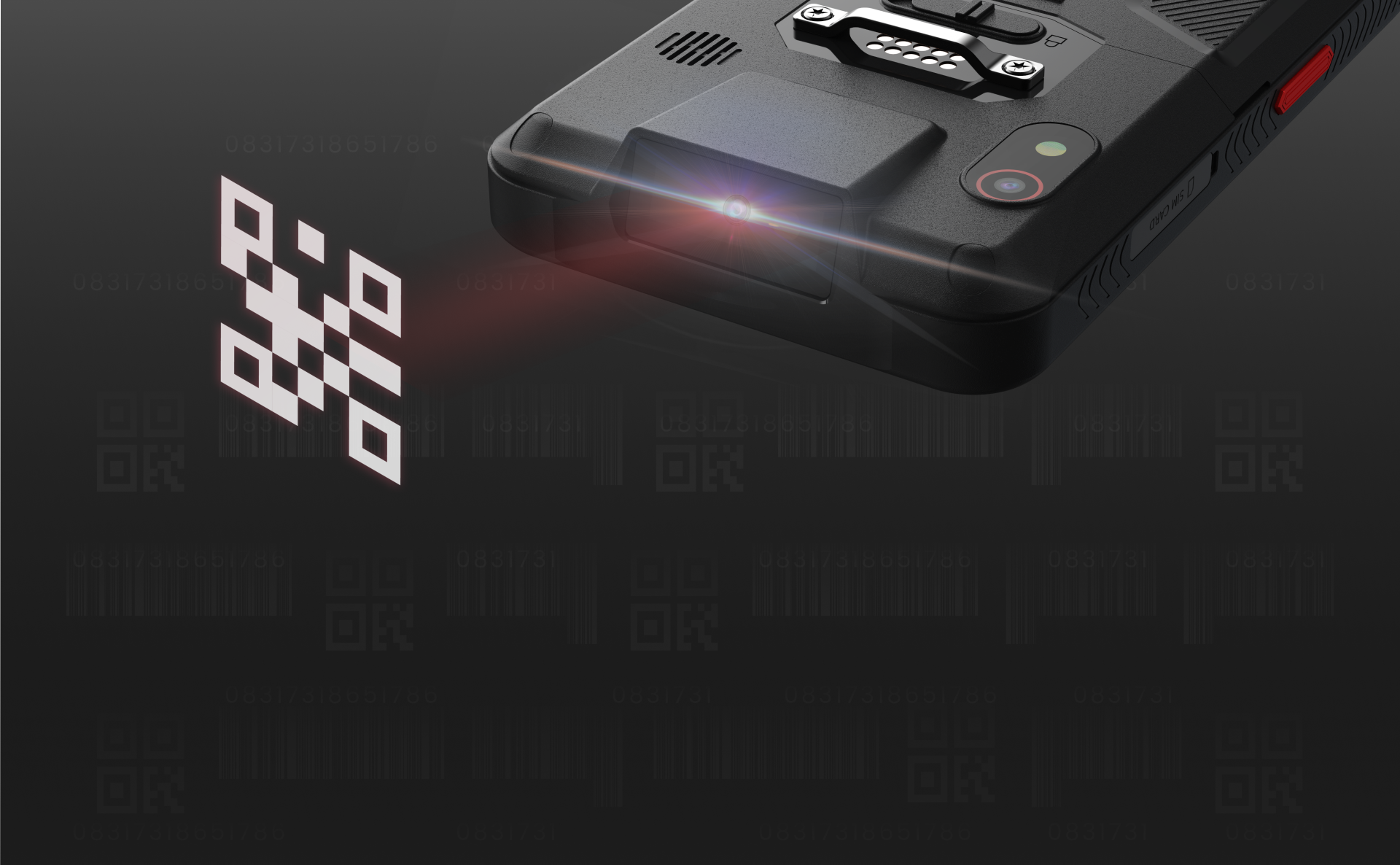

Equipped With The Most Powerful Scanner In
The Industry

Industrial-Grade Professional Scanning Engine, Equipped With One-Dimensional Laser Scanning Head
Two-Dimensional Red Light Scanning Head, Can Accurately, Quickly And Easily Read 1D/2D
Barcodes On Various Media, And Support Damaged, Wrinkled And Stained
Barcode Identification. Make Users Work Faster And Easier

High-Speed And Stable Wireless Transmission

Support The Whole Network 4G Wireless Communication In The Industry, Provide Faster Data Transmission
Rate And Internet Speed, Powerful And Flexible Mobility

The Dual-Band Wi-Fi Design Provides A Stronger And More Stable Wi-Fi Wireless Signal
For The Device

High-Speed Transmission Speed, And More Power Saving, Fully Meet
The Needs Of Users For High-Definition And Big Data Wireless
Transmission

4G For The Whole Network

Dual Band Wi-Fi

Bluetooth

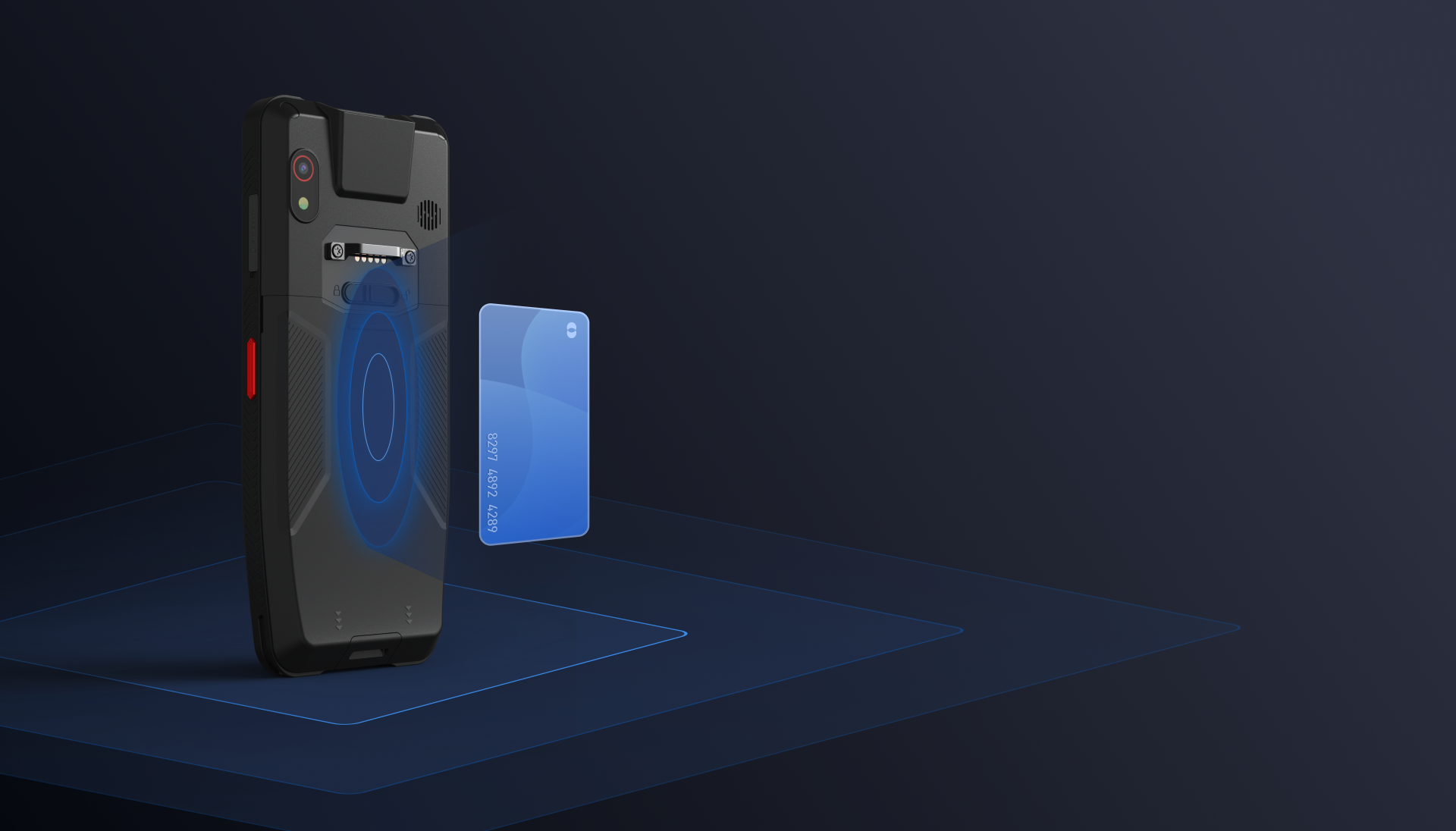

NFC Module Fast And Accurate

It Can Read RFID Tags Within A Range Of 3 Meters In Batches Without Touching And Easily Scan , And Can Read More Than 50 Tags Per Second, Helping Enterprises To Leap To A New Level Of Work Efficiency.

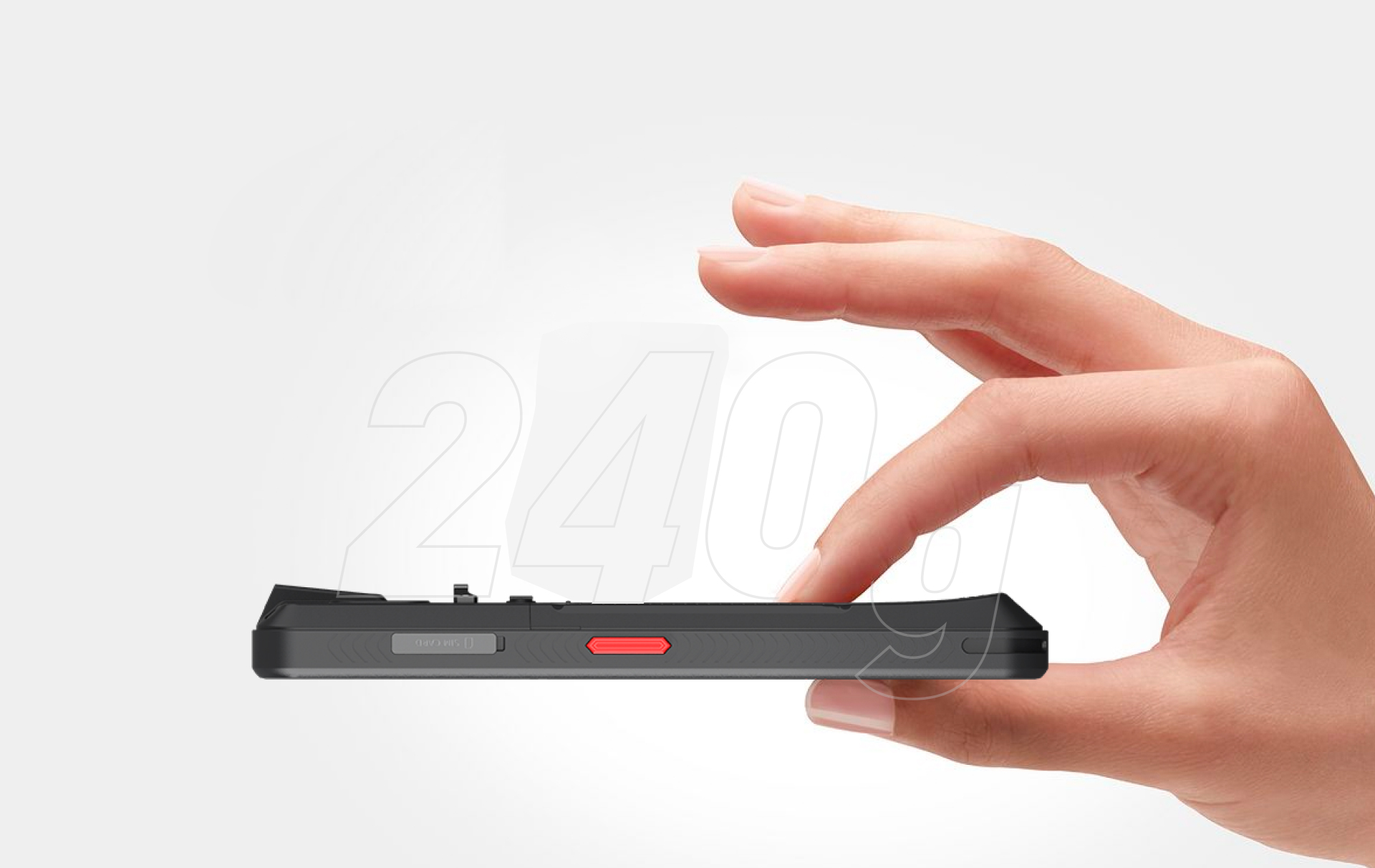

Lightweight And Portable

Thin And Light Body, Easy To Carry、 4-Inch Screen, Comfortable To Hold , One-Handed Operation Can Reach The Buttons And Any Corner Of The Screen , Easy To Complete Various Operations

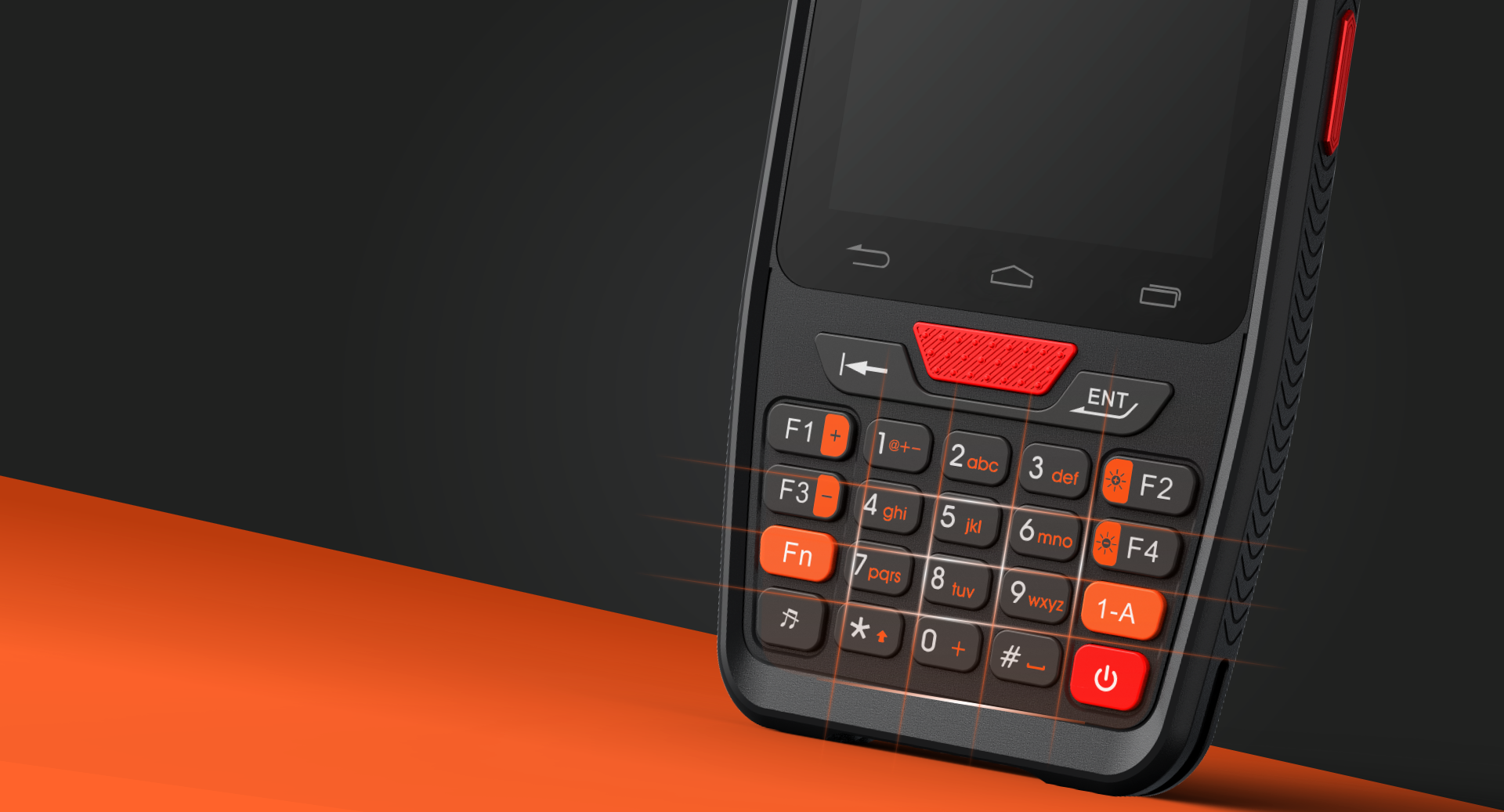

Button Layout Professional And
Worry-Free

Jiugongge Physical Key Design, Shortcut Key Operation Is More Convenient

IP67 Protection Class

Working Temperature -10~60°C Easily Adapt To Various Complex And Harsh Application Scenarios, Safe, Reliable And Durable

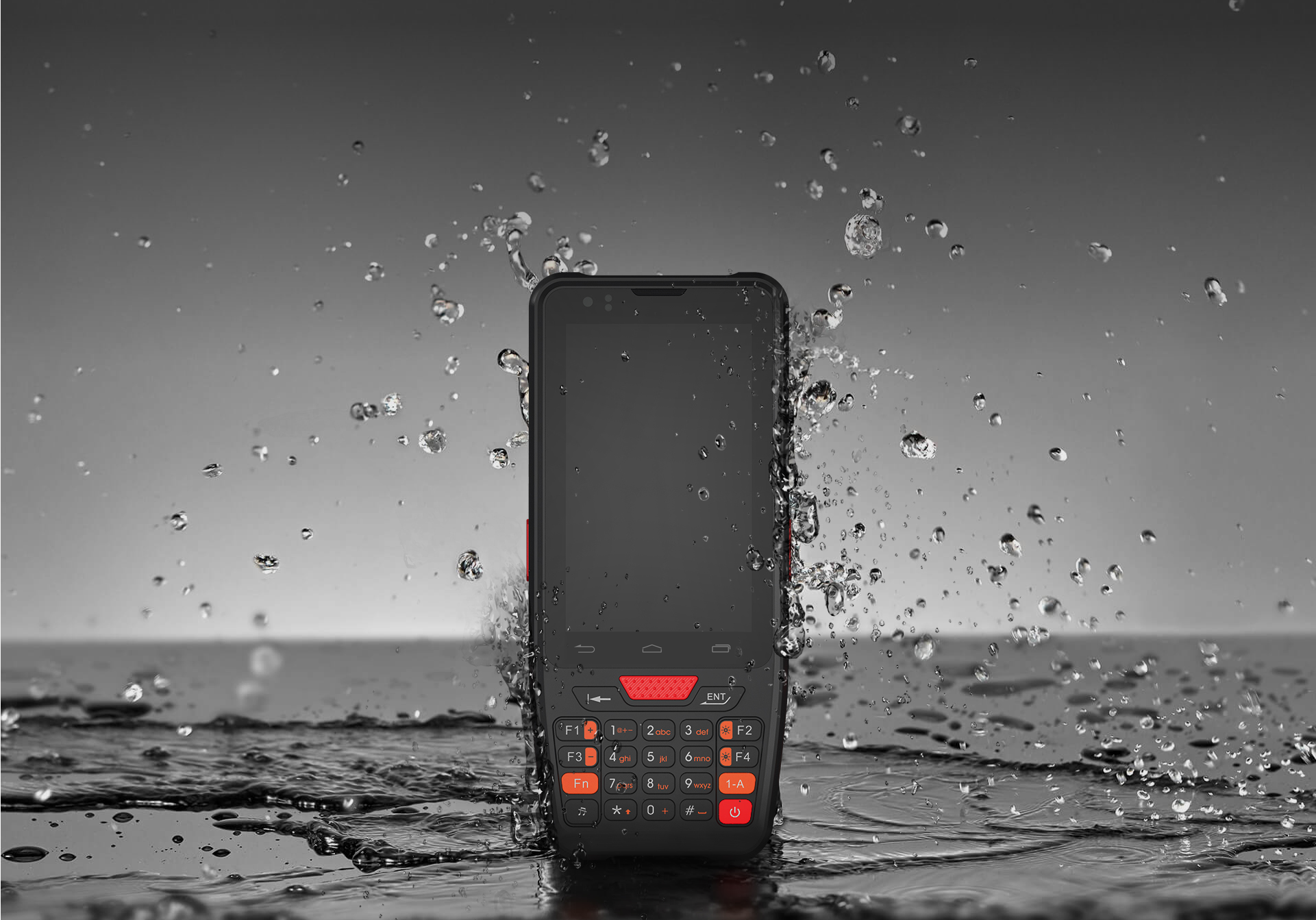

IP67 Dustproof And Waterproof

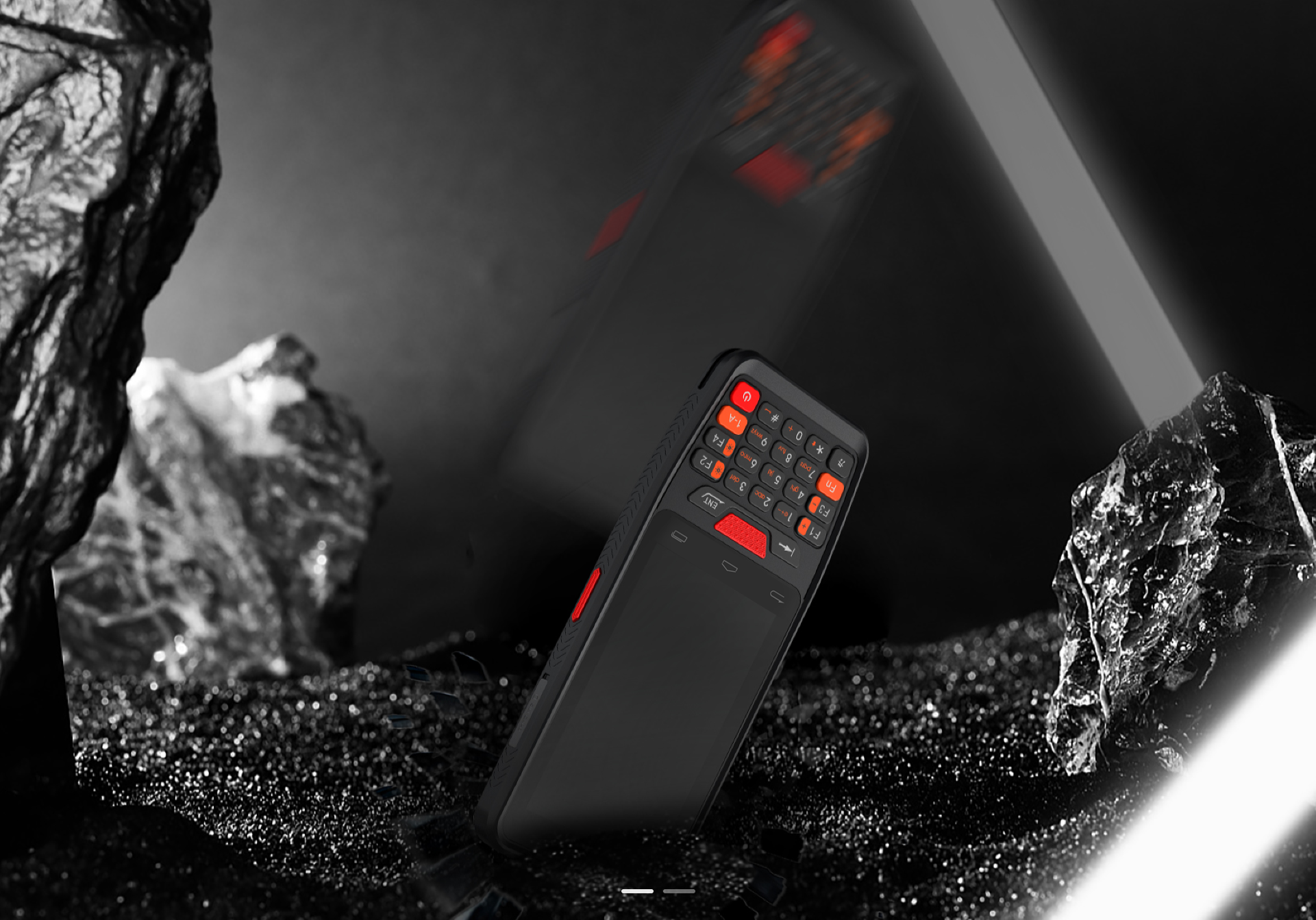

1.5 Meters Concrete Floor Anti-Drop

IP67 Protection Class

Working Temperature -10~60°C Easily Adapt To Various Complex And Harsh Application Scenarios, Safe, Reliable And Durable

IP67 Dustproof And Waterproof

1.5 Meters Concrete Floor Anti-Drop

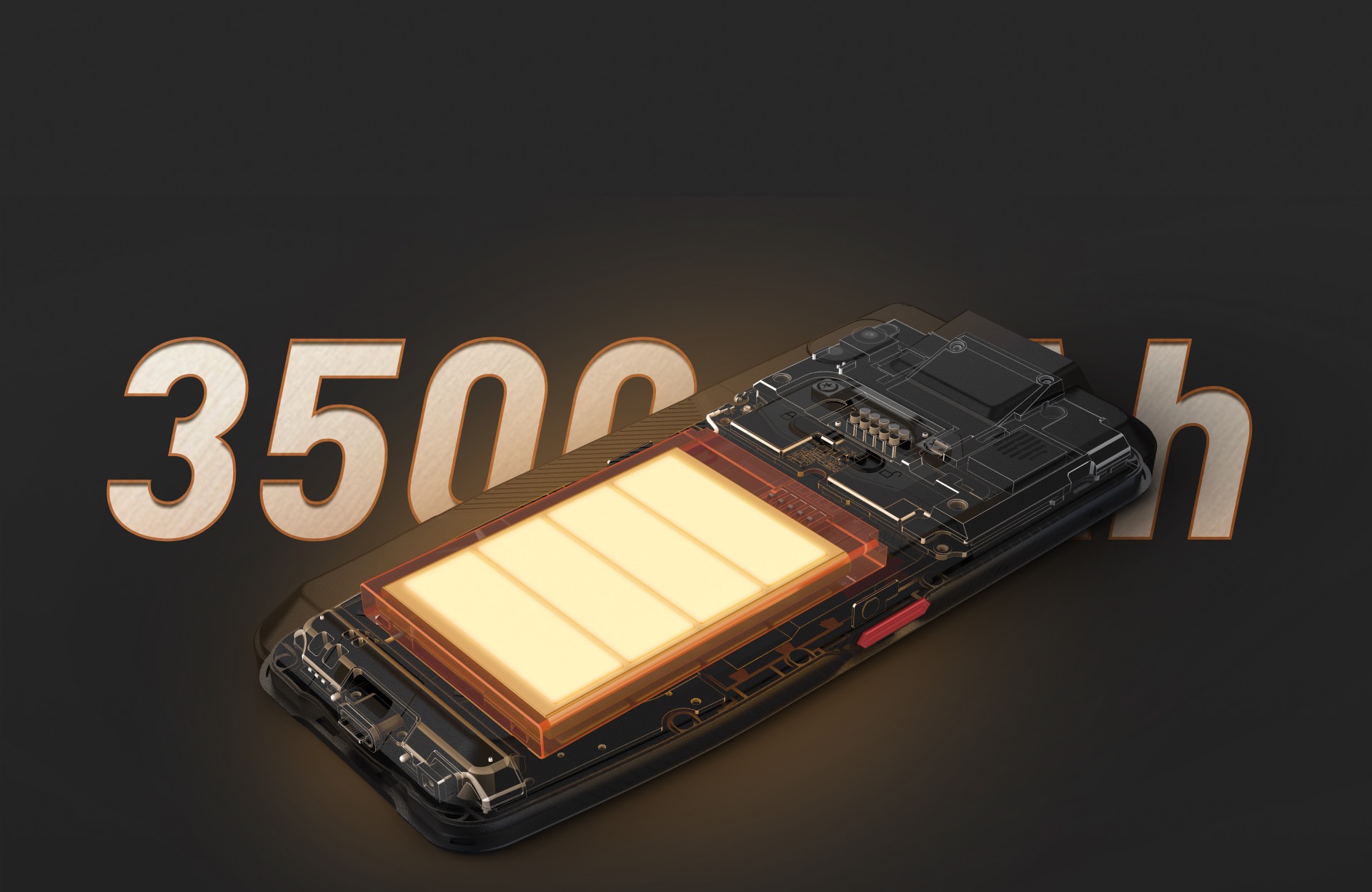

Long Battery Life, Continuous Online

3500mAh Removable High-Capacity Lithium Battery Professional Type-C Interface , Pd Fast Charging, Replaceable Battery; Low Power Consumption Design , Long Battery Life, Meet The Needs Of All-Day Work;

Handy Business With Multiple Accessories

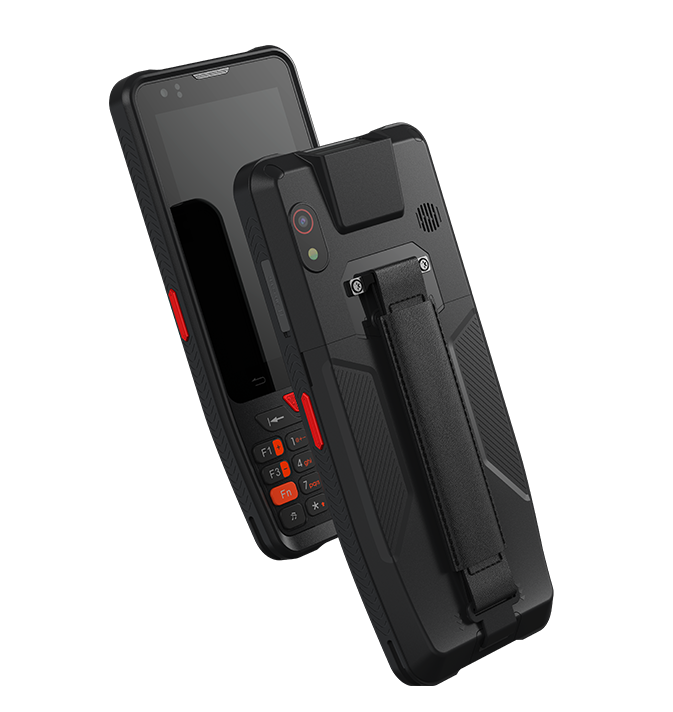

  • Wrist Band

Wrist Band

With An Extension Strap, It Is Convenient For Daily Mobile Use. The Wearable Can Be Hung In The Hand To Complete Other Tasks

PDA-405 Product Parameters

System Configuration

Processor

MTK Helio P22 Octa-Core 2.0 GHz 64-Bit High-Performance Processor

Operating System

Android 12.0

RAM

3GB+32GB

Expansion Inner Slot

Support 128G TF Card Expansion

Display

4.0 Inch IPS(480x800) HD Screen

Camera

Front 5 Million Pixels, Rear 13 Million Pixels

Speaker

Support

Shock

Support

Touch Screen

Industrial Grade Capacitive Screen

Keyboard

23 Scratch Resistant Inner Light Transmitting Waterproof Industrial Keyboards

Indicator Light

Power, Charging, Status Lights

Battery

Built-In 3.7v 3500mAh High Performance Lithium Polymer Battery

Overall Size (LxWxD)

Approx. 160.0 x 75.0 x 15 Mm

Total Weight

Host 250 G (Including Battery)

Structural Parameters

Overall Size (LxWxD)

Approx. 160.0 x 75.0 x 15 Mm

Data Communication

WWAN

GSM（B2/B3/B5/B8）+WCDMA（B1/B5/B8）+FDD（B1/B2/B3/B5/B7/B8/B20/B28a&b）+TDD（B38/B39/B40/B41）

WLAN

2.4G/5G Dual-Band, Support 802.11 A/B/G/N/Ac/, IPV4, IPV6;

Vo-LTE

Support Vo-LTE HD Video And Voice Calls

Bluetooth

Support Bluetooth 4.1+HS/4.0/3.0+HS/2.1+EDR

GNSS

Set GPS/Beidou/Gnas, Support AGPS

Use Environment

Development Tools

Eclipse/Android Studio

Supported Languages

Java

Operating Temperature

-20 ℃~+50 ℃

Drop Specification

Within The Operating Range, 6 Sides Withstand The Impact Of A Drop From A Height Of 1.5 Meters To Concrete

Protection Class

IP67 Protection Class

Static Protection

±15 KV Air Discharge, ±8 KV Contact Discharge

Rolling Test

It Still Runs Stably After 1000 Times Of Continuous Rolling For 0.25 Meters, Reaching The IEC Rolling Specification

Humidity

5%RH~95%RH (No Condensation)

Storage Temperature

-40℃~+70℃

NFC/ RFID

Communication Standard

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, Etc.

Working Frequency

13.56MHz

Labeling Standards

M1 Card (S50, S70), CPU Card, NFC Tag, Etc.

Scanning Performance

Image Sensor

1280X800 CMOS

Lighting

White LED

Focus

Laser 650nm

Recognition code system

2D: PDF417, Micro PDF417. QR Code, Micro OR , DataMatrlx, AZTEC, Hanxin Code, Maxicode, Composit, Etc.
1D:EAN13, EAN8, UPCA UPCE, Code 128, Code 39, Codabar, UCC/EAN128, RSS, ITF,ITF14,ITF6, ISSN, ISBN, Standard 25, Matrix 25,Industrial 25, Plessey, MSI Plesey,Code 11, Code 93,Etc
